VAG MLBevo MQB Chargers

There's a generational difference between the 1-2 phase PHEV chargers, and the newer MLBevo type used on the Audi E-Tron, E-Tron GT & Porsche Taycan

Difference between MLBevo/MQB vs. MEB Chargers

MEB has different AC connector and therefore also different chargeport. Possibly not compatible with all the information here. The E-Tron chargers have several things which make them a bit different, one major being the LIN LED module and Door actuator, as well as only having a Hybrid CAN connection (No Drive CAN).

MLBevo/MQB Chargers Overview

There are many different variants of MQB and MLBevo chargers with a wide range of potential power outputs.

These charges are not recommended if you are looking for a known working solution.

Part Number	Version	Power Rating	Phase	Vehicle Usage	Coolant Connections	Dimensions	Comments	Reverse Engineered	AC-Plug Connector	Communication Plug Connector	Coolant hose connector
5QE915685		3.6kW	Single
5QE915685C	OBCTYPP036G26V01	3.6kW	Single	SEAT/CUPRA Leon/Formentor Hybrid	Bottom
5QE915682		3.6kW	Single
5QE915682AA 5QE915682AF	04S, 13S	3.6kW	Single	VW Golf MK7 GTE Audi A3 8V 2018-2020	Bottom		Case not welded, 2 HV pass throughs
5QE915682AG	07S	3.6kW	Single	Audi A3 8V e-tron	Bottom
5QE915682AK	03S	3.6kW	Single	VW Golf MK7 GTE	Bottom			Yes
5QE915682M	OBC C0	3.6kW	Single	VW Passat Hybrid	Bottom
5QE915681AT	OBC 7200W	7.2kW	Single	Audi Q7 e-tron 4M GTE	Bottom		Case not welded
5QE915681BP	OBCTypP072G30V02	7.2kW	Dual	VW e-Up!, SEAT Mii, SKODA Citigo-e iV, Arriba	Left side		Made by Delta, HV pass through
5QE915681BQ	OBCTypP072G30V03	7.2kW	Dual	Porsche Cayenne Hybrid 2017-2021	Left side
5QE915681CQ	OBCTypP072G30V03	7.2kW	Dual	Audi A8 PHEV 2022	Left side		No HV pass through.
5QE915681B	OBC 7200W	7.2kW	Dual	VW e-Golf 2017-2022	Bottom		Case not welded
5QE915681D	OBC 7200W	7.2kW	Dual	Audi Q5 PHEV 2020-2021	Right side		Case not welded, no HV pass through
5QE915681N	OBC 7200W	7.2kW	Dual	VW e-Crafter	Bottom		Case not welded
5QE915684A		11kW	Three	Audi e-tron	Opposite End of Electrical
5QE915684AD 5QE915684AT 5QE915684J	OBCTYPP110G10V01	11kW	Three	Audi e-tron Audi e-tron Sportback 2019-2021	Opposite End of Electrical	300 x 200 x 100 mm	Made by KOSTAL Taredown can be purchased here
5QE915684AL 5QE915684BG 5QE915684BK 5QE915684CB 5QE915684CR	OBCTYPP110G10V03	11kW	Three	Porsche Taycan Audi e-tron GT	Right Side		Made by KOSTAL Taredown can be purchased here Dual AC inputs		Probably easiest to buy an original CCS port with Loom	60 pin plug Part Number: 5Q0906379 Supersession(s): 3C0906379; 5Q0-906-379	Normaquick NW12 Associated Part Numbers: 3B0122291B, V10 9858, V10-9858, V10-9858-INT, V10.9858, V109858 (unverified)
5QE915684BJ	OBCTYPP110G10V04	11kW	Three	Audi e-tron(?)	Right Side		Made by KOSTAL Taredown can be purchased here		Probably easiest to buy an original CCS port with Loom	60 pin plug Part Number: 5Q0906379 Supersession(s): 3C0906379; 5Q0-906-379	Normaquick NW12 Associated Part Numbers: 3B0122291B, V10 9858, V10-9858, V10-9858-INT, V10.9858, V109858 (unverified)
5QE915684BC 5QE915684CM	OBCTYPP110G10V05	11kW	Three	Audi e-tron	Opposite End of Electrical		Made by KOSTAL Taredown can be purchased here		Probably easiest to buy an original CCS port with Loom	60 pin plug Part Number: 5Q0906379 Supersession(s): 3C0906379; 5Q0-906-379	Normaquick NW12 Associated Part Numbers: 3B0122291B, V10 9858, V10-9858, V10-9858-INT, V10.9858, V109858 (unverified)
9J1915681AD 9J1915681AH	OBC 22kW C3 ROW	22kW	Three	Porsche Taycan 2019	Right Side	498 x 235 x 100 mm	Longer case than other models. Made by Meta System in Italy Taredown available here		Probably easiest to buy an original CCS port with Loom	60 pin plug Part Number: 5Q0906379 Supersession(s): 3C0906379; 5Q0-906-379	Normaquick NW12 Associated Part Numbers: 3B0122291B, V10 9858, V10-9858, V10-9858-INT, V10.9858, V109858 (unverified)
1EA915684AD 1EA915684AF 1EA915684BF 1EA915684BG	OBCTYPP110G040V04K	11kW	Three	Audi Q4 e-tron 2021 Skoda Enyaq 2020 VW ID.3 2020 VW ID.4 2021	AC input end	480 x 313 x 102 mm	Flatter and thinner than most other chargers on this list. Coolant inlets and outlets are plastic, be careful of broken plastic. Those are linkly not comptaible with all the information in the wiki. Made by KOSTAL Taredown can be purchased here		Not the same as MLBevo

LV Connection

Development thread: https://openinverter.org/forum/viewtopic.php?t=2607

Github Documentation: https://github.com/damienmaguire/VW-OnBoard-Charger

VW part number 5Q0906379. The 60 pin signal connector is TE part number 2208272-1 .Pins are two sizes of TE pins 5-968221-1 and 1241608-6. Can be found also on Aliexpress as 60 Pin ECU connector.

Pinouts of 60 Pin Connector

	VW Golf PHEV		Seat Mii / VW e-Golf		MLBevo (Audi Etron)
Pin	Function	Comment	Function	Comment	Function	Comment
1	Terminal 30 (permanent 12V)		Terminal 30		Terminal 30	confirmed
2					Charging Cover Lock (+) - Socket A
3					Switch/LED Common - Socket A	confirmed / Sensor Ground / Both pin 3 and 45 can be tied together
4	Charge Port RGB LED +12v o/p				LED - Red - Socket A
5	Charge Port RGB LED +12v o/p				LED - Green - Socket A
6					LED - Blue - Socket A
7					Illumination LED - Socket A
8
9	Powertrain CAN bus, high		Powertrain CAN bus, high		CAN H - Bus #1	confirmed
10	Powertrain CAN bus, low		Powertrain CAN bus, low		CAN L - Bus #1	confirmed
11	Hybrid CAN bus, high		Hybrid CAN bus, high		CAN H - Bus #2
12	Hybrid CAN bus, low		Hybrid CAN bus, low		CAN L - Bus #2
13	HVIL IN		HVIL IN		Pilot Line In
14					LIN Comms
15	HVIL OUT		HVIL OUT		Pilot Line Out
16	Lock drive +. Drive to 12v to close lock.	The lock can be coded off with ODIS			Plug Lock (+) - Socket A
17	Lock Drive – Drive to 12v to open lock				Plug Lock (-) - Socket A
18	Lock feedback. 1K fully locked ,11K Plug Locked, 1K overtravel				Plug Lock Position - Socket A
19	Lock feedback. 1K fully locked ,11K Plug Locked, 1K overtravel				Plug Lock Ground - Socket A
20
21	Immediate charge buttons				Function LED #1
22	Charge Port RGB LED +12v o/p
23	Control Pilot (CP)				CP - Socket A
24	Plug Present (PP) (4.7K to ground in socket)				PP/CS - Socket A
25	Immediate charge buttons				Charge Button - Socket A
26					Search Light (Shared - Possible LED4 in config)
27	Temperature sender for charging socket. 1067R at approx 15C				AC Charge Port Temperature Sensor (-) - Socket A
28	Temperature sender for charging socket. 1067R at approx 15C				AC Charge Port Temperature Sensor (+) - Socket A
29					Charging Cover Position Switch - Socket A
30					AC Charge Port Temperature Sensor (+) - Socket B	confirmed
31	Charge port door lock actuator	The flap can be coded off with ODIS			Charging Cover Lock (+) - Socket B
32	Charge port door lock actuator				Charging Cover Lock (-) - Socket B
33	Charge port door lock actuator				Charging Cover Position Switch - Socket B	confirmed / Other side tied to sensor ground pins 3/45
34	Charge port door lock actuator
35					Switch/LED Common - Socket B	confirmed
36					LED - Red - Socket B	confirmed
37					LED - Green - Socket B	confirmed
38					LED - Blue - Socket B	confirmed
39					Illumination LED - Socket B	confirmed / Other side tied to ground pin* (Debating if this should be tied to the 3/45 pins)
40					CP - Socket B	confirmed
41					PP/CS - Socket B	confirmed
42
43
44
45					Switch/LED Common - Socket B	confirmed / Both pin 3 and 45 can be tied together
46					Plug Lock (+) - Socket B	confirmed
47					Plug Lock (-) - Socket B	confirmed
48					Plug Lock Position - Socket B	confirmed / Resistive 1k/11k unlocked/locked) *Other side tied to sensor ground pins 3/45*
49					DC Charge Port Temperature Sensor (+) - Socket B	confirmed
50					Charging Cover Lock (-) - Socket A
51	Immediate charge buttons				Charge Button - Socket B	confirmed / Other side tied to sensor ground pins 3/45
52					DC Charge Port Temperature Sensor (-) - Socket B	confirmed
53					Chademo CAN-H
54					Chademo CAN-L
55					Chademo
56					Chademo
57
58
59
60	Terminal 31 (Ground)		Terminal 31			confirmed

AC Connection

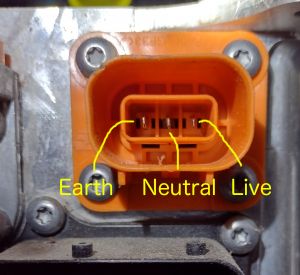

Golf GTE and all 5QE915682 series 3.6 kW chargers - Part number TE Connectivity 2103177-2

MLBevo

TE YHVA630-5phm-6mm-A and HV output coding A is 2141256-1

HV Connection

It doesnt care what you connect to the HV wires. 360v, 12v, heating element, dead short. Its mission in life is pumping current. It just dumps out voltage even when it does not see any voltage present.

Coding

MLBevo chargers seem to all use the EV_OBC3Phase1KLOMLBev16B config/odx. 20103 for the security code.

LIN Devices still show up within the DTC Memory, However no functional issues with them disconnected as long as the coding has them coded out. Similar errors exist for the door and other coded out options. Assumption is that the base software still has the DTC codes enabled for faults, however the selection is universal for the base charger option. (much like how most times you can code out a O2 sensor, but the DTC code will remain unless digging deeper into the ECU programming)

VCDS

You can open in the VCDS LCode.exe program (no purchase needed) and it's a interactive way to determine the coding value required. Coding label file available here. Shouldn't be necessary for newer versions of VCDS. Working with a Hex_V2 Cable.

Bitfield 0	Bitfield 1	Bitfield 2	Bitfield 3
CP standard - SAE/ vehicle category - Electric Vehicle / Hybrid 20kW charger AC charging socket B AC charging socket A PLC charging socket B PLC charging socket A DC Charging - Chademo	Country encoding (NAR/ HV activation auxiliary contactor Charging socket resistor B Charging socket resistor A AWC installed - Wireless charging Number of AC chargers (One/Two)	Mobile Online Services (MOD) Sub-Grid operation Charging cover lock (charging socket B) Charging cover lock (charging socket A) HV activation DC charging read back Maximum charging current (63A)	Charging cover lock detection (charging socket B) Charging cover lock detection (charging socket A) Plug lock DC charging socket iWWT - Integrated water heat exchanger? Type of connector lock detection - Limit Switch Plug lock (charging socket A) Brand/Marque (VW/Audi/Porsche)
Bitfield 4	Bitfield 5	Bitfield 6	Bitfield 7
Plug and Charge (PnC) Power Line Communication Settings Clear error memory HV charge booster (400v->800v) Charging button module Second charging button Local HV interlock stimulus line installed	Variant coding 11 kW (reserve) Parking Heater Kessy Diagnostic resistor loading button LED 4 (DC/Combo) LEDs DC/Combo LED 4 (AC)	DC China socket installed Installed DC combo box Intelligent charging socket installed (LIN socket) Installation status of DC charging socket B Installation status of DC charging socket A Two charger can B Charging button module socket B Diagnosis resistance charging button socket B	Installation location DC charging socket

ODIS

ODIS Engineering is a common tool that works with some of the simpler dongles e.g. a VAS6154 cable

CAN-Messages

MLBevo TX Messages:

The CAN signals for MLBevo appear to be totally different than those for the rest of the charger line.

Required:

• BMS_01 - 0x191

• BMS_02 - 0x1A1

• BMS_03 - 0x39D

• BMS_04 - 0x5A2

• BMS_06 - 0x59E

• BMS_07 - 0x5CA

• BMS_09 - 0x96A955EB

• BMS_10 - 0x509

• BMS_11 - 0x96A954A6

• BMS_16 - 0x9A555539 - Just contains IDs for cells with low/high charge or temps

• BMS_27 - 0x9A555552

• BMS_DC_01 - 0x578 - Contains the HV DC Voltage for CCS

• ESP_15 - 0x1A2 - Holding Management System info

• Klemmen_Status_01 - 0x3C0 - Key status Run/Start, etc...

• DCDC_01 - 0x2AE - 12V DC converter - Just values related to electrical load

• HVK_01 - 0x503 - Items related to HV Contactor & JB

• HVEM_02 - 0x5AC - Useable Energy for Comfort Functions

• HVEM_05 - 0x552 - Fun items relating to Max Voltage and Plug Release

Signals I'm sending In addition:

• Airbag_01 - 0x40 - Monitors HV Deactivate status

• BCM1_04 - 0x64F - BCM Charge Status indication - Likely just confirmation feedback

• DCDC_03 - 0x5CD - 400v to 800v converter - Likely not required

• EM1_HYB_11 - 0x37C - Signal for E-Motor Status - Can be 0 for standby

• FCU_02 - 0x17B - Contains Tank Flap Release & Signal which may go High to signal ready for charging (EPB, Drive System Disabled)

• NavData_02 - 0x485- This along with Authentic_Time_01 contain a 32-bit epoch unix time, used for the charge time calculation.

• VIN_01 - 0x6B4 - Mux'd VIN# - Likely not required or just mimic the Donor Vin?

• ZV_01 - 0x184 - Signal to unlock via ZT - Maybe will unlock charge plug

• ZV_02 - 0x583 - Lock status, likely not required

Signals I haven't added:

• Dimmung_01 - 0x5F0

• Einheiten_01 - 0x643

• ESP_49 - 0x96A954AE - Contains Value for Regen reserve, Guessing that ESP will average typical SOC% to reserve to allow regen - Likely not required

• NVEM_02 - 0x663 - Contains Battery Voltage from Battery Data Module

• MSG_HYB_30 - 0x153 - Only seems to use the Counter & Checksum?

Narrowed down to:

10ms:

0x191

100ms:

0x3C0

0x503

0x1A1

MQB TX Messages:

Golf Phev charger from a CAN perspective are a total of 7 messages. One on PT CAN : 0x187 and 6 on Hybrid CAN : 0x097 , 0x124 , 0x3a6 , 0x3af , 0x6a3 and 0x6a4.

Reference Implementations:

Charger	Code	References	Status	Comment
Audi E-Tron Charger (11kW)			Proved working	Mitchy
7.2kW Cayenne Phev charger 5QE 915 681 BQ	Arduino, ZombieVCU		Proved working	LRBen
2021 Seat Mii part number : 5QE915681BP Golf PHEV part number : 5QE915682AK	Arduino		Proved Working	Damien
