File:Tesla Model S Rear HVJB 17b.png

Size of this preview: 600 × 600 pixels. Other resolution: 1,354 × 1,354 pixels.

Original file (1,354 × 1,354 pixels, file size: 1,011 KB, MIME type: image/png)

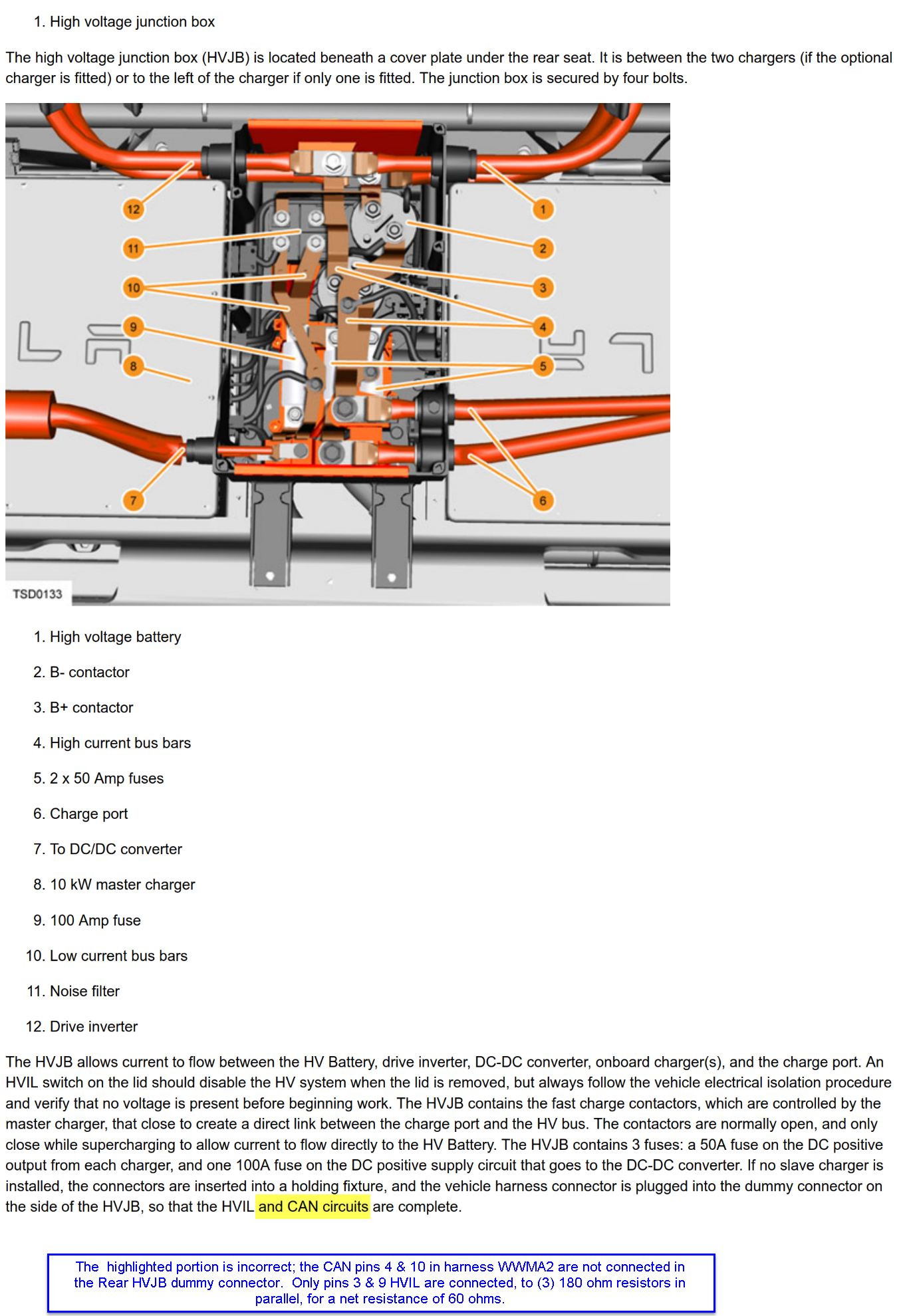

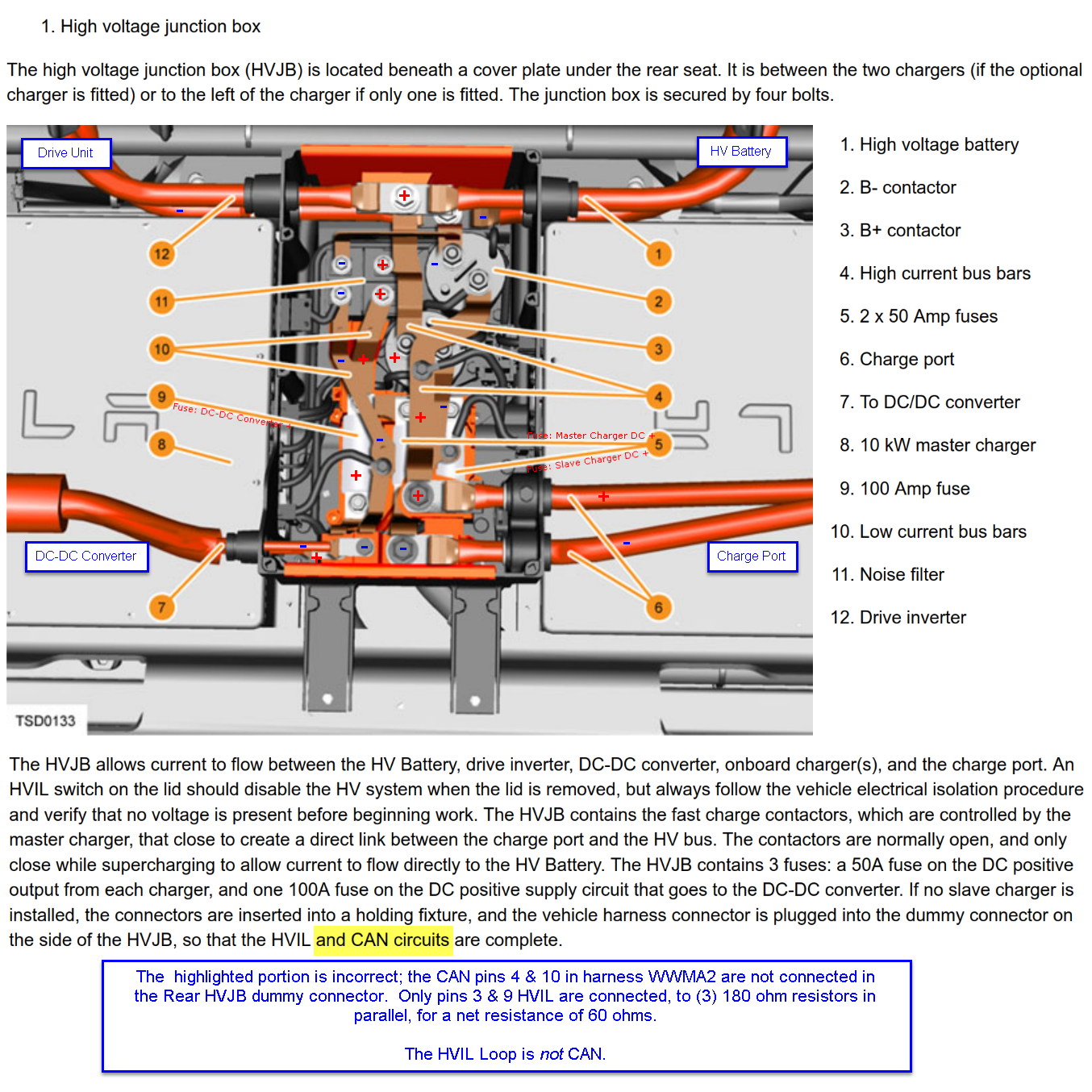

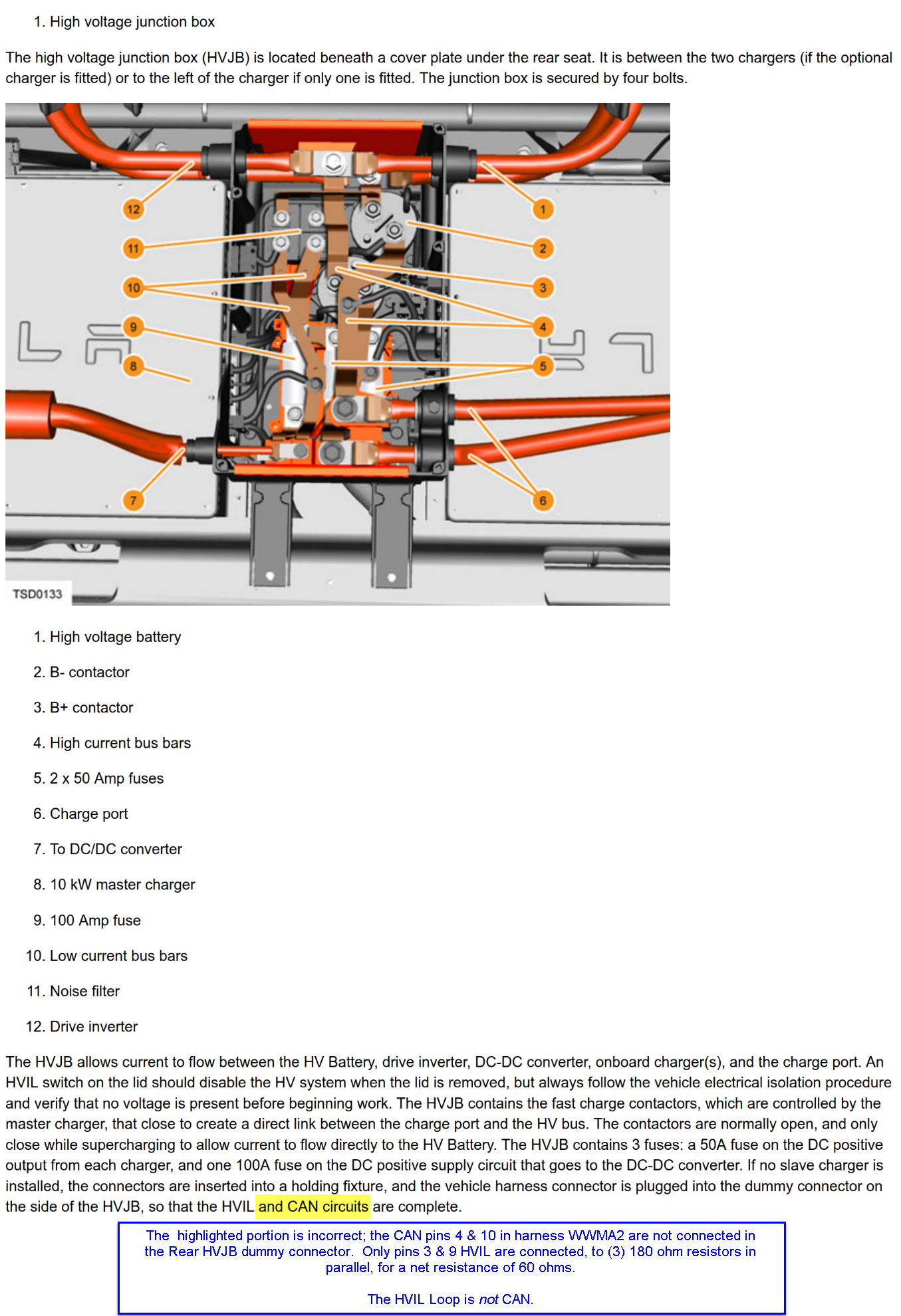

Tesla Model S GEN1 Rear HVJB component details, from Tesla Service Manual, "Theory of Operation" section.
