File:Tesla Model S Rear HVJB 04b.jpg
Jump to navigation
Jump to search
Size of this preview: 800 × 600 pixels. Other resolution: 1,600 × 1,200 pixels.
Original file (1,600 × 1,200 pixels, file size: 275 KB, MIME type: image/jpeg)

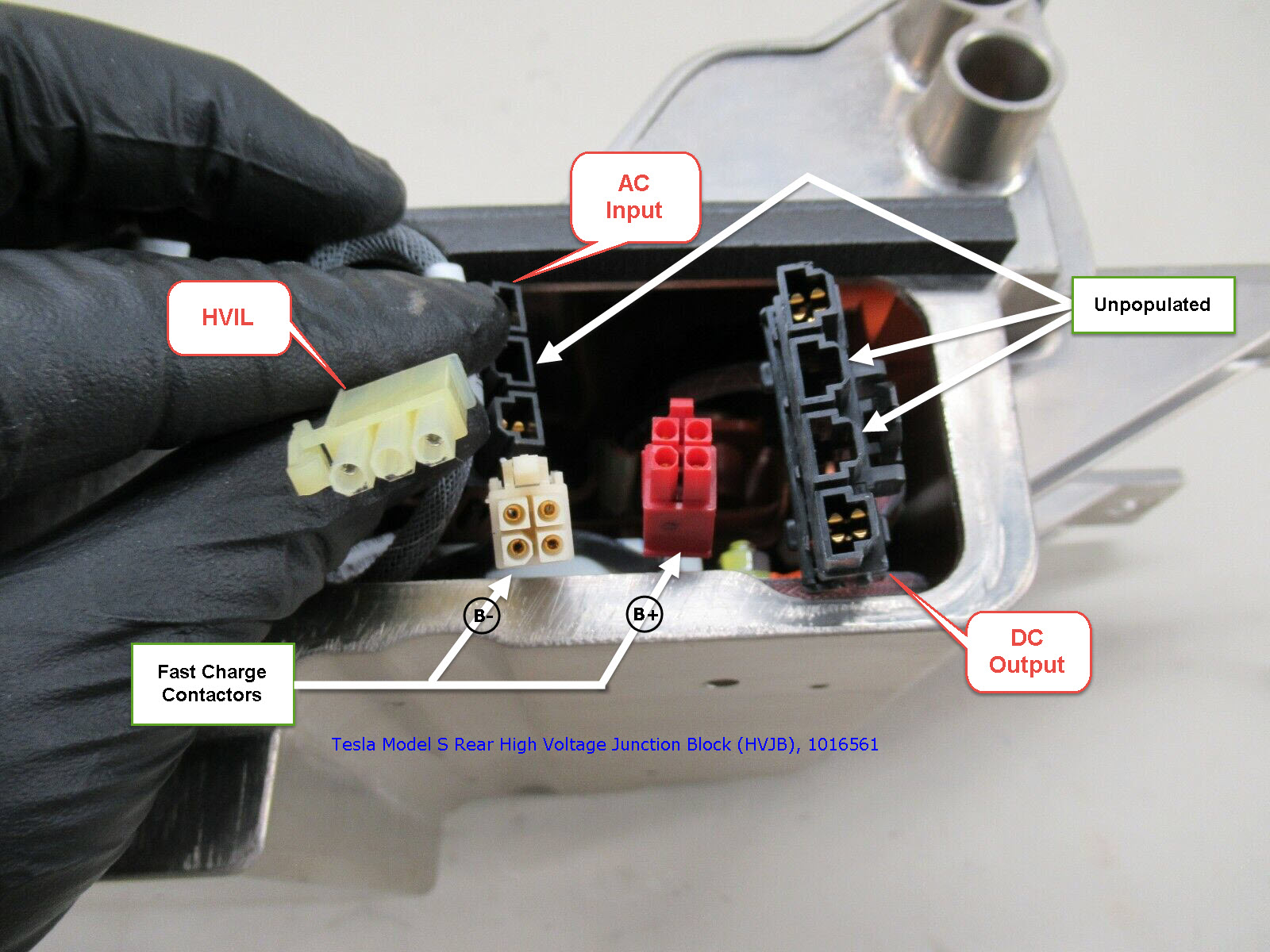

Tesla Model S Rear HVJB: Single/Master OBC interface connectors. All (5) of these are in use for the Single/Master OBC; only the AC and DC connectors are in use for a Second/Slave OBC (no HVIL or Fast Charge Connectors are used for the Second/Slave OBC).
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 16:23, 24 March 2023 | | 1,600 × 1,200 (275 KB) | Asavage (talk | contribs) | Added Fast Charge contactors connectors' HV polarity (B+, B-), matching "Theory of Operation" documentation. |
| 03:08, 24 March 2023 |  | 1,600 × 1,200 (273 KB) | Asavage (talk | contribs) |
