File:SB-10052449-4313 HVIL Diagnostic Guide 01-1b.png

Size of this preview: 800 × 390 pixels. Other resolution: 3,457 × 1,686 pixels.

Original file (3,457 × 1,686 pixels, file size: 658 KB, MIME type: image/png)

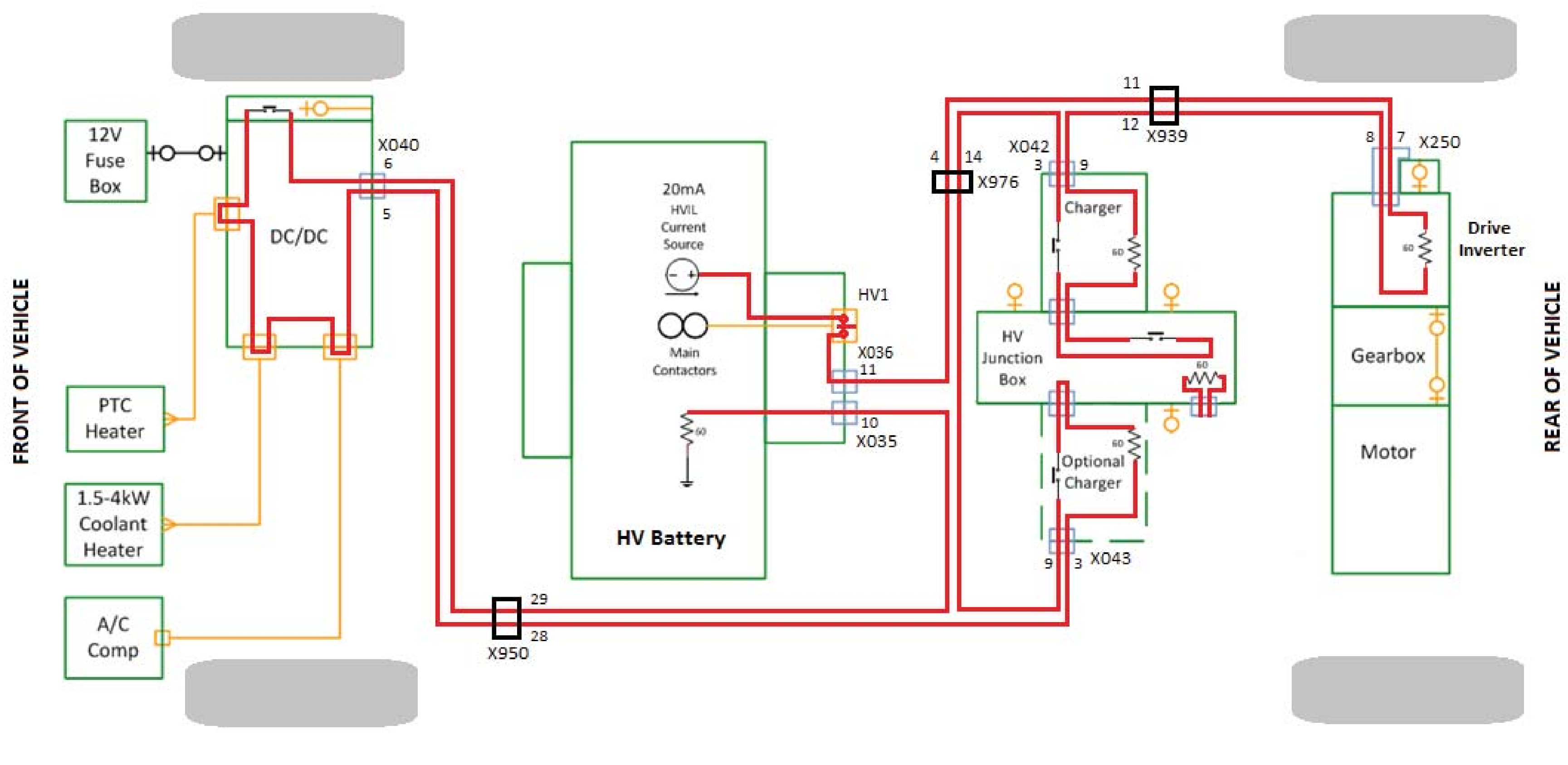

Tesla Model S GEN1 HVIL circuit overview, from Tesla Service Bulletin SB-10052449-4313, pg. 1.
