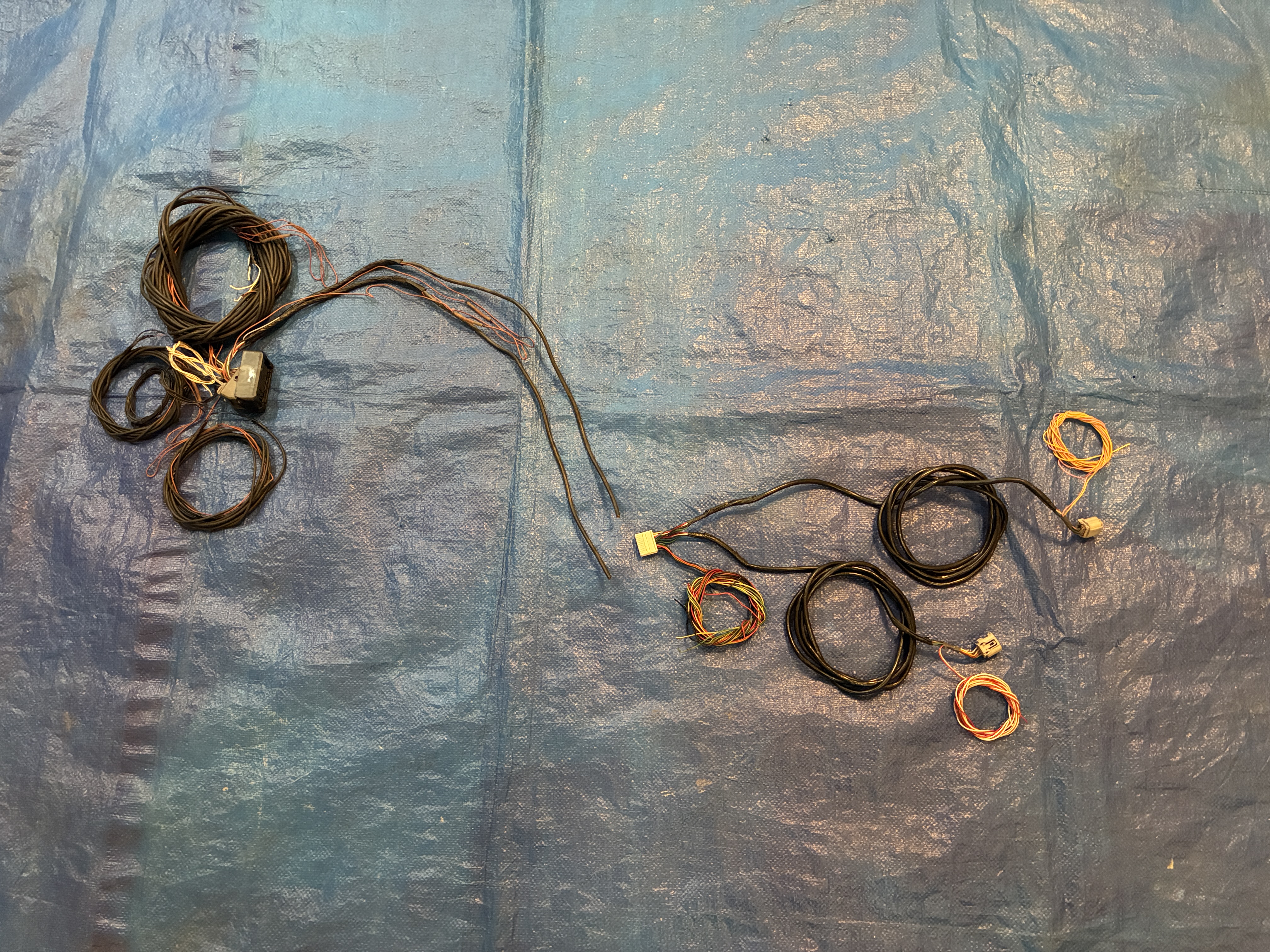

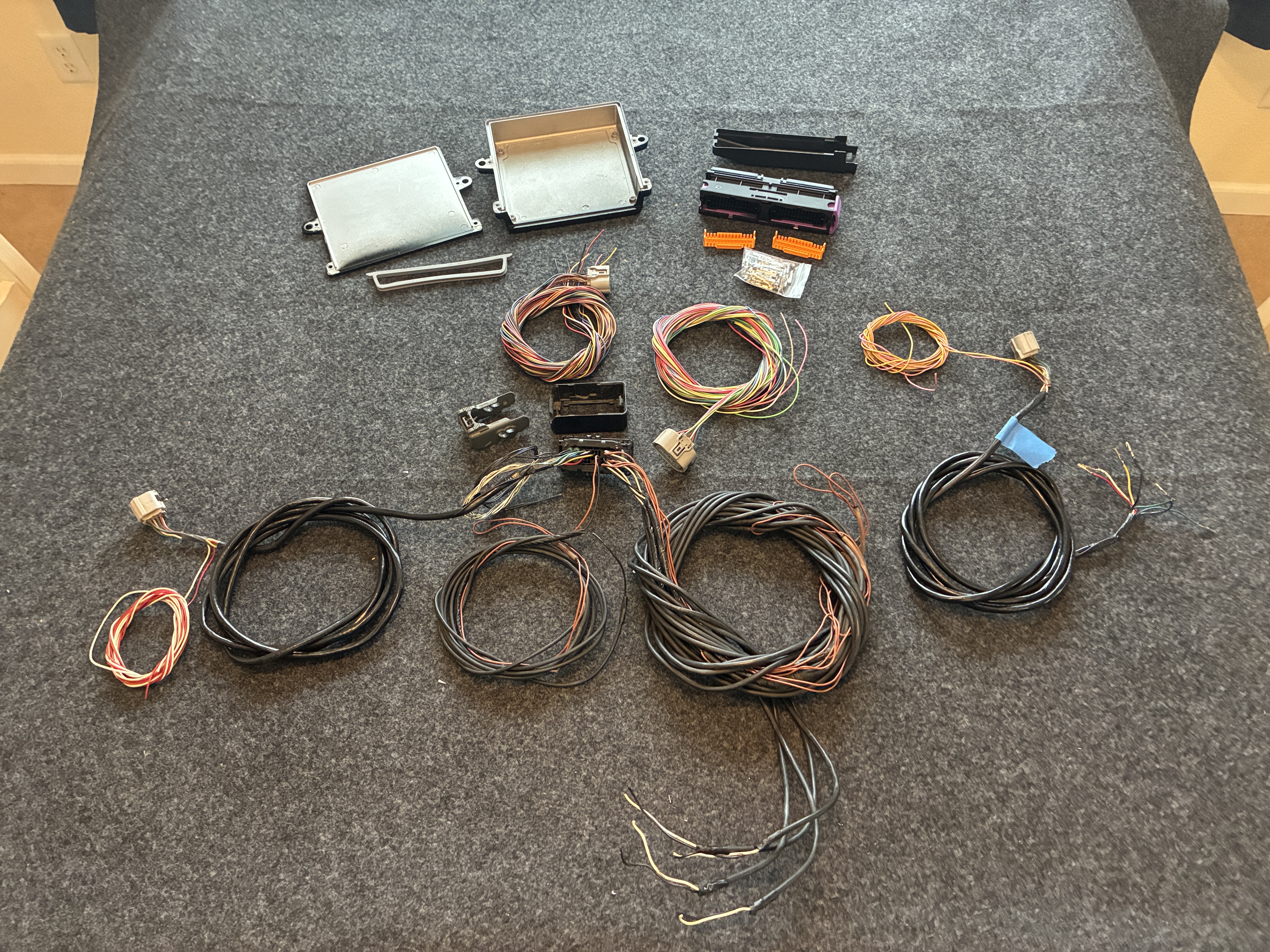

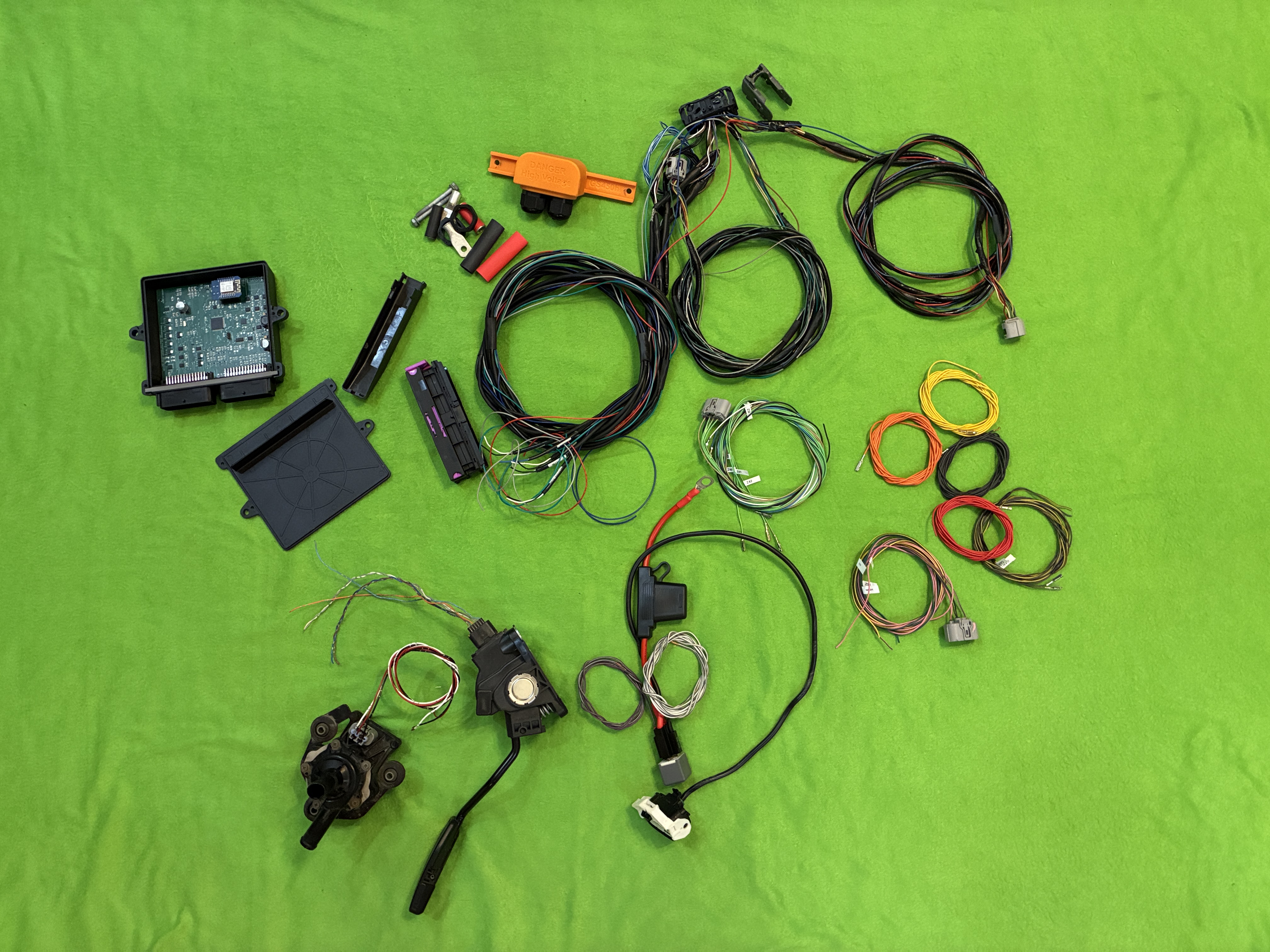

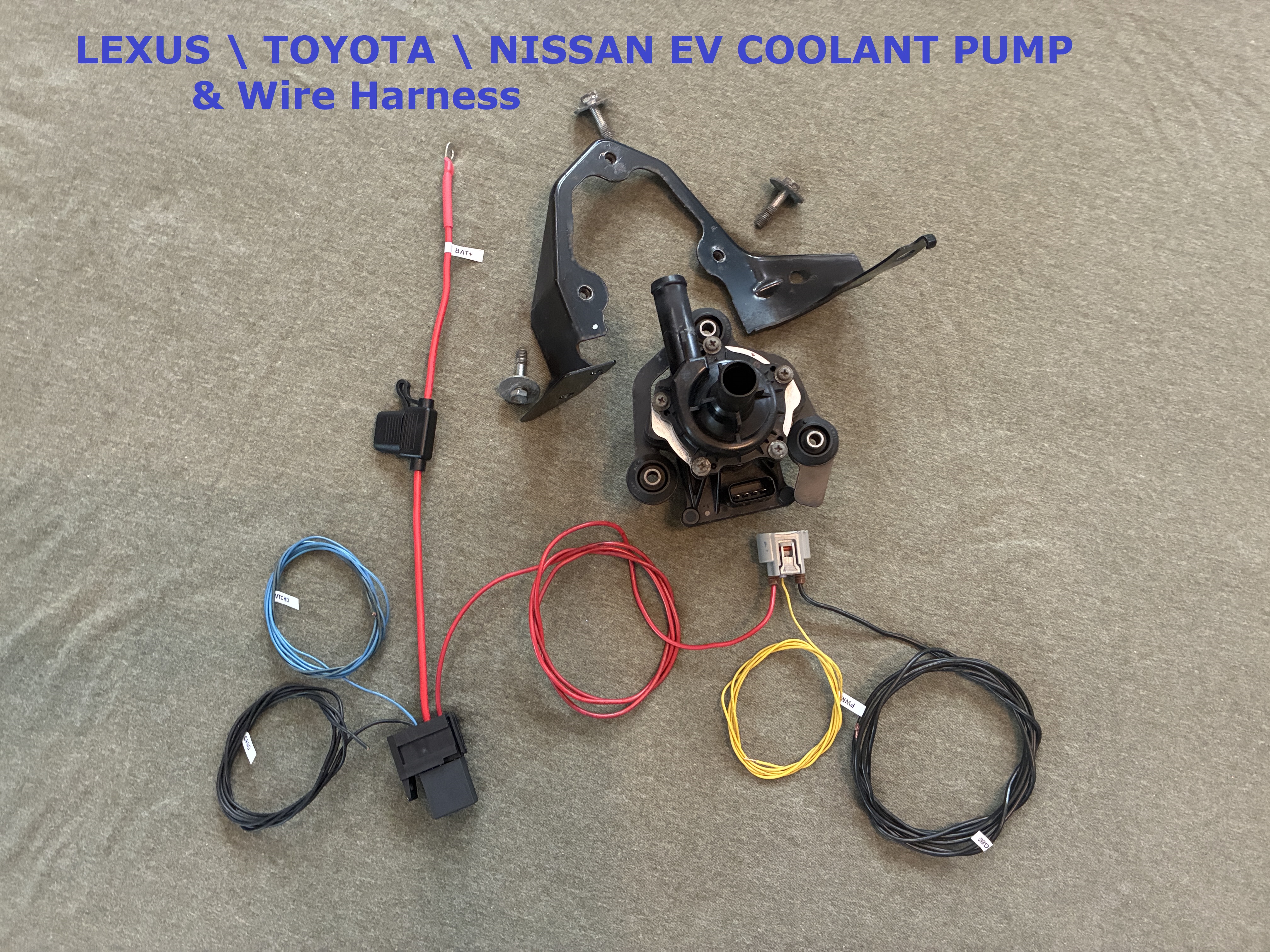

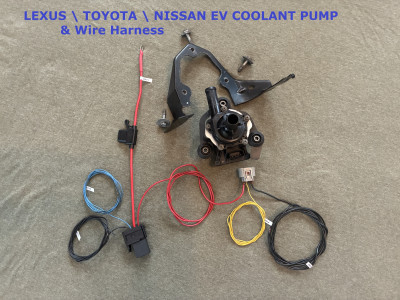

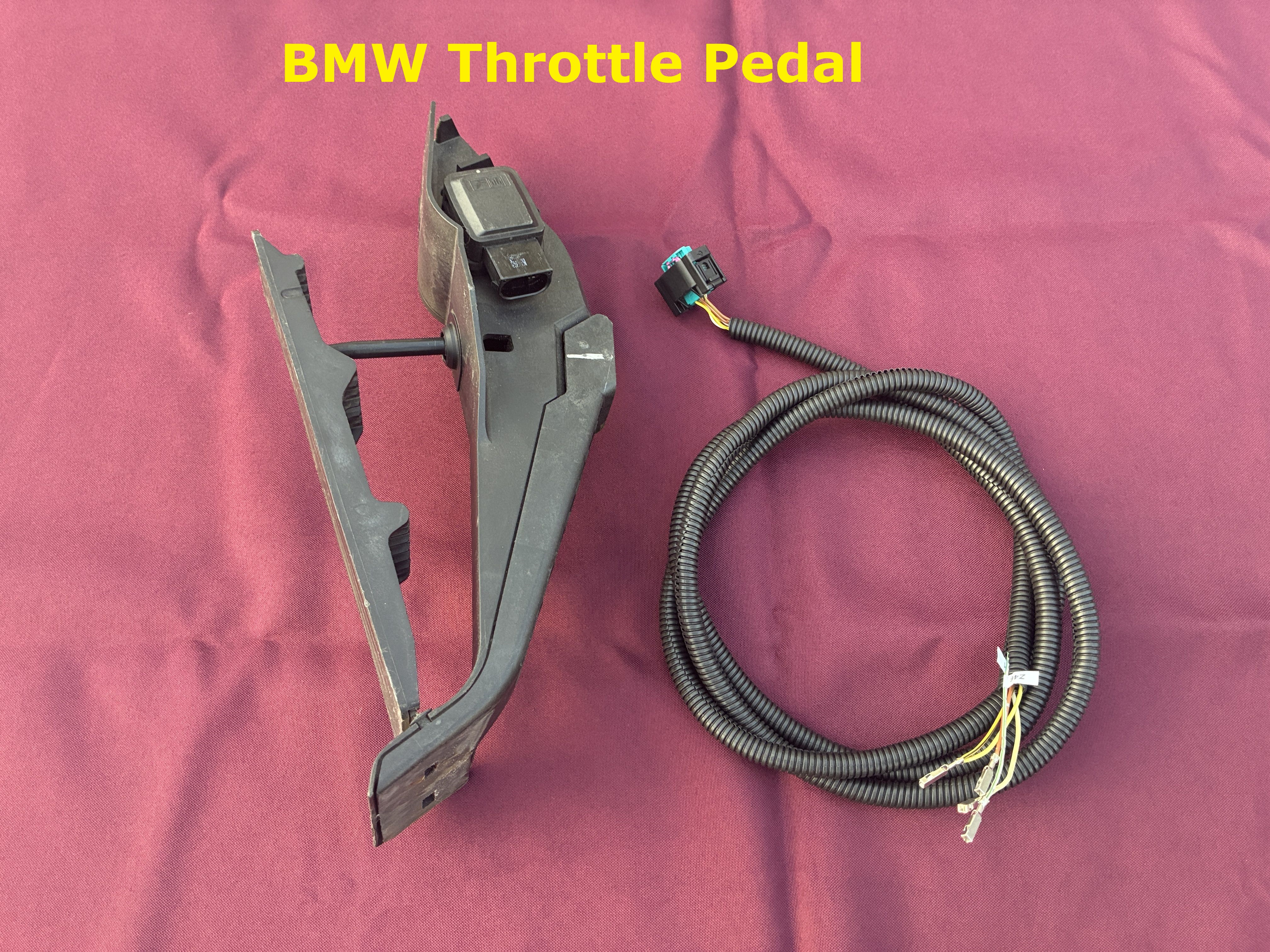

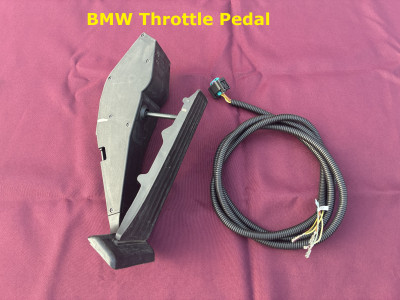

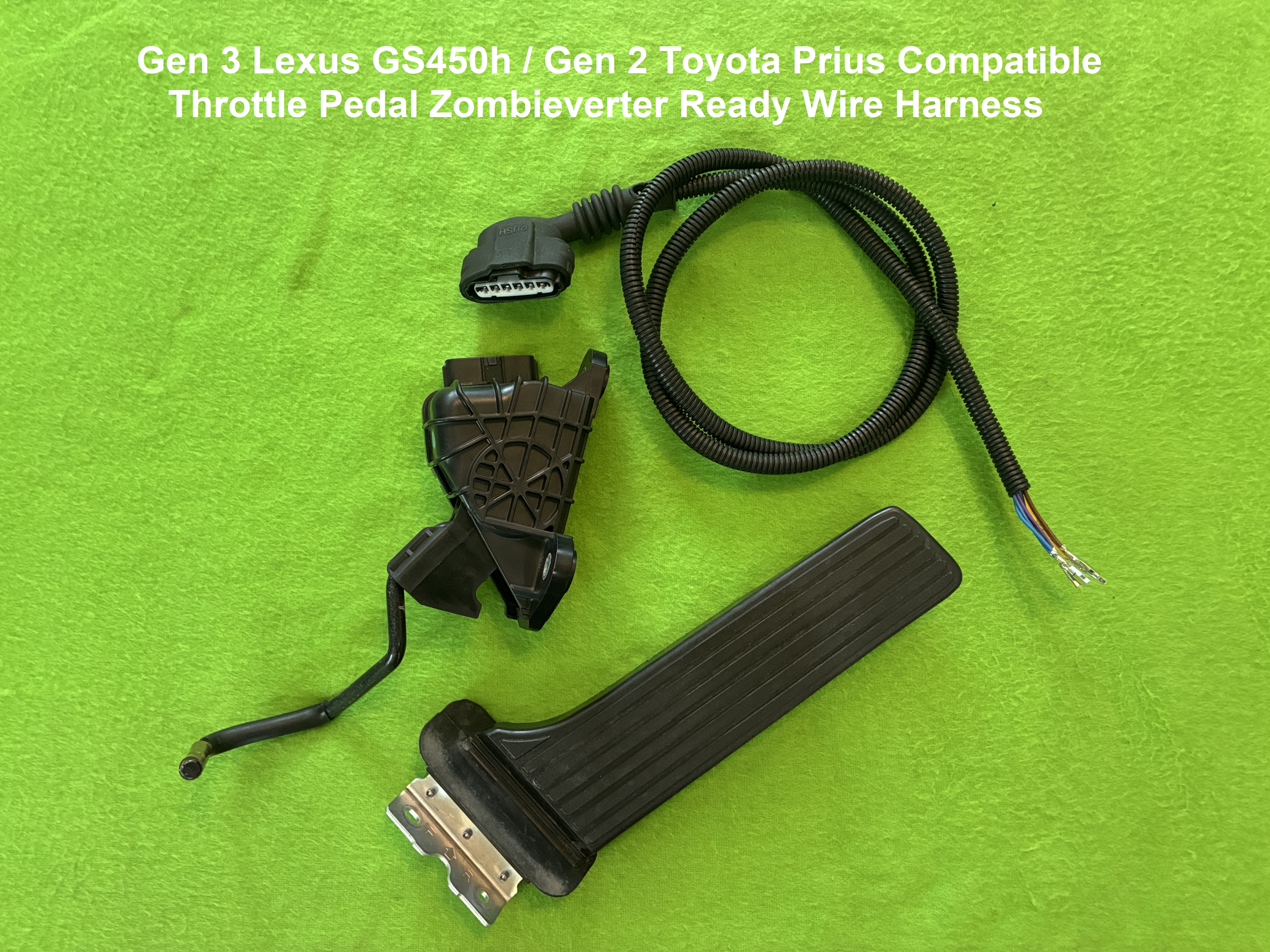

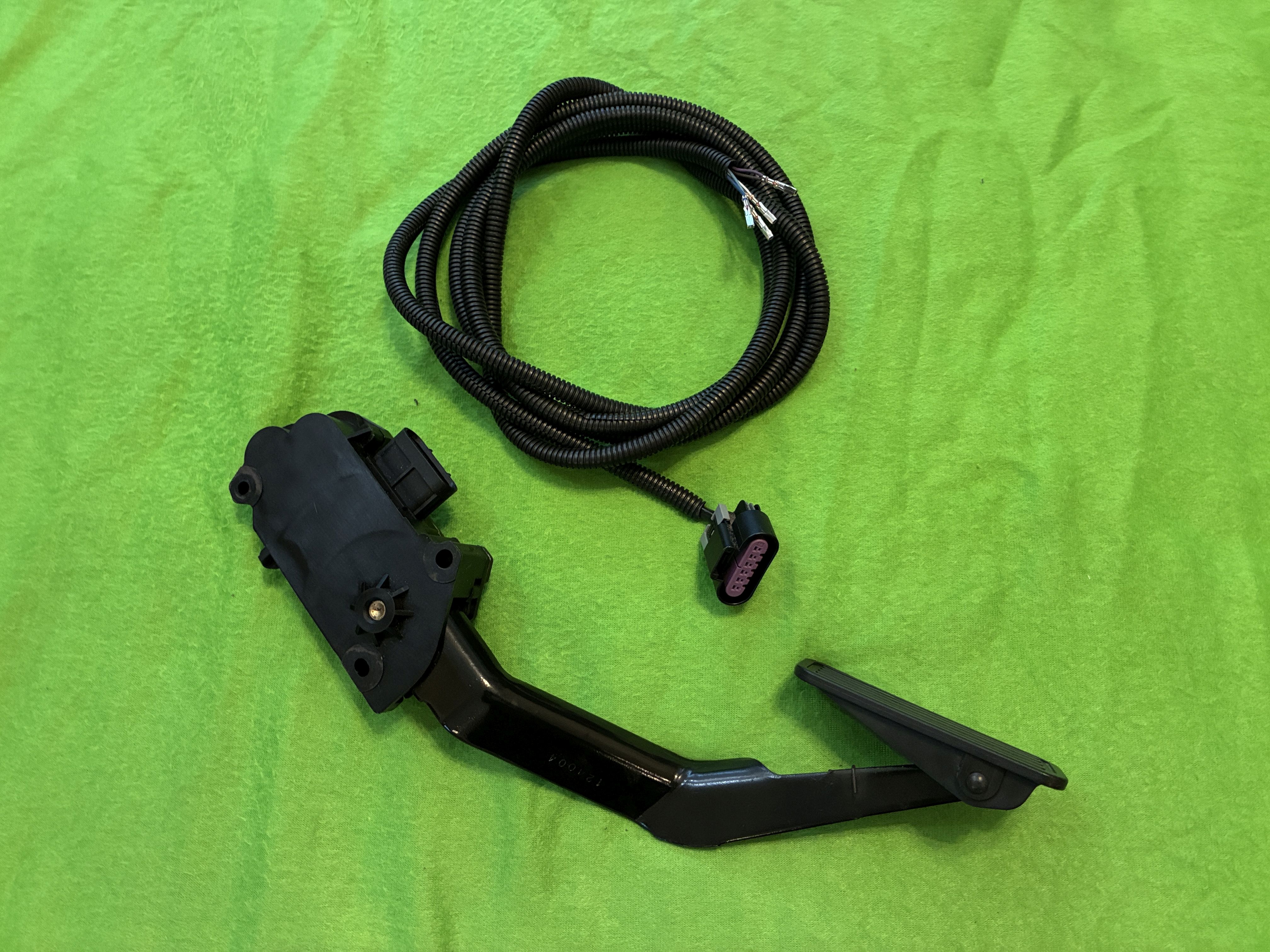

here I am thinning out a Lexus GS450h wire harness a customer sent me, this will eventually turn into a Kit for the Zombie VCU

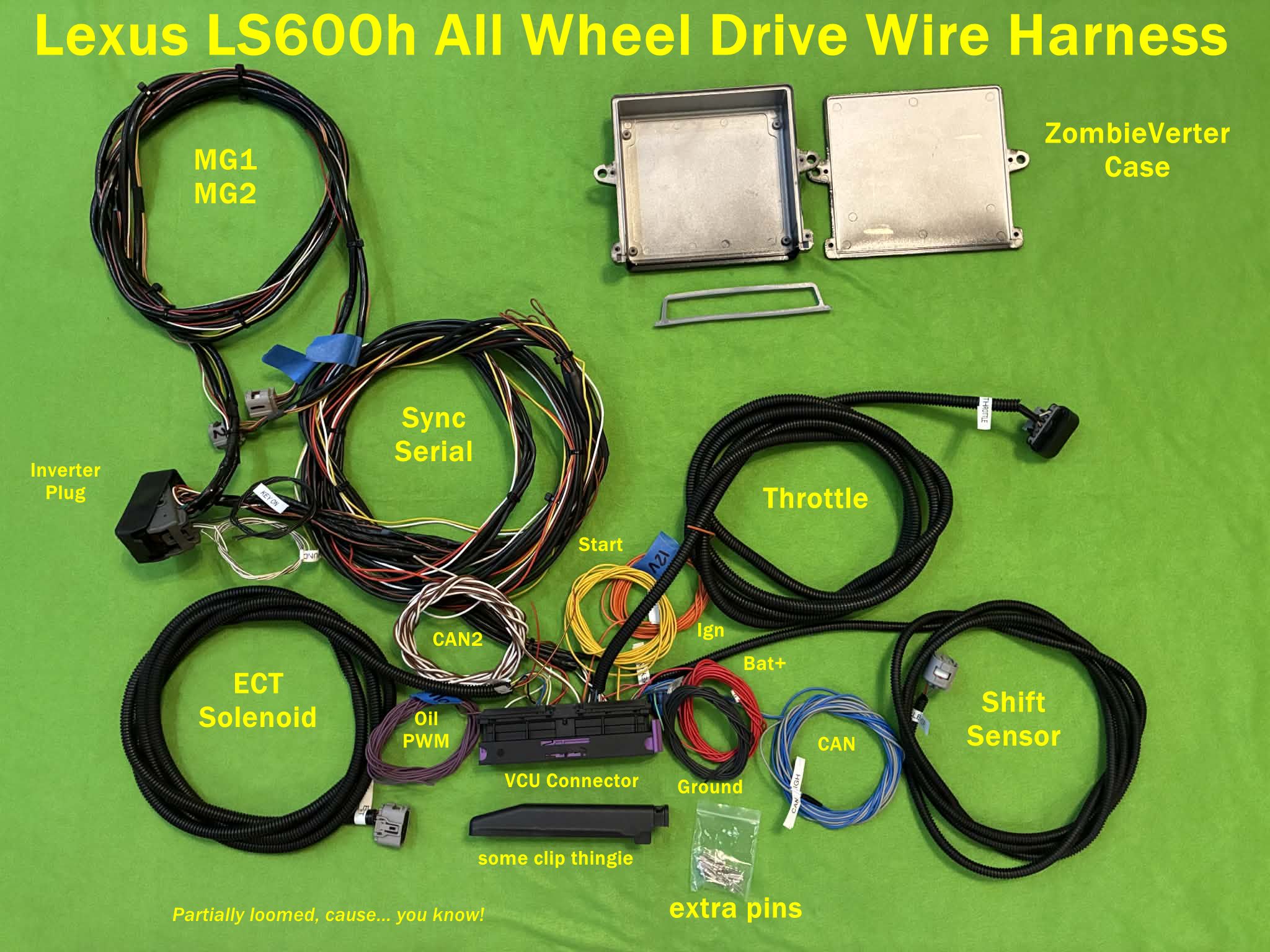

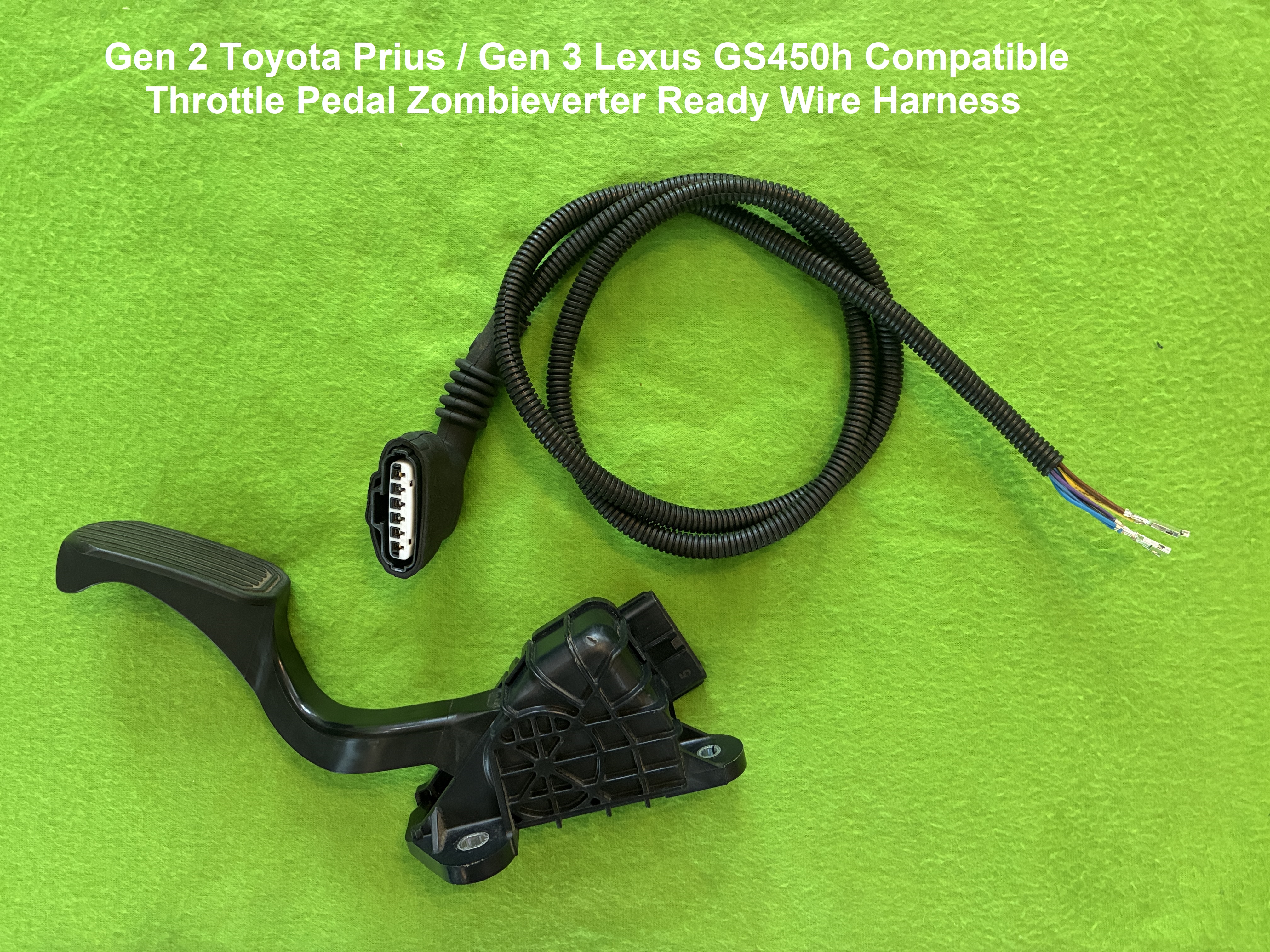

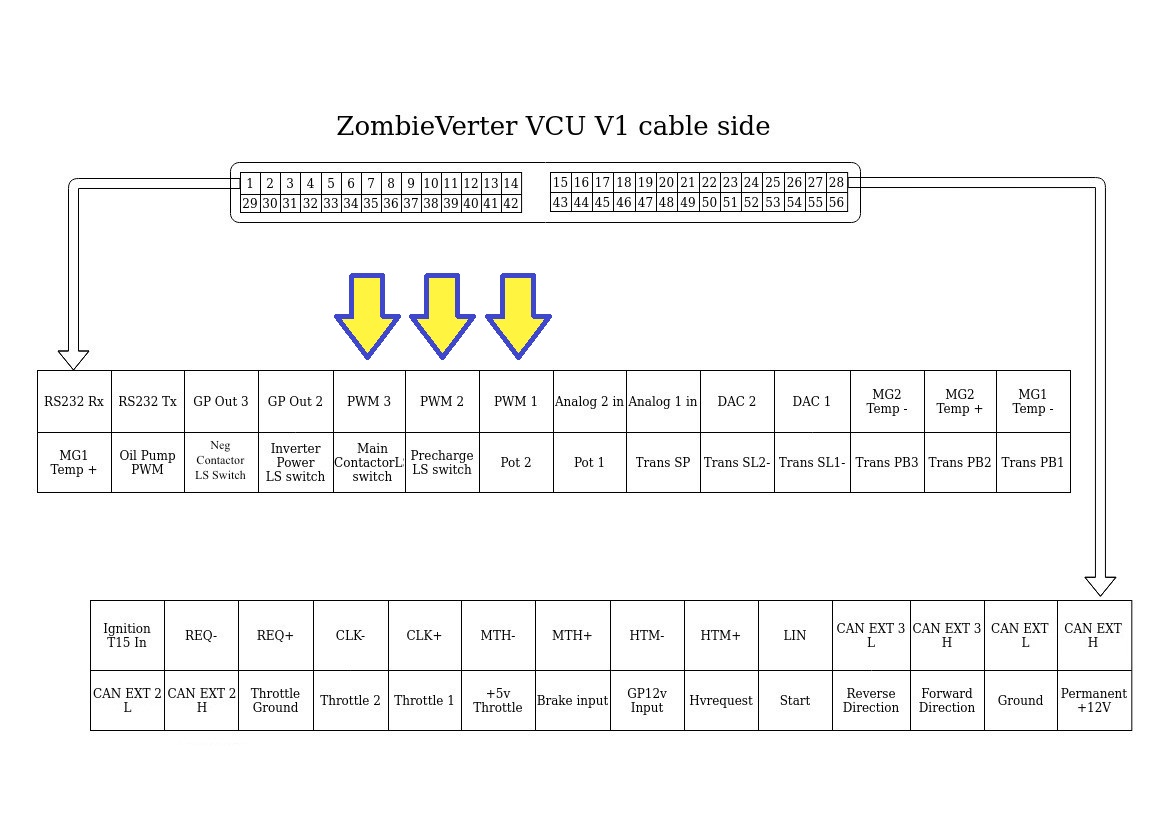

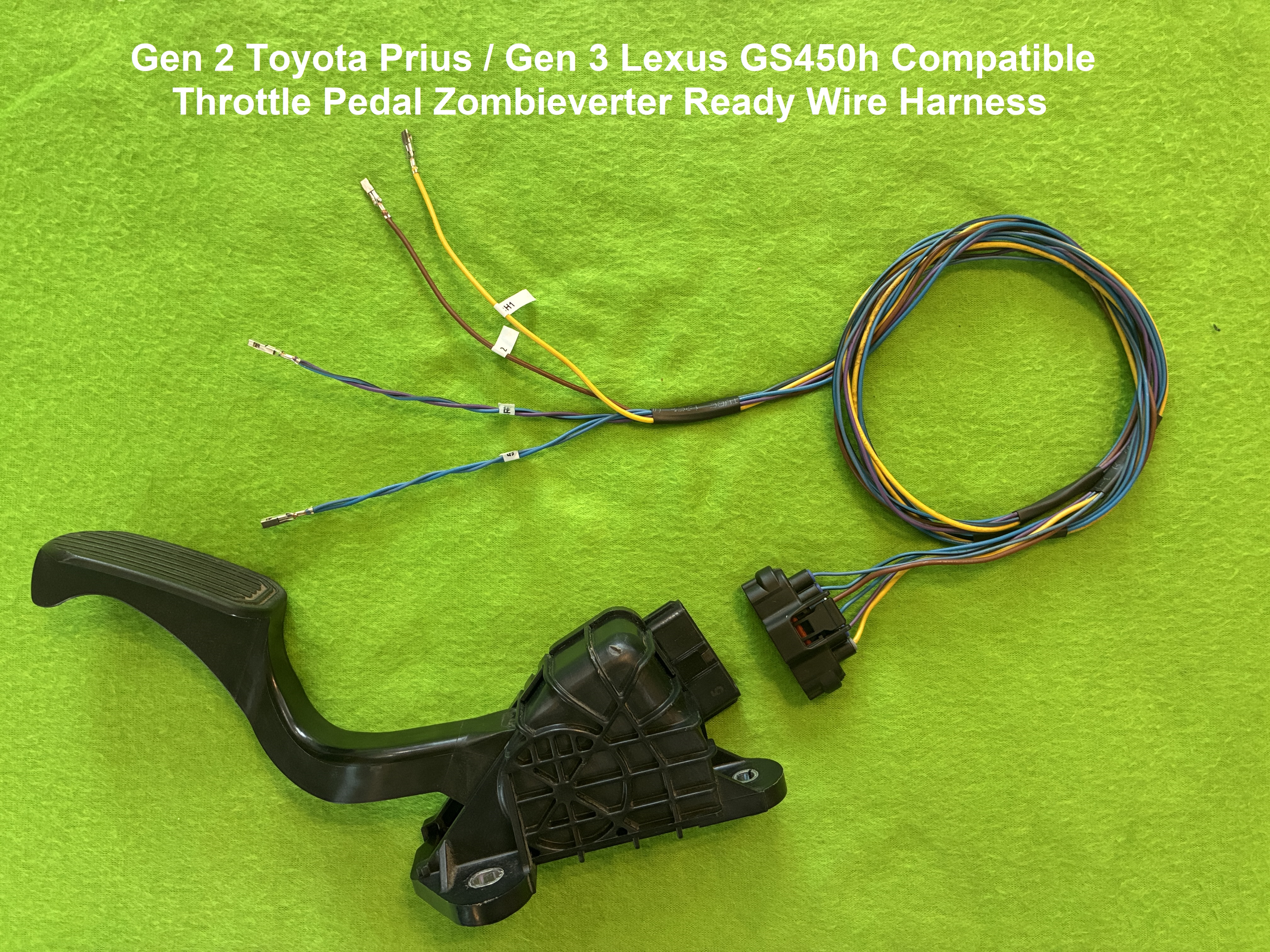

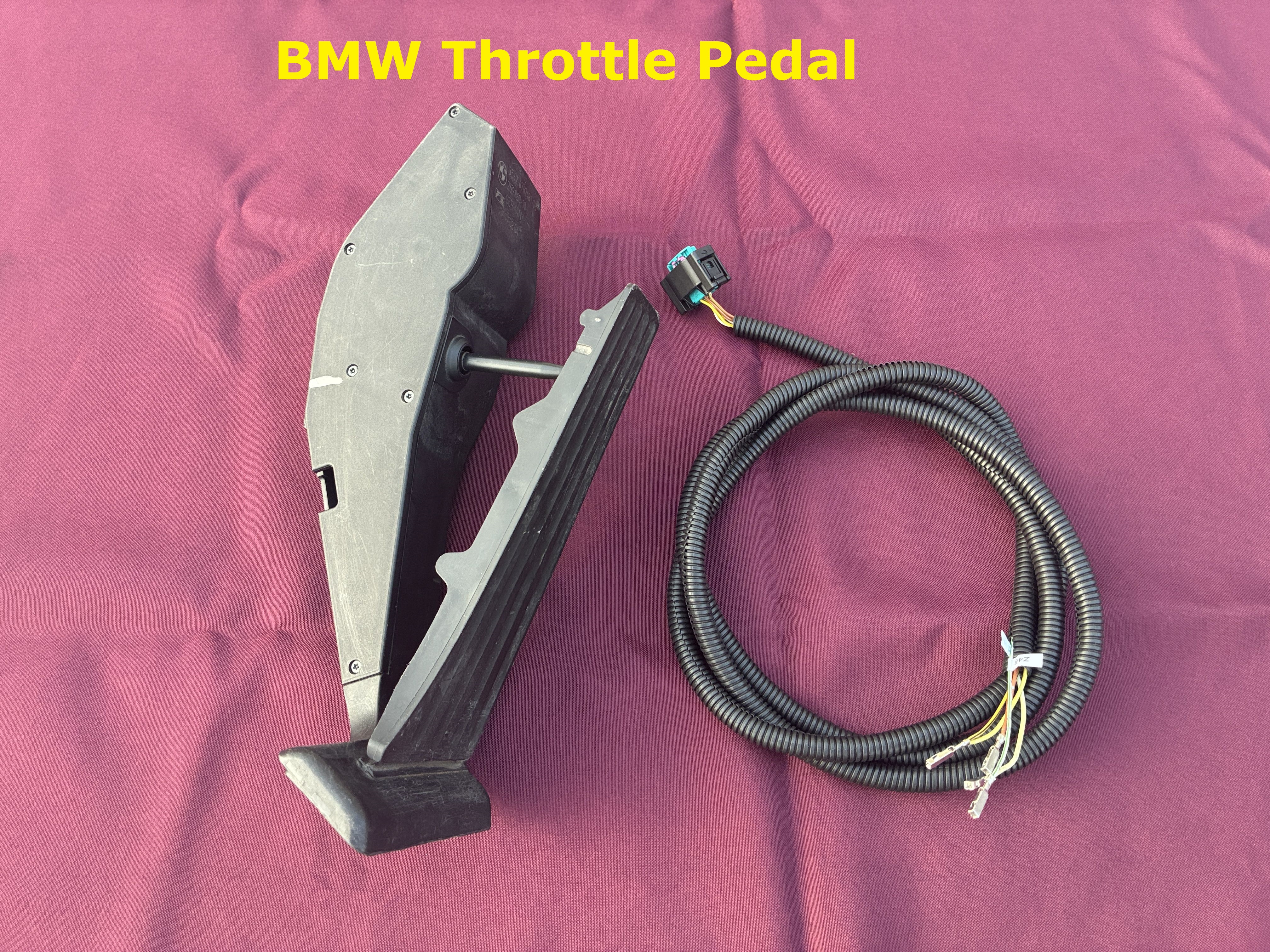

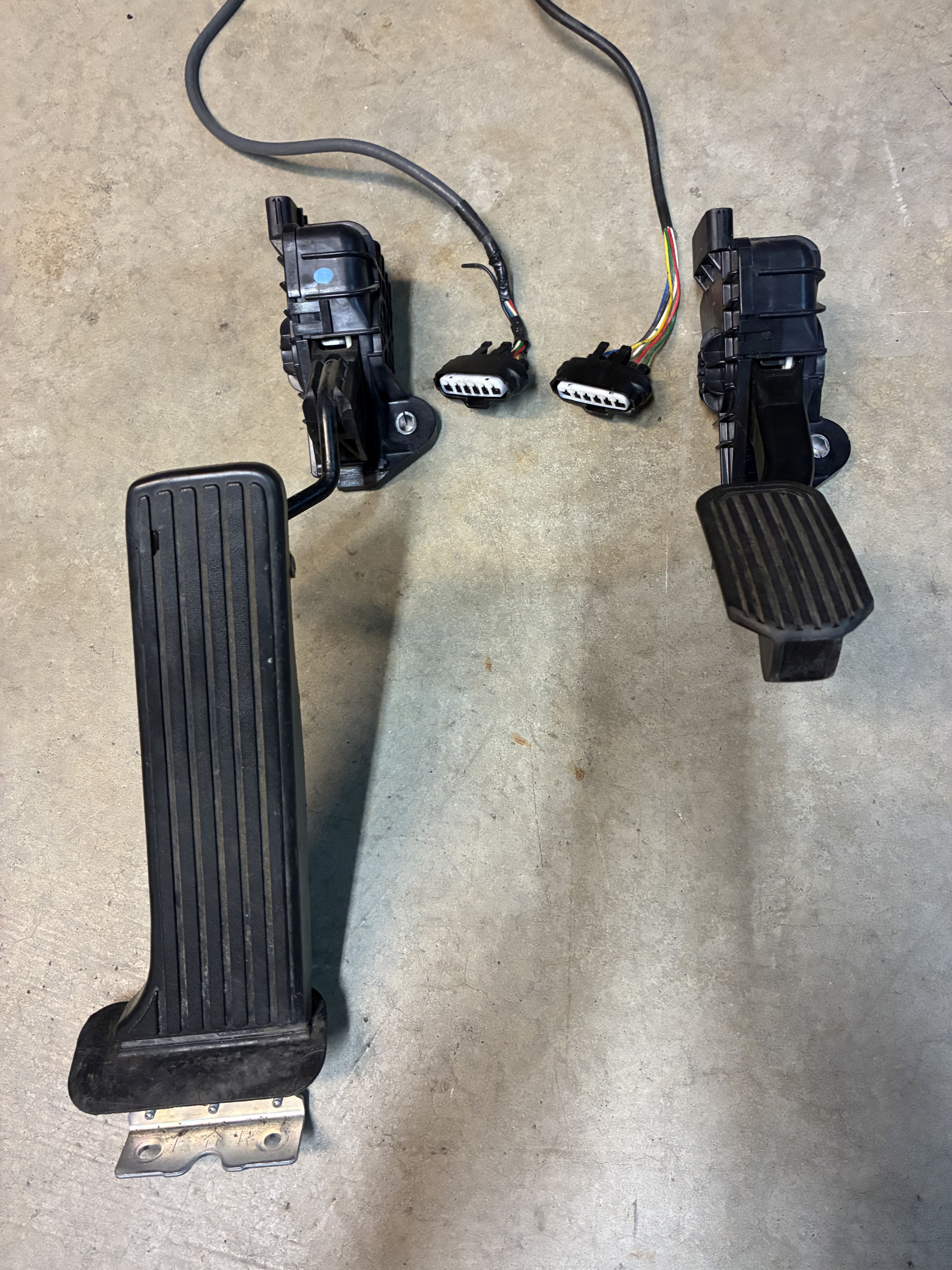

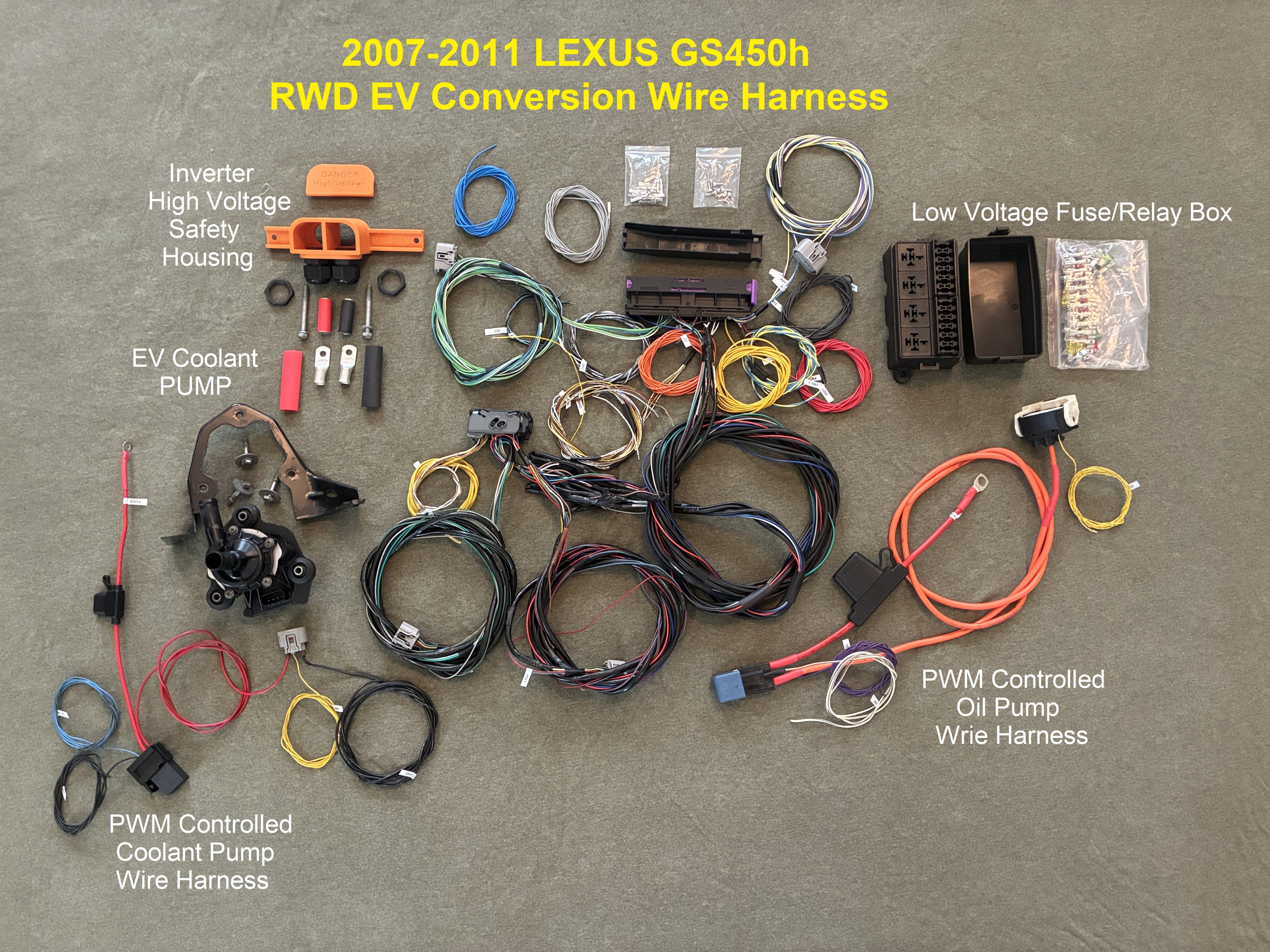

slowly it's getting there, the vision is that you will receive everything except for the ZombieVerter VCU circuit board which you can obtain from EVBMW.com

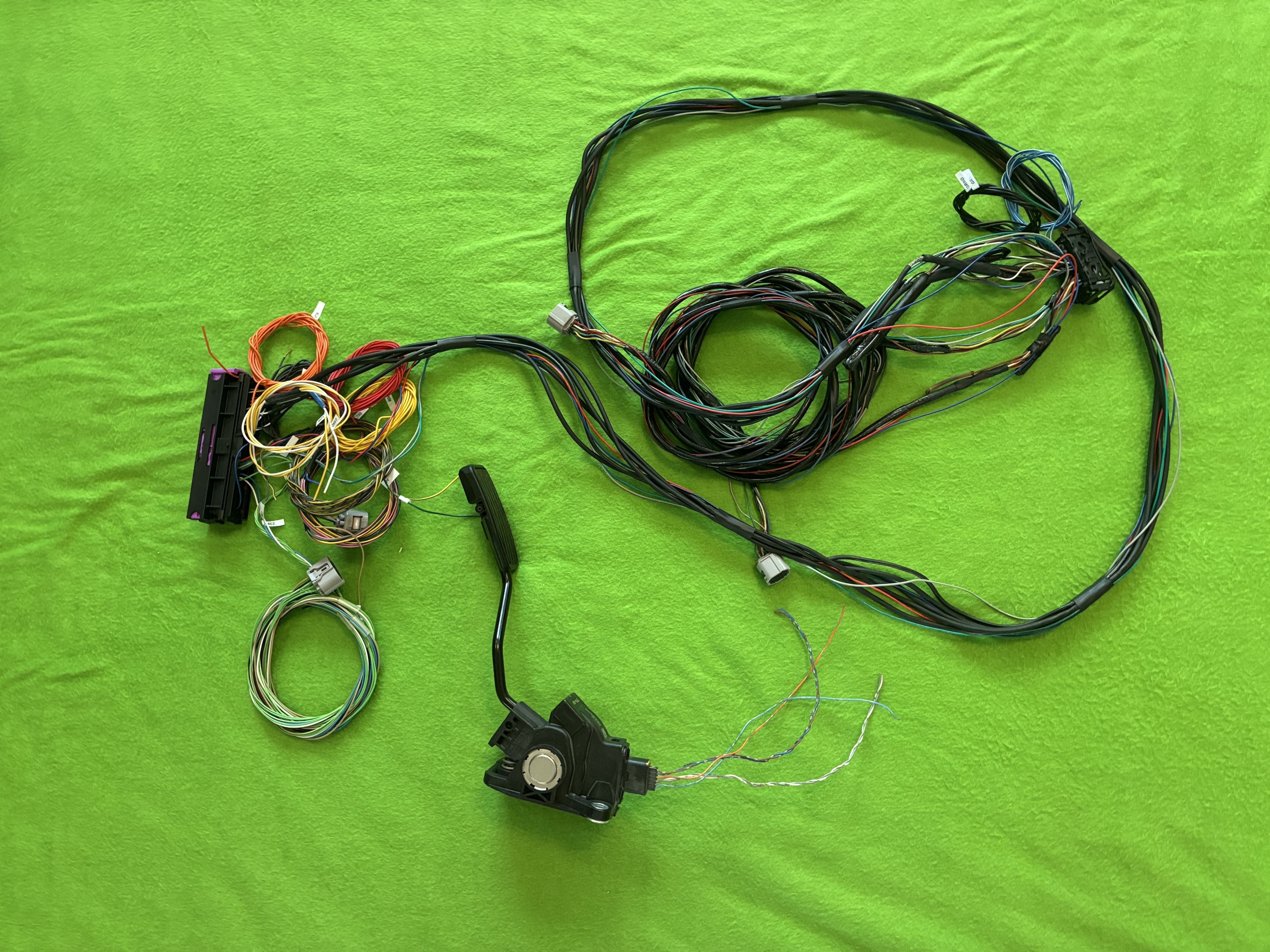

this will be nicely loomed eventually







some time later.jpg

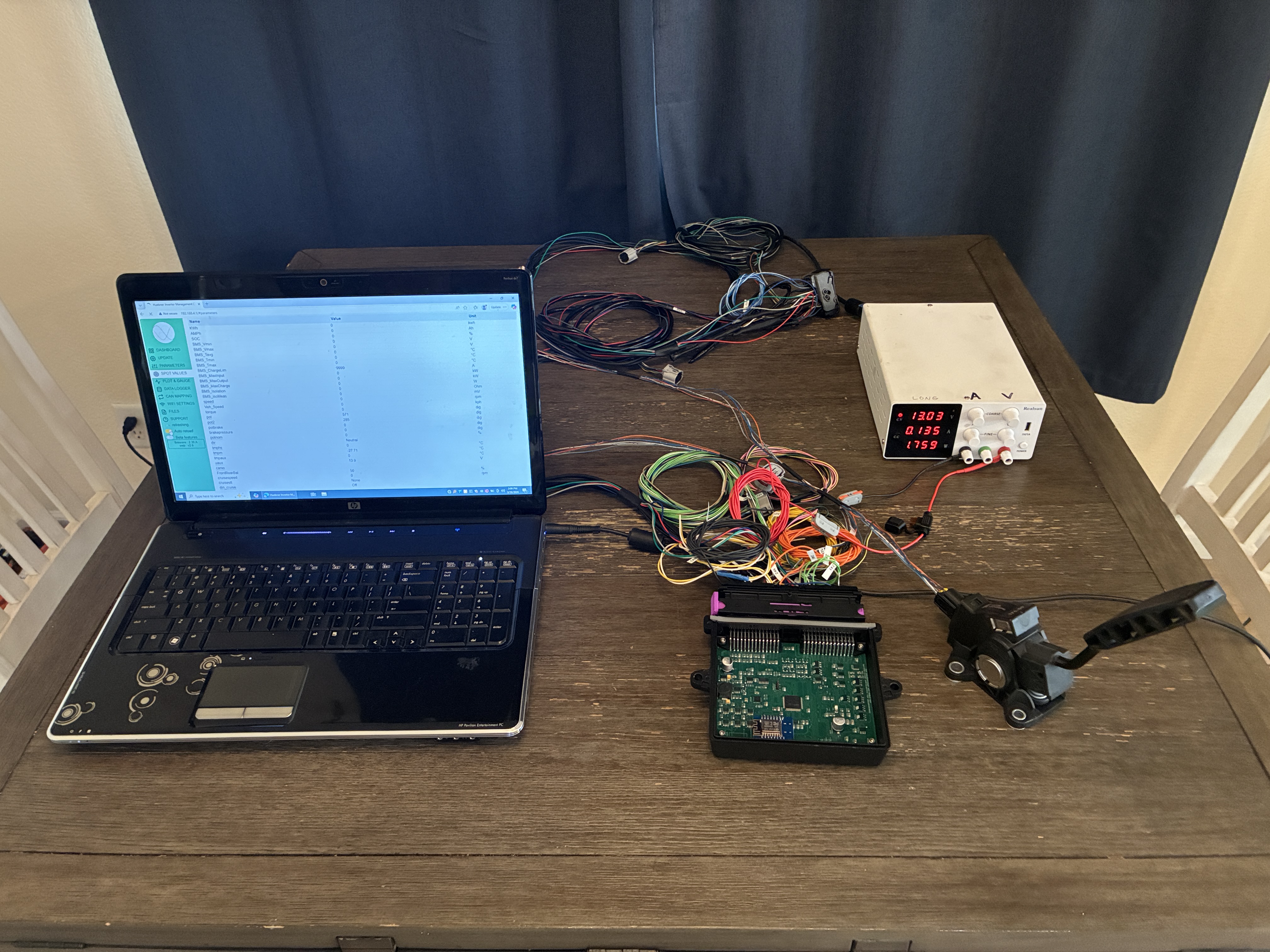

Bench Testing...

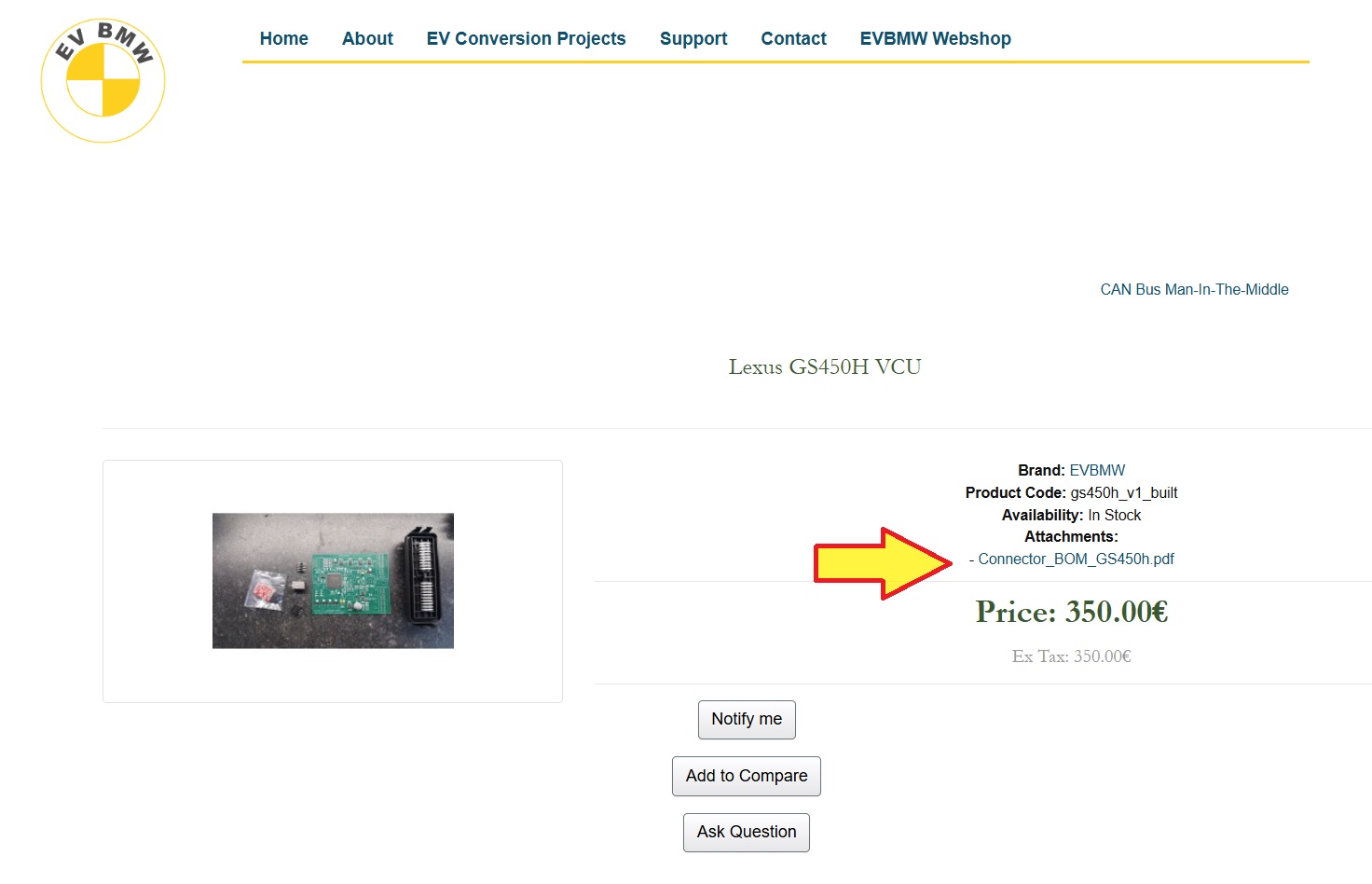

Hi - I already have the Lexus VCU board from this link: https://www.evbmw.com/index.php/evbmw-w ... gs450h-vcu

From your post it looks like you have a case - where did you buy this or is it 3D-printed?

[Gregski]

Hi - I already have the Lexus VCU board from this link: https://www.evbmw.com/index.php/evbmw-w ... gs450h-vcu

From your post it looks like you have a case - where did you buy this or is it 3D-printed?

Awesome, and I don't mean to be that guy, cause it took me like a year to find my way around all the documentation, but on that very page that you sent me the link of you will see the part numbers, and Damien the VCU maker recommends getting them from the Chinese eBay called AliExpress I would post direct links but they shuffle things around too much so just go there and do a search for these part numbers

the very bottom of the Wiki page on this very site has three different direct links you can try, AliExpress likes to give you [ahem] options for how little or how much you can get

Enclosure :
MPN: 5810130065
Mouser: 538-581-01-30-065
Description: Connector Accessory, Enclosure, Cinch ModICE SE Series Modular Connector Enclosures

Connector_BOM_GS450h.pdf

(34.29 KiB) Downloaded 7 times

there are links in the description of this YouTube video I posted as well

[Gregski]

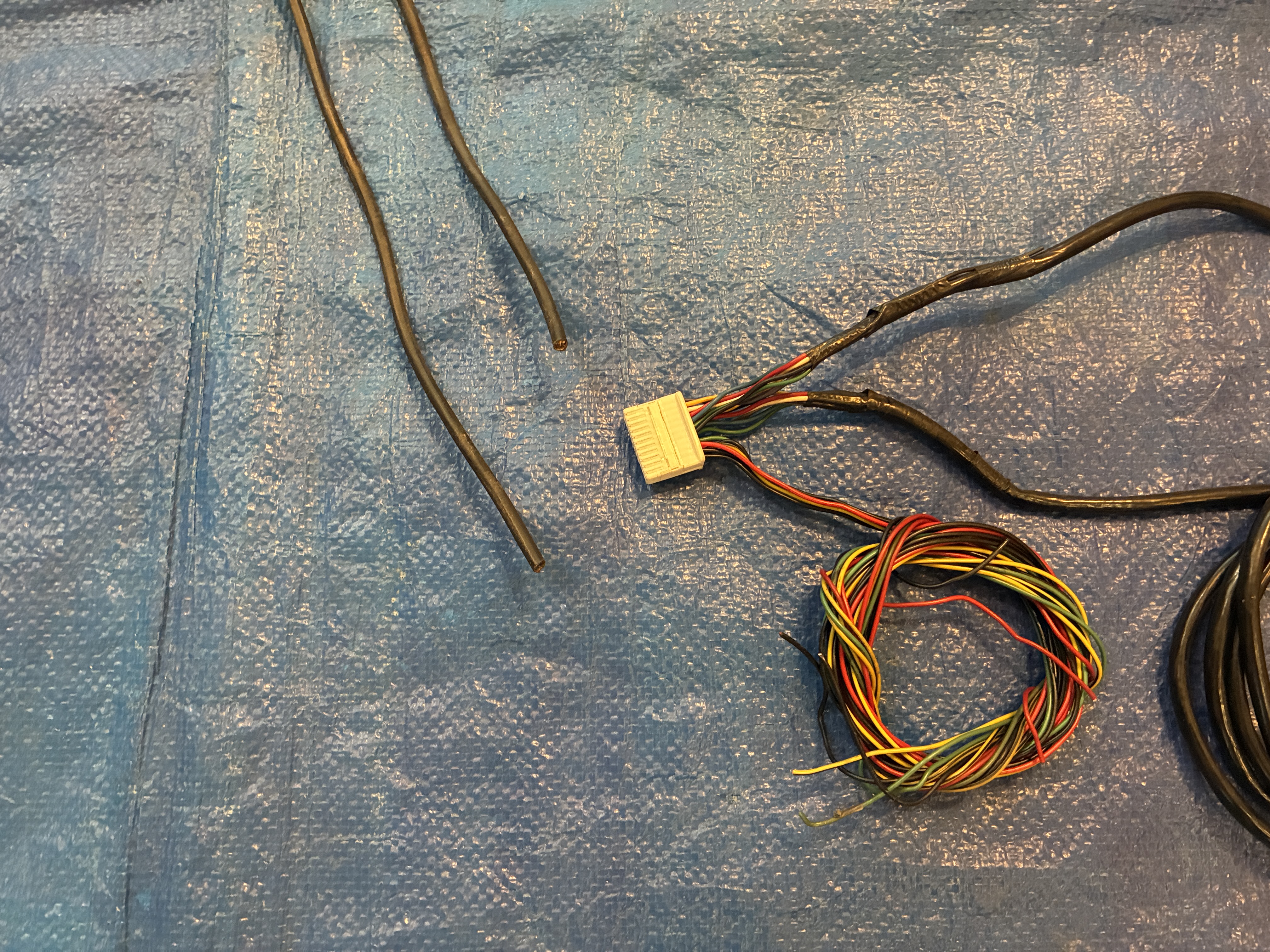

please forgive me for belaboring the point, but I think extracting the Lexus LS600h engine and transmission wire harnesses properly can safe some folks much grief, so here I am showing how the engine (ie inverter) harness on the left would have just plugged right in to the transmission (ie resolver) harness on the right with those white connectors

[danjulio]

Nice to find a domestic enclosure that isn't insanely expensive (only pretty expensive)...

[cmon]

I found molex igs files here in the forum for the case

https://openinverter.org/wiki/Mechanica ... n_database
https://github.com/bratindustries/molex-headers


- will testprint with ABS fillament this weekend and let you know - can share the *.stl just pm me if needed
