Tesla CAD Models

[Kevin Sharpe]

CAD models for the various Tesla parts starting with the Model S/X Small Front Drive Unit

3D Scan files on GrabCAD (here)

[Kevin Sharpe]

Model S/X Large Rear Drive Unit.

3D Scan Files on GrabCAD (here)

[Kevin Sharpe]

Model S/X Large Rear Drive Unit.

3D Model on GrabCAD (here)

[Kevin Sharpe]

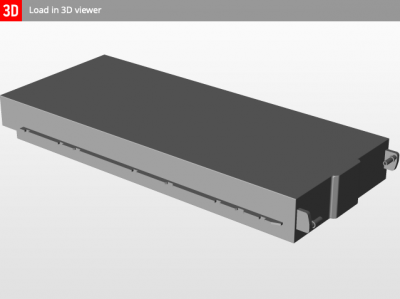

Model S/X 5.3kWh Battery Module

3D Model on GrabCAD (here)

[jon volk]

I used the LDU on my build. Dimensions were perfect.

[Kevin Sharpe]

Tesla Gen 2 On Board Charger

3D Scan Files on GrabCAD (here)

[Kevin Sharpe]

Not sure about the naming convention

Tesla Model 3 Passenger side inboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla Model 3 Passenger side outboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla model 3 battery module - short passenger side outboard

https://grabcad.com/library/tesla-model ... outboard-1

[Kevin Sharpe]

Tesla Model 3 PCS (Charger/DCDC);

viewtopic.php?f=10&t=171&p=6052#p6052

[Paerel]

Hi, I have a 3D scanner and providing a scanning services. I can scan almost any part for free for this community. I just need a part to do it. I’m local in Miami, FL. Let me know if I can help you somehow ;

[woutvangerven]

Not sure about the naming convention

Tesla Model 3 Passenger side inboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla Model 3 Passenger side outboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla model 3 battery module - short passenger side outboard

https://grabcad.com/library/tesla-model ... outboard-1

passenger side inboard module.PNGdrivers side outboard battery module.PNGpassenger side outboard module.PNG

Two thigs:

-There is a naming error on grabcad:

Tesla model 3 battery module - short passenger side outboard = Tesla model 3 driver side outboard battery module

-and here is the 4th module:

Tesla Model 3 Drivers side inboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

[cloudy]

Hi,

Time to contribute something back. I could only find scans of the front SDU - so scanned and uploaded my rear one here GrabCAD

It's photogrammetry rather than laser, but It should be accurate within a few mm - but there was some obfuscation around the mounts due to the hoist straps...

[Kevin Sharpe]

Time to contribute something back.

Fabulous, thank you

[Kevin Sharpe]

Model S/X Battery Pack.

Two 3D Models on GrabCAD (here) and (here)

[57 Chevy]

Just a note to say don't trust the accuracy of some models, +/-20mm would be a good margin of error. There is a full Model S on Grabcad but it isn't suitable for mockup as it is.

[New Electric Ireland]

Tesla Model 3 Rear drive unit 3D scan

https://grabcad.com/library/tesla-model ... vshop-fr-1

[EV_Builder]

Hi,

Time to contribute something back. I could only find scans of the front SDU - so scanned and uploaded my rear one here GrabCAD

It's photogrammetry rather than laser, but It should be accurate within a few mm - but there was some obfuscation around the mounts due to the hoist straps...


Can you tell me the scaling? It looks way off. If i measure in the grabcad vieuwer distance between 2 mountingpoints is 0.55mm Cant be right?
I would like to have the stp if you can generate it? Or IGES?

[EV_Builder]

Ok so i ended up installing "blender" (see blender.org).

With Blender you can import the OBJ files and modify the mesh to be more relaxed.
This smooths out allot of unneeded and wrong detail.
Also you can easily scale the OBJ part with blender.

You can then export to STL file.

Then with FreeCad you can import the STL and do an conversion to IGES for example, but perhaps your normal CAD program can also import STL already.

[muehlpower]

I made a drawing of the GEN3 charger. It is not very detailed, but the dimensions are correct.

[muehlpower]

On ebay classifieds someone sells an LDU dummy to make brackets and check the space!

[jason_arnold]

Link to the dummies in case any is looking (seems to be German only):
https://www.ebay-kleinanzeigen.de/s-anz ... 4-223-3982

[nilsvr]

They now are liste for almost 400€ did anyone in Germany or surrounding already buy an LDU model?
I would happily rent yours out for a while to fit my mounts.

[JockE28]

Tesla Model 3 Rear drive unit 3D scan

https://grabcad.com/library/tesla-model ... vshop-fr-1


Anyone got the scaling on this one? or exact measurments between monting point etc?

[52I]

Grabcad is no more, all files have been deleted according to their blog.

Any chance somebody has a Model 3/4 motor CAD files stored somewhere else?

Thanks,
Mark

[P.S.Mangelsdorf]

Grabcad is no more, all files have been deleted according to their blog.

Any chance somebody has a Model 3/4 motor CAD files stored somewhere else?

Thanks,
Mark

Grabcad appears to still be up for me.

[Mitchy]

Grabcad works for me as well.

Just uploaded the Tesla Model S - Raven front drive unit scan:

https://grabcad.com/library/tesla-model ... ive-unit-1
