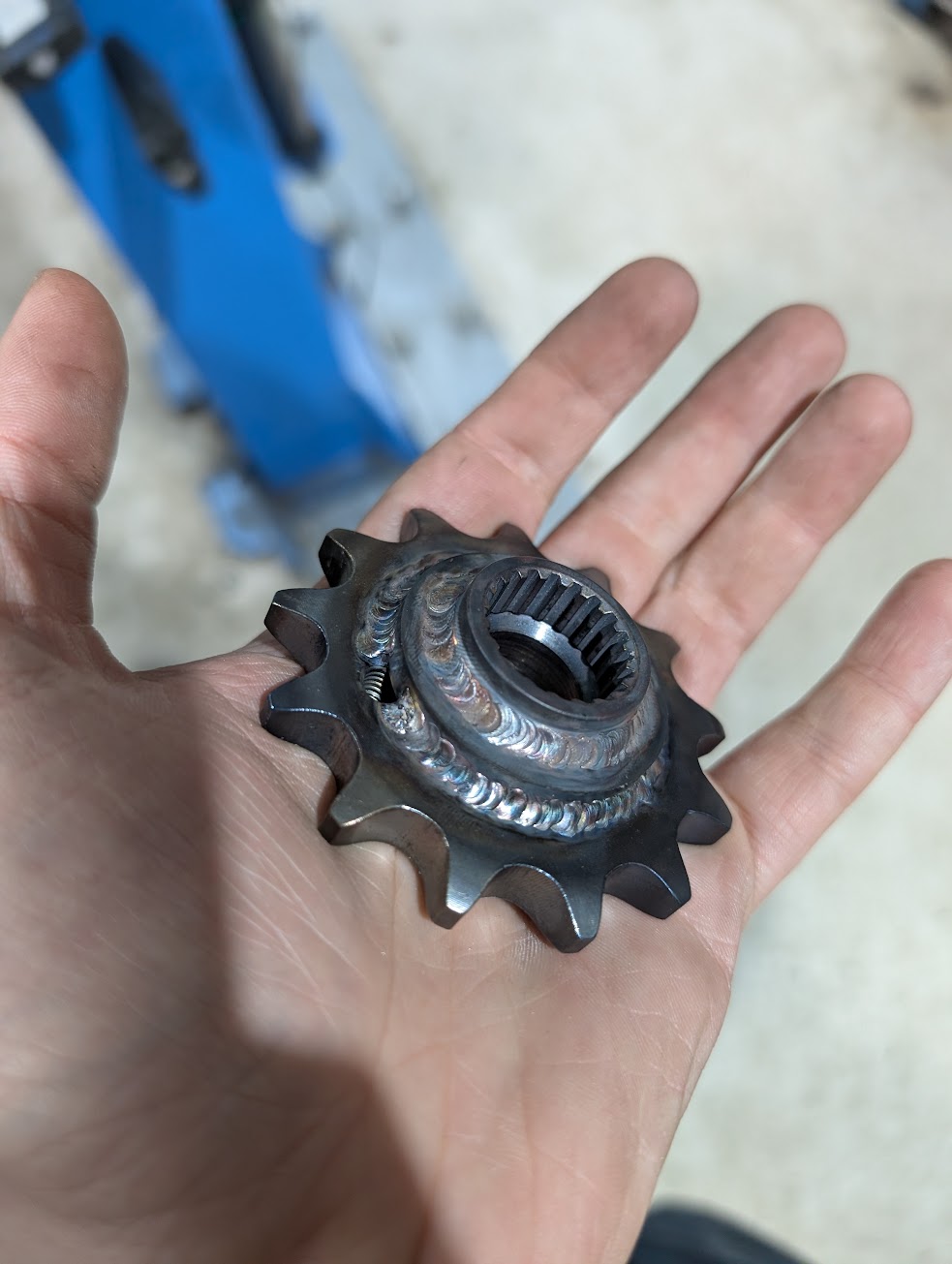

Got the sprocket adapter welded up and mounted on the HSG.

Turned down a KXF250 sprocket on the lathe and had JLCCNC whip up a press fit adapter piece to mount a proper 530 sprocket at a reasonable distance from the HSG. Just needs to get welded up now.
Decided to try to fix the OEM ICE motor to run for at least one more season so I've spent most of this ...

Got a halfdecent scan of the G9200-47140 inverter, it's not perfect but should be good enough for most purposes. Really should sell the scans to recover the cost of the scanning spray at least. But since I haven't figure out how to do that yet, the link is below for those who are ...

Some more CAD work.

Got a cheap Prius inverter and ordered Damiens dual motor board, hopefully I can get that to work with the KIA HSG. Picked up another HSG with the spline instead of woodruff key, working on an adapter for that to run 530 chain sprockets ...

Took a Kia HSG apart, figured someone else might be curious to see how it looks inside. And I wonder if anyone has any idea how to get the stator out of the waterjacket and casing?

Stator with the waterjacket still attached to the front of the casing.
PXL_20251218 ...

Driveshaft mounted to a printed mockup. Still missing the support for the intermediate bearing.

HSG mount mockup.

Making slow progress on the mechanical side of the project. Will replace the printed parts with aluminium when I'm happy with ...

The car split in half. Next step is to do some proper scans of the engineroom and finalize the subframe design. The diff arrived today aswell.



OEM ICE motor in the car sprung an oilleak and I'm pretty sure it's dead so now I have to speed up the progess on this project. Have spent a fair amount of time in CAD designing a KIA HSG/Suzuki Hayabusa hybrid package, started ordering some of the custom parts for it ...

Picked up a rusty mx5 rear subframe. Need to wire brush off some more rust and then 3d scan it.

Not a lot of progress on the car, been using it a lot now that the weather is nice. But I've done some stuff. Car got a sparco bucket seat too.

Got a drysump kit on the ICE engine, so hopefully it won't explode it the first sweeping corner.

PXL_20250819_194721605.jpg ...

https://roadster-ev.blogspot.com/2016/0 ... embly.html

This guy I assume

That's the model I'm using.

Got the engine out of the bike and started taking the car apart for more scanning. Leaning towards trying to run with the Kia HSG to start off with, if I manage to let the magic smoke out of it I'll pick up a beefier motor.

Car on sketchy stands without the rear bumper ...

That design is using Quaifes limited slip differential designed for motorcycle engine racecars.
https://www.demon-tweeks.com/se/quaife-atb-differential-for-chain-driven-cars-q-eqdf7zr/

Hopefully I can integrate the tractionmotor well enough that it'll compensate both for the lack of reverse and the ...


Somethings like that could work, decent amount of space for the inverter and turbo left. That's with the outlander rear motor, HSG is way smaller so could fit in the same config without issue. Would need to do a better scan of both the engine (this is crappy scan I found ...

Picked up a Gen 1 Hayabusa, so that part is defined. Don't think I can fit the Hayabusa motor and the full Prius P410 gearbox in any reasonable way without designing a completely new suspension system.
So now I'm back to trying to find a good traction motor and ...

I've already been in touch with SFRO (The Swedish association of vehicle builders, the governing body for homebuilt vehicles) and they don't seem concerned about emissions. Reading the rulebook it seems like I might have to run ethanol, but not sure.

Yeah I've seen that Leaf, really cool build.

Should be fine to run the MG2 with a bike engine just by removing the MG2 planetary carrier and welding those two gears together, and then welding the MG1 planetary solid. Will be a lot of heavy pointless steel spinning, but it should work ...

BUT HEAR ME OUT MIATA!
I don't fit in the early ones and an ND is way too expensive, but a ICE+450H transmission project would be a cool future project, used to have an old Lexus IS-200 that would be a great option for that.


There are 48v e-assist turbos and 48v superchargers that oems use and ...


I've finished my first relatively simple EV project (The motorcycle behind the roadster in the picture) so I figured it's time to start something very complicated.
Link to the bike project thread

Why Hybrid?
The car has to keep up with ICE cars both during track days ...


Picked up one of these for a project and threw together a rough CAD model. Just done using calipers in front of the CAD computer, not based on a laserscan or anything so double check the measurements before you use it.

Stepfile below:
https://drive.google.com/file/d ...
