Prius GEN 2 Inverter SCHEME

[konstantin8818]

There is an electronics engineer living in Georgia, Murman Kakhidze (MIKMUR), who is interested in power inverters and even have built his own car, which he now converting into electric, using Curtis logic board with his DIY power stage. He reads this forum as well, but doesn't speak english and uses translator to read forum.
He reverse engineered some inverters, and drawed all the schematics.

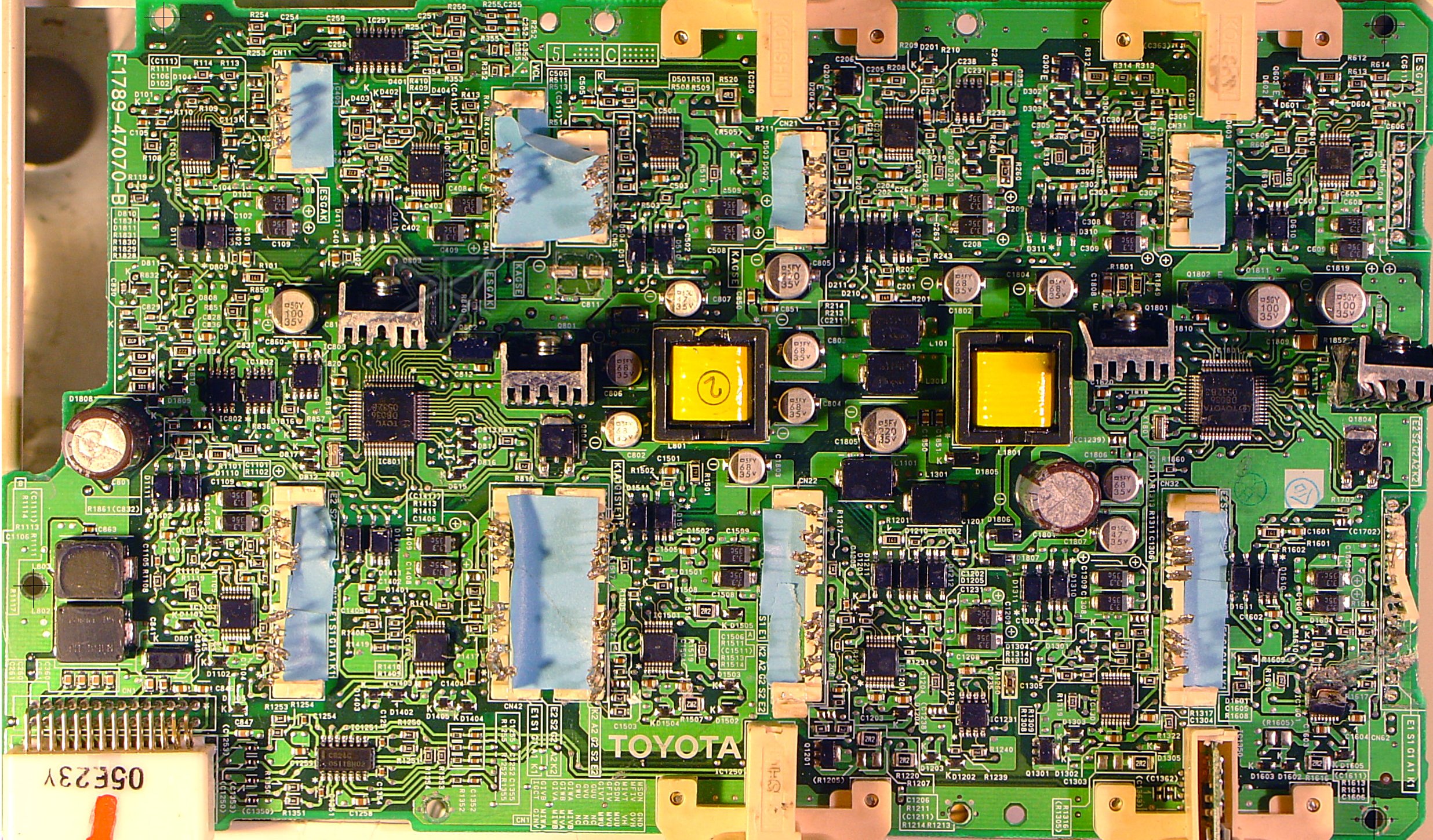

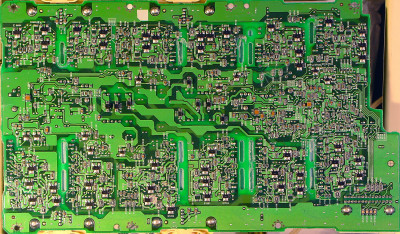

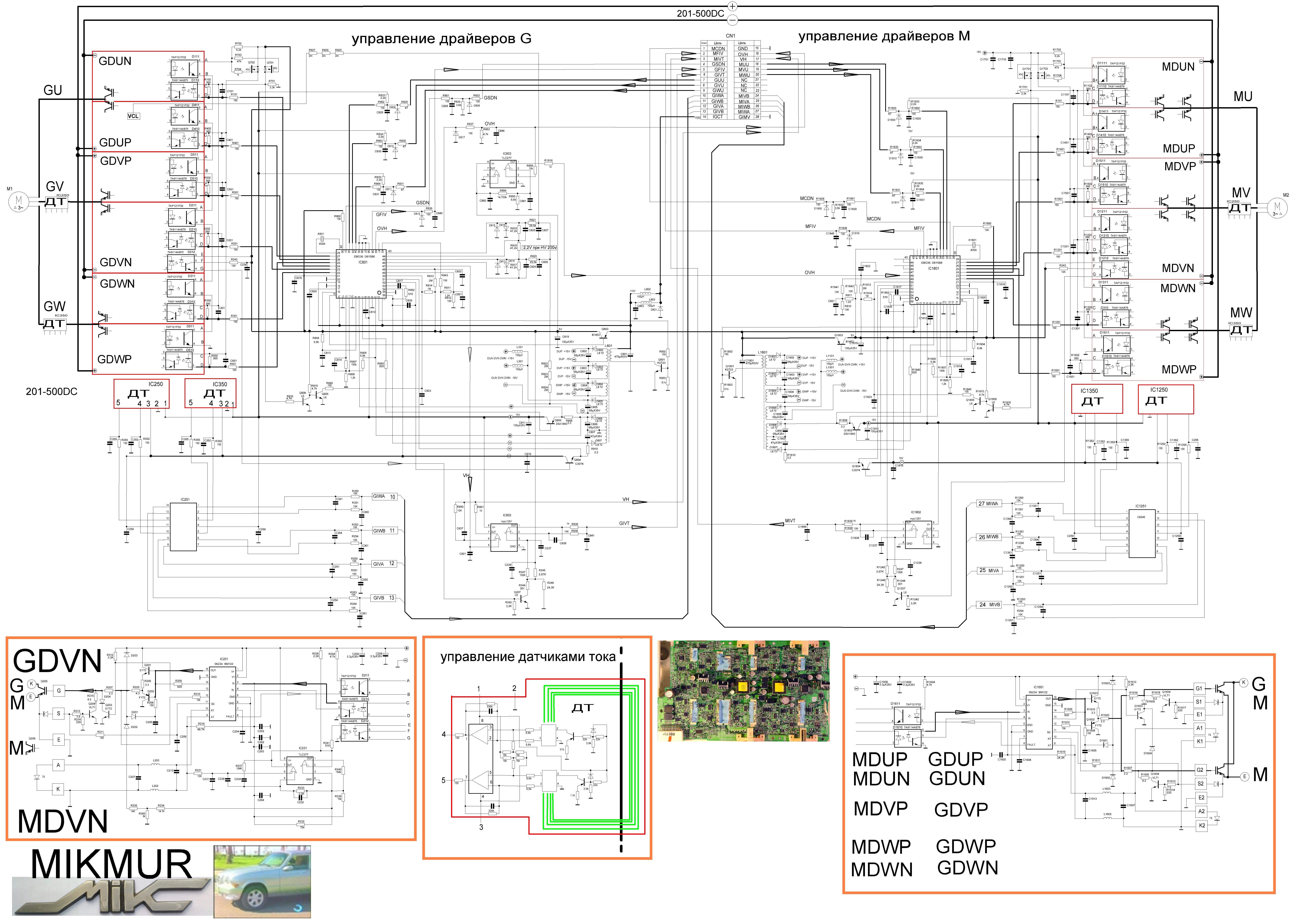

He asked me to share this scheme of Prius GEN 2 Inverter, maybe it will become handy for someone:

[RetroZero]

Thanks Konstantin, sure someone will make sense of it. Wow, very detailed.

[MattsAwesomeStuff]

Thanks to your friend and thank for you for sharing it. I'm sure it'll be helpful. More knowledge is always better.

[mikmur]

Yes it's me. took a chance and registered.
greetings to all. unfortunately I do not know English, but further, with the help of google translator, I try to read and write. I'm not young anymore. I am 64 years old. I have been ill lately. I'm afraid I won't live to see the end of my homemade car. but if God gives an opportunity I will finish my car.
Thanks to Konstantin, he gave me great hope. I really enjoyed the writings of Johannes and Damien Maguire.
I hope for their help I will finish the work.



unfortunately video in Russian and Georgian

[ZooKeeper]

Konstantin, thank you for sharing this.

Mikmur, welcome and I am sure we are all hoping you are able to enjoyably complete your project!

[Jack Bauer]

Thank you very much

[xp677]

Very nice, thank you for sharing .

[johnspark]

Dear Mikmur, I have seen your schematics before, I am very glad to be able to see you , I do hope you will be able to complete your project. Thank you konstantin8818 for sharing this info. I am very glad to see these types of things on this wonderful forum

[ZooKeeper]

That is such a well drawn diagram, I am going to have it printed and framed
