I just bought a Mitsubishi Outlander charger. - Now What?
[not another one of theses posts]
You would be hard pressed to find a Mitsubishi Outlander EV in the states, but having heard many a good things about their components I decided to buy one from the UK and have it shipped to America, especially after the eBay seller offered one up for 95 foot pounds, or newton meters or something?
So here is my story from the Colonies perspective, by a non electrical engineer for non electrical engineers, (but hopefully with the help of electrical engineers).

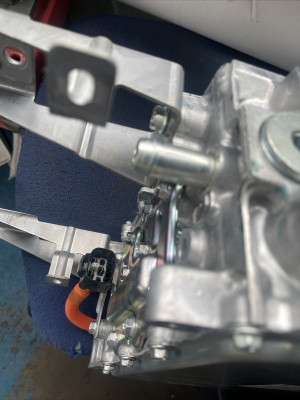

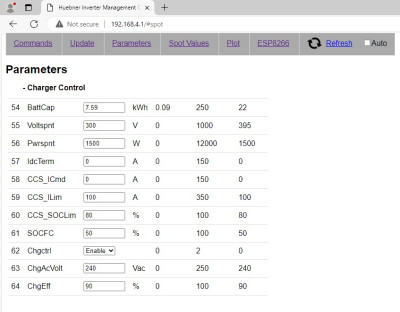

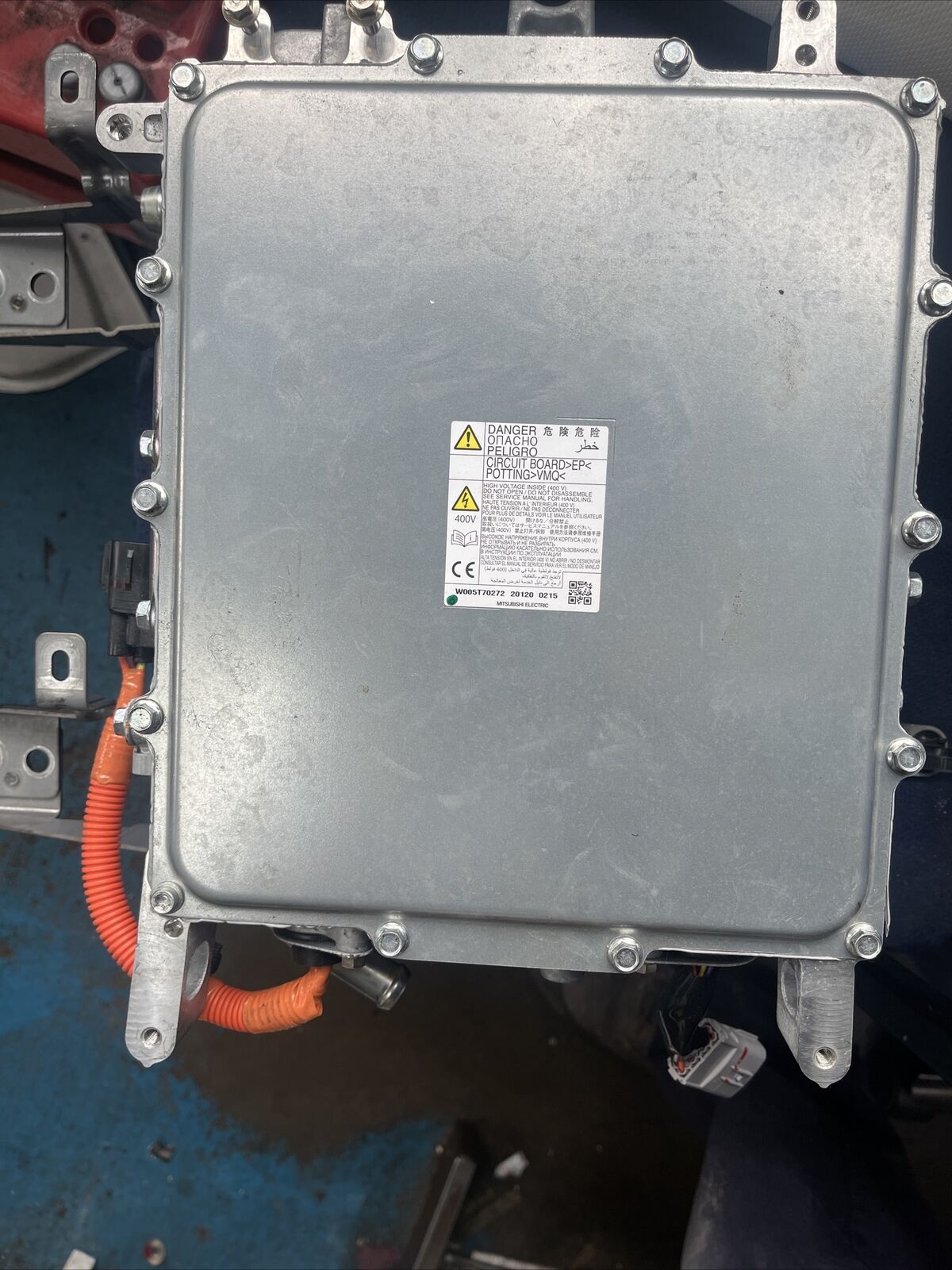

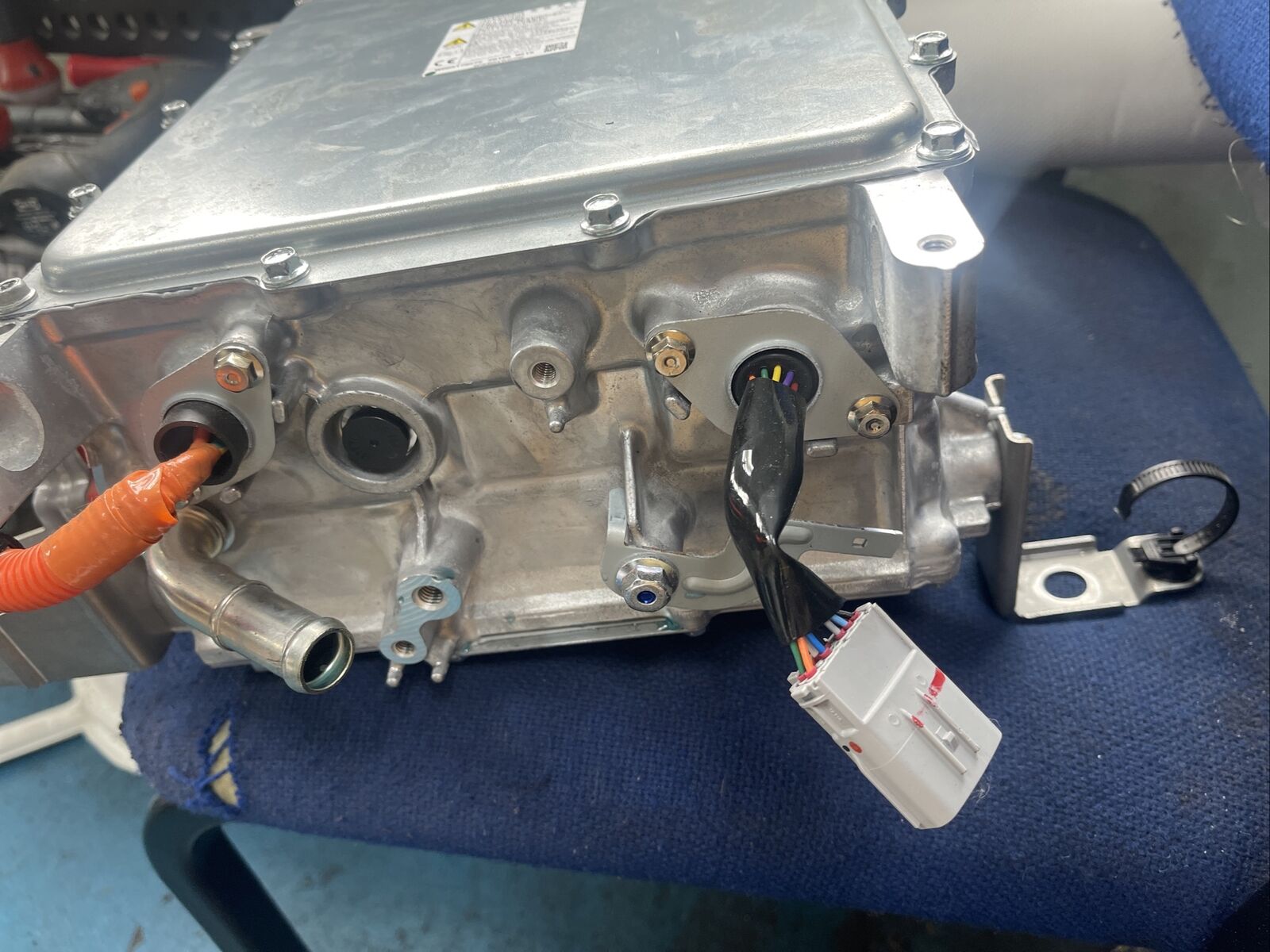

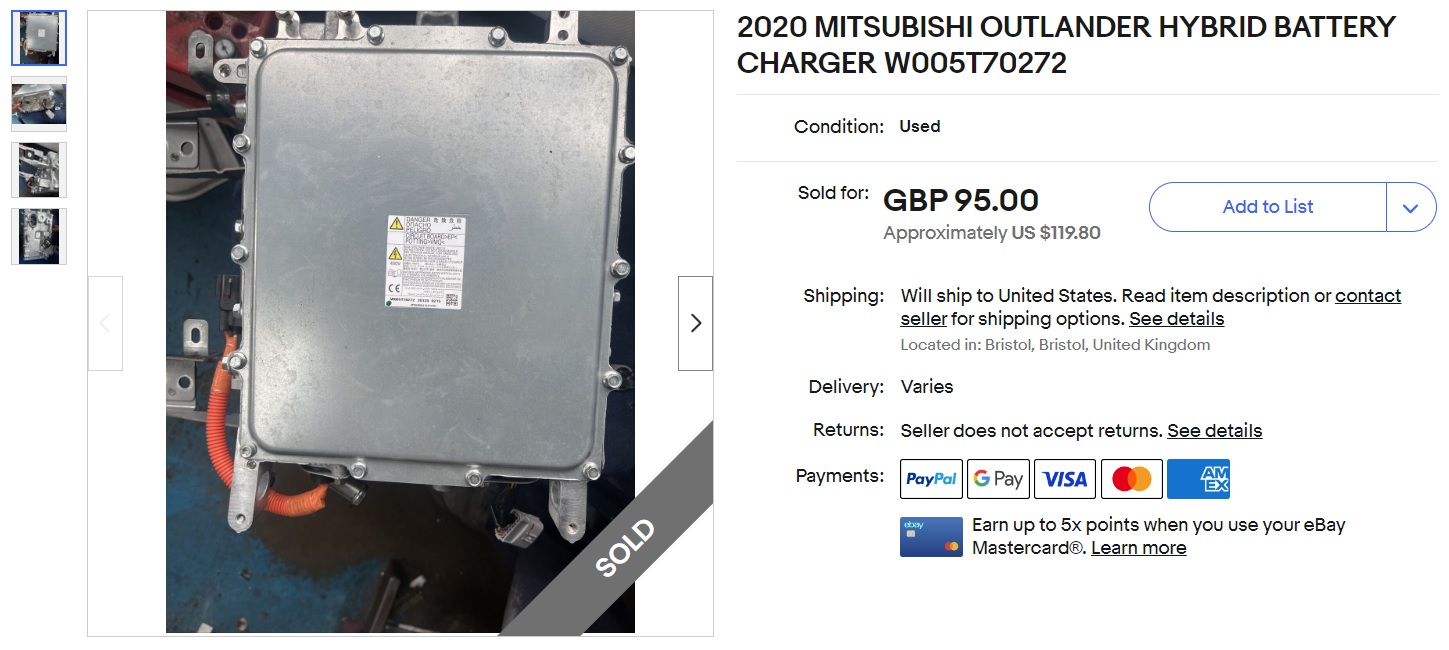

Part Number: W005T70272
You would be hard pressed to find a Mitsubishi Outlander EV in the states, but having heard many a good things about their components I decided to buy one from the UK and have it shipped to America, especially after the eBay seller offered one up for 95 foot pounds, or newton meters or something?
So here is my story from the Colonies perspective, by a non electrical engineer for non electrical engineers, (but hopefully with the help of electrical engineers).
Part Number: W005T70272
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
Third Generation Model Years: 2013–2021
Fun Facts: The introduction in the United States was initially scheduled for January 2014, but was delayed. Due to California's regulations that require a battery-monitoring unit (BMU), Mitsubishi delayed the market launch in the U.S. to mid-2017 as model year 2017.
Fun Facts: The introduction in the United States was initially scheduled for January 2014, but was delayed. Due to California's regulations that require a battery-monitoring unit (BMU), Mitsubishi delayed the market launch in the U.S. to mid-2017 as model year 2017.
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
-
- Posts: 519
- Joined: Thu Mar 02, 2023 1:30 pm
- Location: Uk
- Has thanked: 260 times
- Been thanked: 70 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?
This is timely as I e recently acquired a mitsubishi charger mostly because it was dirt cheap.... So now what?
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
Well, start off by uploading a crappy video of course!Jacobsmess wrote: ↑Sun Feb 25, 2024 7:07 pm This is timely as I e recently acquired a mitsubishi charger mostly because it was dirt cheap.... So now what?
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
-
- Posts: 519
- Joined: Thu Mar 02, 2023 1:30 pm
- Location: Uk
- Has thanked: 260 times
- Been thanked: 70 times
-
- Posts: 221
- Joined: Sun Feb 20, 2022 4:23 am
- Location: N. Wiltshire. UK
- Has thanked: 17 times
- Been thanked: 109 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?

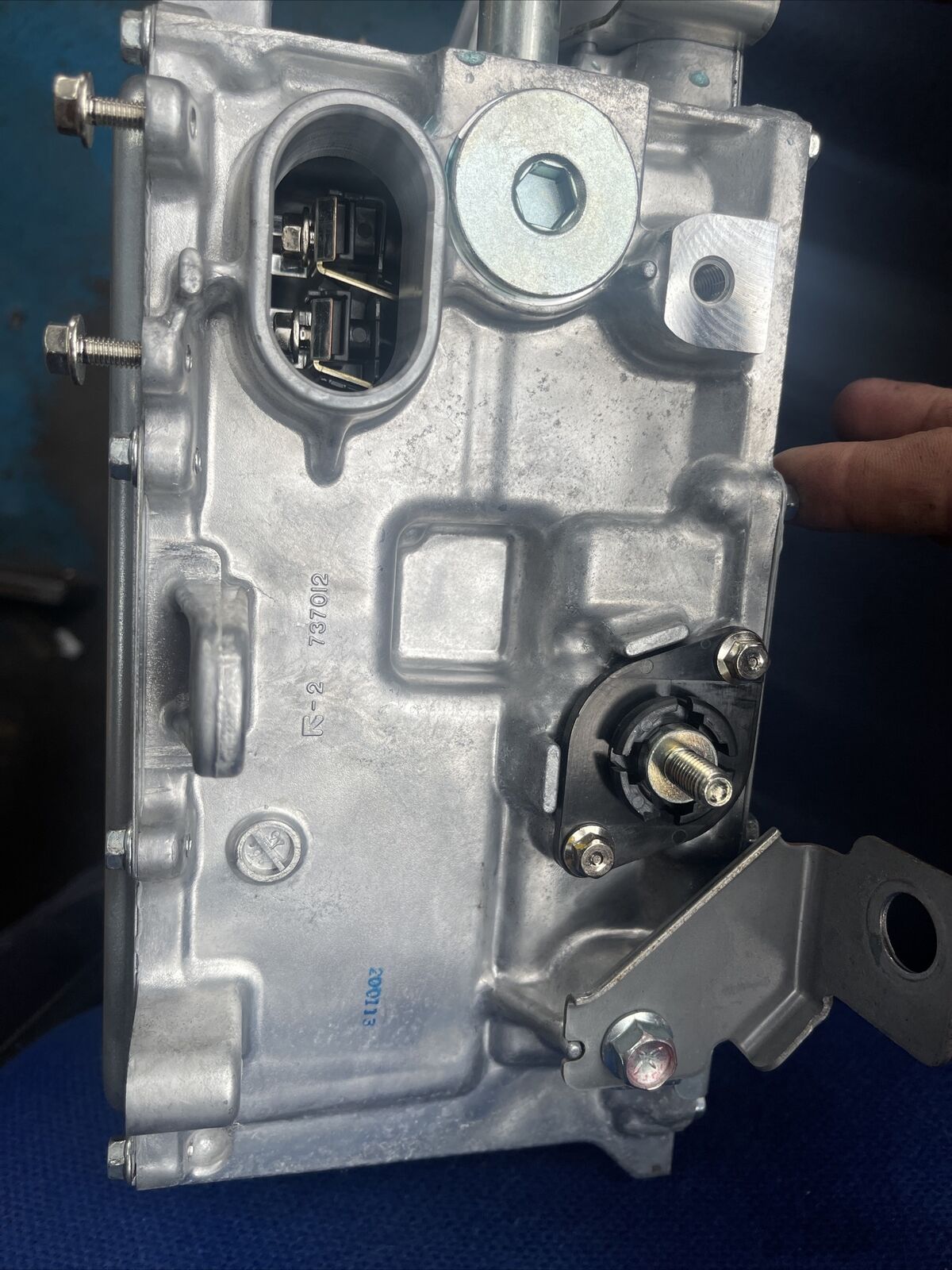

Looking forward to the next video were we get to see the charger right side up!

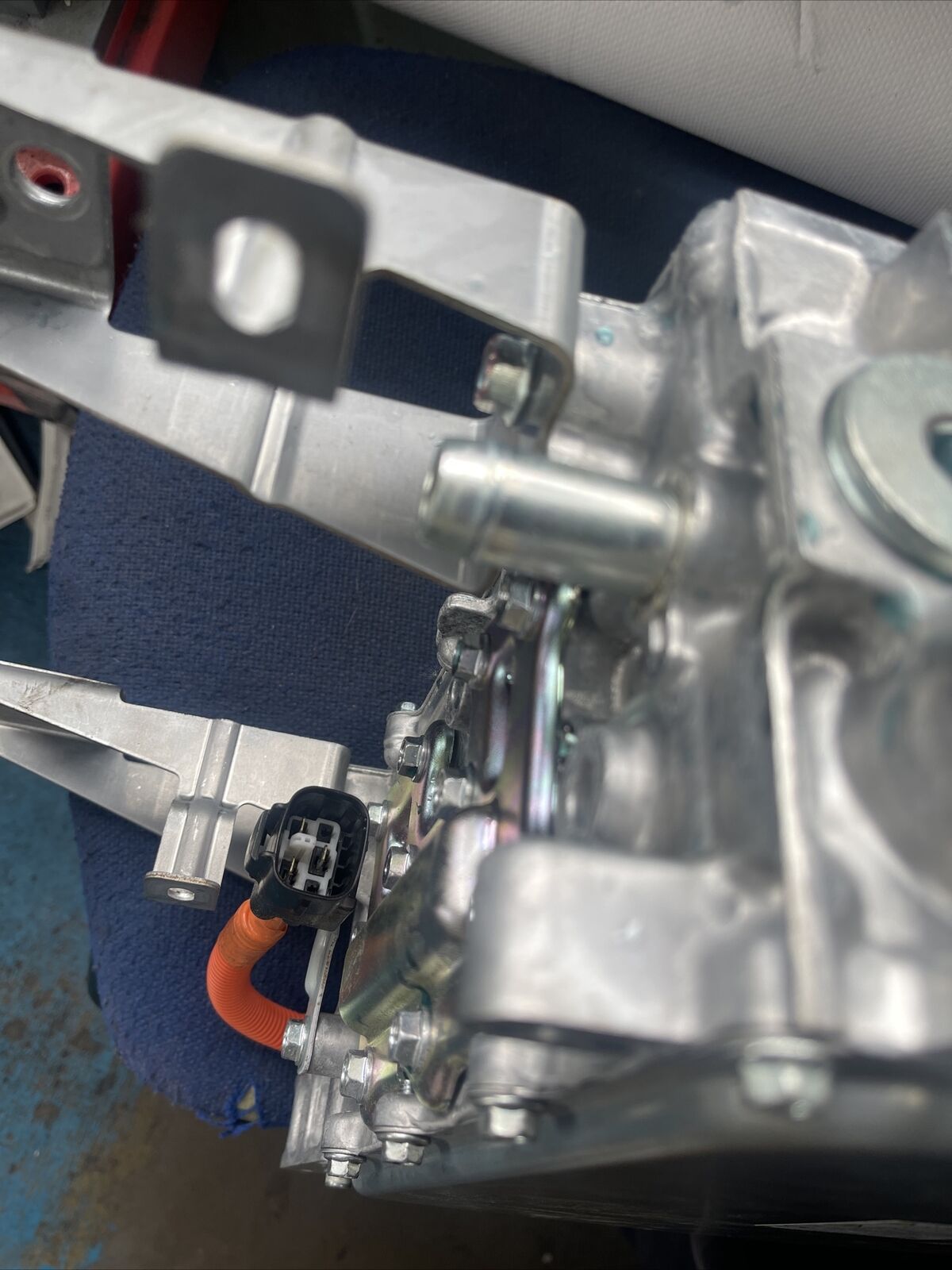

The connector is also used on the GS450H transmission ( ECT solenoid ) Toyota 90980-12326 .

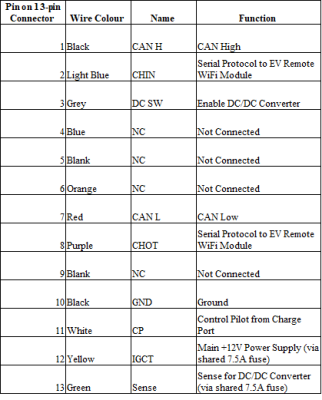

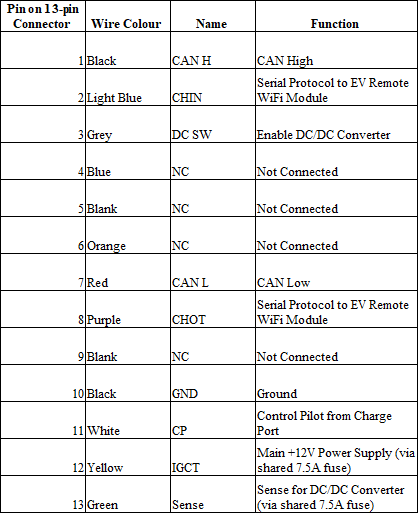

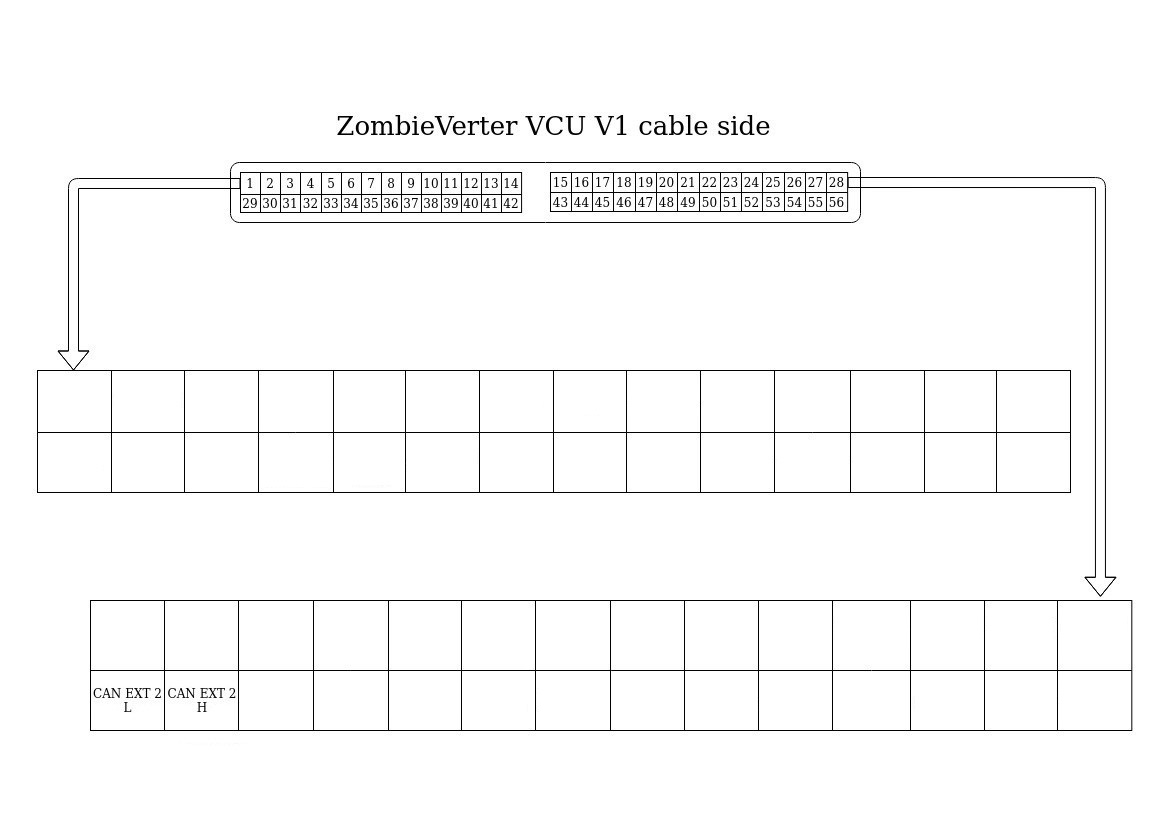

The wiki page pin out table is a bit confusing as the pin numbers from the schematic do not match the numbers on the connector.
I first made up the connector with the pinout back to front, so I have taken the data from the wiki and simplified it as below. This is the pin numbers as marked on the connector.
The connector is also used on the GS450H transmission ( ECT solenoid ) Toyota 90980-12326 .
The wiki page pin out table is a bit confusing as the pin numbers from the schematic do not match the numbers on the connector.
I first made up the connector with the pinout back to front, so I have taken the data from the wiki and simplified it as below. This is the pin numbers as marked on the connector.
- crasbe
- Posts: 245
- Joined: Mon Jul 08, 2019 5:18 pm
- Location: Germany
- Has thanked: 44 times
- Been thanked: 110 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?
It looks like you might need a cable gland for the high voltage port, so this might interest you: viewtopic.php?t=3563 (shameless plug...umm..gland ).
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
LoL, I was just trying to offer a different perspective
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
Is proper packaging illegal in the UK? asking for a friend
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?

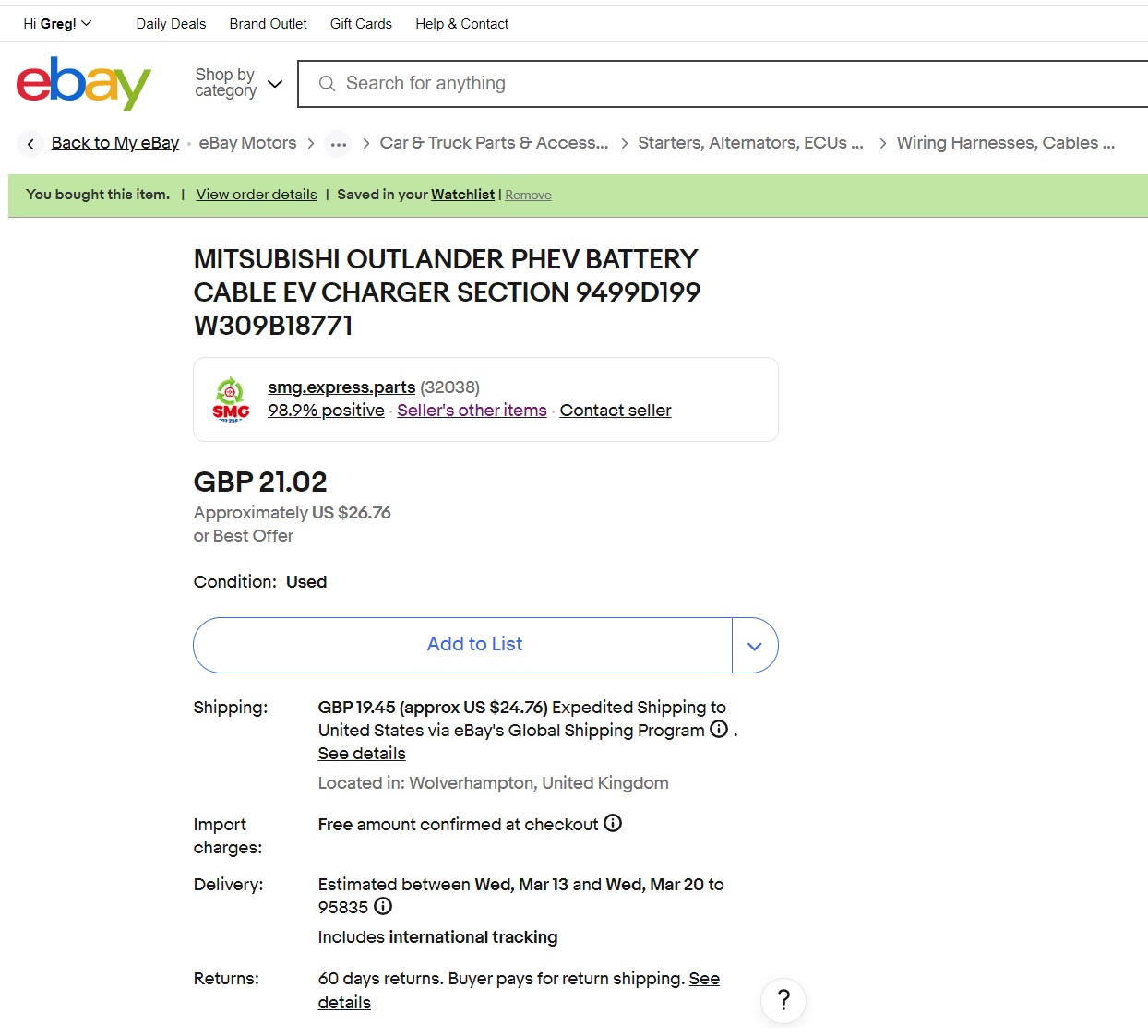

appreciate it, and "Shameless" is my middle name, ha ha, I must admit I just spent half an hour starring at that thread and spinning my charger around 960° back and forth only to realize you do not show a pic of the "high voltage port gland" for the charger, but only for the inverter, I take ownership of that dumb moment, as I write this I plan on purchasing the OEM Battery Charger cable W309B18771 unless I hear otherwise, obviously I suffer from OEMicitiscrasbe wrote: ↑Sun Feb 25, 2024 9:56 pm It looks like you might need a cable gland for the high voltage port, so this might interest you: viewtopic.php?t=3563 (shameless plug...umm..gland ).
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
-
- Posts: 3283
- Joined: Mon Dec 24, 2018 1:37 pm
- Location: Slovenia
- Has thanked: 80 times
- Been thanked: 239 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
For ease of use i cut my chargers DC cables and put MC4 connectors on them. This view is of inverter side. Charger side is mirrored...
download/file.php?id=27358&mode=view
I find charger polarity according to this procedure...
viewtopic.php?p=8215#p8215
Yes there needs to be a system as i need to connect all my chargers to DC lines in the same way.
EDIT: There is one other consideration for MC4 connectors. I can now use normal solar Y parallel connectors and connect 2x chargers to inverter for 2 phase charging .
- crasbe
- Posts: 245
- Joined: Mon Jul 08, 2019 5:18 pm
- Location: Germany
- Has thanked: 44 times
- Been thanked: 110 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?

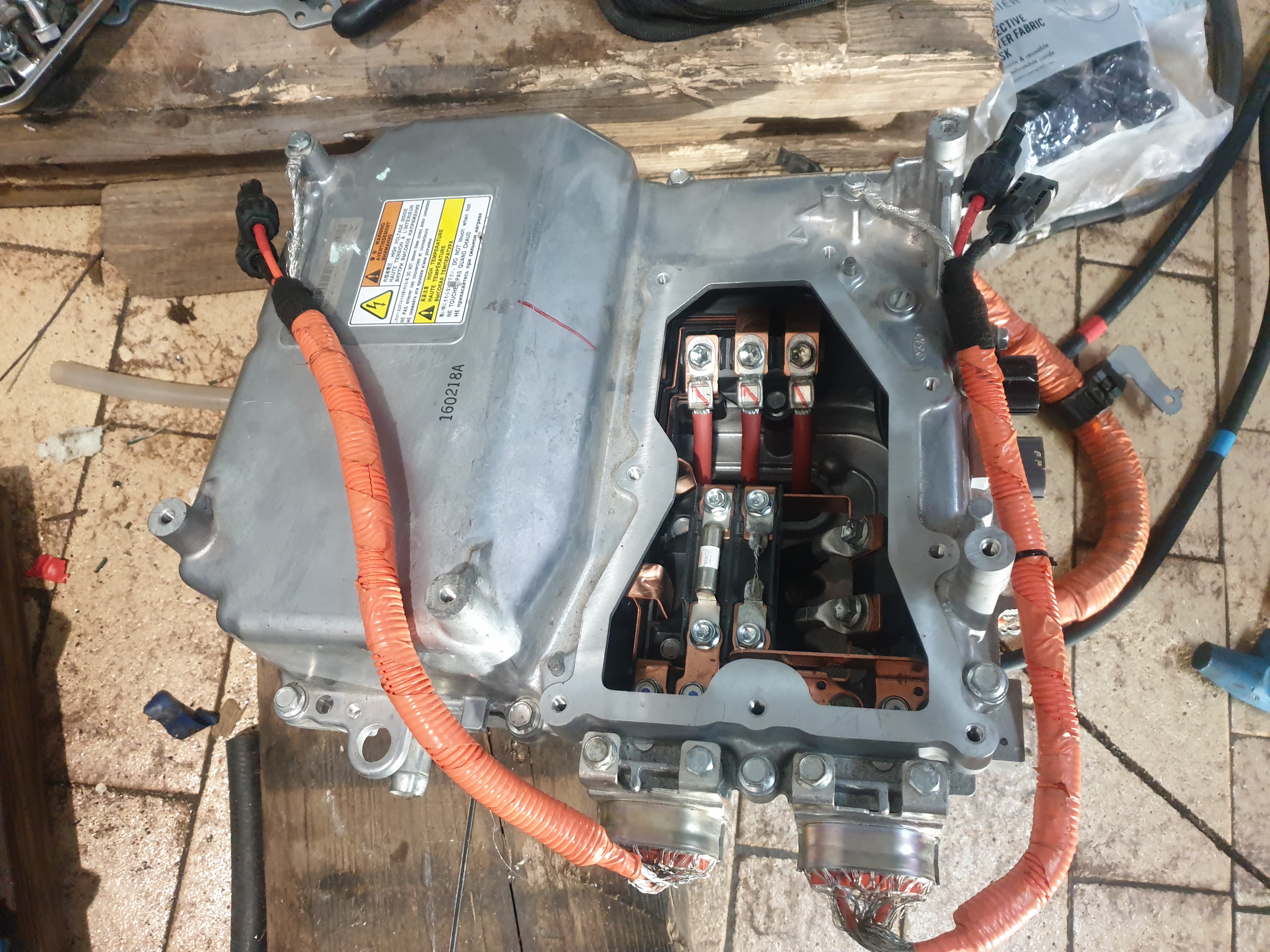

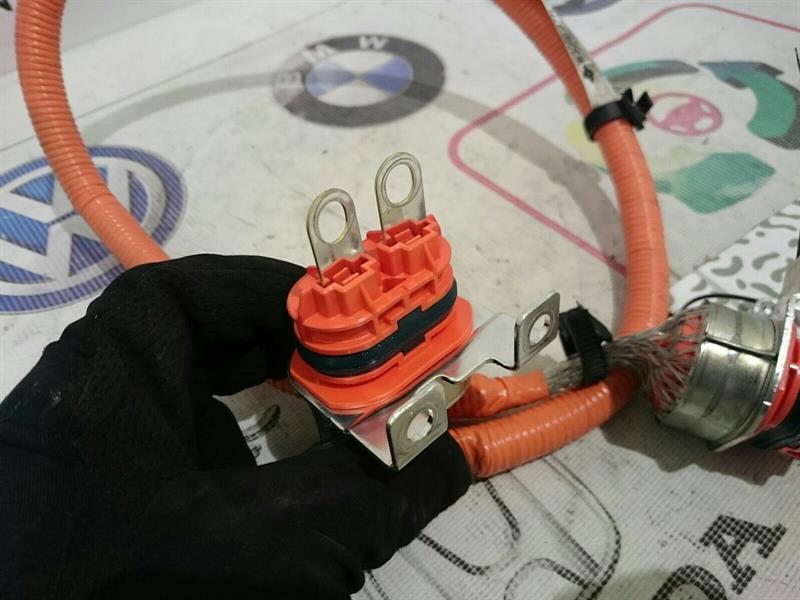

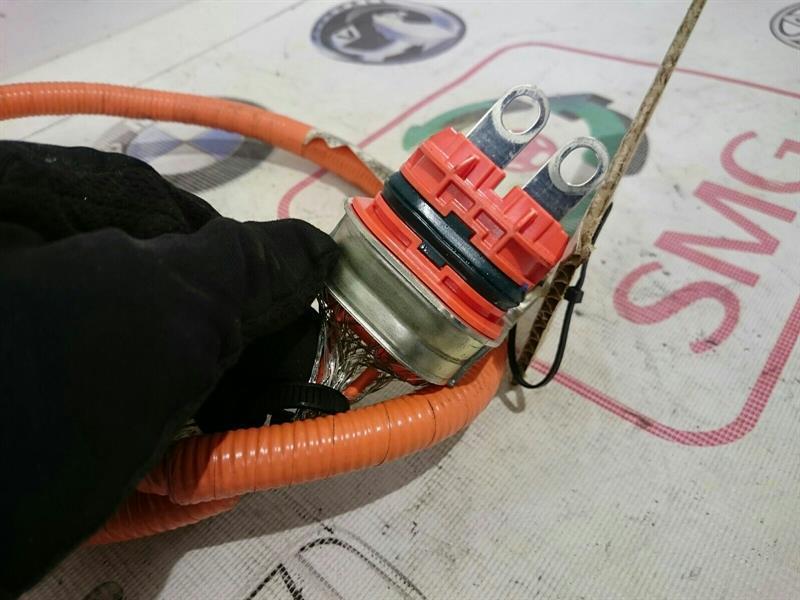

Well yes, the High Voltage gland is identical for charger and inverter.

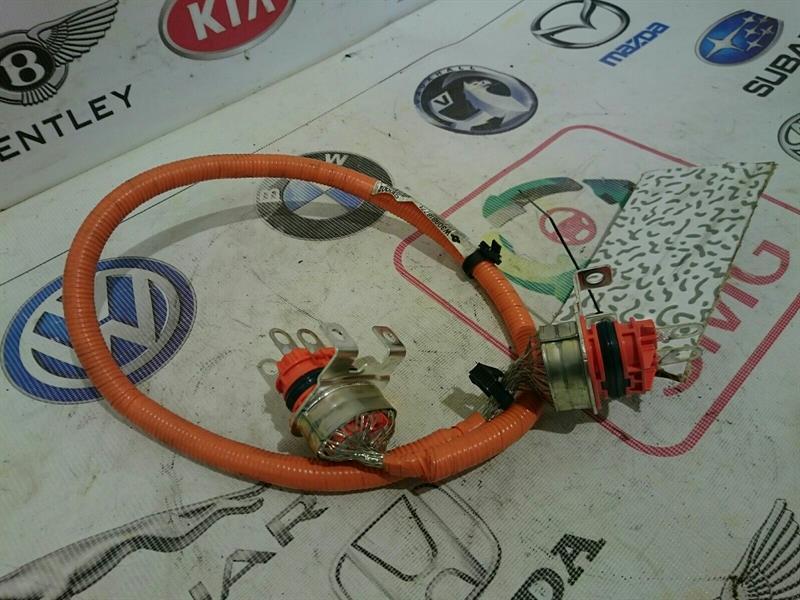

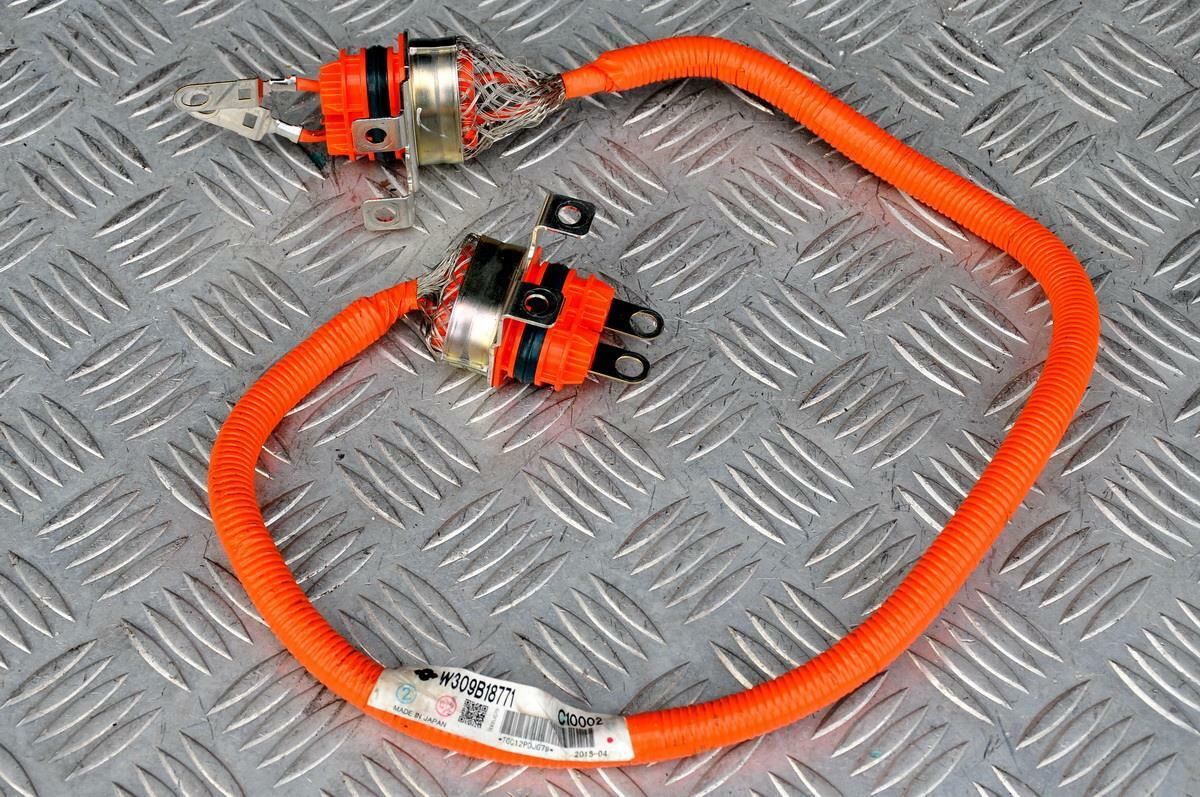

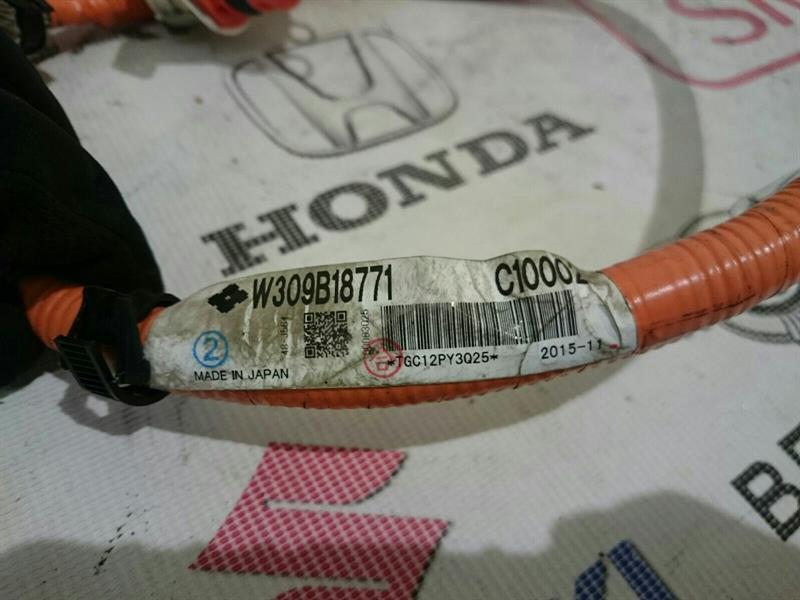

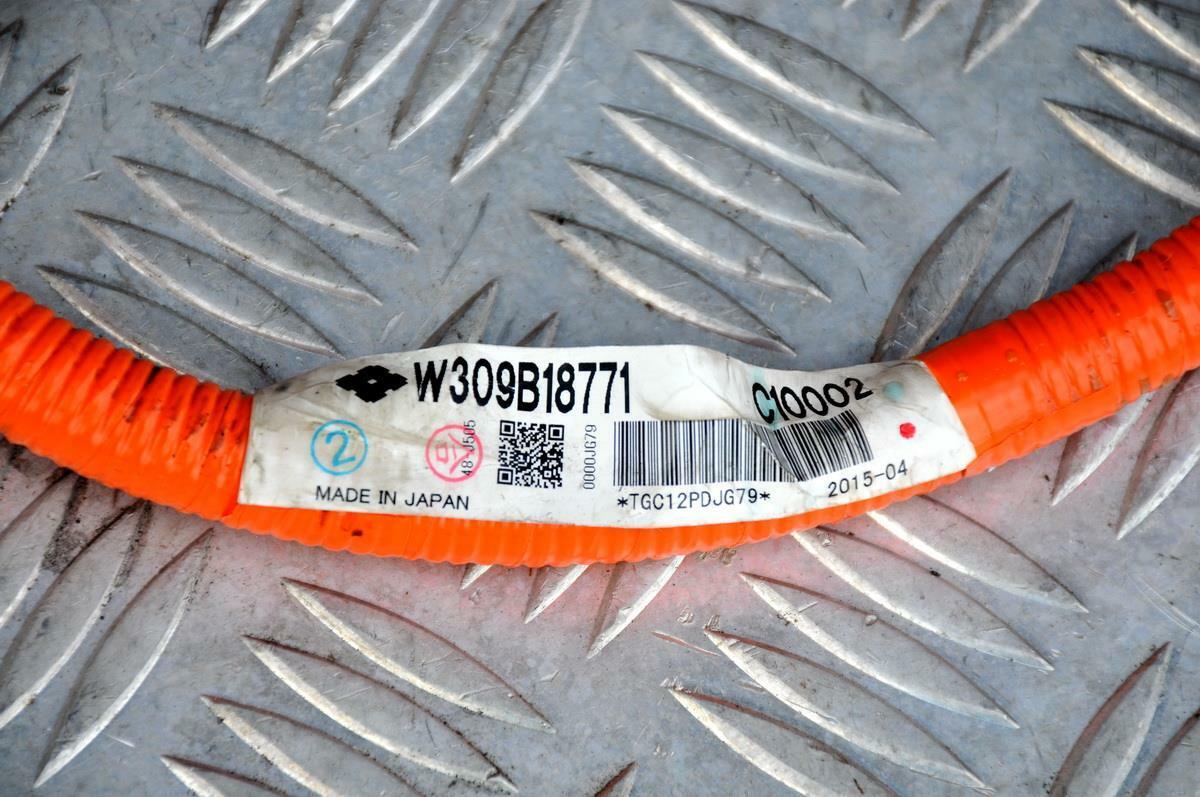

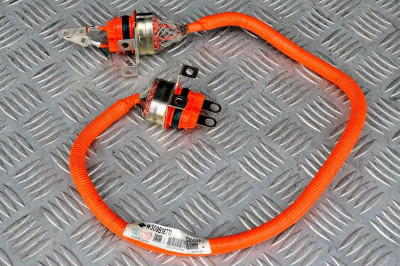

I write this I plan on purchasing the OEM Battery Charger cable W309B18771 unless I hear otherwise, obviously I suffer from OEMicitis
- Uppertown
- Posts: 60
- Joined: Wed Dec 09, 2020 10:57 pm
- Location: North East England
- Has thanked: 67 times
- Been thanked: 26 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?

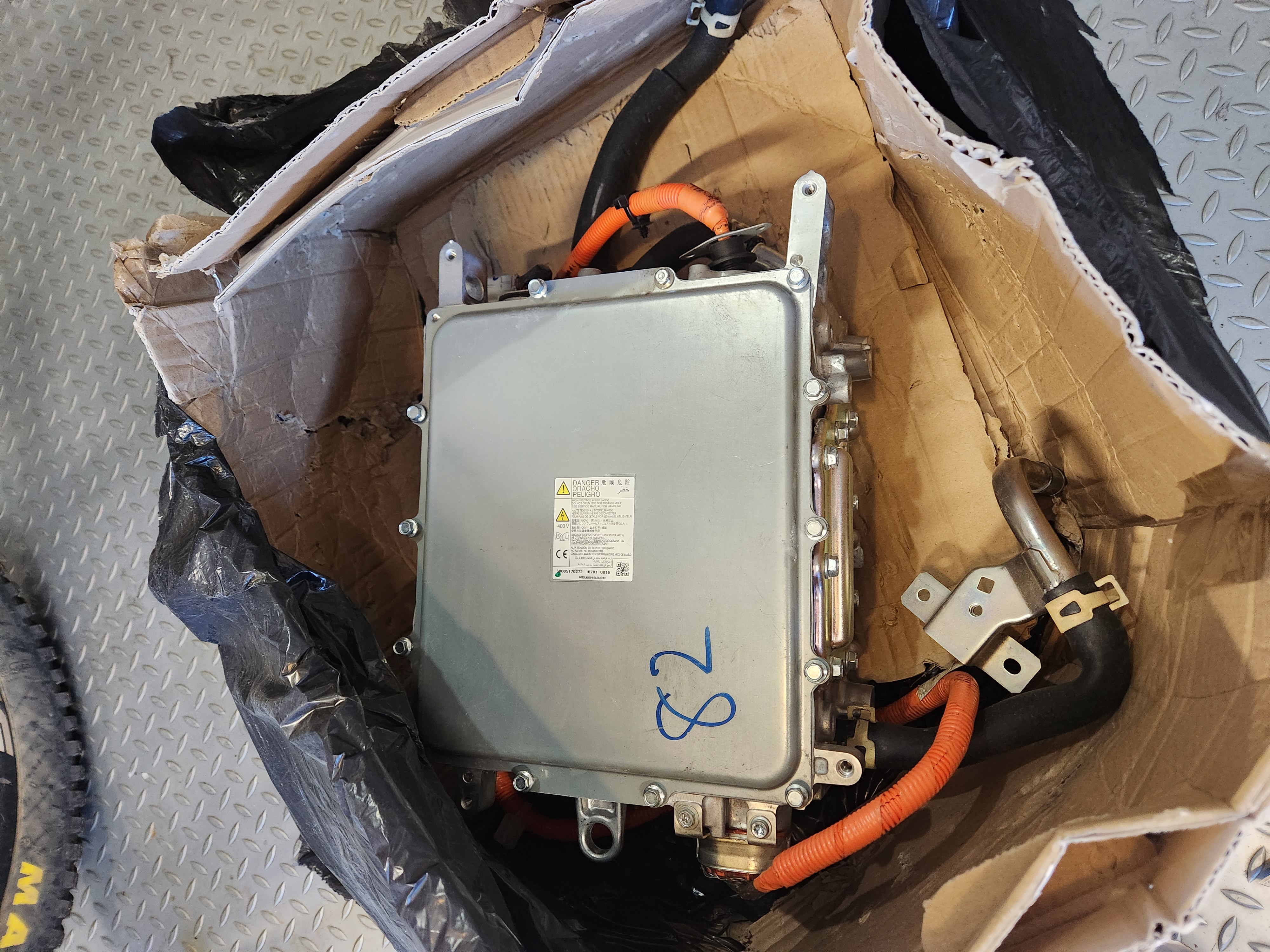

A lot of breakers seem to see packaging as a cheap way of getting rid of rubbish they would otherwise have to pay for some one to take away, I guess you were unlucky and ordered just after bin day
- robertwa
- Posts: 76
- Joined: Tue Apr 13, 2021 3:32 am
- Location: San Diego, CA
- Has thanked: 41 times
- Been thanked: 48 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?
I see a pattern Also ordered same charger from UK ebay seller. This is how mine arrived. Post lady seemed most concerned handing this to me.
Building: 1964 International Scout 80. LS600H transmission with zombieinverter, B250e battery pack
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
that does it... To The Docks !!!
(don't forget your YMCA costume)
(don't forget your YMCA costume)
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
-
- Posts: 3283
- Joined: Mon Dec 24, 2018 1:37 pm
- Location: Slovenia
- Has thanked: 80 times
- Been thanked: 239 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
I got two of them from Poland in the same sort of packaging. It seems like this stuff is quite resillient and packaging is there just because... .
- midway
- Posts: 79
- Joined: Mon Feb 15, 2021 3:52 pm
- Location: Ural
- Has thanked: 5 times
- Been thanked: 8 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?
Our fences and packaging are made from real wood, and furniture from waste from packaging production
-
- Posts: 3283
- Joined: Mon Dec 24, 2018 1:37 pm
- Location: Slovenia
- Has thanked: 80 times
- Been thanked: 239 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
HAHA! LOL! It is similar here and i am sure Terminator or Predator coming through our house wall would have to spend some days in ER...
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?

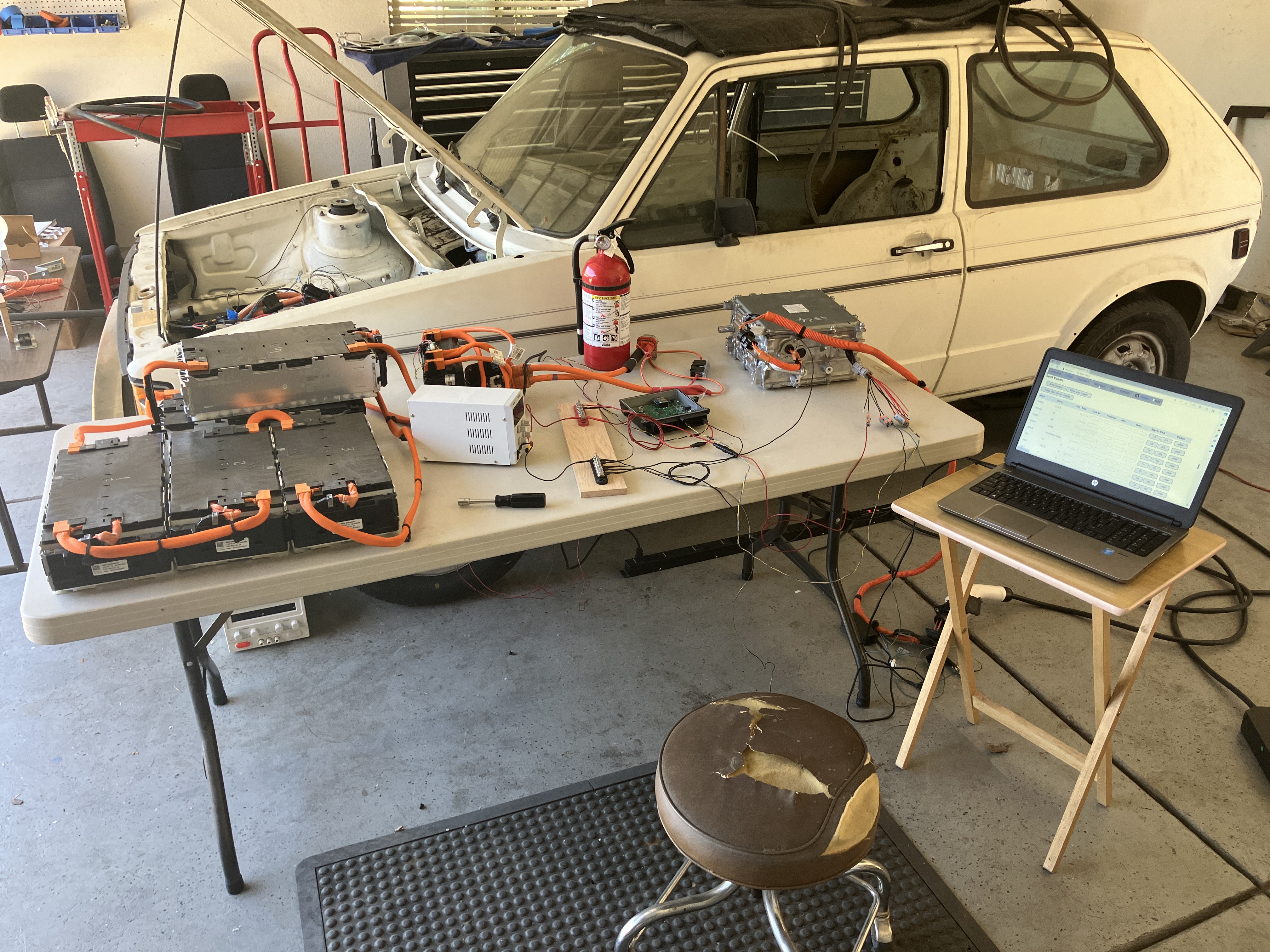

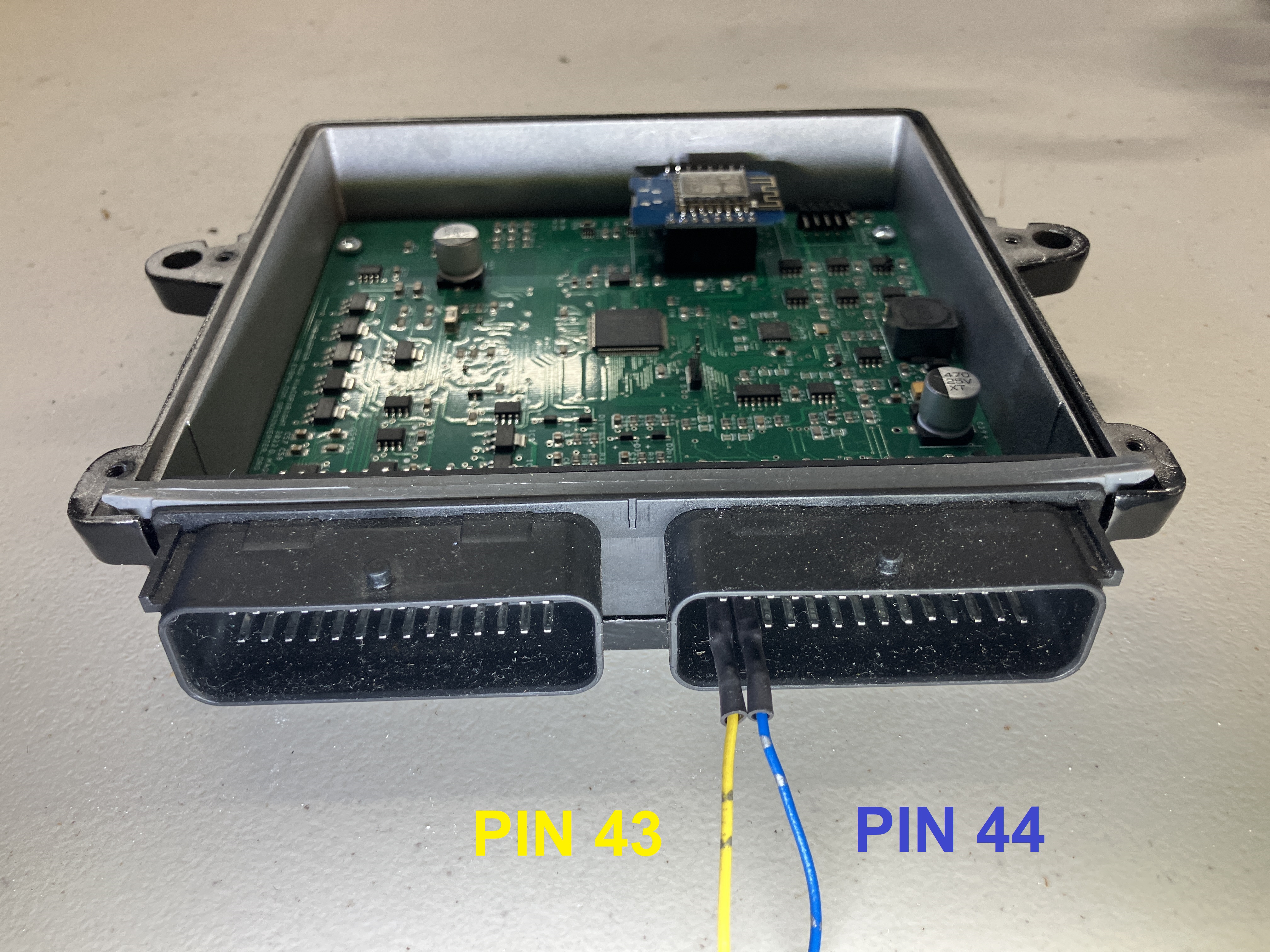

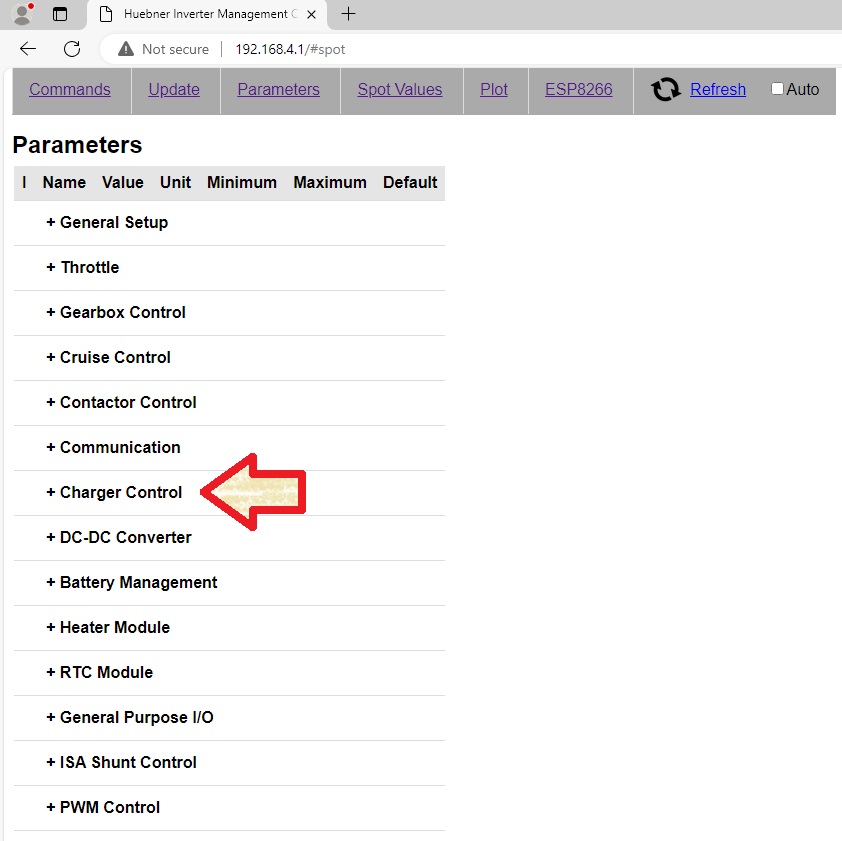

time to accessorize
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
- crasbe
- Posts: 245
- Joined: Mon Jul 08, 2019 5:18 pm
- Location: Germany
- Has thanked: 44 times
- Been thanked: 110 times
Re: I just bought a Mitsubishi Outlander charger. - Now What?
Look at what arrived here today. Well packed actually
(Just kidding, I bought that...)
And they even threw in a heater to make up for the free space! How nice of them!(Just kidding, I bought that...)
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?

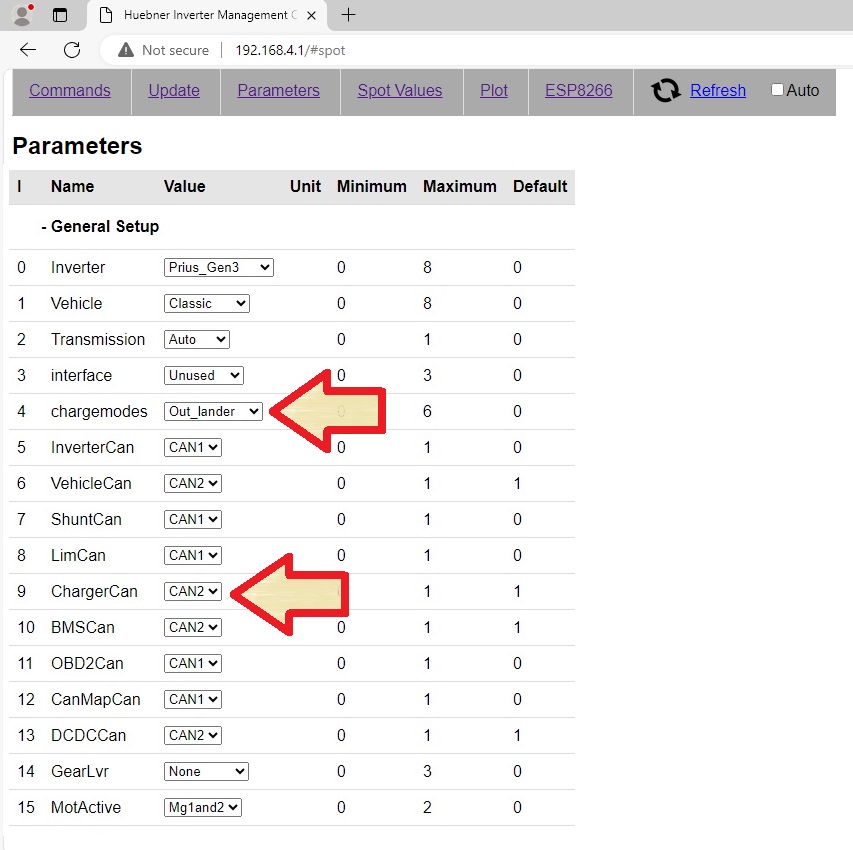

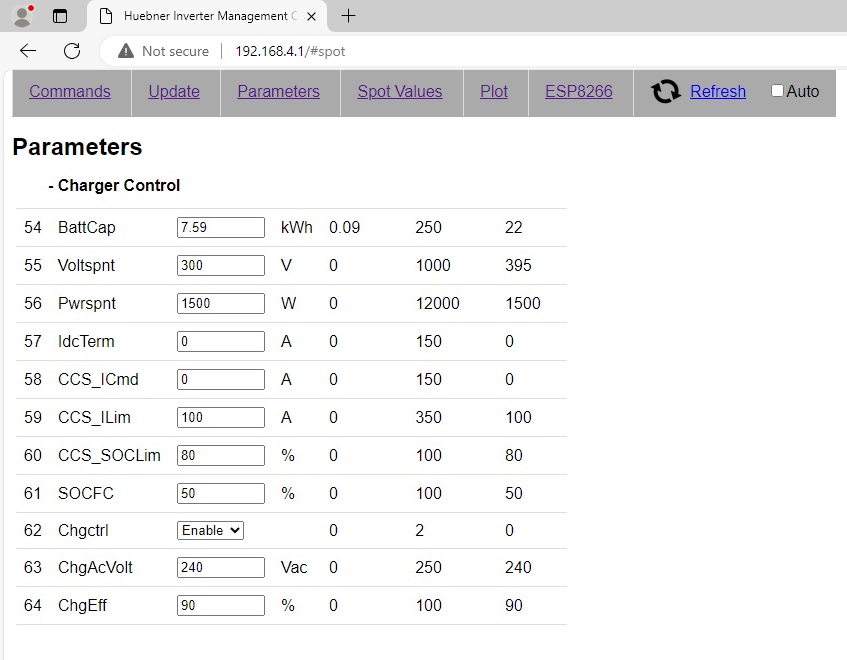

"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
-
- Posts: 3283
- Joined: Mon Dec 24, 2018 1:37 pm
- Location: Slovenia
- Has thanked: 80 times
- Been thanked: 239 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
I just received another heater myself. Its good to have spares. With Outlander parts its simple replacement if something goes wrong.
I used to write Aircraft Maintenance Programs for a living. I will simply add new component page to Mazda manual .
I used to write Aircraft Maintenance Programs for a living. I will simply add new component page to Mazda manual .
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
it appears my charger battery cable is on tour opening up for Ed Sheeran
Wed, Mar 13 Initial Package Scan Monroe Township, NJ 08831
Wed, Mar 13 OUT FOR DELIVERY SACRAMENTO, CA 95835
Wed, Mar 13 ARRIVE USPS FACILITY SACRAMENTO, CA 95813
Wed, Mar 13 ARRIVED AT USPS REGIONAL FACILITY SACRAMENTO, CA 95815
Tue, Mar 12 ARRIVED AT USPS REGIONAL FACILITY SACRAMENTO CA DISTRIBUTION CENT, 95799
Mon, Mar 11 ACCEPTED AT USPS FACILITY 10 MORENO VALLEY CA DISTRIBUTION C, 92553
Thu, Mar 7 Flight Touch Down LAX, CA 90045
Thu, Mar 7 Flight Lift Off HEATHROW, LONDON, London TW6 1EW
Wed, Mar 6 Departed for Destination Lichfield, Staffordshire WS13 8UR
Wed, Mar 13 Initial Package Scan Monroe Township, NJ 08831
Wed, Mar 13 OUT FOR DELIVERY SACRAMENTO, CA 95835
Wed, Mar 13 ARRIVE USPS FACILITY SACRAMENTO, CA 95813
Wed, Mar 13 ARRIVED AT USPS REGIONAL FACILITY SACRAMENTO, CA 95815
Tue, Mar 12 ARRIVED AT USPS REGIONAL FACILITY SACRAMENTO CA DISTRIBUTION CENT, 95799
Mon, Mar 11 ACCEPTED AT USPS FACILITY 10 MORENO VALLEY CA DISTRIBUTION C, 92553
Thu, Mar 7 Flight Touch Down LAX, CA 90045
Thu, Mar 7 Flight Lift Off HEATHROW, LONDON, London TW6 1EW
Wed, Mar 6 Departed for Destination Lichfield, Staffordshire WS13 8UR
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
- Gregski
- Posts: 2344
- Joined: Tue Sep 14, 2021 10:28 am
- Location: Sacramento, California
- Has thanked: 359 times
- Been thanked: 477 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
Looked bigger in the pictures!
"I don't need to understand how it works, I just need to understand how to make it work!" ~ EV Greg
-
- Posts: 3283
- Joined: Mon Dec 24, 2018 1:37 pm
- Location: Slovenia
- Has thanked: 80 times
- Been thanked: 239 times
- Contact:
Re: I just bought a Mitsubishi Outlander charger. - Now What?
This one is shorter. There is another which is a bit larger. Both the same way internally.
