Which wire between motor and inverter?
I assume thick and screened..
Which wire between battery blocks?
I assume solid strip or core well isolated ..
Which wire between battery pack and inverter?
Which wire between CCS2 DC and pack?
Can some people shed some light on this?
General wiring question to screen or not to screen.
- EV_Builder
- Posts: 1199
- Joined: Tue Apr 28, 2020 3:50 pm
- Location: The Netherlands
- Has thanked: 16 times
- Been thanked: 33 times
- Contact:
General wiring question to screen or not to screen.
Converting an Porsche Panamera
see http://www.wdrautomatisering.nl for bespoke BMS modules.
see http://www.wdrautomatisering.nl for bespoke BMS modules.
- johu
- Site Admin
- Posts: 5791
- Joined: Thu Nov 08, 2018 10:52 pm
- Location: Kassel/Germany
- Has thanked: 157 times
- Been thanked: 1025 times
- Contact:
Re: General wiring question to screen or not to screen.
Yes, this is where I'd consider screening most importantEV_Builder wrote: ↑Mon Jun 14, 2021 2:41 pm Which wire between motor and inverter?
I assume thick and screened..
All OEMs use screened cable, I don't, and most DIY builders rather use welding cable. Passed EMC test with Polo without screened DC cable.
Nissan uses unscreened cable, only charger EMI to be expected here which is probably already below the limits.
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
- vwbrady
- Posts: 246
- Joined: Mon Dec 16, 2019 1:18 am
- Location: Seattle, WA
- Has thanked: 5 times
- Been thanked: 11 times
Re: General wiring question to screen or not to screen.
I was wondering this myself. In my professional life, we screen (shield) everything HV, and even now run shielded CAN cables throughout due to such high EMI. I won't be running shielded cable anywhere on my conversion as my inverter is integrated with the motor (gen 2 leaf.) I also don't have much DC cable to run, and my DCDC & Charger are PWM controlled (Gen 2 Volt) so i don't expect sensitivity with those control wires.
- celeron55
- Posts: 776
- Joined: Thu Jul 04, 2019 3:04 pm
- Location: Finland
- Has thanked: 28 times
- Been thanked: 110 times
- Contact:
Re: General wiring question to screen or not to screen.
I think one reason to shield the DC cables is damage detection. If something slices a shielded cable, a ground fault detector easily and automatically detects the fault. Of course in a conversion with no ground fault detector it's not useful, unless you add checking HV insulation resistance to your yearly maintenance schedule or so.
- vwbrady
- Posts: 246
- Joined: Mon Dec 16, 2019 1:18 am
- Location: Seattle, WA
- Has thanked: 5 times
- Been thanked: 11 times
Re: General wiring question to screen or not to screen.
the difference in safety measures between our conversions and the systems I design for public use is ridiculous - HVIL and Iso Detection being the main pieces.

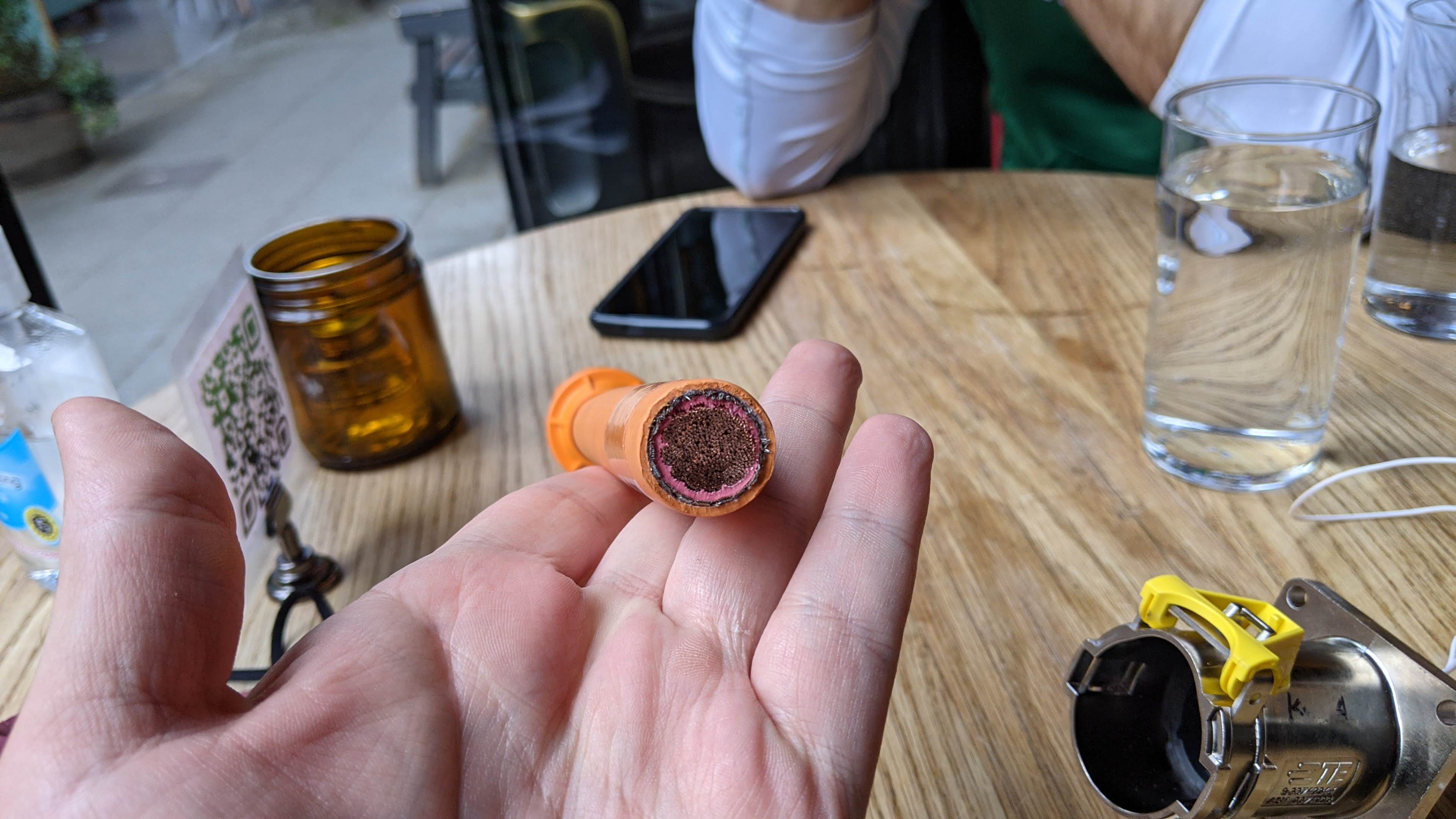

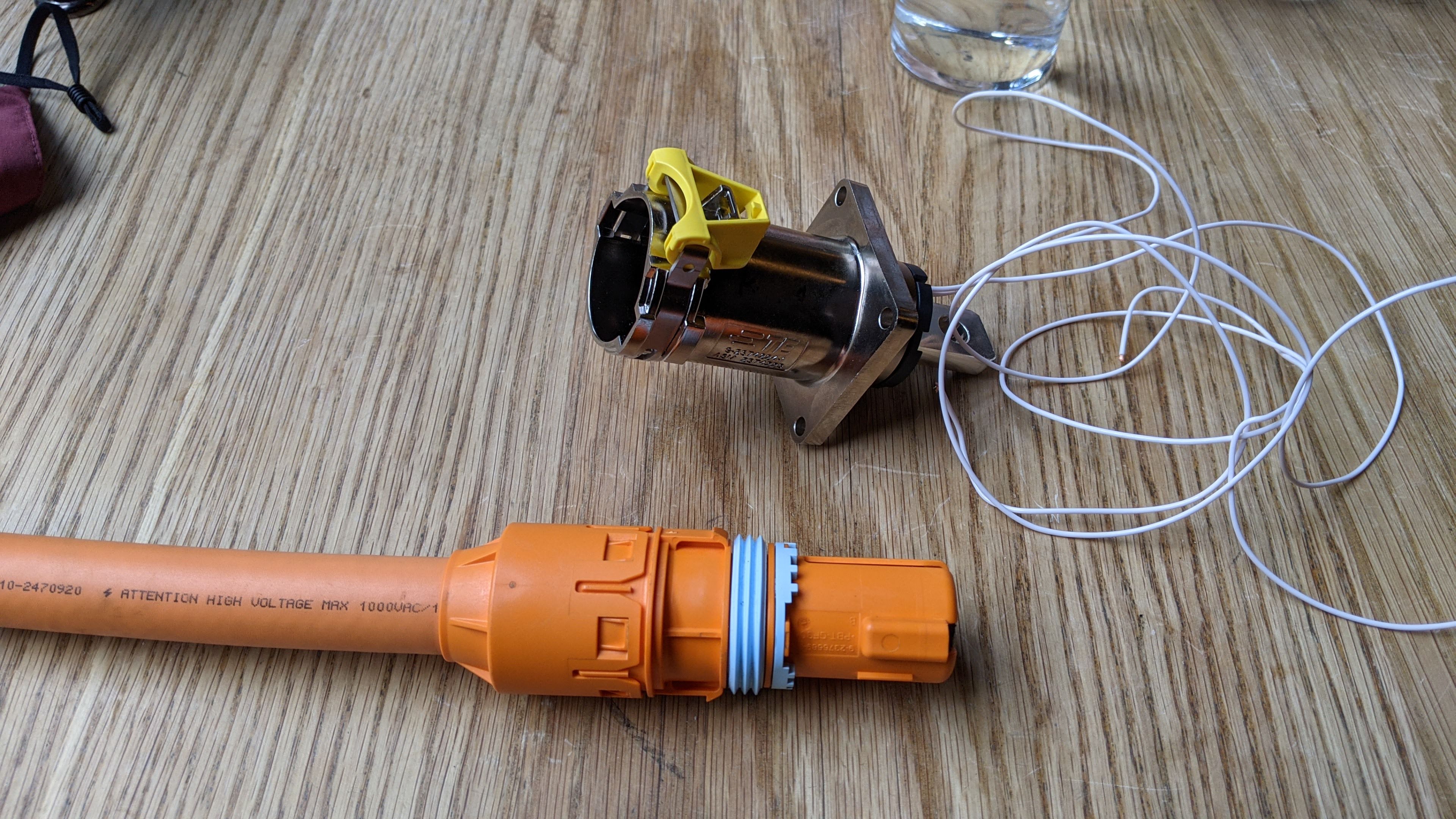

as an example we are using 120mm² single pole cables x3 (pos & neg) in parallel to carry the current we need.
as an example we are using 120mm² single pole cables x3 (pos & neg) in parallel to carry the current we need.
