Re: Nissan Leaf Gen3 inverter

Post by Jack Bauer »

fyi gen3 leaf current sensors are 5v powered, 2.5v center 0A and 2.5mV/A
I'm going to need a hacksaw
User avatar
johu
Site Admin
Posts: 3718
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Contact:

Re: Nissan Leaf Gen3 inverter

Post by johu »

Can you fit a good old Tamura?
https://www.digikey.de/product-detail/d ... -ND/529412

3.3 mV/A so you would loose some power.

for the bulky 800A L06P which would have the correct coefficient:
https://www.digikey.de/product-detail/d ... ND/3048495
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

I have now completed my 110kW inverter retrofit! Video on installation:



Now to figure out the missing CAN messages and resolver coding!
User avatar
johu
Site Admin
Posts: 3718
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Contact:

Re: Nissan Leaf Gen3 inverter

Post by johu »

Early forum release, thanks :)
You can pull more than 225A short term. I've also tuned my inverter to about 120 kW (with the openinverter board) and ran it on the 24 kWh pack. Even went full throttle for a few minutes doing a speed not allowed in Finland ;)
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

Good to know!

I now made more progress on the Resolver Offset. I contacted Jim(Leafspy author) as soon as I had the first logs. Jim was able to add the resolver reading to the latest Leafspy Pro release, it looks like this: [76 -- -- -- --]

I then ran my home-made writing, since this is not available in Leafspy yet. This is what my motor plate and the commands looked like:

I then double-checked that the new offset was taken into use with Leafspy. It was. [86 -- -- -- --]

This will all be automated soon, Jim is working hard on adding this as we speak :) But if you have a custom build that you can't connect Leafspy to, then the above commands I have listed will be mandatory! We need more people on the 110kW inverters :)
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

This was mentioned in the video, the ZE1 inverter only needs the two first digits. That is why the rest are just listed as --


But the above commands work for all generations, the extra numbers just get ignored!
User avatar
drprox
Posts: 27
Joined: Sat Mar 07, 2020 12:50 pm
Location: England

Re: Nissan Leaf Gen3 inverter

Post by drprox »

Nice. Resolver coding worked, I had got confused trying to get it to send the other numbers which aren't used!

FYI the fuse derate curve is shown here:
https://www.socfuse.com/products/detail/dc500vbt2543/

Btw. I didn't do anything smart with the CAN bridge, I just multiplied demand by 1.4
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

Great! I will work on getting the fault code cleared now.

My hypothesis is that some 10ms message is missing. The new inverter is sending a 0x120 that is just a heartbeat, so maybe the other similar ones are missing (like 0x1C2 or 0x1ED). I'll let you know if I have any breakthroughs!
User avatar
drprox
Posts: 27
Joined: Sat Mar 07, 2020 12:50 pm
Location: England

Re: Nissan Leaf Gen3 inverter

Post by drprox »

Do you have a 40kWh pack? If so I thought it would essentially have a ZE1 BMS and therefore send out the 1C2 etc? Perhaps they flashed special firmware if not.
User avatar
drprox
Posts: 27
Joined: Sat Mar 07, 2020 12:50 pm
Location: England

Re: Nissan Leaf Gen3 inverter

Post by drprox »

Did some playing this morning. The missing message is 4B9.
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

You beat me to it! This is what my battery upgrade software looked like, so I was blocking most new messages:

I have created a repository for the CAN-bridge inverter code: https://github.com/dalathegreat/Nissan- ... r-Upgrade/

I'll add the magic message there :)
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

Full video on coding coming soon, here's a teaser:

bennyr
Posts: 3
Joined: Wed Mar 20, 2019 10:45 pm
Location: United States

Re: Nissan Leaf Gen3 inverter

Post by bennyr »

Don't you just love that EV grin?
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

Final video is now out on the 110kW inverter! :)

User avatar
johu
Site Admin
Posts: 3718
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Contact:

Re: Nissan Leaf Gen3 inverter

Post by johu »

Very smooth and great that you're making it open source.

That camera effect is familiar :)
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
Bratitude
Posts: 464
Joined: Thu Jan 02, 2020 7:35 pm
Location: Canada
Contact:

Re: Nissan Leaf Gen3 inverter

Post by Bratitude »

Kelju wrote: Fri Oct 23, 2020 6:56 pm Adapter board is all assembled along with the V3 mainboard....
Kelju, would you mind sharing the pcb/ schematic for your adapter board?
Cheers
https://bratindustries.net/ leaf couplers + adapter plates
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

Just got my hands on a gen4 (technically gen5) inverter! The part number for this 160kW inverter is 291A0-5SN0A. Anything I should check before chucking this into the LEAF?

User avatar
drprox
Posts: 27
Joined: Sat Mar 07, 2020 12:50 pm
Location: England

Re: Nissan Leaf Gen3 inverter

Post by drprox »

If you are willing to open her up, i have been curious to know if they are using the same infineon IGBTs in this and therefore it is just a firmware change.

The reason being, my current sensor mod can overcome the firmware issue but not if I'm going to blow the gen4 igbts.
Isaac96
Posts: 650
Joined: Sat Oct 05, 2019 6:50 pm
Location: Northern California, USA
Contact:

Re: Nissan Leaf Gen3 inverter

Post by Isaac96 »

drprox wrote: Tue Oct 26, 2021 6:24 pm If you are willing to open her up, i have been curious to know if they are using the same infineon IGBTs in this and therefore it is just a firmware change.

The reason being, my current sensor mod can overcome the firmware issue but not if I'm going to blow the gen4 igbts.
Are you planning to modify the phase current sensors?
Would that mess up the FOC algorithms?
User avatar
drprox
Posts: 27
Joined: Sat Mar 07, 2020 12:50 pm
Location: England

Re: Nissan Leaf Gen3 inverter

Post by drprox »

Yes. Already done it on the 110kW version and it seems to work great.
Isaac96
Posts: 650
Joined: Sat Oct 05, 2019 6:50 pm
Location: Northern California, USA
Contact:

Re: Nissan Leaf Gen3 inverter

Post by Isaac96 »

Awesome!
User avatar
Bratitude
Posts: 464
Joined: Thu Jan 02, 2020 7:35 pm
Location: Canada
Contact:

Re: Nissan Leaf Gen3 inverter

Post by Bratitude »

drprox wrote: Tue Oct 26, 2021 6:24 pm The reason being, my current sensor mod can overcome the firmware issue but not if I'm going to blow the gen4 igbts.
Is this mod simply just a purposeful phase shift in the readings? do you mind expanding how / what the mod entails?
https://bratindustries.net/ leaf couplers + adapter plates
User avatar
drprox
Posts: 27
Joined: Sat Mar 07, 2020 12:50 pm
Location: England

Re: Nissan Leaf Gen3 inverter

Post by drprox »

Its simply an amplifier circuit to reduce the amplitude of the phase current signals, so the inverter drives more current to achieve its target 'torque'.
Leo M
Posts: 67
Joined: Fri Oct 30, 2020 9:48 am

Re: Nissan Leaf Gen3 inverter

Post by Leo M »

johu wrote: Thu Sep 02, 2021 7:51 pm Early forum release, thanks :)
You can pull more than 225A short term. I've also tuned my inverter to about 120 kW (with the openinverter board) and ran it on the 24 kWh pack. Even went full throttle for a few minutes doing a speed not allowed in Finland ;)

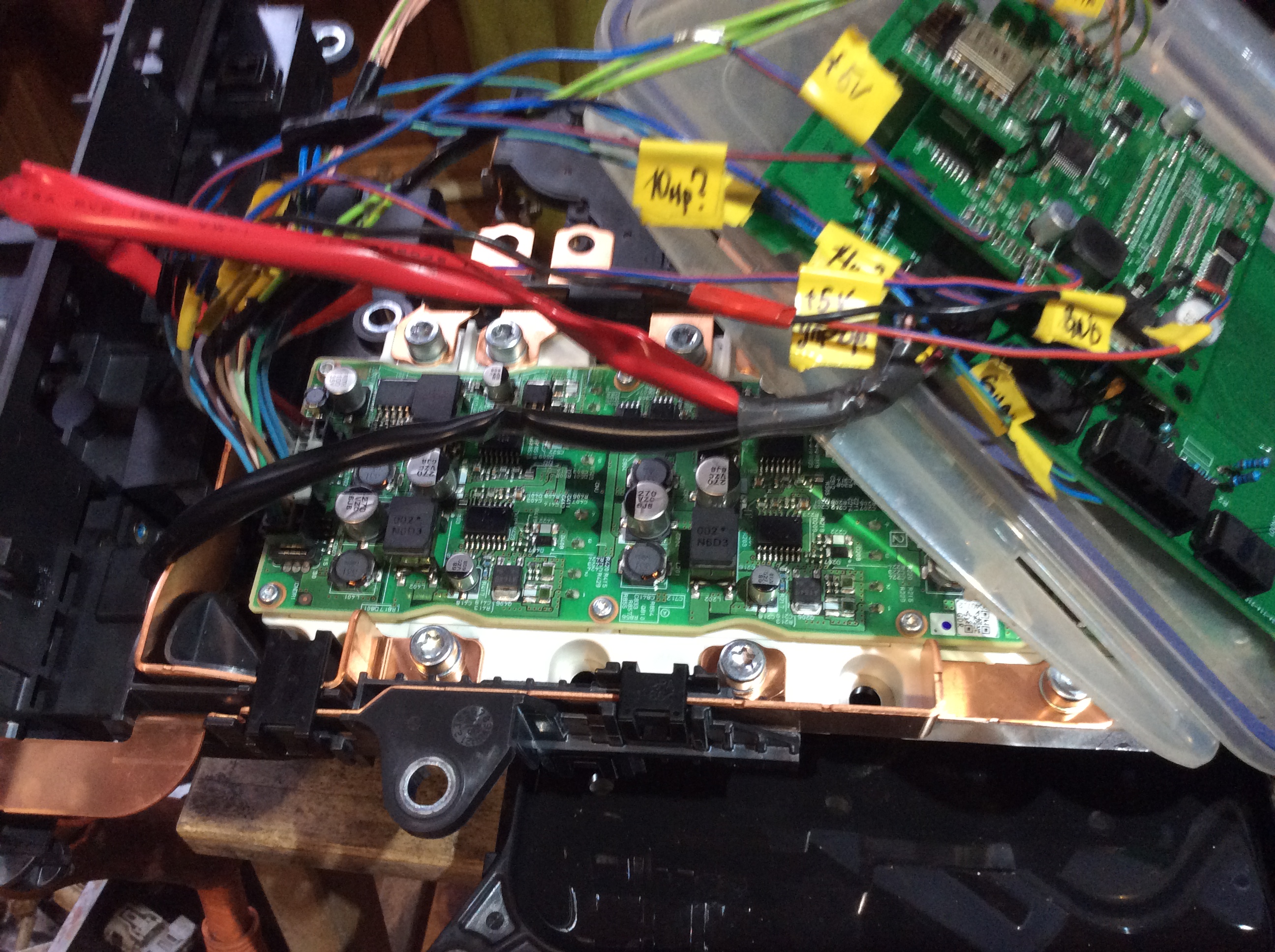

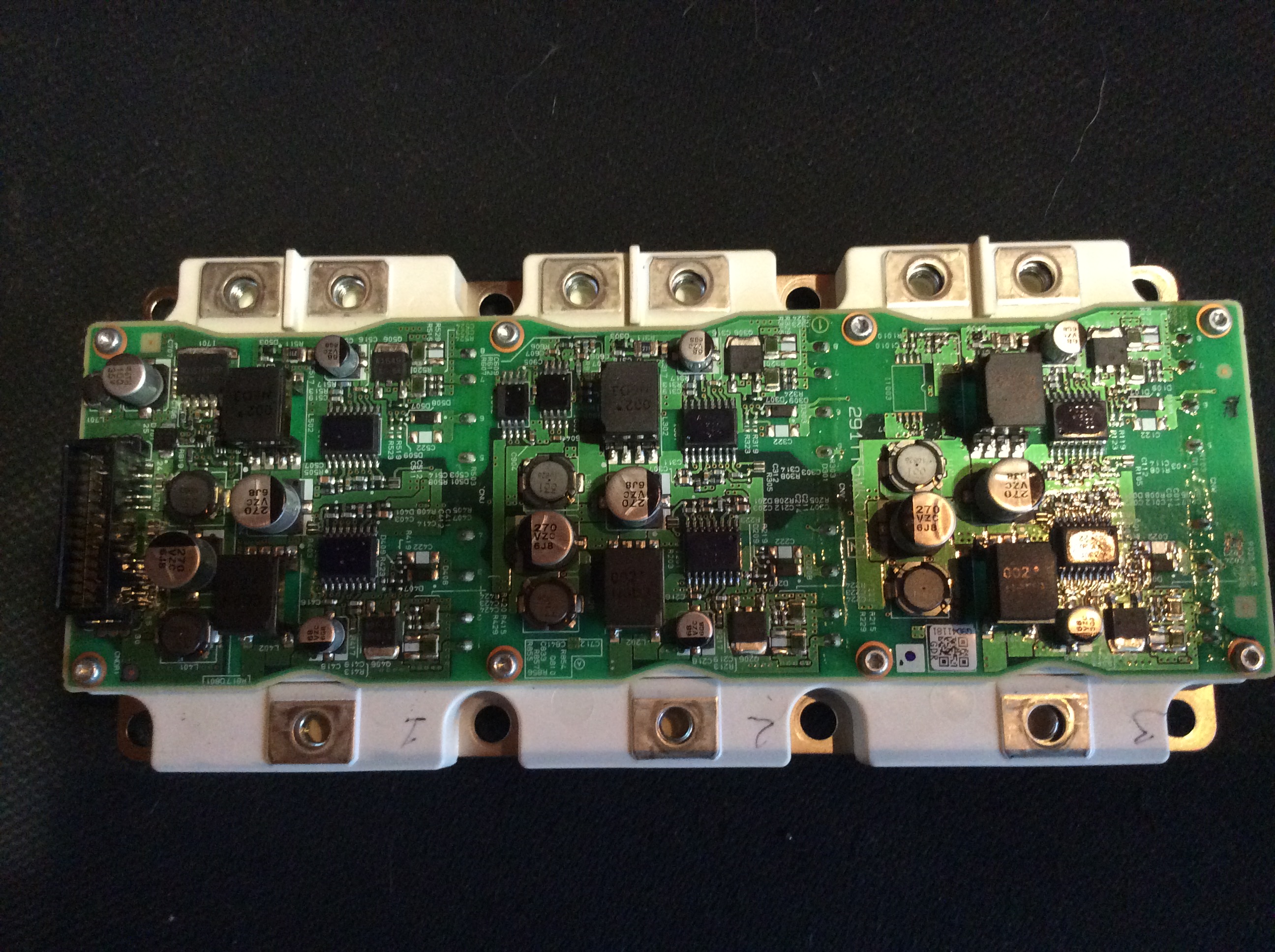

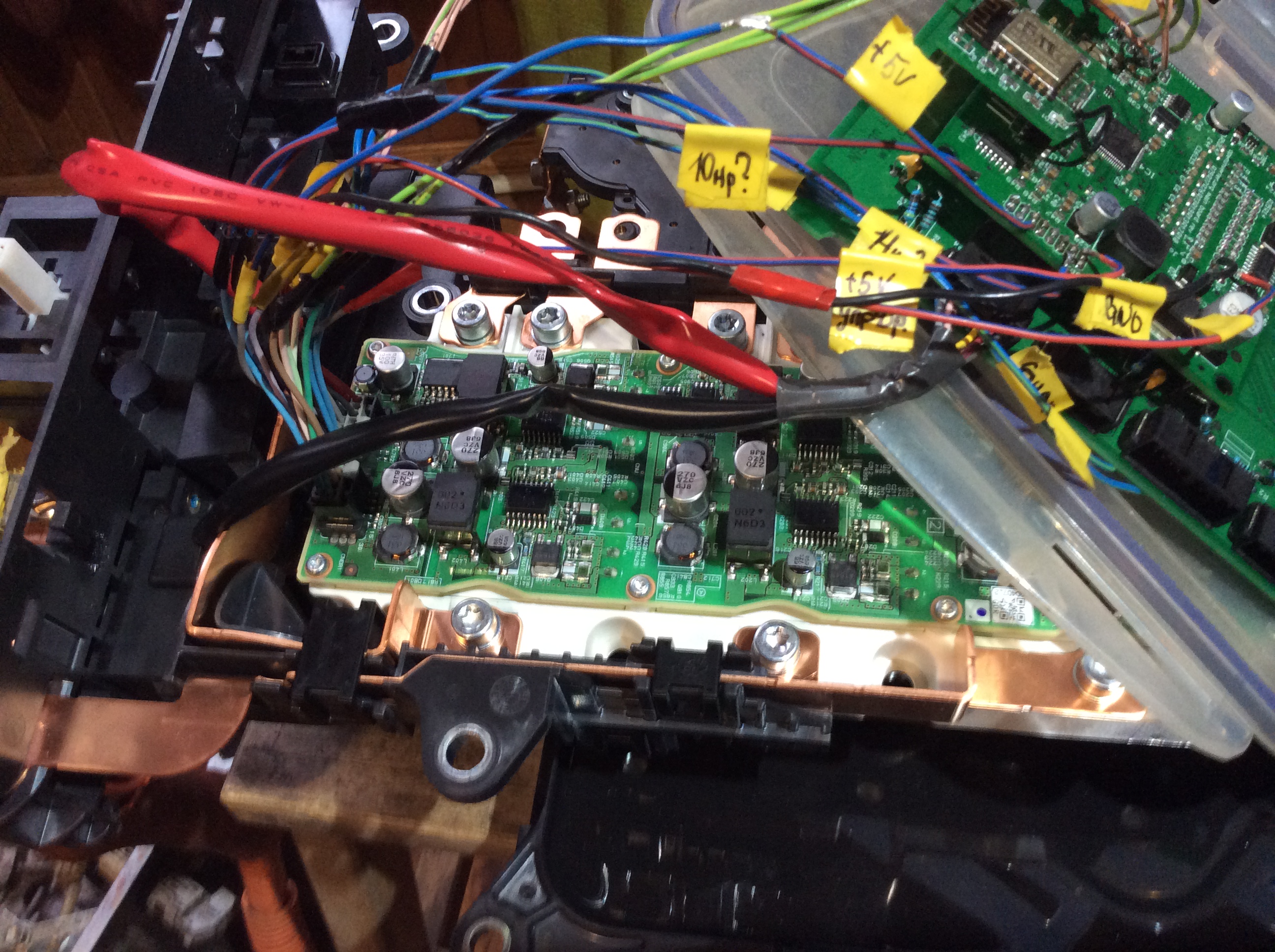

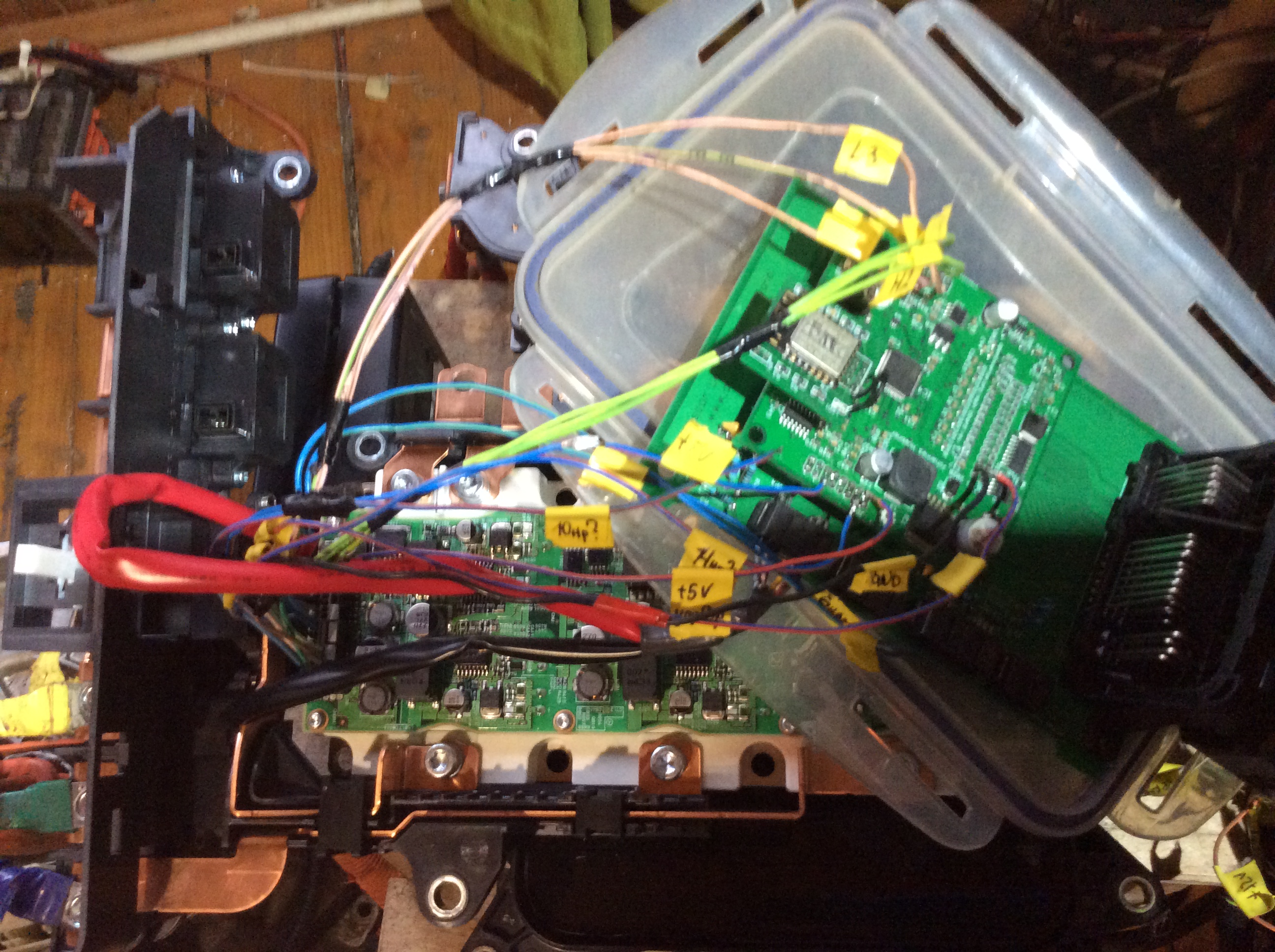

Have you run it in reverse mode? My forward mode works fine, and in reverse mode there is an overcurrent. The settings are all working and tested on other inverters on GEN2 works perfectly! What could be the problem? Please help with advice.....Forward-great! Reverse - overcurrent....(
Attachments
User avatar
Dala
Posts: 26
Joined: Tue Jul 06, 2021 9:12 pm

Re: Nissan Leaf Gen3 inverter

Post by Dala »

I couldn't resist, so I installed the 160kW inverter with the 40kWh pack. No fuse problems so far :)
