Topic: For sale 110-160 kw Nissan Leaf stack (motor, inverter, PDM)
Replies: 16
Views: 2075

Re: For sale 110-160 kw Nissan Leaf stack (motor, inverter, PDM)

I want to shout out a thanks for m.art.y! I bought a 160Kw inverter including the harness and everything went flawless!
by Zapatero
Sun Oct 02, 2022 8:03 pm
Forum: Projects
Topic: VW Touran powered by Nissan Leaf
Replies: 549
Views: 65880

Re: VW Touran powered by Nissan Leaf

I really think it's about time to get rid of the CHAdeMo Port and install a CCS Port ;)
by Zapatero
Sun Oct 02, 2022 7:56 pm
Forum: Nissan
Topic: Gen2 to Gen3 inverter plug conversion. Wiring diagrams needed
Replies: 7
Views: 251

Re: Gen2 to Gen3 inverter plug conversion. Wiring diagrams needed

Question for the Gen3 Wiring: Is Pin 1 and Pin 6 permanently connected to 12V+ and Pin 18 on Ignition?
by Zapatero
Fri Sep 30, 2022 9:58 am
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

What i did meanwhile: Wig welded the battery box PXL_20220924_111333113 (1).jpg painted it black PXL_20220929_130425445.jpg glued and riveted it in the Car PXL_20220930_065051278.jpg View from underneath PXL_20220930_065226705.jpg View from behind PXL_20220930_065326975.jpg With bumper attached PXL_...
by Zapatero
Thu Sep 29, 2022 9:49 am
Forum: Tesla
Topic: Model 3 PCS Controller Support Thread
Replies: 217
Views: 22133

Re: Model 3 PCS Controller Support Thread

One quick search of this thread with the term "3d print" reveals : https://github.com/muehlpower/EV-FFB Can someone please add to the wiki page? I have done so on the first post. Correct, BUT the HV Plug that i posted above is NOT included in this List, so there is no 3D Model of this Plu...
by Zapatero
Wed Sep 28, 2022 9:20 pm
Forum: Tesla
Topic: Model 3 PCS Controller Support Thread
Replies: 217
Views: 22133

Re: Model 3 PCS Controller Support Thread

I'm still looking for a 3D printable version of this Plug.
Does this exist? Buying the cable is around 200€ - thats a lot just for a Plug!
by Zapatero
Wed Sep 28, 2022 9:17 pm
Forum: Tesla
Topic: Model 3 PCS Controller Support Thread
Replies: 217
Views: 22133

Re: Model 3 PCS Controller Support Thread

Would you have a part number? That would be awesome! Thanks!
by Zapatero
Wed Sep 28, 2022 7:01 am
Forum: Tesla
Topic: Model 3 PCS Controller Support Thread
Replies: 217
Views: 22133

Re: Model 3 PCS Controller Support Thread

I've not connected pin 2 of the 12 pin connector and I have the V2 also. Poor photo below, I can get a clearer one if needed. All I needed to connect was pin 1 (Gnd/12V-), pin 2 (12V+), and pin 5 (Input 1 connected to 12V+ also) on the 20 way connector, then ground the PCS case. Have a 5A fuse off ...
by Zapatero
Fri Sep 23, 2022 10:14 pm
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

I already bought the kilovac relays - so good to know i will need them ;) I planned to connect the CCS-Port before the relay assembly (with precharge). So i don't need to activate all 4 (or 5 including precharge) relays, instread only the 2 CCS relays. I did it that way with the CHAdeMO on my EV86. ...
by Zapatero
Fri Sep 23, 2022 3:53 pm
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

I started to weld the rear battery box and tried to arrange some components on it. PXL_20220923_100048632.jpg PXL_20220923_102934855.jpg Then i had a closer look at the relay assembly. What is all of your opinion on these thoughts: This relay assembly is the last part in the battery before the power...
by Zapatero
Wed Sep 21, 2022 7:01 pm
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

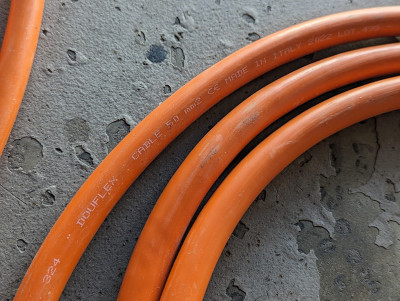

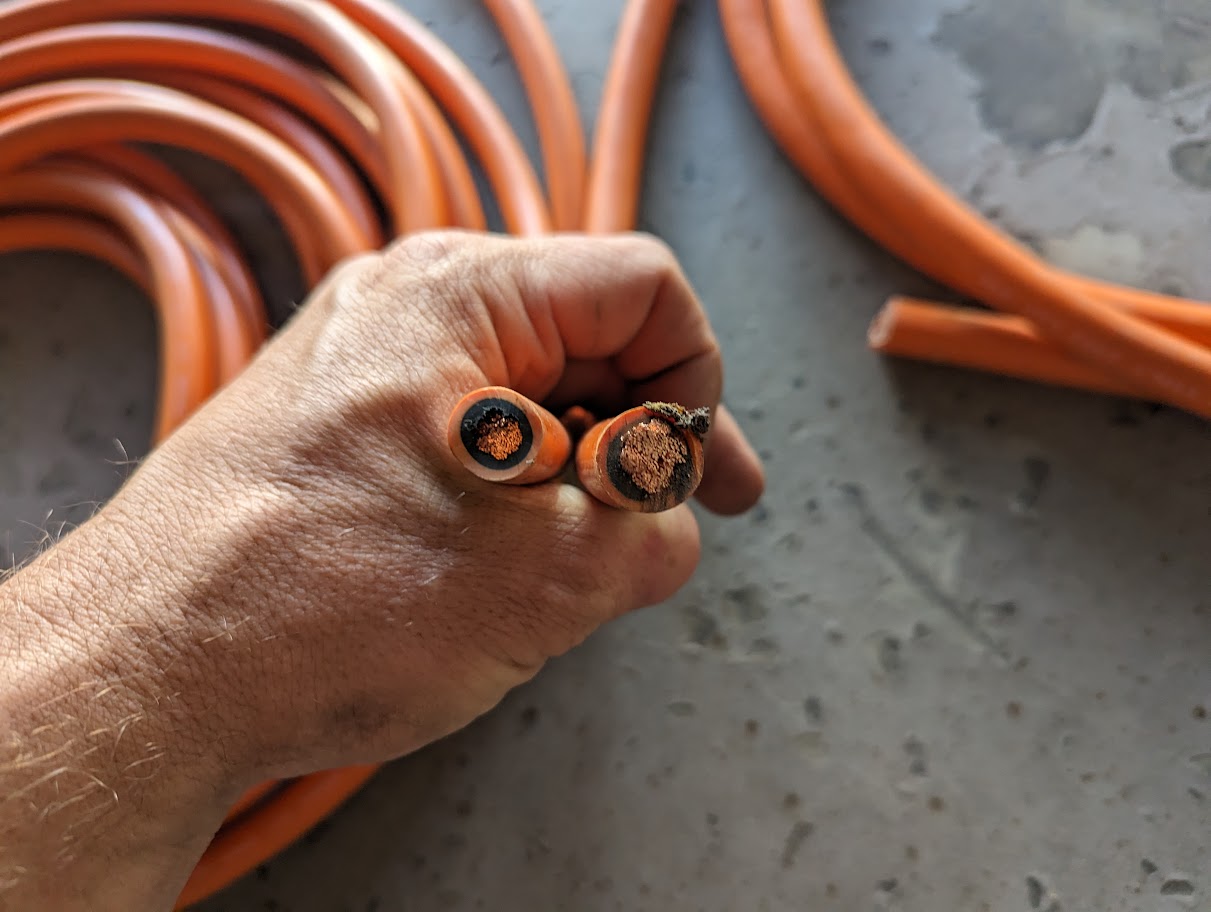

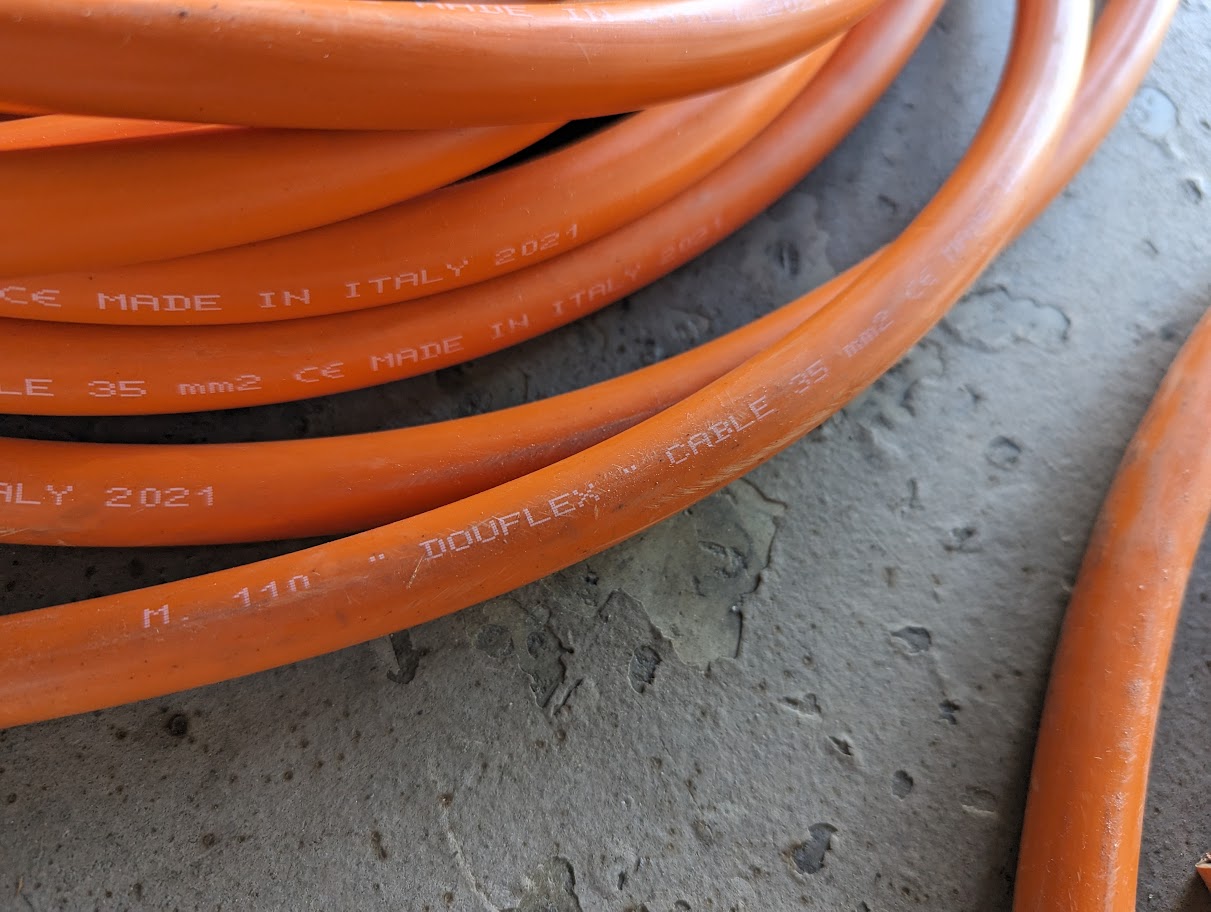

I shortened the cable for the heater to make it look nicely. For anyone using the Outlander PHEV parts, here's the polarity on the cables. But be aware: On the very short one i had to swap the pins, otherwise the polarity in the junction box would have been swapped. That is due to the fact that ther...
by Zapatero
Wed Sep 21, 2022 6:53 pm
Forum: Nissan
Topic: Nissan Leaf Gen3 inverter
Replies: 222
Views: 32661

Re: Nissan Leaf Gen3 inverter

Except for the outer ring the amount of pins and the distance between them is totally different!
by Zapatero
Wed Sep 21, 2022 9:21 am
Forum: Mitsubishi
Topic: Mitsubishi Outlander PHEV heater
Replies: 75
Views: 10115

Re: Mitsubishi Outlander PHEV heater

How hot does the heater get on the outside. Is it ok to mount it close to painted parts?
I'm afraid this could be too close!
by Zapatero
Wed Sep 21, 2022 6:54 am
Forum: Nissan
Topic: Nissan Leaf Gen3 inverter
Replies: 222
Views: 32661

Re: Nissan Leaf Gen3 inverter

I ordered this Plug and tried to plug it in on the inverter - it does not fit!
Are there any alternatives?
by Zapatero
Mon Sep 19, 2022 7:54 pm
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

EV_Builder wrote: Mon Sep 19, 2022 7:52 pm I don't have experience, yet, but since there is no warning sticker on it of temperature i bet it doesn't get that hot if you keep the flow going.
Exactly what i thought... no warning sticker means it can't be that bad :D :)
by Zapatero
Mon Sep 19, 2022 7:52 pm
Forum: Nissan
Topic: Nissan Leaf Gen3 inverter
Replies: 222
Views: 32661

Re: Nissan Leaf Gen3 inverter

I received two inverters, one 160Kw and one 110Kw I opened both Inverters, one is 5WK0A which is 110 Kw PXL_20220919_191142556.jpg PXL_20220919_191134683.jpg the other one is 5SN0A which is 160Kw and one 110Kw PXL_20220919_191122203.jpg PXL_20220919_191104795.jpg As stated before they are the same e...
by Zapatero
Mon Sep 19, 2022 7:31 pm
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

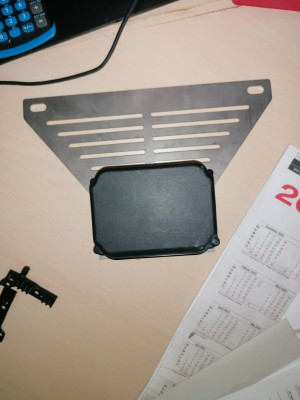

I installed the heater and the junction box for the AC and the DCDC. I bent, cut and welded more mounting brackets. All for the goal of the sweet OEM-Look! My question is now: Was that a good idea to place it so close to the painted parts? Does it get very hot on the outside? Does anyone has experie...
by Zapatero
Sun Sep 18, 2022 4:11 pm
Forum: Nissan
Topic: Gen2 to Gen3 inverter plug conversion. Wiring diagrams needed
Replies: 7
Views: 251

Re: Gen1 to Gen3 inverter plug conversion. Wiring diagrams needed

Due to the matching cable colors it seems pretty straight forward and the resolver cables all match.
Just the question about the extra temperature sensor i couldn't solve! But as far as i found out it's on the new inverter. So it's obvious how to connect!
by Zapatero
Sun Sep 18, 2022 2:22 pm
Forum: Nissan
Topic: Gen2 to Gen3 inverter plug conversion. Wiring diagrams needed
Replies: 7
Views: 251

Re: Gen1 to Gen3 inverter plug conversion. Wiring diagrams needed

I ment Gen2, not Gen1 - sorry! Here's what i got from johannes when i bought the board: image.png 2 questions i got left what would happen if the Resolver-Cables are mixed up? E.g.: Pin 17 and 18 on the Gen2 harness are switched? It's not really clear which PIN is which cable! - SOLVED by looking at...
by Zapatero
Sun Sep 18, 2022 7:03 am
Forum: Nissan
Topic: Gen2 to Gen3 inverter plug conversion. Wiring diagrams needed
Replies: 7
Views: 251

Gen2 to Gen3 inverter plug conversion. Wiring diagrams needed

Hi, Im about to install a gen 3 160 kw inverter in my EV86. I got a plug from the Gen 3 with some cable on it. So I'm gonna chop the Gen 1 (correction! I ment Gen2) plug off and solder the Gen3 plug on. Should be: 6 cables for the resolver? 2 canbus cables 12v Ground Can anyone support with wiring d...
by Zapatero
Sun Sep 11, 2022 7:28 am
Forum: Projects
Topic: Z3(00)
Replies: 194
Views: 22721

Re: Z3(00)

johu wrote: Sun Sep 11, 2022 6:53 amOver revved it?
been there, done that... propably the only way to actually kill a motor.
by Zapatero
Sun Sep 11, 2022 7:27 am
Forum: Mitsubishi
Topic: Outlander rear motor and inverter
Replies: 181
Views: 19959

Re: Outlander rear motor and inverter

Does the inverter care if the motor runs forward or backwards? I'm aksing because i mounted one motor forward (rear) and one backward (front) in my car. Will they both behave the same regarding max RPM, Regen etc...
by Zapatero
Sat Sep 10, 2022 6:27 am
Forum: Mitsubishi
Topic: Outlander rear motor and inverter
Replies: 181
Views: 19959

Re: Outlander rear motor and inverter

mjc506 wrote: Fri Sep 09, 2022 9:10 pm Does anyone have any photos of the (rear) inverter open? Or front!
you can see some of it in my pictures:
viewtopic.php?t=2292&start=125
by Zapatero
Wed Aug 31, 2022 8:31 pm
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

I weighed the car yesterday to know how much more weight i can put in the car, especially how much weight there is left for the battery cells and how to distribute the batteries. The german TÜV calculates 75Kg for each person and 5Kg of luggage for each person. That means i have 5 seats in my papers...
by Zapatero
Wed Aug 31, 2022 8:18 pm
Forum: Projects
Topic: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors
Replies: 149
Views: 11114

Re: Subaru e-mpreza (Impreza) 96 - AWD with 2 Outlander rear motors

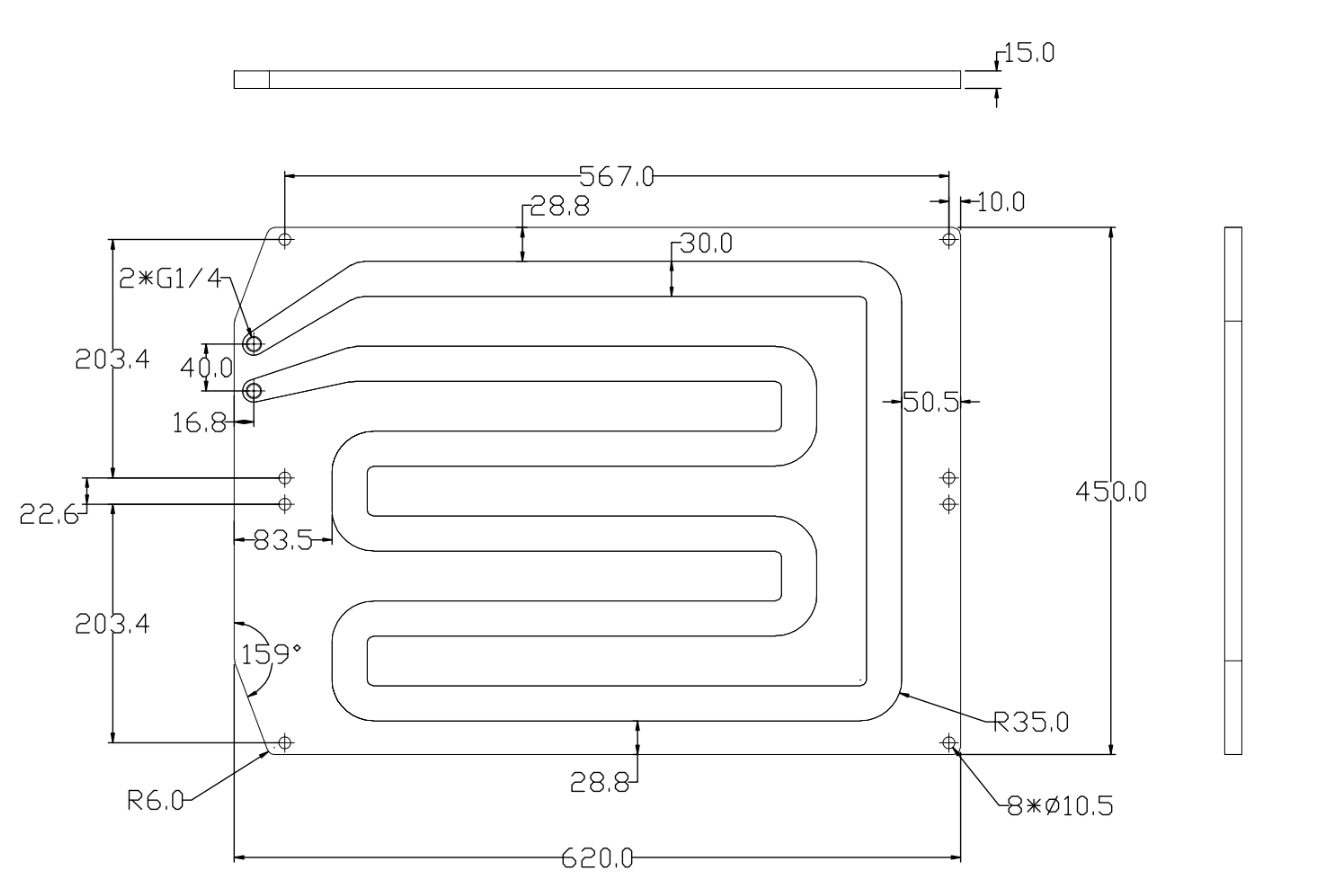

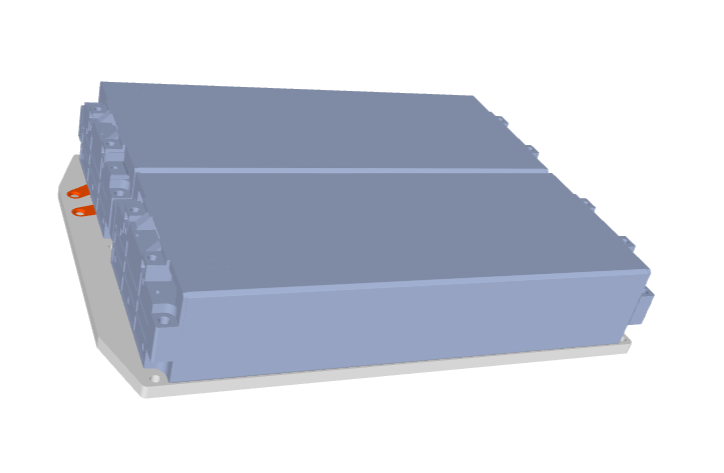

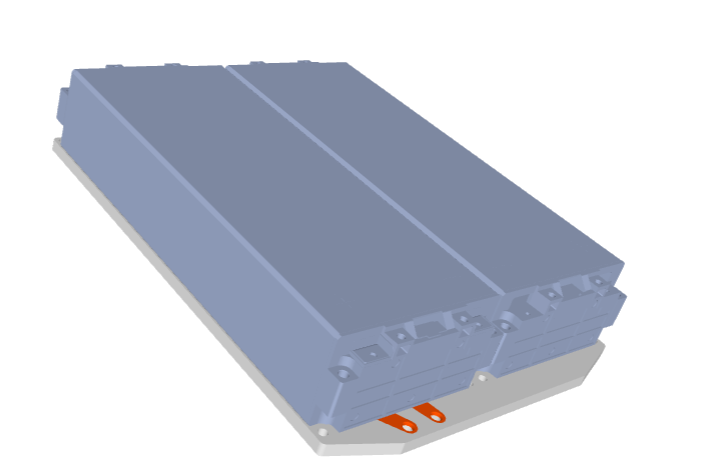

Prepared the cooling plates for welding today. Tomorrow i'll stop by a radiator repair shop to have them weld a end piece on the plates that leads the water from one side to the other. Cooling plates before cutting PXL_20220831_104737704.jpg Cooling plates after cutting PXL_20220831_124018009.jpg 20...
