I finally got arround to making my CCS2 and type 2 work with orion BMS.
I just got one last issue with locking the plug in the socket when charging in AC, it simply doesn't lock at all. for now the BMS sends OBCState to 2 as soon as a plug is plugged.
What am i missing ?
Search found 94 matches
- Wed Aug 07, 2024 6:09 am
- Forum: Charging
- Topic: QCA7000 Foccci+Clara User thread
- Replies: 90
- Views: 16994
- Mon Jul 01, 2024 12:52 pm
- Forum: User Interface
- Topic: ESP32 Based Web Interface & Data Logger
- Replies: 334
- Views: 164823
Re: ESP32 Based Web Interface & Data Logger
Just got a new thing while remaking my can man image.png i haven't done the comments to remove the json issue, could this be linked ? Edit : I've commented the lines, reuploaded the code to the ESP the wired way, but still no luck. same behaviour, i can't add can messages to the can map. I'm very lo...
- Fri Jun 28, 2024 8:21 am
- Forum: Charging
- Topic: Orion BMS and CCS
- Replies: 19
- Views: 4505
Re: Orion BMS and CCS
Digging up a relatively old thread but, i'm in the same situation. How did you send 0xFF from foccci to your orion bms ? i wasn't able to understand what's the special can sauce that enables the orion bms to not have the cp and pp connected to it. i have a foccci and orion bms 2 wired up and working...
- Fri Jun 28, 2024 6:11 am
- Forum: Charging
- Topic: Foccci CCS2/OBC/Orion BMS wiring diagram
- Replies: 9
- Views: 2272
Re: Foccci CCS2/OBC/Orion BMS wiring diagram
I confirmed that this schematic works. Charged in CCS2 yesterday.
- Thu Jun 27, 2024 12:32 pm
- Forum: Charging
- Topic: Broken focci board ?
- Replies: 15
- Views: 3669
Re: Broken focci board ?
Do you see fly them around? Or any chance to get replacement and solder them? Sadly i don't see them, i openend the box quite a few times. i'll get some replacements on the road asap. Q13 looks like the pad has been completely ripped off. you might need to scrape a bit of the mask off the track and...
- Thu Jun 27, 2024 7:00 am
- Forum: Charging
- Topic: Broken focci board ?
- Replies: 15
- Views: 3669
Broken focci board ?
I noticed that the wakeup functionality of my 4.5a board doesn't work, it gives 12V but i can't draw the 160mah that my setup uses. I belive that the missing Q13 and Q11 could be the culprits. I wasn't able to find the schematics of V4.5a on the github https://github.com/uhi22/foccci/ Could someone ...
- Wed Jun 26, 2024 6:54 am
- Forum: User Interface
- Topic: ESP32 Based Web Interface & Data Logger
- Replies: 334
- Views: 164823
Re: ESP32 Based Web Interface & Data Logger
With platormio i did an upload but then i couldn't connect to the wifi anymore. I updated the firmware via the arduino ui, then with platformio i did a uploadfs. here is what i get when i change the node ID or the can speed. image.png with arduino ui (1.8.19) i can't use the esp8266 upload data as i...
- Tue Jun 25, 2024 3:10 pm
- Forum: User Interface
- Topic: ESP32 Based Web Interface & Data Logger
- Replies: 334
- Views: 164823
Re: ESP32 Based Web Interface & Data Logger
Hello, I just installed the latest version on my esp 32 can lite module so now i have the button to change the CAN speed just under the node ID, amazing. Problem is that it seems to not work, as in the can speed doesn't change when i change it on the button. image.png regardless of the can spee disp...
- Wed Jun 12, 2024 5:21 am
- Forum: Charging
- Topic: Foccci CCS2/OBC/Orion BMS wiring diagram
- Replies: 9
- Views: 2272
Re: Focci CCS2/OBC/Orion BMS wiring diagram
Yes, AC and DC charging. AC monophase 6.6kW
- Fri Jun 07, 2024 5:36 am
- Forum: Tesla
- Topic: SDU with OI board Max operating voltage
- Replies: 6
- Views: 2329
Re: SDU with OI board Max operating voltage
Hi,
The DC link capacitor is rated at 430V on the SDU i was runing a 102S pack limited to 429V and it blew up.
I also know of a system runing 440V on an SDU without problems, so i guess parameters play a big role.
The DC link capacitor is rated at 430V on the SDU i was runing a 102S pack limited to 429V and it blew up.
I also know of a system runing 440V on an SDU without problems, so i guess parameters play a big role.
- Fri Jun 07, 2024 5:33 am
- Forum: Tesla
- Topic: Tesla SDU repair. Over temp
- Replies: 6
- Views: 837
Re: Tesla SDU repair. Over temp
Yes, they are exactly the same casing, bolt holes and everything. As far as i know the powerstage is the same. Just swap your logicboard and make the busbars.
Yes your link to an FDU is what you would need.
Yes your link to an FDU is what you would need.
- Thu Jun 06, 2024 9:32 am
- Forum: Tesla
- Topic: Tesla SDU repair. Over temp
- Replies: 6
- Views: 837
Re: Tesla SDU repair. Over temp
Yes same inverters, the phase wires are about 40mm shorter on the Front drive unit, so you'll need to make some little busbars to be able to connect the phase wire to the motor.
- Thu Jun 06, 2024 9:31 am
- Forum: Charging
- Topic: Foccci CCS2/OBC/Orion BMS wiring diagram
- Replies: 9
- Views: 2272
Re: Focci CCS2/OBC/Orion BMS wiring diagram
for the wakeup,
The orion bms expect a 12v when the plug is inserted/ when the bms needs to send the charge commands.
The OBC sends a 12V when the AC is applied.
The orion bms expect a 12v when the plug is inserted/ when the bms needs to send the charge commands.
The OBC sends a 12V when the AC is applied.
- Thu Jun 06, 2024 5:46 am
- Forum: Charging
- Topic: Foccci CCS2/OBC/Orion BMS wiring diagram
- Replies: 9
- Views: 2272
Re: Focci CCS2/OBC/Orion BMS wiring diagram
Updated taking your advice.
I've added a PDF version as well.
I've added a PDF version as well.
- Wed Jun 05, 2024 5:44 am
- Forum: Tesla
- Topic: Tesla SDU repair. Over temp
- Replies: 6
- Views: 837
Re: Tesla SDU repair. Over temp
Hi,
Most likely one on the igbt is dead, that's why the inverter shuts off. The SDU inverter is really hard to repair, and usually it'smore economical to get a front drive unit and take the inverter.
Most likely one on the igbt is dead, that's why the inverter shuts off. The SDU inverter is really hard to repair, and usually it'smore economical to get a front drive unit and take the inverter.
- Wed Jun 05, 2024 5:30 am
- Forum: Charging
- Topic: Foccci CCS2/OBC/Orion BMS wiring diagram
- Replies: 9
- Views: 2272
Foccci CCS2/OBC/Orion BMS wiring diagram

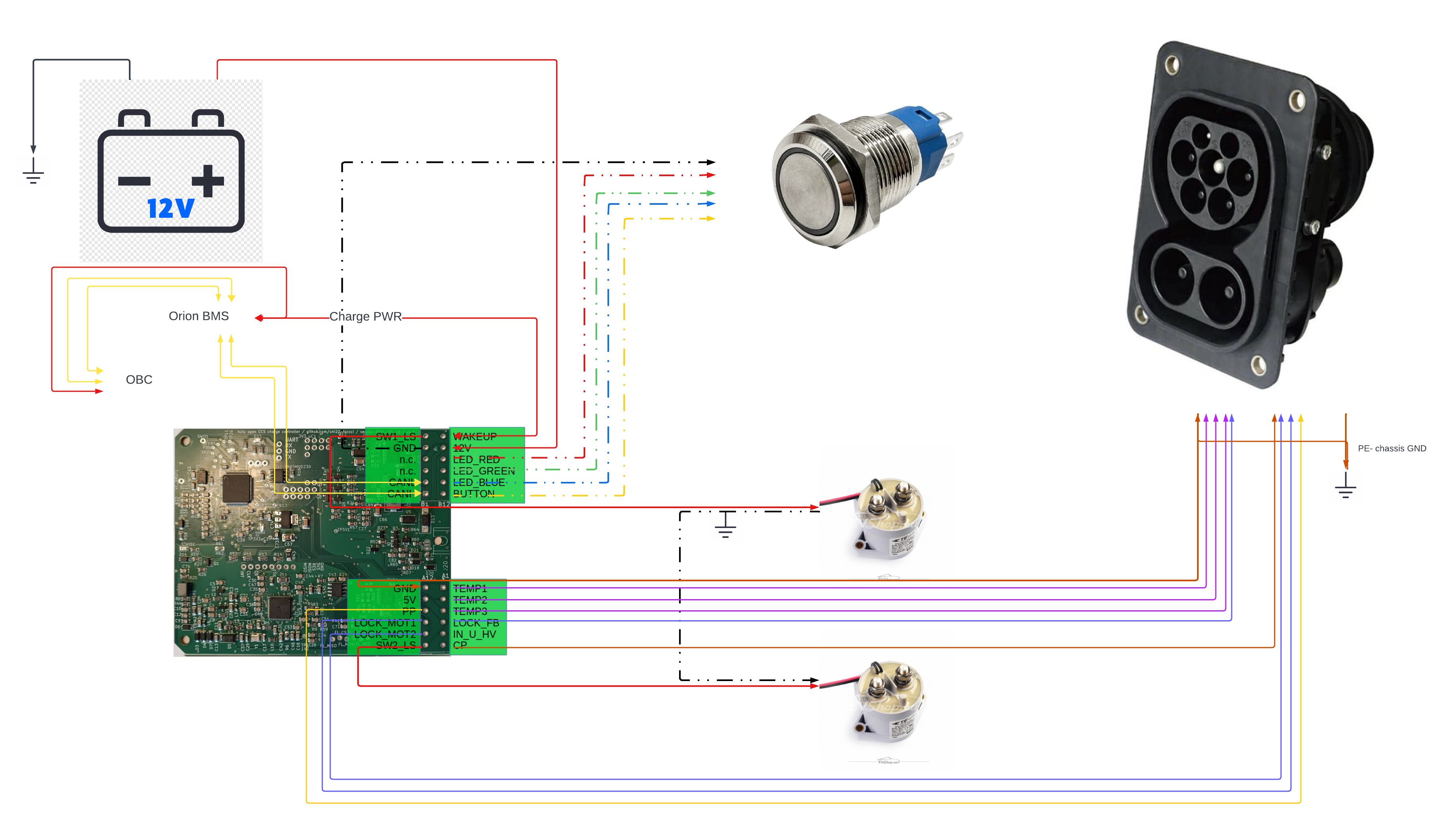

Hello, I'm planing the integration of the focci module in one of my conversions. I wasn't able to find a wiring diagram so I made one, if those who have integrated it could correct me if need be, i'll make the updates so it can be usefull for others. Focci board 4.5a as it is what I have. Focci CCS2...
