Volvo Power Steering Pump
Part Numbers and Versions
| Part Number | Vehicle Used in | Comment |
|---|---|---|
| 30636927 | 2004-2013 C30 C70 V50 S40 | unverified |
| 31202520 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36000075 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36000116 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36000772 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36000801 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36001211 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36001485 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36002698 | 2004-2013 C30 C70 V50 S40 | unverified |
| 36050678 | 2004-2013 C30 C70 V50 S40 | unverified |
| 8603041 | 2004-2013 C30 C70 V50 S40 | unverified |
| 8603274 | 2004-2013 C30 C70 V50 S40 | unverified |
Electrical Connection
Input signals, start and stop conditions described in S40 service manual[2]
The harness for the motor supply can be bought completely (Volvo Part Number: 30775461 [3]) or just the connector. There is connector kits available online (avoid the pig-tail version as the cable is way undersized. Link)

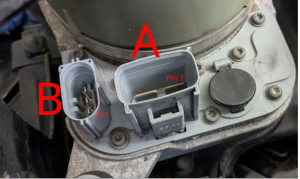

Connector A (Power)[4]
| Pin Number | Cable Color | Function | Comment |
|---|---|---|---|
| 1 | Red | Permanent +12V for Motor | Fused with 80A fuse (F2) |
| 2 | Black | GND |
| Part | Part Number | Comment |
|---|---|---|
| Housing | 31266849[5] | Not verified, possibly different plug? |
| Housing | 30728420[6] | Not verified |
| Part | Part Number | Comment |
|---|---|---|
| Housing | 7283-2918-10[7] | Also in black, P/N 7283-2918-30 |
| Terminals | 7116-3250[8] | For 8mm2 wire |
| Wire Seals | 7158-3610-80[9] | For 8mm2 wire |
Note: Some later Volvo models use a similar variant of this pump which has a different shaped (smooth housing body) Connector A. Not known if the CAN protocol is different.
Connector B (Control)[4]
| Pin Number | Cable Color | Function | Comment |
|---|---|---|---|
| 1 | Grey-Blue | Ignition +12V for Control | Fused with 10A fuse (F53). |
| 2 | CAN-L | ||
| 3 | CAN-H |
A visual guide of the pinout can be found on this MaxxECU online help page
| Part | Part Number | Comment |
|---|---|---|
| Connector | 31346135[10] | Not verified |
| Part | Part Number | Comment |
|---|---|---|
| Housing | 7283-8730-30[11] | |
| Terminals | 7116-1680-02[12] | |
| Wire Seals | 7157-3951-60[13] |
CAN Bus Control
If it doesn't receive CAN messaging then the pump will run in "limp mode" at 75% of full speed.[14]
The CAN bus protocol has been reverse engineered in the RusEFI forum[15] and a LUA script example exists[16]
Alternatively, there is an implementation using Arduino code[17]
Mechanical Properties
Dimensions
Approx. 12" x 7" x 7" (305mm x 178mm x 178mm)
Fittings
- High pressure side (pump supply/outlet): M16x1.5 (you can use adapters like this one: https://www.ebay.de/itm/192079081475)
- Low pressure side (pump return/inlet) is just a hose. The fitting on the reservoir is likely 10mm (3/8").
Mounting Bracket
WillFab Motorsport (WFM) produces a universal fit bracket for this pump. Available here and here.
Fluid
Pentosin CHF 202 is spec'd in the Volvo manual.
