Re: Tesla Small Drive Unit Support Thread

Post by cloudy »

OK getting somewhere now. Found S1 was actually floating not just low, so changed bms_in (temp1_out is an alias of this)

digio_prg.h
DIG_IO_ENTRY(bms_in, GPIOC, GPIO8, PinMode::INPUT_FLT) \
to
DIG_IO_ENTRY(bms_in, GPIOC, GPIO8, PinMode::OUTPUT) \

and commented the bms read using this pin in stm32_sine.cpm here to make sure the pin mode wasn't changing dynamically
//Param::SetInt(Param::din_bms, DigIo::bms_in.Get() | ((canio & CAN_IO_BMS) != 0));

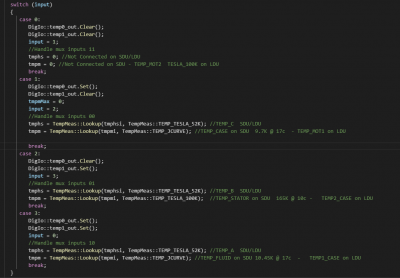

S0 and S1 are now cycling through the 4 select states & get a sensible temp reading with standard mapping on HS. Motor temps still wrong, but that's to be expected as those sensors are actually different. I can spend time sorting those :)

This patch obviously stops use of bms_in on other hardware (and in fact I think bms_in is the actual Tesla platform sense) perhaps if we can let Johannes know, he can put in a sensible mode toggle?
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla Small Drive Unit Support Thread

Post by Kevin Sharpe »

cloudy wrote: Mon Mar 23, 2020 8:22 pm Motor temps still wrong, but that's to be expected as those sensors are actually different. I can spend time sorting those :)
Do these posts help?

viewtopic.php?f=10&t=76&p=7829#p7829

viewtopic.php?f=10&t=618#p7879
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
User avatar
cloudy
Posts: 202
Joined: Wed Oct 02, 2019 12:15 am
Location: UK
Been thanked: 1 time

Re: Tesla Small Drive Unit Support Thread

Post by cloudy »

Thanks, those could be really helpful - I'll compare with some samples on the SDU and see if they look to be the same sensor type.
User avatar
cloudy
Posts: 202
Joined: Wed Oct 02, 2019 12:15 am
Location: UK
Been thanked: 1 time

Re: Tesla Small Drive Unit Support Thread

Post by cloudy »

SDU Stator temp appears to be a TESLA_100K, the FLUID/CASE inverter temp appear to be J curve, but will need to do a full range test to be sure.

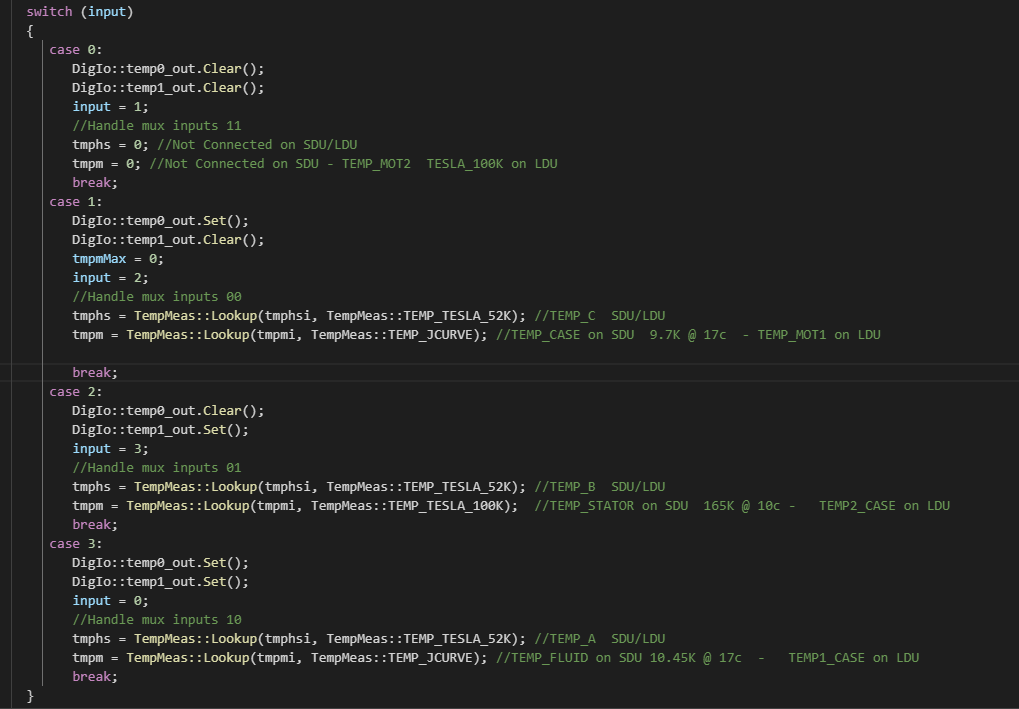

Here my tested mapping on a SDU. Now getting sensible temps for all inputs - hopefully this helps some others out. It would be great if we can get this, and the temp1_out patch integrated into the main code 8-)

EDIT: Not sure the fluid/case sensors are in fact J curve, reading low - should consider those not known yet
EDIT2: Just realised that the divider resistors are different between LDU and SDU boards for TEMP_CASE and TEMP_FLUID pins (150k SDU vs 15k LDU) not sure if this is a typo or deliberate
User avatar
cloudy
Posts: 202
Joined: Wed Oct 02, 2019 12:15 am
Location: UK
Been thanked: 1 time

Re: Tesla Small Drive Unit Support Thread

Post by cloudy »

Measured some calibration temps on the case/fluid sensors today. They read out as standard 10k NTC thermistors with a beta of about 4000.

I've created lookup tables for them using the standard 150K pullups on Damien's board and all code is here including the mux and mapping fix
https://github.com/jameswarner62/stm32-sine

Working great for me, hopefully helps some others

These are hardcoded as the hardware sense cannot tell between LDU and SDU. Can we get Johannes to pick up these changes and implement a SDU mode?

Thanks!
User avatar
Jack Bauer
Posts: 3563
Joined: Wed Dec 12, 2018 5:24 pm
Location: Ireland
Has thanked: 1 time
Been thanked: 87 times
Contact:

Re: Tesla Small Drive Unit Support Thread

Post by Jack Bauer »

Very much appreciated:)
I'm going to need a hacksaw
Hassleweed
Posts: 8
Joined: Fri Jan 17, 2020 8:35 pm
Location: San Diego
Contact:

Re: Tesla Small Drive Unit Support Thread

Post by Hassleweed »

Cloudy, I barely understand half of the terms used as I am new to this world. So I am admittedly one of those guys who purchased a V6 board in the hopes I can save on the $3,500 commercial quote I received. I am still working on the mechanicals of my car and will eventually work on the electronics, but for now I can tell that you put a lot of effort into this issue and thank you in advance for your contribution! Sorry not to be a helpful contributor (yet).
Martin
Building the CyberSeven: Lotus inspired, Tesla powered roadster
User avatar
cloudy
Posts: 202
Joined: Wed Oct 02, 2019 12:15 am
Location: UK
Been thanked: 1 time

Re: Tesla Small Drive Unit Support Thread

Post by cloudy »

You are welcome - it is nothing compared to Damien's herculean efforts! Thanks to him we all get to play and learn with this stuff :)
User avatar
Jack Bauer
Posts: 3563
Joined: Wed Dec 12, 2018 5:24 pm
Location: Ireland
Has thanked: 1 time
Been thanked: 87 times
Contact:

Re: Tesla Small Drive Unit Support Thread

Post by Jack Bauer »

Due to the Covid-19 restrictions some areas are not accepting postal shipments. This is causing delays in my shipping timetable for Tesla and other boards to customers. Where possible alternative arrangements will be made with private couriers (DHL etc) to effect delivery. If no delivery service is available then the item will be retained until normal service resumes. If you are waiting for an item and feel this may have affected you then please contact ino@evbmw.com to check with me.
I'm going to need a hacksaw
User avatar
johu
Site Admin
Posts: 5681
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 959 times
Contact:

Re: Tesla Small Drive Unit Support Thread

Post by johu »

Alright, time to speak up I guess.
So as mentioned I will be taking over the distribution of the Tesla LDU/SDU logic boards. If I remember correctly about 9 LDU boards are on their way here from Ireland, so these will become available first. A few weaks after I will issue a JLCPCB order to make the others available also.

The boards will be listed on openinverter.org/shop . As for the Leaf boards I will build a test rig and run an automated test procedure. Also the boards will be flashed with software AND parameters in one go, i.e. no manual step here.

As opposed to Damien I will not sell the boards as "fully built" i.e. you will have to solder at least one component. The reason for that is the more relaxed legislation for kits as opposed to ready to use electronics.

One thing I do not have and will never have is a drive unit, let alone a car with it. So when it comes to development work I have to rely on someone who has.

I may put and en to this thread and rather have people create a thread for each specific problem.

First amendment: Do not send me e-mails asking when the boards will become available. They are available when they show up in the web shop.
