VAG IBooster - Info Thread

Forum on Volkswagen related hardware, so VW, Audi, Seat, Skoda etc.
Post Reply
Mitchy
Posts: 82
Joined: Sun Nov 14, 2021 12:16 pm
Has thanked: 2 times
Been thanked: 35 times

VAG IBooster - Info Thread

Post by Mitchy »

Hey Folks,

Just going to try to formalize some of my sleuthing related to the Iboosters for VAG cars.
@larsrengersen has about the most current info in his blog series https://www.evcreate.nl/installing-the-ibooster/
Great work Lars! Feel free to take some of whatever info comes from this tread for the next sections:

Articles describing the systems:
Kreutz, S. (2014). Ideal regeneration with electromechanical Brake Booster (eBKV) in Volkswagen e-up! and Porsche 918 Spyder. In: Pfeffer, P. (eds) 5th International Munich Chassis Symposium 2014. Proceedings. Springer Vieweg, Wiesbaden.
Link:
https://sci-hub.se/10.1007/978-3-658-05978-1_38

E-Up Self-study Programme 529
https://www.vdveer-engineering.nl/en/in ... cument/361

Likely going to be a work in progress, so check back for more info/tables. Mostly as all this info is on another computer so I'll write the framework and copy over the info after.
I also currently do not have a CAN IBooster to test my assumptions, So most of this is theoretical

For VW (and Bosch in general) there are two generations of IBooster.
For the first generation booster, there are several bolt patterns, these match the general equivalent booster mounts.

Much of my data comes from EBay auctions and the Ross-Tech VCDS forum.
Screen Shot 2022-10-02 at 11.17.32 PM.png
Screen Shot 2022-10-02 at 11.17.47 PM.png
Screen Shot 2022-10-02 at 11.18.16 PM.png

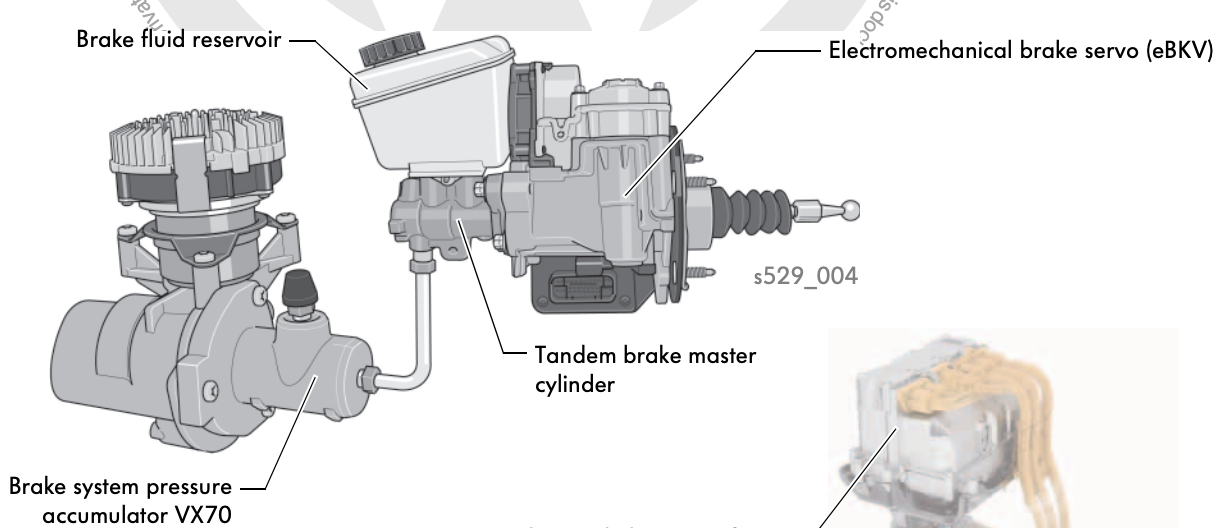

Pressure Accumulator "Smart Actuator" - There is also a brake accumulator module that ties into the 2nd port on the Brake Master Cyl. Some cars have this, others do not. I'm trying to find out what VCDS coding is responsible for this.
Seems it's there to allow to drop some pressure allowing a greater deadzone to aid regen.
I view this as more of an adjustable volume accumulator.
The Module is referred to as Vx70 in documentation



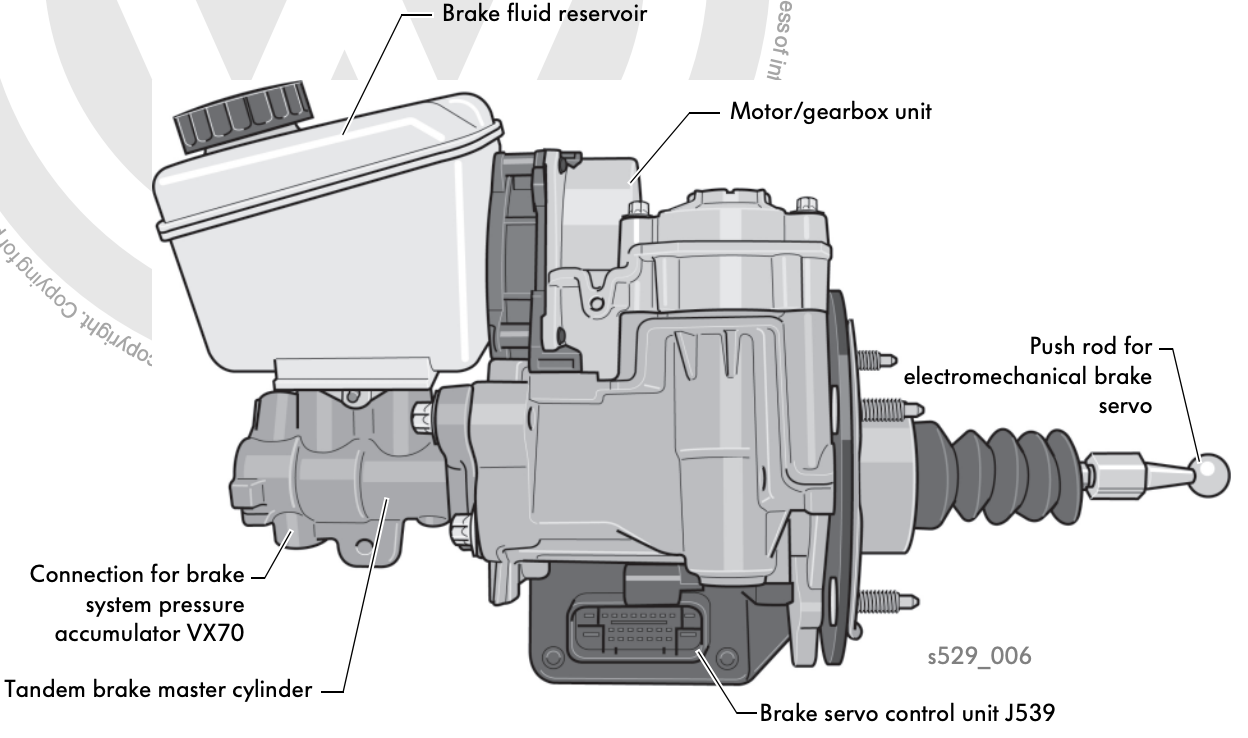

The main IBooster is referred to as the EBKV in documentation.

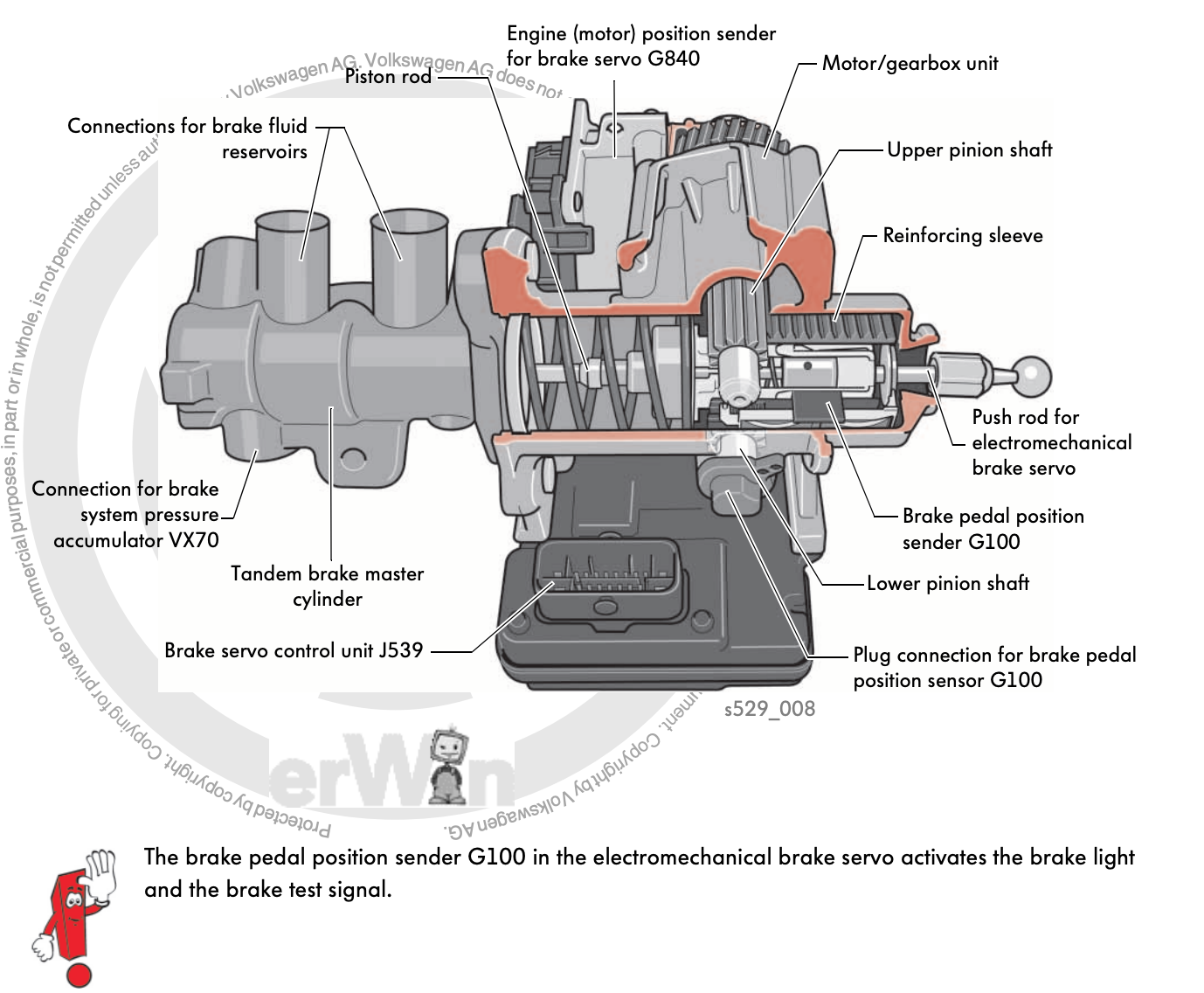

Module designation is J539 or NX6 in any wiring schematic.
It's Module 23 in all the ODIS/VCDS software.

Example VCDS Extract:

Code: Select all

Address 23: Brake Booster (J539)       Labels: None
   Part No SW: 5QE 909 059 A    HW: 5QE 909 059 A
   Component: EBKV          H12 0160
   Serial number:   085430010148
   Coding: 01720100321A02030002000500
   Shop #: WSC 01357 011 00200
   ASAM Dataset: EV_BrakeBoostBoschMQBOMG 002014
   ROD: EV_BrakeBoostBoschMQBOMG_VW37.rod
   VCID: 4CB98EBCE7330A5EFA-8019

   Subsystem 2 - Part No SW: 5QE 909 057 A    HW: 5QE 909 057 A
   Component: VX70BrakeAssi  H04 0140
   Serial number: 05802861010914181127

Example Blockmap:

Code: Select all

;SW:5QE-909-059-D   HW:5QE-909-059-B ---  Brake Booster
;Component:EBKV          H14 0182, Coding:01720100321A02030002000500
;EV_BrakeBoostBoschMQBOMG,003001,EV_BrakeBoostBoschMQBOMG_003_VW37.rod
;Wednesday,11,August,2021,01:55:07:46885
;VCDS Version: Beta 21.8.0 (x64)  Data version: 20210731 DS330.0
;VCID: 4FF87AF697565E236A9-801A

Group,Description,Actual
IDE00019,Voltage terminal 30,51,
IDE00021,Engine RPM,0,
IDE00025,Coolant temperature,255,
IDE00030,Status of actuator test,not active,
IDE00075,Vehicle speed,0,
IDE00085,Normed load value,255,
IDE00086,Accelerator pedal position,37,
IDE00097,OBD - requirements for which this vehicle is designed,1,
IDE00102,Control Module temperature,31.845, °C
IDE00322,Status of basic setting,not active,
IDE00323,Security Access: Number of invalid keys,0,
IDE00601,Monitoring status since erasing DTC memory,,
IDE00602,Monitoring status in current driving cycle,0,
IDE02486,Data logger triggering,not active,
IDE03680-IDE00019,Supply voltages-Voltage terminal 30,13.1, V
IDE03680-IDE04500,Supply voltages-Terminal 30 voltage for logic,13.1, V
IDE03680-MAS06928,Supply voltages-Supply voltage pedal travel sensor,5.0, V
IDE05793-IDE06045,Brake activation-Output diagnostic test status,No activation,
IDE05793-MAS11301,Brake activation-Timer,0, s
IDE05816-IDE00075,Input signals from data bus-Vehicle speed,0.0, km/h
IDE05816-IDE00086,Input signals from data bus-Accelerator pedal position,0.0, %
IDE05816-IDE00773,Input signals from data bus-Terminal 15 status via CAN,Terminal 15 on,
IDE05816-IDE02211,Input signals from data bus-Brake pressure,0.0, bar
IDE05816-IDE03660,Input signals from data bus-Longitudinal acceleration,-0.1, m/s²
IDE05816-IDE07152,Input signals from data bus-Fall-back level,not active,
IDE05816-MAS05179,Input signals from data bus-ABS intervention,not active,
IDE05816-MAS05187,Input signals from data bus-MSR intervention,not active,
IDE05816-MAS06150,Input signals from data bus-Terminal 50,not active,
IDE05816-MAS08111,Input signals from data bus-OBD std.,NO OBD,
IDE05816-MAS08112,Input signals from data bus-Drive readiness,OFF,
IDE06422-ENG103176,IUMPR_1-General Denominator,1256,
IDE06422-ENG102823,IUMPR_1-Ignition Cycle Counter,4304,
IDE06422-ENG100120,IUMPR_1-Milage,31430, km
IDE06422-ENG101622,IUMPR_1-Record Number,1,
IDE06423-ENG101817,IUMPR_2-Denominator,1256,
IDE06423-ENG103772,IUMPR_2-DFCC Value,03 69,
IDE06423-ENG99150,IUMPR_2-Numerator,1045,
IDE06423-ENG101622,IUMPR_2-Record Number,1,
IDE08586-IDE00805,Status: electromechanical power brake-Dead volume,140.0, mm³
IDE08586-IDE02955,Status: electromechanical power brake-System status,operational,
IDE08586-IDE06673,Status: electromechanical power brake-Initialization status,completed successfully,
IDE08586-IDE11447,Status: electromechanical power brake-electro-mechanical brake booster,active,
IDE08586-MAS08092,Status: electromechanical power brake-Electro-mechanical brake booster basic setting,will be performed.,
IDE08586-MAS10343,Status: electromechanical power brake-Korrekturfaktor_1,1.0312,
IDE08586-MAS10344,Status: electromechanical power brake-Korrekturfaktor_2,0.9980,
IDE08587-MAS02925,Power brake displays-Brake system indicator lamp,---,
IDE08587-MAS08097,Power brake displays-Status: OBD lamp,OFF,
IDE08587-MAS08098,Power brake displays-Note - text message,---,
IDE08587-MAS08100,Power brake displays-Warnings - text message,---,
IDE08588-IDE06373,Sensor signals for electromechanical power brake-Rotor position of drive motor for electric drive,-0.55, °
IDE08588-MAS08107,Sensor signals for electromechanical power brake-Brake pedal position sensor pulse width,15.2, %
IDE08588-MAS08108,Sensor signals for electromechanical power brake-Brake pedal sensor 2 pulse width,85.2, %
IDE08588-MAS08109,Sensor signals for electromechanical power brake-Input rod path sensor: plausibilized,0.0, mm
IDE08588-MAS08110,Sensor signals for electromechanical power brake-Brake pedal actuation,OFF,
IDE08588-MAS10345,Sensor signals for electromechanical power brake-Position of booster,-0.094, mm
IDE08588-MAS10346,Sensor signals for electromechanical power brake-Engine torque,0.0000, Nm
IDE08588-MAS11260,Sensor signals for electromechanical power brake-Brake pedal position sensor distance,-0.084, mm
IDE08588-MAS11261,Sensor signals for electromechanical power brake-Brake pedal position sensor 2 distance,-0.078, mm
IDE08589-IDE06673,Status of brake press. accum.-Initialization status,operational,
IDE08589-IDE08581,Status of brake press. accum.-Recuperation,active,
IDE08589-MAS08113,Status of brake press. accum.-Brake pressure reservoir basic setting,will be performed.,
IDE08590-IDE00019,Supply voltages: brake pressure accumulator-Voltage terminal 30,13.3, V
IDE08591,Ctrl. mod.: temp.: brake press. accumulator,33, °C
IDE08597-IDE06045,Activation of brake pressure reservoir-Output diagnostic test status,No activation,
IDE08597-MAS11301,Activation of brake pressure reservoir-Timer,0, s
IDE11836,Query of the supported PIDs (0x01 - 0x20),152,
IDE11837,Query of the supported PIDs (0x21 - 0x40),0,
IDE11838,Query of the supported PIDs (0x41 - 0x60),192,
IDE11839,Query of the supported InfoTypes (0x01 - 0x20),20,
IDE80001-IDE80011,Analysis 1-Analysis 11,00,
IDE80001-IDE80012,Analysis 1-Analysis 12,00,
IDE80001-IDE80013,Analysis 1-Analysis 13,00 00 00,
IDE80001-IDE80015,Analysis 1-Analysis 15,0.0020, mm
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00 00,
IDE80002,Analysis 2,00,
IDE80002,Analysis 2,00,
IDE80002,Analysis 2,00 00,
MAS00464-MAS00106,Standard - ambient data 1-Year,2021,
MAS00464-MAS00107,Standard - ambient data 1-Month,8,
MAS00464-MAS00108,Standard - ambient data 1-Day,11,
MAS00464-MAS00109,Standard - ambient data 1-Hours,1,
MAS00464-MAS00110,Standard - ambient data 1-Minutes,54,
MAS00464-MAS00111,Standard - ambient data 1-Seconds,8,
MAS00464-MAS00468,Standard - ambient data 1-Unlearning counter,157,
MAS00464-MAS00711,Standard - ambient data 1-Odometer reading,65280, km
MAS10353-IDE00634,Brake press. accum. current-Vehicle electrical system current,0.0, A
MAS10353-MAS10347,Brake press. accum. current-max. veh. elec. sys. current during last pressurization,3.0, A
MAS10354-MAS10348,Sensor signals for break press. accum.-Act. volume,490.20, mm³
MAS10354-MAS10349,Sensor signals for break press. accum.-System volume,4656.4, mm³
MAS10354-MAS10350,Sensor signals for break press. accum.-Target volume,469.6, mm³
MAS10354-MAS10351,Sensor signals for break press. accum.-Maximum volume,0.00, mm³
MAS10354-MAS10352,Sensor signals for break press. accum.-Resting volume,0.00, mm³
ENG101413,Calibration Identification,2,
ENG101413,Calibration Identification,5QEB 0182$@,!((C,
ENG101413,Calibration Identification,5QE057A 0152xxxx,
ENG99697,Calibration Verification Number,02 5A FD 86,
ENG100152,ECUNAME,EBBC-ElecBrkBstCtrl,
ENG100152,ECUNAME,1,

Elapsed Time: 00:04
GEN1:
5QE modules - HW versions up to H14
5QE614105 - 2016 Audi A3, VW E-Golf
5QE614105CG - Short flange / Long Rod
5QE614105AR - Deep flange / Short Rod (RHD)

Bolt Pattern:
4 Stud Flanges:

2 Stud Flanges:

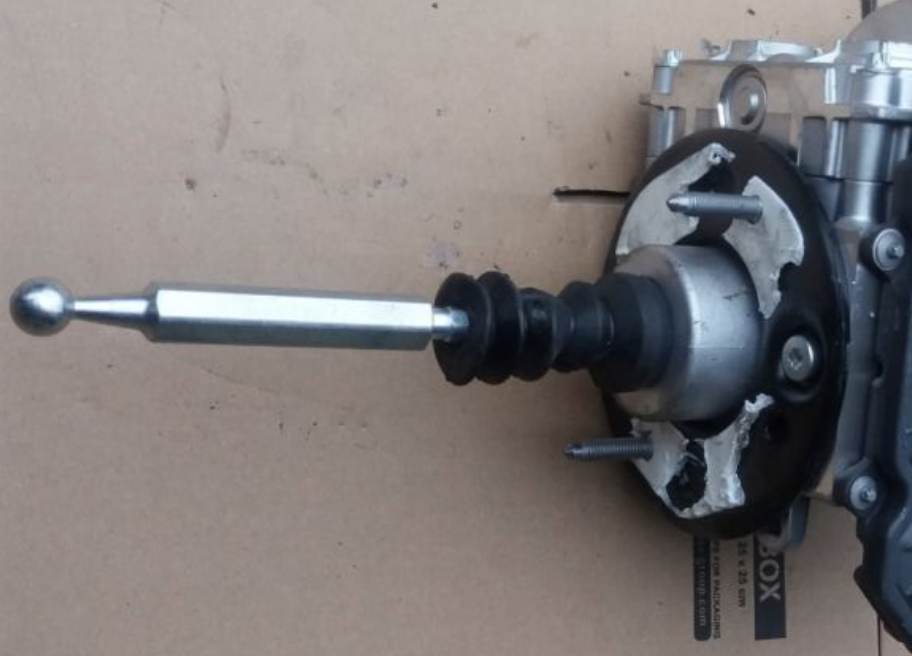

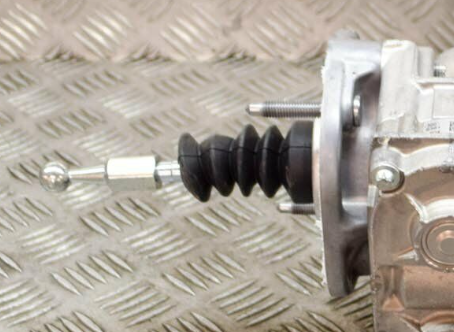

Seem to come in both a stamped steel flange and a deeper aluminum flange.
Screen Shot 2022-10-02 at 11.31.15 PM.png
Screen Shot 2022-10-02 at 11.28.37 PM.png
2 Bolt offset:
These best mimic many of the Vac Boosters
Have two M8 bolts and bolt into the factory firewall.
Screen Shot 2022-10-02 at 11.35.55 PM.png
Wiring:

GEN2:

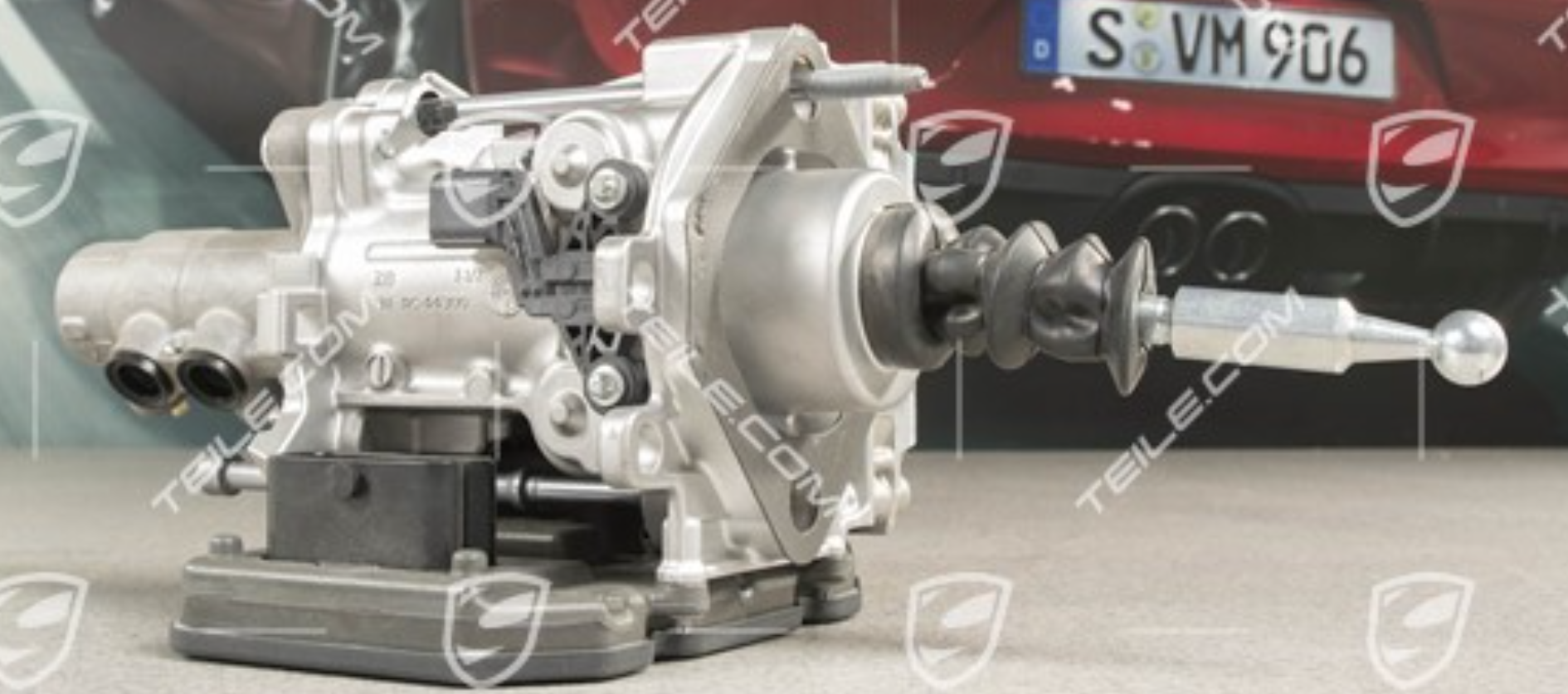

3Q0 modules - HW versions up to H06

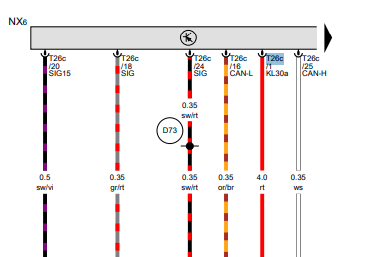

Wiring:

ZF:
The ID4 appears to be using a ZF booster, likely not compatible with the wiring/form factor of the bosch units.


The modules will default to a fallback assist rate without CANbus, so are totally useable.

CANbus can be connected to try to have an adjustable assist rate depending on the driving mode. The CAN signal from the Booster can also be used to determine pedal position, etc.

My Assumptions:

Being VAG, the unit CANbus will likely need to see some of the following CANbus signals to wake up:
0x3C0 - Klemmen_Status_01 - Terminal 15 status
0x6C0 - Gateway Wakeup signal
0x39C - Gateway 05 (to determine drive modes)
0x644 - Gateway 11 (doubtful, but included incase)
0x392 - ABS Bus Signal (ESP_07)
(Likely a few other ABS signals)

These assumptions are based on the blockmap values:
IDE05816-IDE00075,Input signals from data bus-Vehicle speed,0.0, km/h
IDE05816-IDE00086,Input signals from data bus-Accelerator pedal position,0.0, %
IDE05816-IDE00773,Input signals from data bus-Terminal 15 status via CAN,Terminal 15 on,
IDE05816-IDE02211,Input signals from data bus-Brake pressure,0.0, bar
IDE05816-IDE03660,Input signals from data bus-Longitudinal acceleration,-0.1, m/s²
IDE05816-IDE07152,Input signals from data bus-Fall-back level,not active,
IDE05816-MAS05179,Input signals from data bus-ABS intervention,not active,
IDE05816-MAS05187,Input signals from data bus-MSR intervention,not active,
IDE05816-MAS06150,Input signals from data bus-Terminal 50,not active,
IDE05816-MAS08111,Input signals from data bus-OBD std.,NO OBD,
IDE05816-MAS08112,Input signals from data bus-Drive readiness,OFF,
Mitchy
Posts: 82
Joined: Sun Nov 14, 2021 12:16 pm
Has thanked: 2 times
Been thanked: 35 times

Re: VAG IBooster - Info Thread

Post by Mitchy »

Canbus update:

The 'Private CAN' network that is used for the 'Smart Actuator' contains 4 Can Messages:
Still working on a DBC, but here are my initial findings:

0x100 - Some data, but difficult to decipher other than one value counts up, while the other counts down... Maybe it's a position SP for the accumulator?
0x101 - Contains a counter
0x300 - Contains rod position, 16 bit, start bit 0, No scaling thus far, but I needed an offset of -1200 to get to Zero.
0x724 - Single bit, likely UDS

CAN Log and DBC Template attached

My unit, being flexray... The primary vehicle Canbus was dead, no traffic at all. :(

Attachments
Ibooster_VAG.dbc
(900 Bytes) Downloaded 88 times
brake booster Private CAN.csv
(296.14 KiB) Downloaded 79 times
golfdubcrazy
Posts: 75
Joined: Thu Jan 28, 2021 6:15 pm
Has thanked: 1 time
Been thanked: 5 times

Re: VAG IBooster - Info Thread

Post by golfdubcrazy »

Great work,

i have a VW brake booster. i will connect up the canbus and see what i can get-out.
Post Reply
