CHAdMO plugs for experimentation...

Post by Mouse »

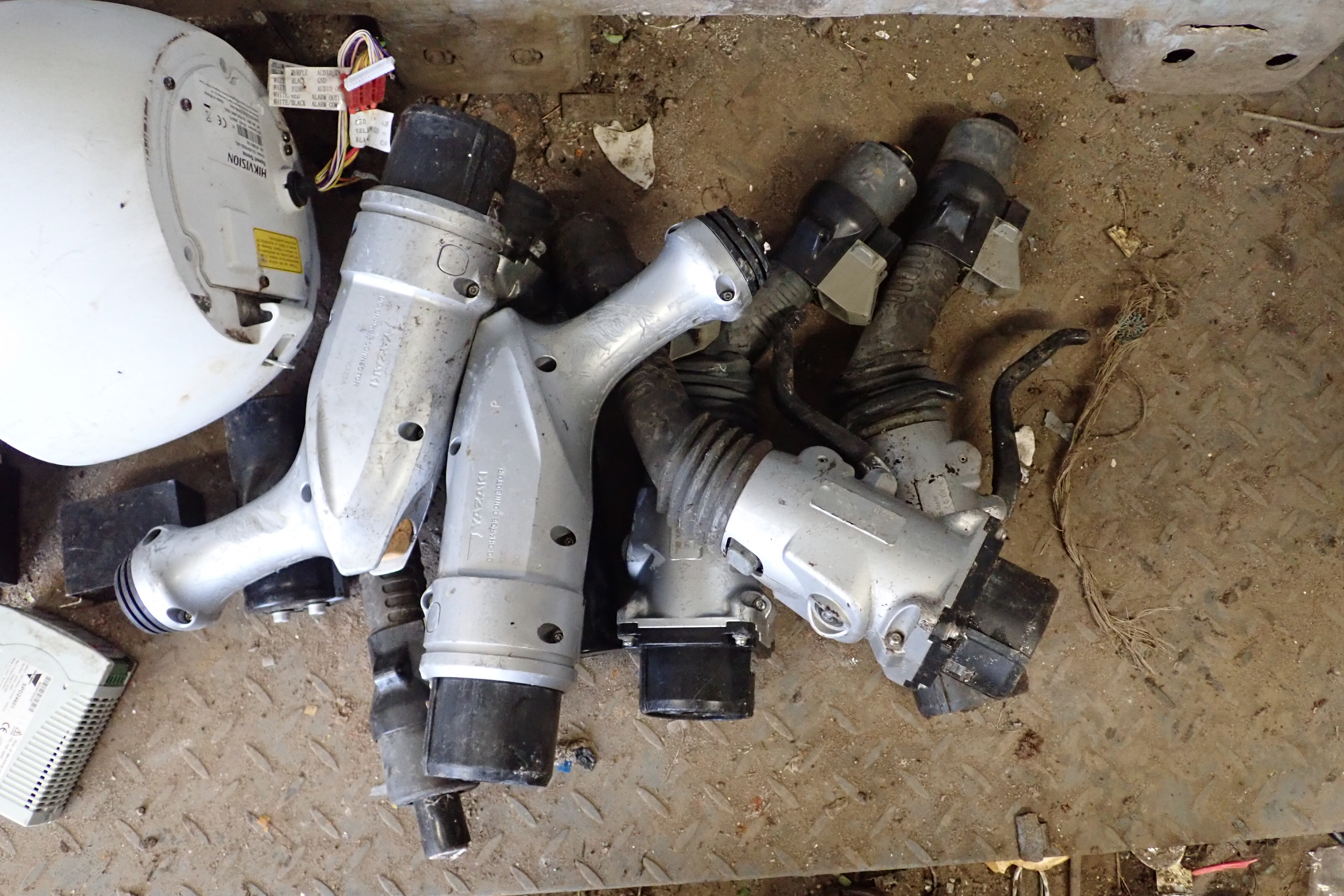

I've just acquired 6 SHAdMO Charge plugs from the local scrap yard that were in their 'interesting skip' which is usually full of broken lawnmowers and bicycles. They don't normally have this sort of stuff but I usually have a rummage in their interesting skip every now and again and today turned up some good stuff including these fast charge plugs.

I picked them up in case they are any use to anyone for fast charging experimentation. Plus I'm sure if I posted up I saw them but left them behind someone would squeak at me for not getting them!

Can't really bring myself to actually sell them on the open market as they're not new and been taken out of commission and had their cables cut off for reasons unknown to me and may have other faults despite having to buy them back from the scrapyard myself.

So if anyone is interested in them for experimentation reasons I can post one off to you for the cost of the postage + some ££ beer tokens or maybe swapsies for something equally interesting as a good will gesture + I'm working on my own EV motorbike project etc.
User avatar
catphish
Posts: 954
Joined: Fri Oct 08, 2021 11:02 pm
Location: Dorset, UK
Has thanked: 93 times
Been thanked: 179 times

Re: CHAdMO plugs for experimentation...

Post by catphish »

Good work grabbing these. I'd be interested in using one to upgrade a 10kW Tesla charger to be a "portable" chademo charger for testing / development. I don't think I have anything very interesting to swap though. Do you know if the cut cable is crimped, or whether it goes into screw terminals? If it's crimped, it'll be a bit more hassle to reuse them.
User avatar
Mouse
Posts: 138
Joined: Wed Sep 25, 2019 8:17 am
Location: Wales
Been thanked: 7 times
Contact:

Re: CHAdMO plugs for experimentation...

Post by Mouse »

I've left them in my lockup across town but will get them home tomorrow and check that out.
User avatar
larsrengersen
Posts: 101
Joined: Tue May 28, 2019 9:42 am
Has thanked: 8 times
Been thanked: 22 times

Re: CHAdMO plugs for experimentation...

Post by larsrengersen »

Yes! I'd like to buy one too! Will send you a PM
User avatar
Bigpie
Posts: 1585
Joined: Wed Apr 10, 2019 8:11 pm
Location: South Yorkshire, UK
Has thanked: 74 times
Been thanked: 299 times

Re: CHAdMO plugs for experimentation...

Post by Bigpie »

Pm me how much you looking for, could be useful
VW Beetle 2003
Outlander front generator
Prius Gen 3 inverter (EVBMW logic board)
Outlander charger
3x Golf GTE batteries
Chademo Charging
Outlander water heater
paaa
Posts: 209
Joined: Fri Dec 06, 2019 8:59 pm
Location: Dublin & Kilkenny Ireland
Has thanked: 2 times
Been thanked: 11 times
Contact:

Re: CHAdMO plugs for experimentation...

Post by paaa »

pm me , working a v2g setup using ac coupled storage inverter and chademo plug is hard to get
User avatar
Bigpie
Posts: 1585
Joined: Wed Apr 10, 2019 8:11 pm
Location: South Yorkshire, UK
Has thanked: 74 times
Been thanked: 299 times

Re: CHAdMO plugs for experimentation...

Post by Bigpie »

^ thats my plan too :D what inverter are you looking at?
VW Beetle 2003
Outlander front generator
Prius Gen 3 inverter (EVBMW logic board)
Outlander charger
3x Golf GTE batteries
Chademo Charging
Outlander water heater
User avatar
rstevens81
Posts: 349
Joined: Sun Dec 22, 2019 10:36 am
Location: Bristol, UK
Has thanked: 21 times
Been thanked: 91 times

Re: CHAdMO plugs for experimentation...

Post by rstevens81 »

I'll take 1 am Bristol based if your ever travel that far west, but am at least 2 years off doing any VTG stuff as I still go to finish house, build garage, convince wife to put solar panels on it etc...
Rule 1 of EV Club is don't buy a rust bucket....
Which rule does everyone forget 🤪
whereswally606
Posts: 43
Joined: Sun Nov 14, 2021 6:16 pm
Has thanked: 1 time
Been thanked: 2 times

Re: CHAdMO plugs for experimentation...

Post by whereswally606 »

Please pm me too mouse id like one to build a charger for my leaf and outlander.
User avatar
pablo_mtl
Posts: 35
Joined: Wed Oct 07, 2020 11:30 pm
Location: Canada
Has thanked: 3 times
Been thanked: 2 times

Re: CHAdMO plugs for experimentation...

Post by pablo_mtl »

That's a good find! Thanks for sharing! I wish I was closer to UK...

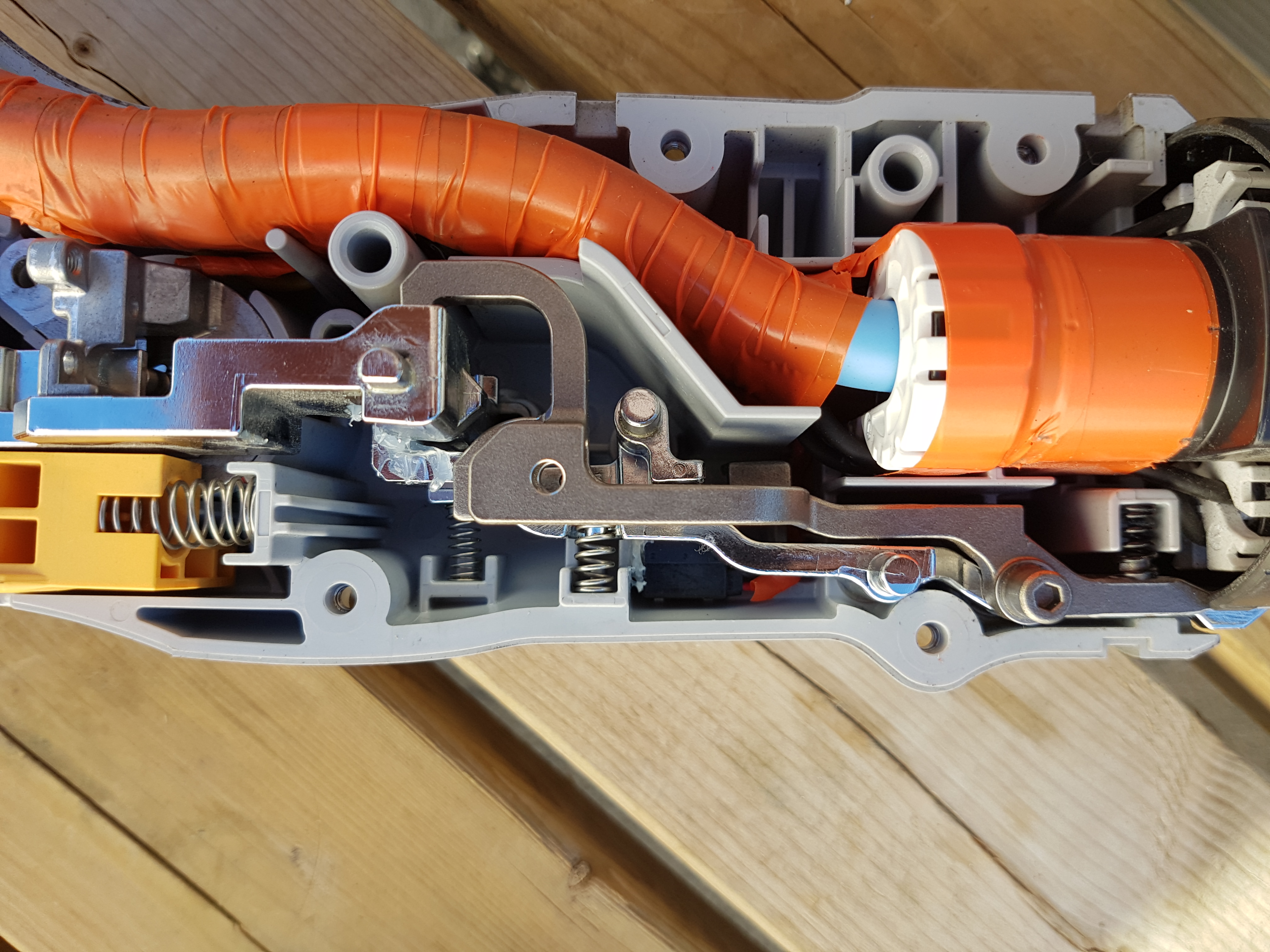

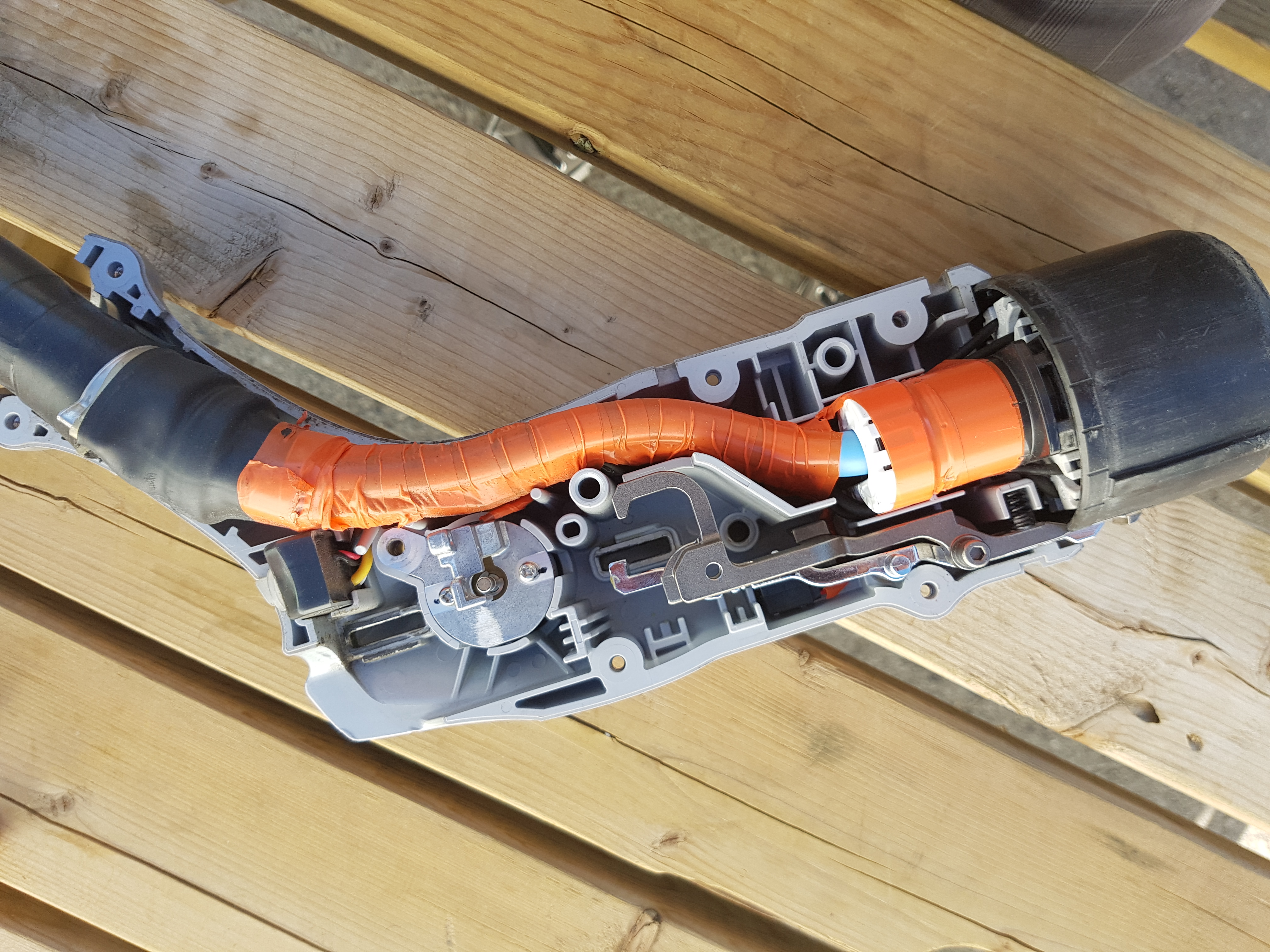

These are all Yazaki (1st gen and 2nd gen) CHAdeMO connectors. Unlike some other brands, this one can be opened with screws. I attached pictures of the insides. The locking mechanism is something fun to disassemble, many small parts and springs to loose :) . But to answer catphish's question, all DCFC connectors I have seen in the field (Chademo / CCS, both connector and receptacles, Yazaki, Sumitomo, REMA, Yura, etc.) are crimped and assembled as a single part number (cables + connector is sold a one unit without possibility to source the individual contact pins).

But I'm pretty confident one could splice some good cables inside the body and put them to good use!

Cheers!
Attachments
arber333
Posts: 3241
Joined: Mon Dec 24, 2018 1:37 pm
Location: Slovenia
Has thanked: 74 times
Been thanked: 223 times
Contact:

Re: CHAdMO plugs for experimentation...

Post by arber333 »

Mouse wrote: Tue Mar 08, 2022 4:23 pm I've just acquired 6 SHAdMO Charge plugs from the local scrap yard that were in their 'interesting skip' which is usually full of broken lawnmowers and bicycles. They don't normally have this sort of stuff but I usually have a rummage in their interesting skip every now and again and today turned up some good stuff including these fast charge plugs.
Any plugs left with pigtails long enough to extend them?
tnx

A
User avatar
catphish
Posts: 954
Joined: Fri Oct 08, 2021 11:02 pm
Location: Dorset, UK
Has thanked: 93 times
Been thanked: 179 times

Re: CHAdMO plugs for experimentation...

Post by catphish »

Mouse wrote: Tue Mar 08, 2022 5:24 pm I've left them in my lockup across town but will get them home tomorrow and check that out.
Is there any update on this? Do you still have some to give away?
User avatar
Sophiefxx
Posts: 5
Joined: Fri Dec 31, 2021 3:55 am
Location: Goole, East Yorkshire, UK
Been thanked: 6 times

Re: CHAdMO plugs for experimentation...

Post by Sophiefxx »

After everyone else, I'd be interested too if there's any left!
:!: Unfinished projects clutter lives,
Pete9008
Posts: 1801
Joined: Sun Apr 03, 2022 1:57 pm
Has thanked: 102 times
Been thanked: 347 times

Re: CHAdMO plugs for experimentation...

Post by Pete9008 »

As per other posts above, if there are still any spare I'd be very interested in one too!
Post Reply
