mainboardV3 version output driver differences ?

Post Reply
User avatar
Bratitude
Posts: 783
Joined: Thu Jan 02, 2020 7:35 pm
Location: Canada
Has thanked: 57 times
Been thanked: 168 times
Contact:

mainboardV3 version output driver differences ?

Post by Bratitude »

i noticed when looking at the output driver schematic on git hub and the schematic on the wiki, they are in fact different.

wiki version has:
2 driver lines paralleled for out_dcsw
1 driver line for out_pre

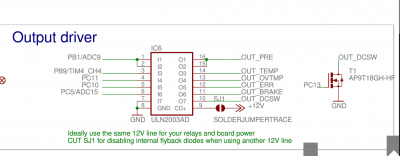

github version:
2 driver lines paralleled for out_pre
1 line driving a N-chanel fet (ap9t18gh) for out_dcsw

according to the uln2003 data sheet https://www.ti.com/lit/ds/symlink/uln20 ... e.com%252F "The collector-current rating of a single Darlington pair is 500 mA"

so the github version should handle directly driving a contractor drawing .36amps on ether the out_dcsw or out_pre ?

wiki:
github:

i'll update the wiki once this is cleared up
