Tesla CAD Models

Post by Kevin Sharpe »

CAD models for the various Tesla parts starting with the Model S/X Small Front Drive Unit 8-)

3D Scan files on GrabCAD (here)
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

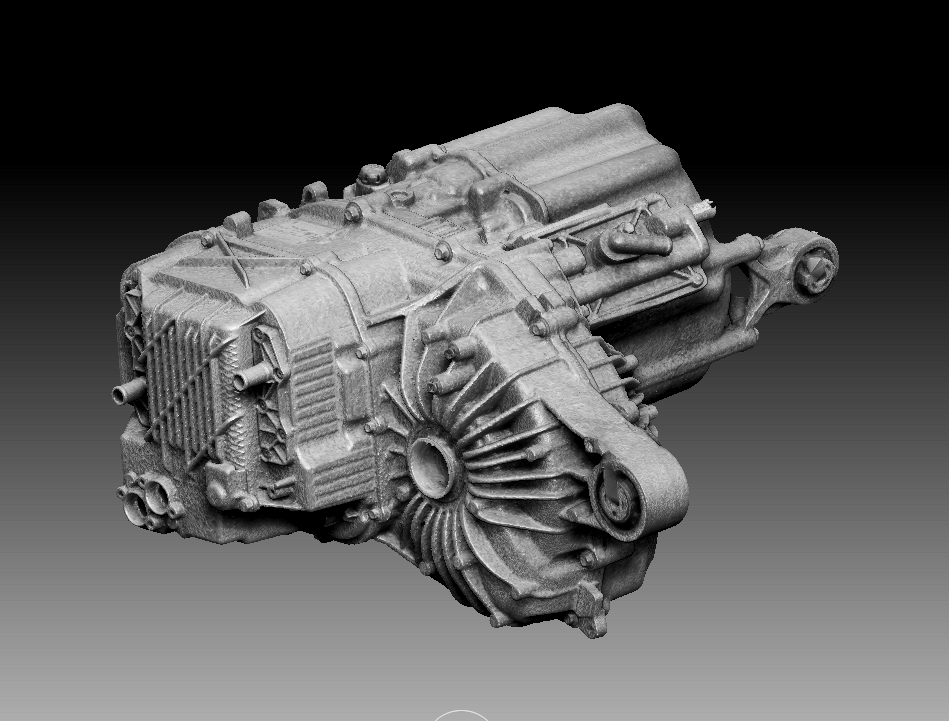

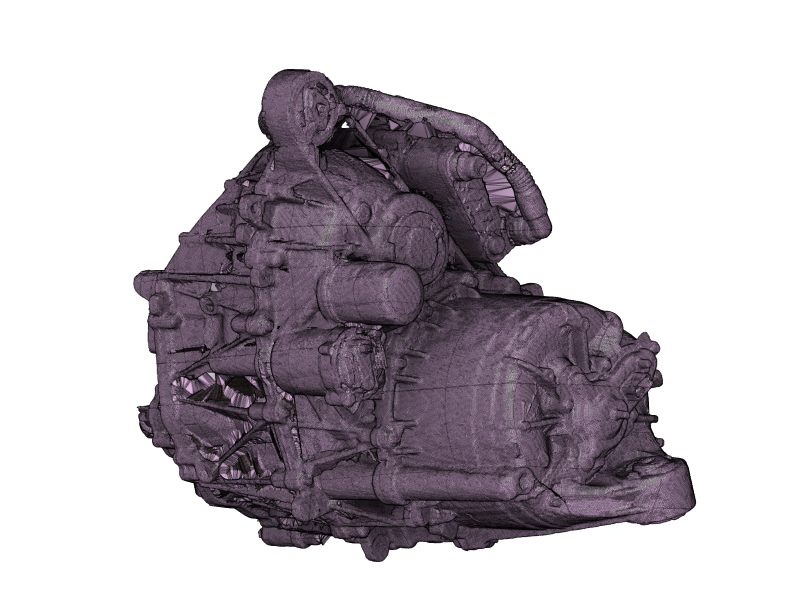

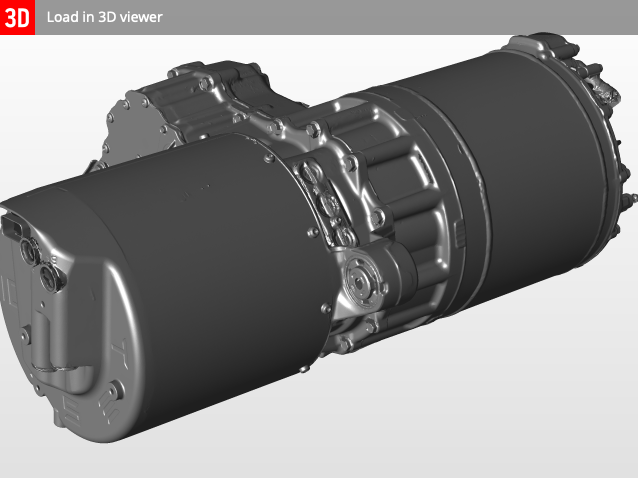

Model S/X Large Rear Drive Unit.

3D Scan Files on GrabCAD (here)

Screenshot 2019-04-24 at 22.20.37.png
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

Model S/X Large Rear Drive Unit.

3D Model on GrabCAD (here)

This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

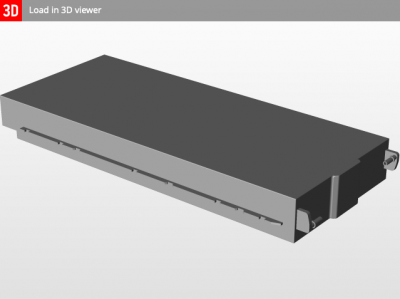

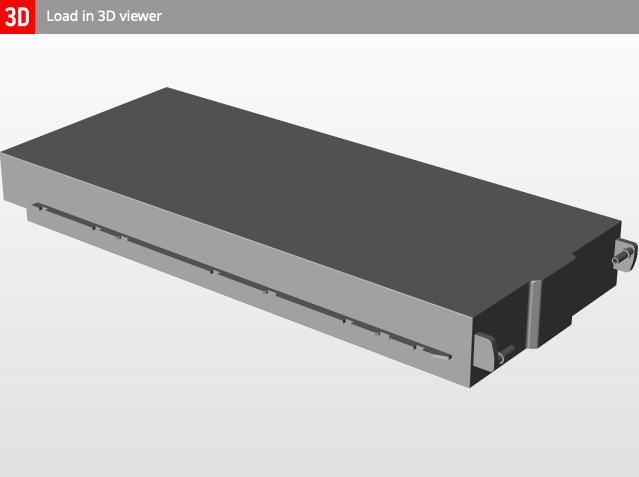

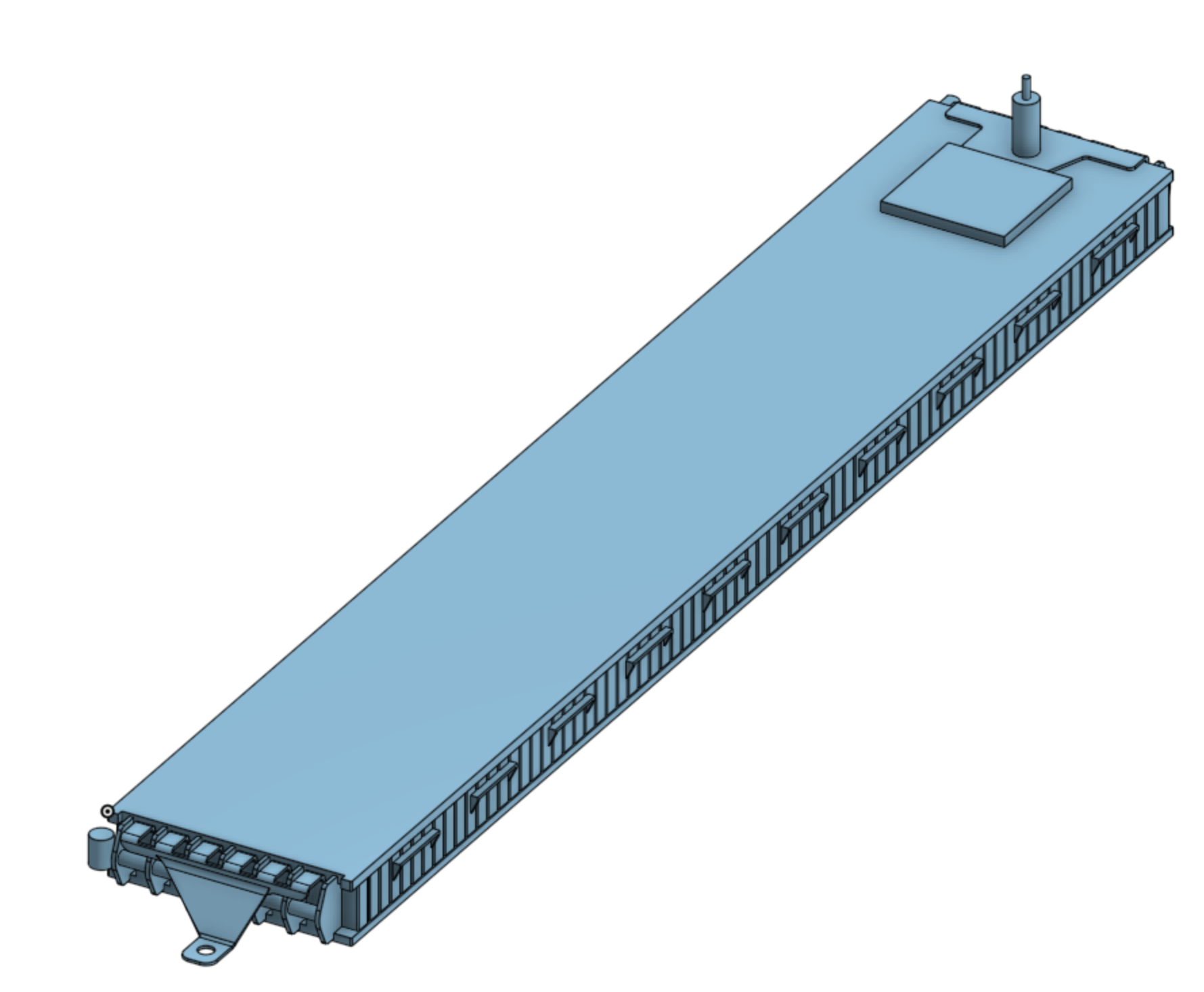

Model S/X 5.3kWh Battery Module

3D Model on GrabCAD (here)

Screenshot 2019-04-24 at 22.45.47.png
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
jon volk
Posts: 572
Joined: Wed Apr 10, 2019 7:47 pm
Location: Connecticut
Been thanked: 2 times

Re: Tesla CAD Models

Post by jon volk »

I used the LDU on my build. Dimensions were perfect.
Formerly 92 E30 BMW Cabrio with Tesla power
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

Tesla Gen 2 On Board Charger

3D Scan Files on GrabCAD (here)

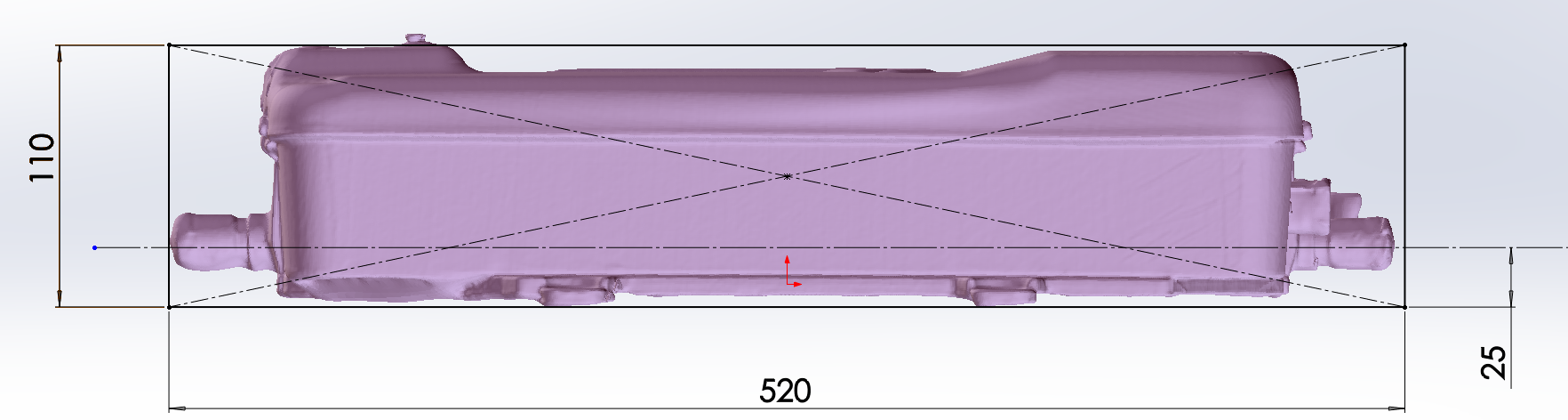

Gen 2 Tesla Charger TOP DIMs.png

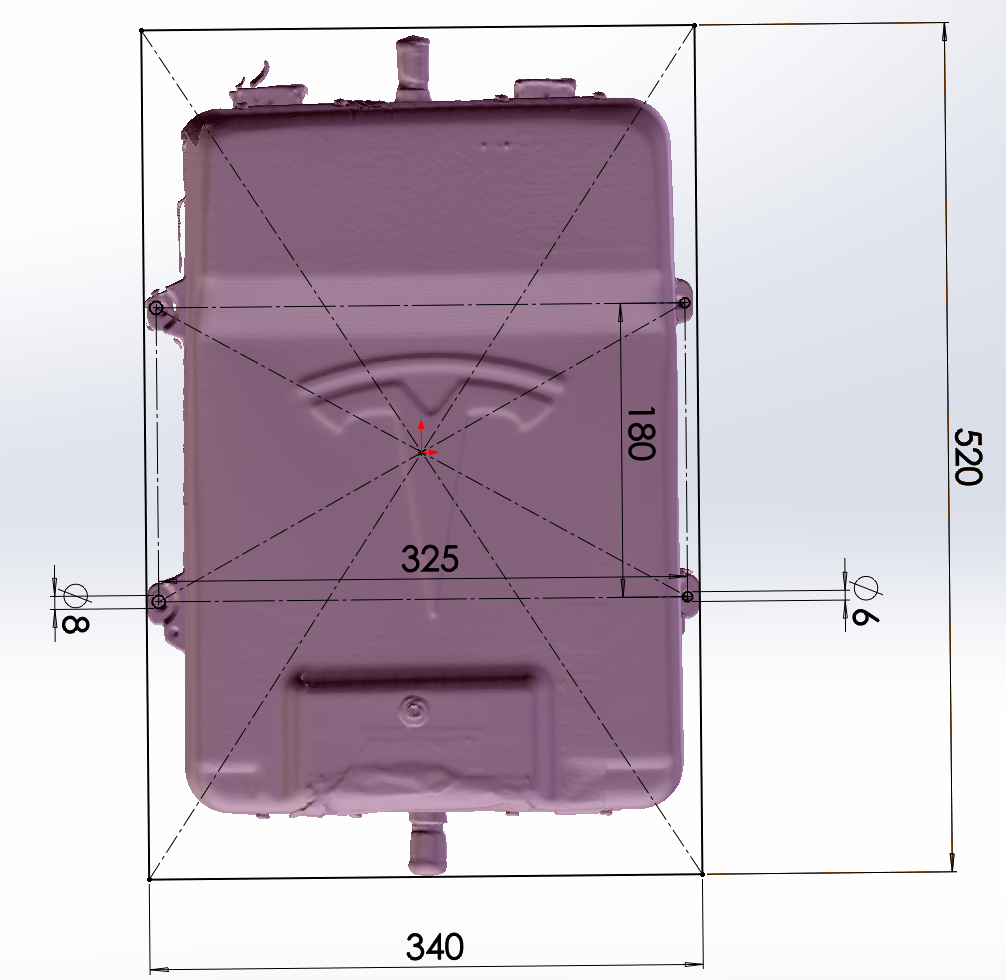

Gen 2 Tesla Charger Side DIMs.png
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

Not sure about the naming convention :?:

Tesla Model 3 Passenger side inboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla Model 3 Passenger side outboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla model 3 battery module - short passenger side outboard

https://grabcad.com/library/tesla-model ... outboard-1

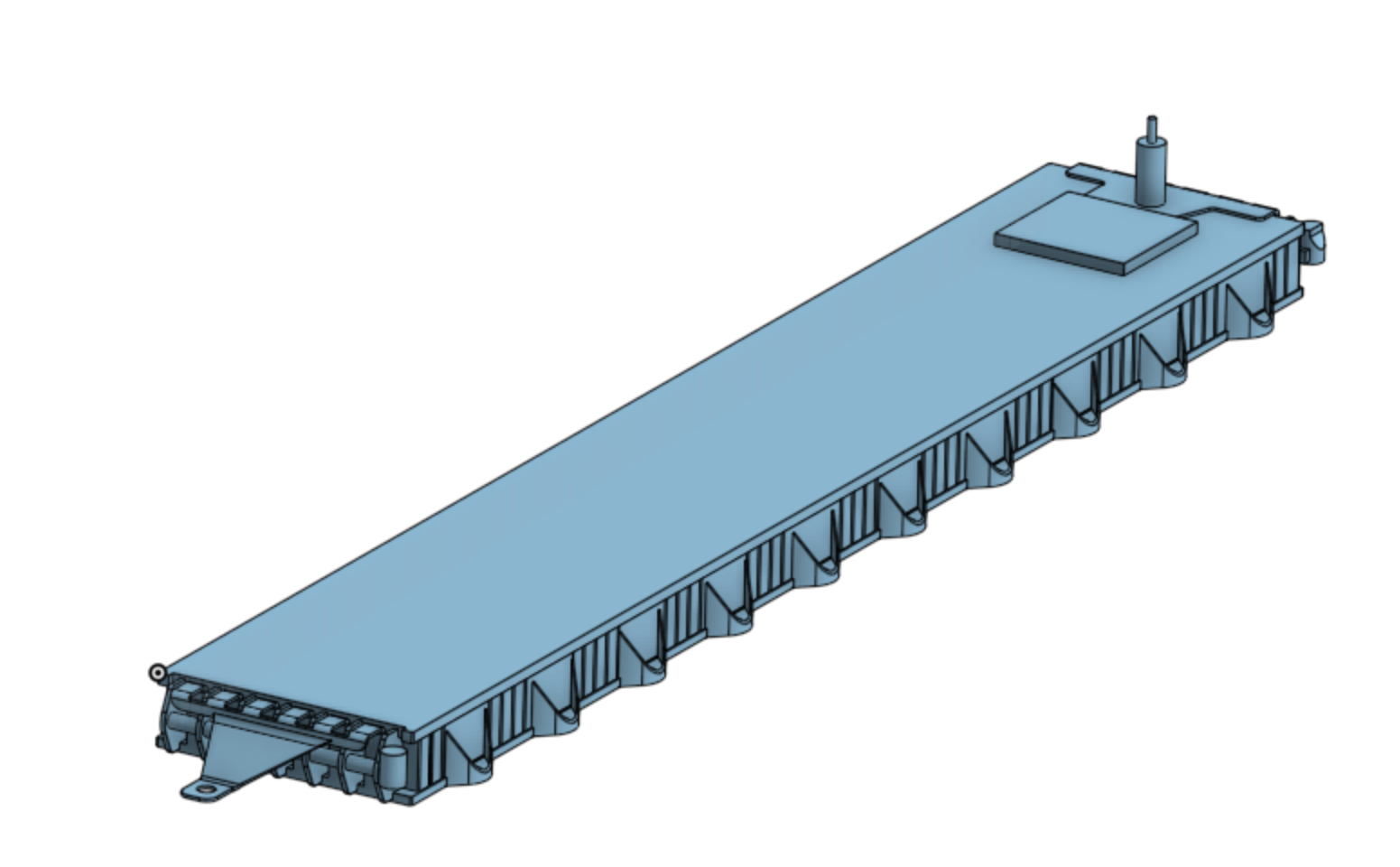

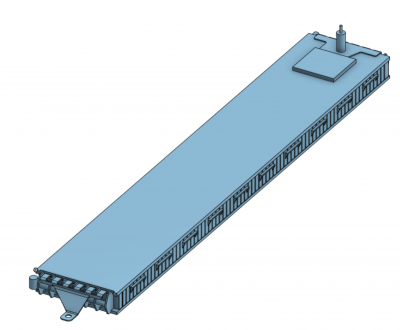

passenger side inboard module.PNG
drivers side outboard battery module.PNG

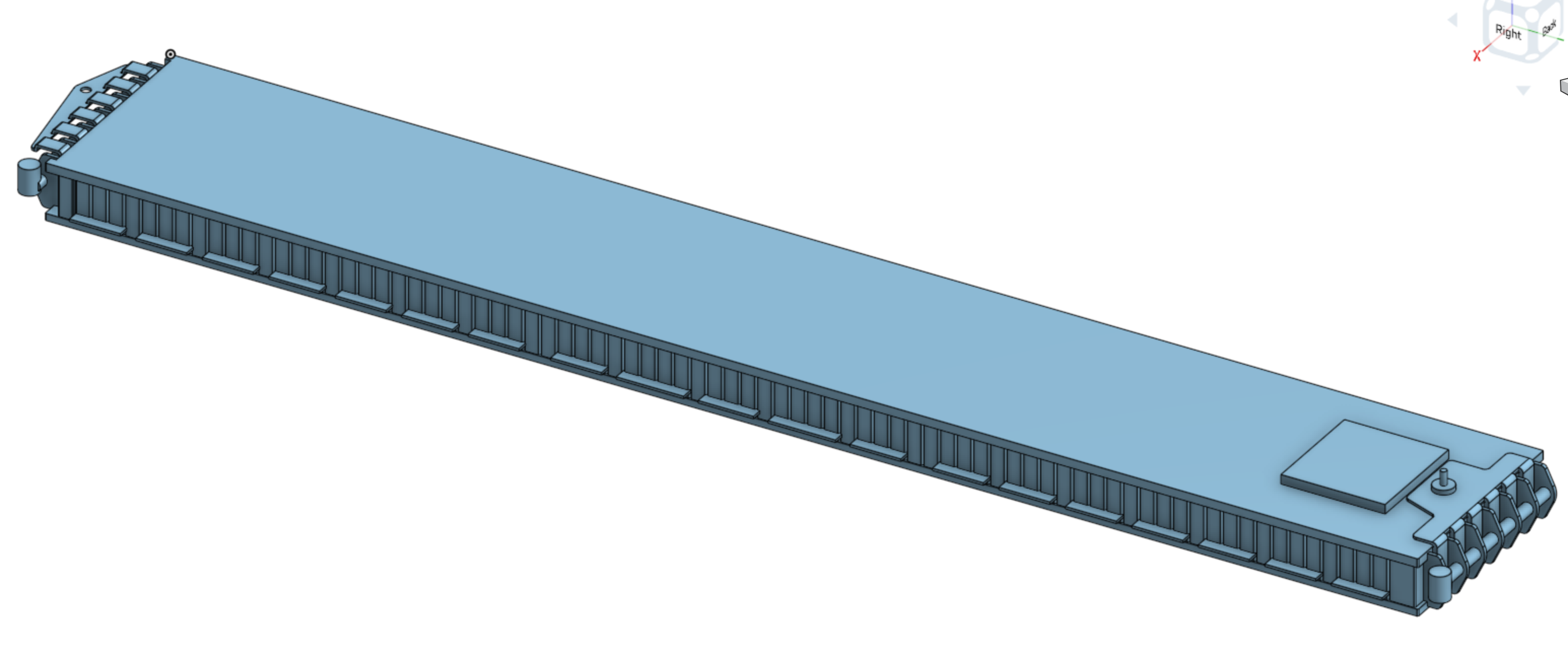

passenger side outboard module.PNG
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

Tesla Model 3 PCS (Charger/DCDC);

viewtopic.php?f=10&t=171&p=6052#p6052
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
Paerel
Posts: 3
Joined: Mon Feb 24, 2020 11:01 pm
Location: Miami, FL, USA

Re: Tesla CAD Models

Post by Paerel »

Hi, I have a 3D scanner and providing a scanning services. I can scan almost any part for free for this community. I just need a part to do it. I’m local in Miami, FL. Let me know if I can help you somehow ;
woutvangerven
Posts: 1
Joined: Tue Mar 10, 2020 8:17 am
Location: België

Re: Tesla CAD Models

Post by woutvangerven »

Kevin Sharpe wrote: Thu Oct 24, 2019 9:50 pm Not sure about the naming convention :?:

Tesla Model 3 Passenger side inboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla Model 3 Passenger side outboard battery module

https://grabcad.com/library/tesla-model ... y-module-1

Tesla model 3 battery module - short passenger side outboard

https://grabcad.com/library/tesla-model ... outboard-1

passenger side inboard module.PNGdrivers side outboard battery module.PNGpassenger side outboard module.PNG
Two thigs:

-There is a naming error on grabcad:

Tesla model 3 battery module - short passenger side outboard = Tesla model 3 driver side outboard battery module

-and here is the 4th module:

Tesla Model 3 Drivers side inboard battery module

https://grabcad.com/library/tesla-model ... y-module-1
User avatar
cloudy
Posts: 202
Joined: Wed Oct 02, 2019 12:15 am
Location: UK
Been thanked: 1 time

Re: Tesla CAD Models

Post by cloudy »

Hi,

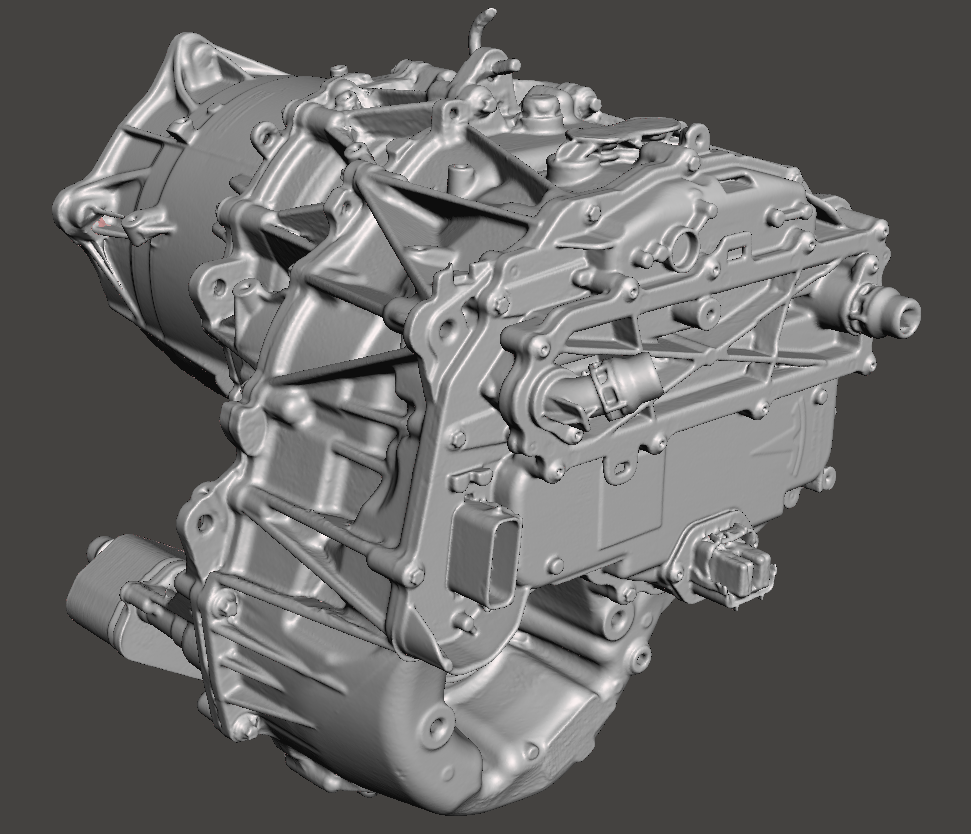

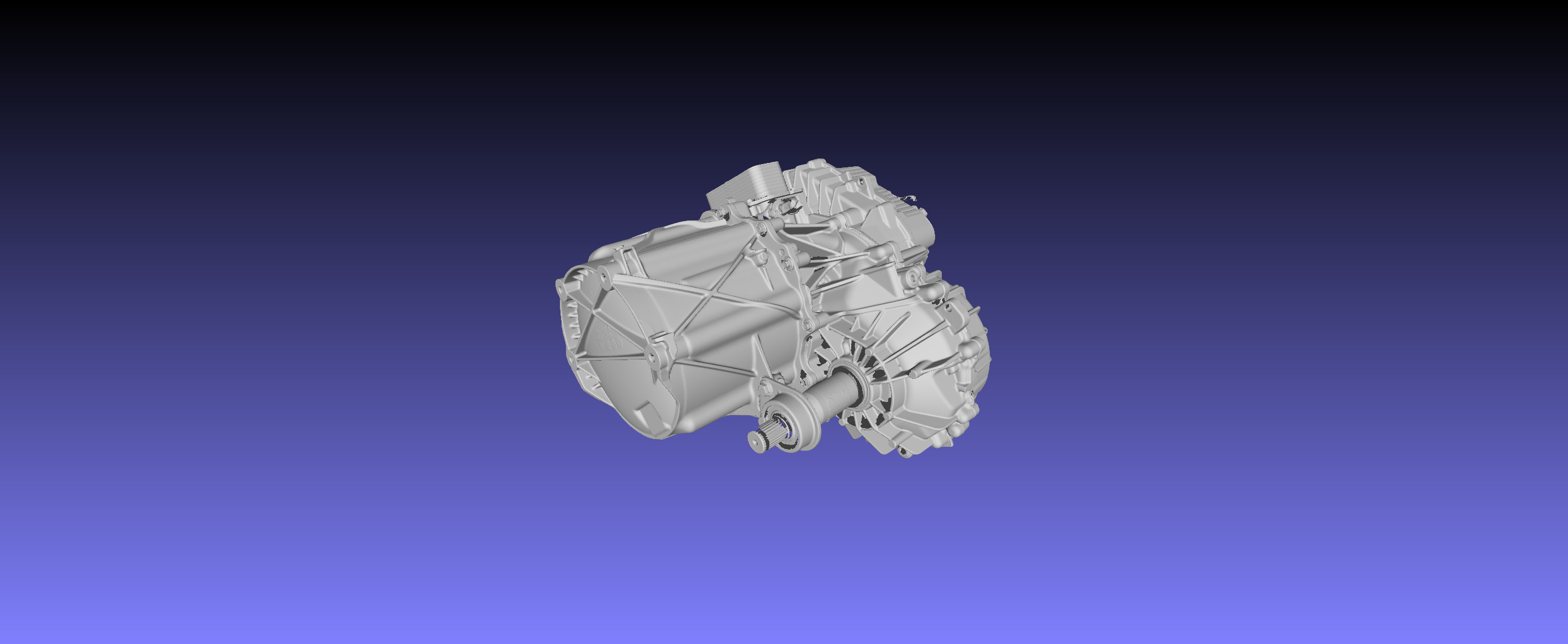

Time to contribute something back. I could only find scans of the front SDU - so scanned and uploaded my rear one here GrabCAD

It's photogrammetry rather than laser, but It should be accurate within a few mm - but there was some obfuscation around the mounts due to the hoist straps...
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

cloudy wrote: Fri Mar 20, 2020 10:36 pm Time to contribute something back.
Fabulous, thank you :D
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
User avatar
Kevin Sharpe
Posts: 1345
Joined: Fri Dec 14, 2018 9:24 pm
Location: Ireland and US
Been thanked: 4 times

Re: Tesla CAD Models

Post by Kevin Sharpe »

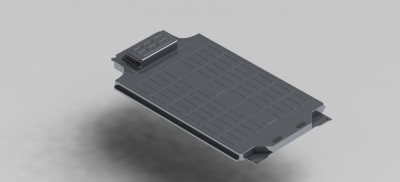

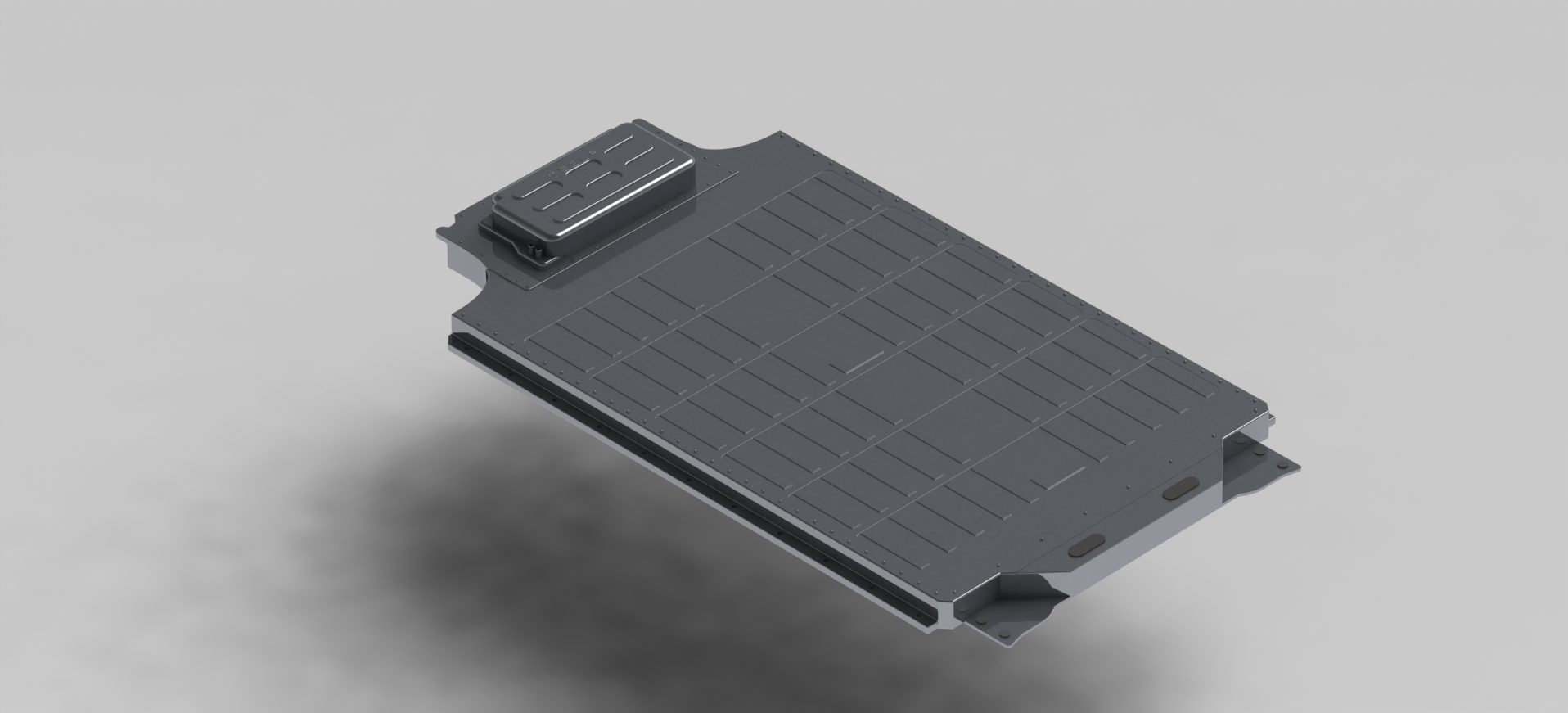

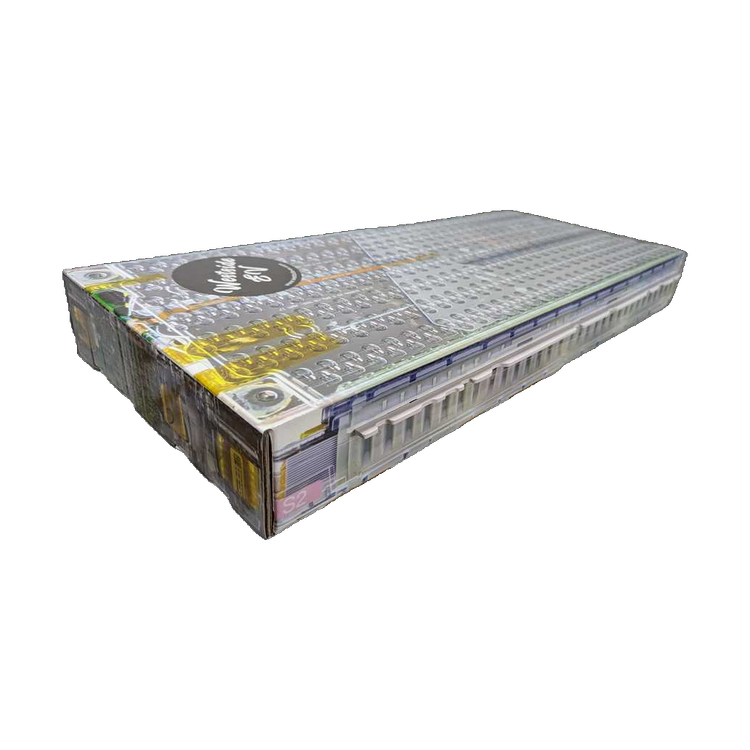

Model S/X Battery Pack.

Two 3D Models on GrabCAD (here) and (here) 8-)
tesla bettery.jpg
This is a personal post and I disclaim all responsibility for any loss or damage which any person may suffer from reliance on the information and material in this post or any opinion, conclusion or recommendation in the information and material.
57 Chevy
Posts: 37
Joined: Fri Jan 24, 2020 10:43 pm
Location: New Zealand

Re: Tesla CAD Models

Post by 57 Chevy »

Just a note to say don't trust the accuracy of some models, +/-20mm would be a good margin of error. There is a full Model S on Grabcad but it isn't suitable for mockup as it is.
User avatar
New Electric Ireland
Posts: 172
Joined: Sun May 31, 2020 12:22 pm
Location: Ireland
Been thanked: 1 time
Contact:

Re: Tesla CAD Models

Post by New Electric Ireland »

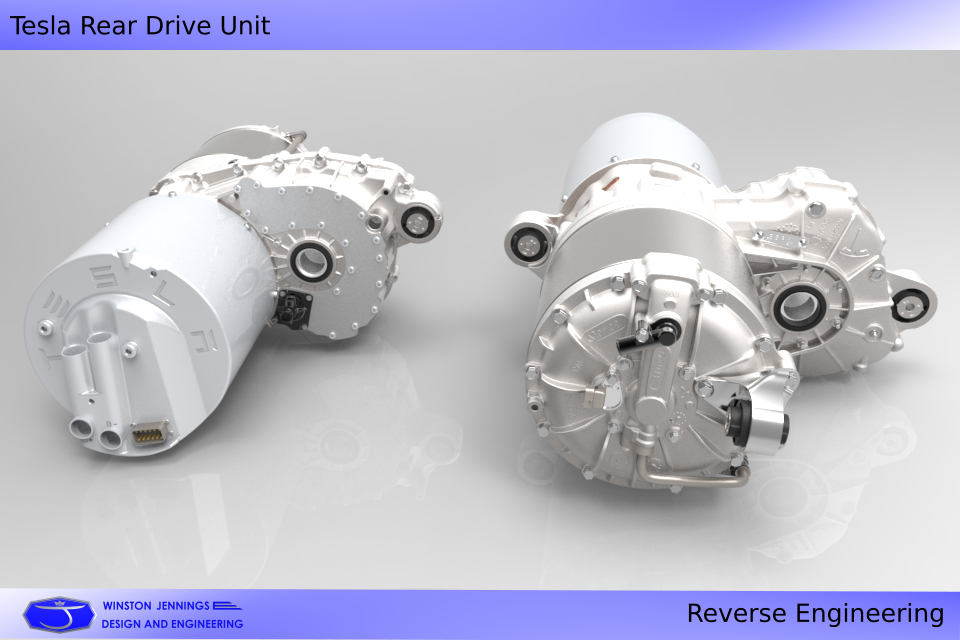

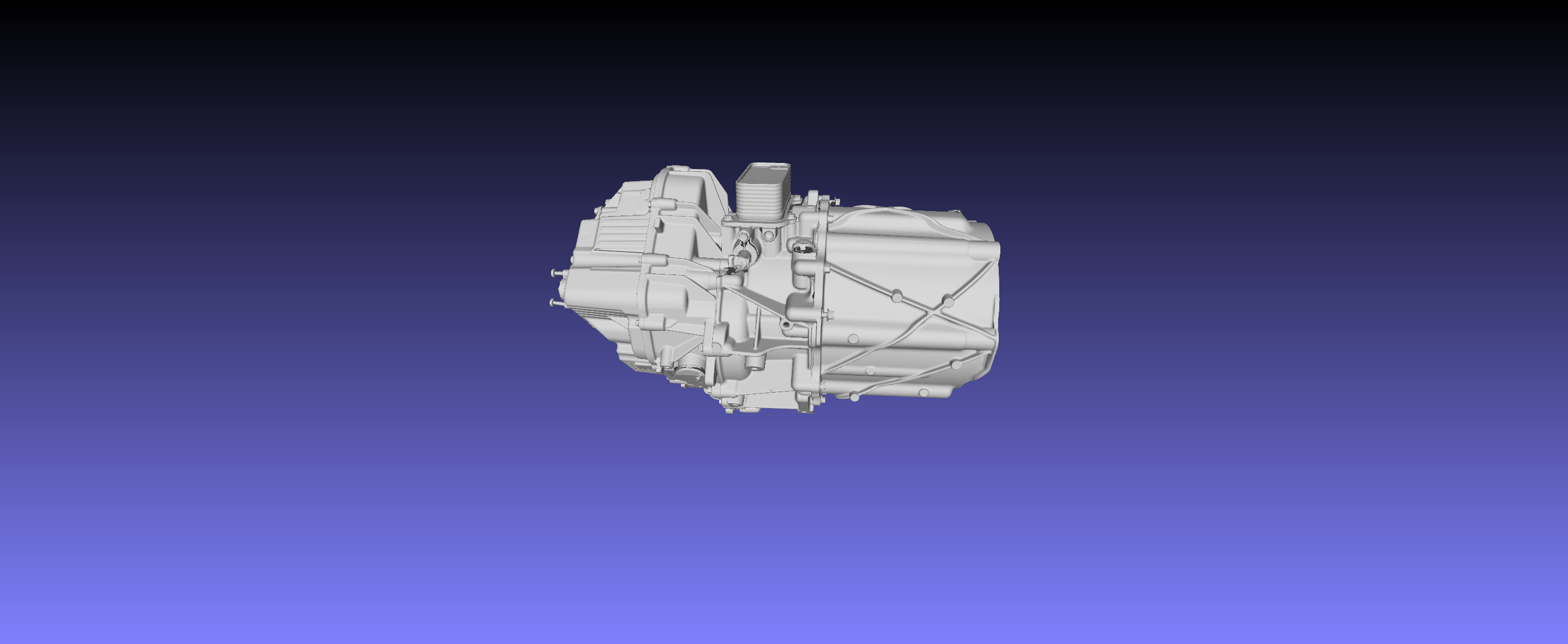

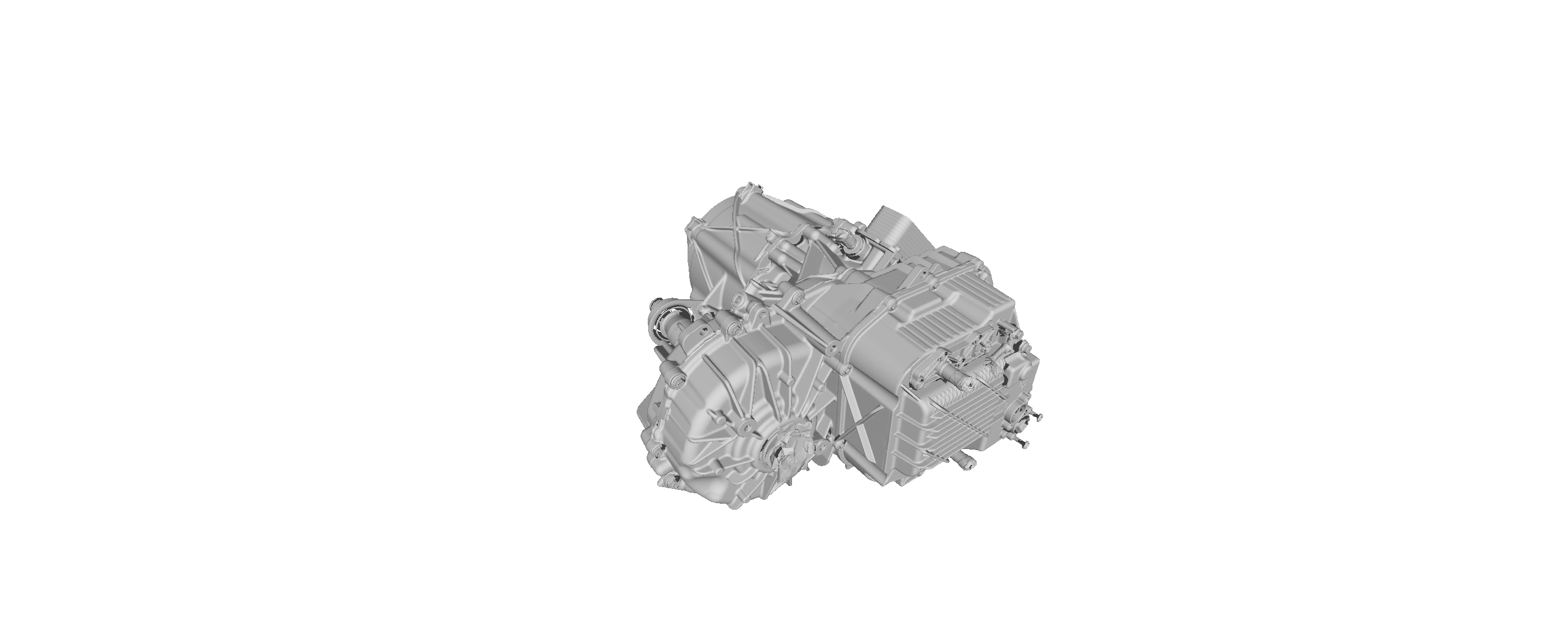

Tesla Model 3 Rear drive unit 3D scan

https://grabcad.com/library/tesla-model ... vshop-fr-1
In Ireland we undertake training & open source RND for the New Electric group, 5 companies converting boats, buses, cars and trucks to electric drive since 2008.
User avatar
EV_Builder
Posts: 1199
Joined: Tue Apr 28, 2020 3:50 pm
Location: The Netherlands
Has thanked: 16 times
Been thanked: 33 times
Contact:

Re: Tesla CAD Models

Post by EV_Builder »

cloudy wrote: Fri Mar 20, 2020 10:36 pm Hi,

Time to contribute something back. I could only find scans of the front SDU - so scanned and uploaded my rear one here GrabCAD

It's photogrammetry rather than laser, but It should be accurate within a few mm - but there was some obfuscation around the mounts due to the hoist straps...

Can you tell me the scaling? It looks way off. If i measure in the grabcad vieuwer distance between 2 mountingpoints is 0.55mm Cant be right?
I would like to have the stp if you can generate it? Or IGES?
Converting an Porsche Panamera
see http://www.wdrautomatisering.nl for bespoke BMS modules.
User avatar
EV_Builder
Posts: 1199
Joined: Tue Apr 28, 2020 3:50 pm
Location: The Netherlands
Has thanked: 16 times
Been thanked: 33 times
Contact:

Re: Tesla CAD Models

Post by EV_Builder »

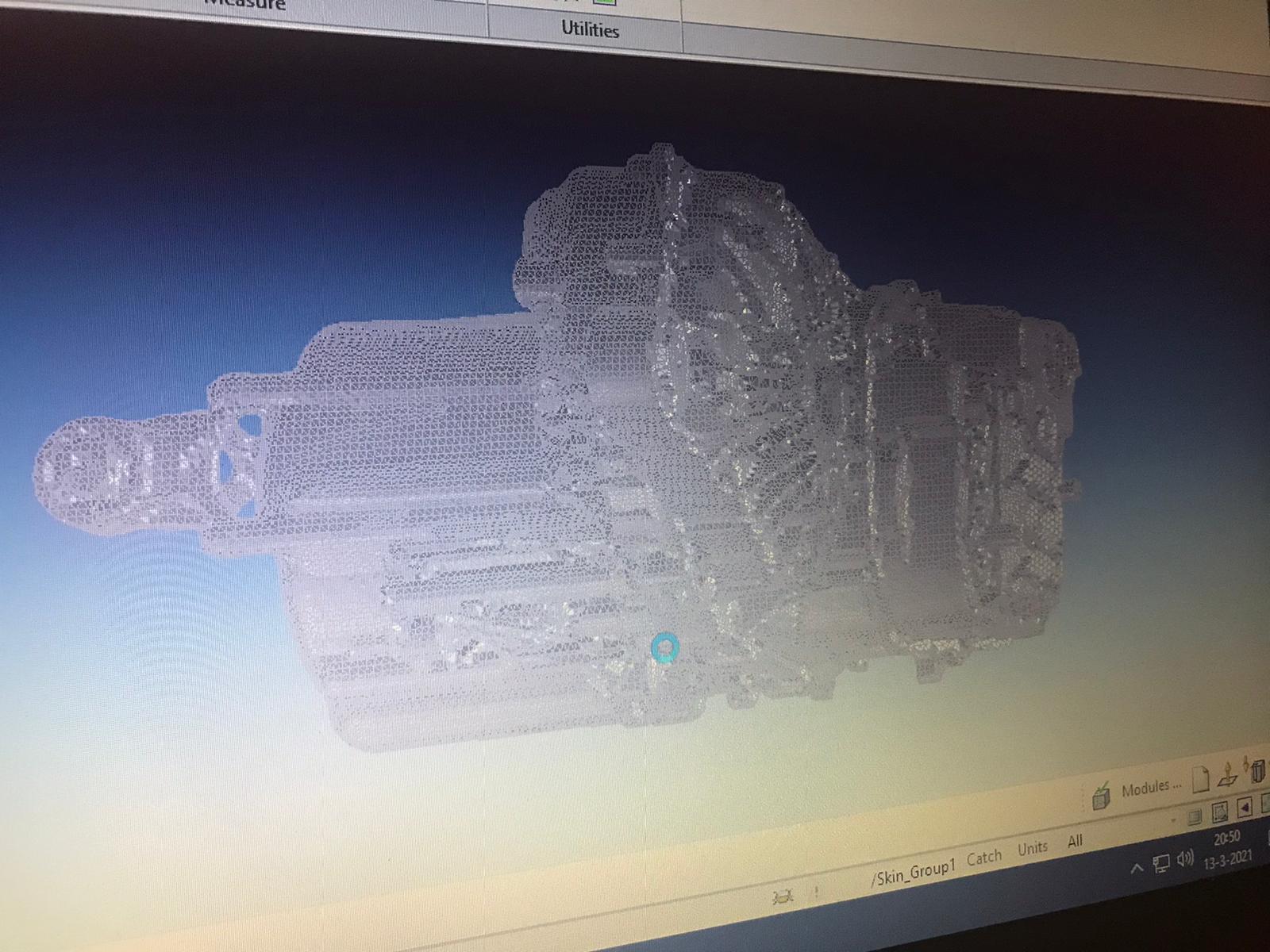

Ok so i ended up installing "blender" (see blender.org).

With Blender you can import the OBJ files and modify the mesh to be more relaxed.
This smooths out allot of unneeded and wrong detail.
Also you can easily scale the OBJ part with blender.

You can then export to STL file.

Then with FreeCad you can import the STL and do an conversion to IGES for example, but perhaps your normal CAD program can also import STL already.
WhatsApp Image 2021-03-13 at 20.49.27.jpeg
Converting an Porsche Panamera
see http://www.wdrautomatisering.nl for bespoke BMS modules.
User avatar
muehlpower
Posts: 570
Joined: Fri Oct 11, 2019 10:51 am
Location: Germany Fürstenfeldbruck
Has thanked: 12 times
Been thanked: 96 times

Re: Tesla CAD Models

Post by muehlpower »

I made a drawing of the GEN3 charger. It is not very detailed, but the dimensions are correct.
Attachments
GEN3.stl
(241.98 KiB) Downloaded 127 times
User avatar
muehlpower
Posts: 570
Joined: Fri Oct 11, 2019 10:51 am
Location: Germany Fürstenfeldbruck
Has thanked: 12 times
Been thanked: 96 times

Re: Tesla CAD Models

Post by muehlpower »

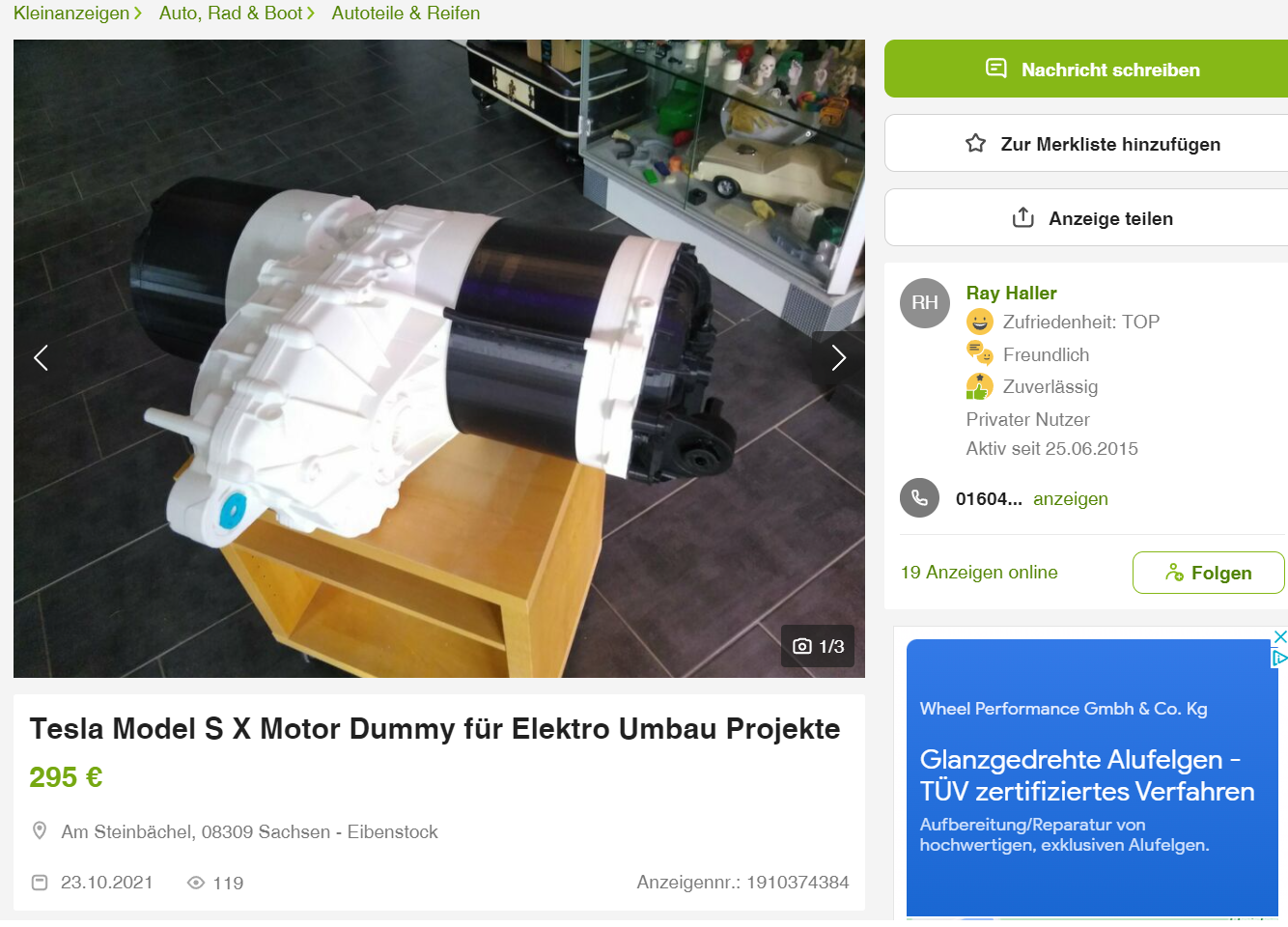

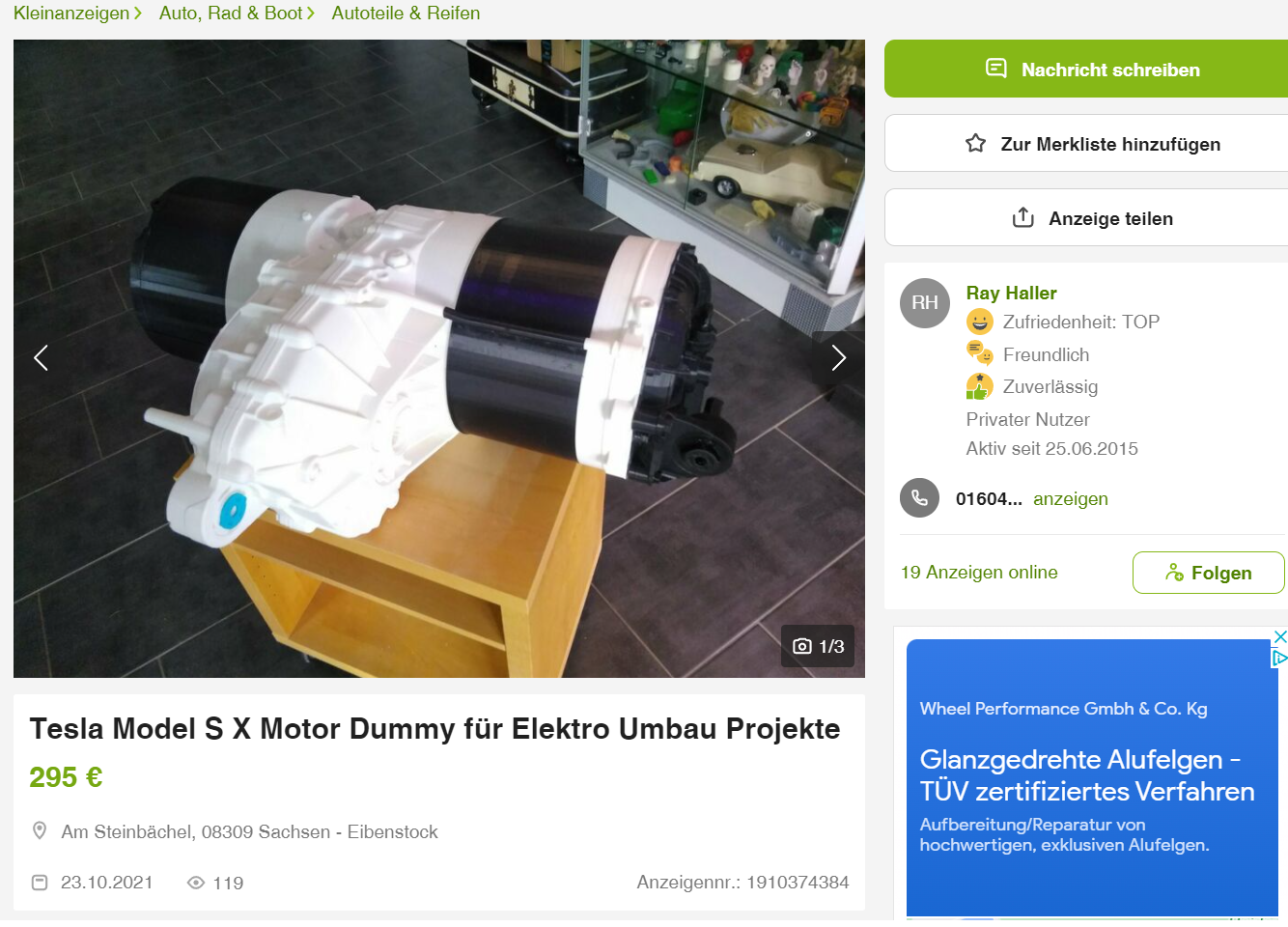

On ebay classifieds someone sells an LDU dummy to make brackets and check the space!
LDU Dummy.png
User avatar
jason_arnold
Posts: 21
Joined: Wed Sep 11, 2019 4:42 pm
Location: Canada
Has thanked: 1 time
Been thanked: 2 times

Re: Tesla CAD Models

Post by jason_arnold »

Link to the dummies in case any is looking (seems to be German only):
https://www.ebay-kleinanzeigen.de/s-anz ... 4-223-3982
nilsvr
Posts: 43
Joined: Fri Mar 18, 2022 9:49 pm
Location: Germany
Has thanked: 1 time
Been thanked: 3 times

Re: Tesla CAD Models

Post by nilsvr »

They now are liste for almost 400€ did anyone in Germany or surrounding already buy an LDU model?
I would happily rent yours out for a while to fit my mounts.
JockE28
Posts: 38
Joined: Tue Sep 15, 2020 4:05 pm
Has thanked: 8 times
Been thanked: 1 time

Re: Tesla CAD Models

Post by JockE28 »

New Electric Ireland wrote: Mon Jan 04, 2021 6:25 pm Tesla Model 3 Rear drive unit 3D scan

https://grabcad.com/library/tesla-model ... vshop-fr-1


Anyone got the scaling on this one? or exact measurments between monting point etc?
52I
Posts: 6
Joined: Sun May 22, 2022 10:44 pm

Re: Tesla CAD Models

Post by 52I »

Grabcad is no more, all files have been deleted according to their blog.

Any chance somebody has a Model 3/4 motor CAD files stored somewhere else?

Thanks,
Mark
P.S.Mangelsdorf
Posts: 753
Joined: Tue Sep 17, 2019 8:33 pm
Location: Raleigh, NC, USA
Has thanked: 89 times
Been thanked: 92 times

Re: Tesla CAD Models

Post by P.S.Mangelsdorf »

52I wrote: Sat Jul 01, 2023 9:24 pm Grabcad is no more, all files have been deleted according to their blog.

Any chance somebody has a Model 3/4 motor CAD files stored somewhere else?

Thanks,
Mark
Grabcad appears to still be up for me.
If at first you don't succeed, buy a bigger hammer.

1940 Chevrolet w/ Tesla LDU - "Shocking Chevy" - Completed 2023 Hot Rod Drag Week
Mitchy
Posts: 82
Joined: Sun Nov 14, 2021 12:16 pm
Has thanked: 2 times
Been thanked: 35 times

Re: Tesla CAD Models

Post by Mitchy »

Grabcad works for me as well.

Just uploaded the Tesla Model S - Raven front drive unit scan:
https://grabcad.com/library/tesla-model ... ive-unit-1
Post Reply
