Parameter database

Post by johu »

So, as discussed earlier I want to implement a parameter database as soon as the Patreon goal is hit: 2 more $ needed

So in this thread I want to discuss the design.
  • Only forum members can post parameter sets to avoid spamming
  • Hitting a button on the web interface will transmit your current parameter set to openinverter.org
  • You will then be asked things like "What motor do you have, what inverter, what battery voltage"
  • Your parameters will be stored to a database and categorized by the data you entered above
  • Should it be linked to your forum username? This is a GDPR question merely
  • The web interface will be extended to carry an offline copy of the parameter database, I think json.gz should fit the flash
  • The advantage: you DON'T need to be connected to both the internet AND the ESP module to use the database
  • You can update that database
  • You can then choose something like "Apply inverter parameters of inverter X to my controller". Likewise for motor, throttle pedal etc.
  • There will also be the possibility to browse the parameters on openinverter.org
More ideas?
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
P.S.Mangelsdorf
Posts: 753
Joined: Tue Sep 17, 2019 8:33 pm
Location: Raleigh, NC, USA
Has thanked: 89 times
Been thanked: 92 times

Re: Parameter database

Post by P.S.Mangelsdorf »

johu wrote: Mon Oct 26, 2020 7:10 pm More ideas?
Probably should have a category for vehicle weight and one for drivetrain (FWD vs RWD).

Some people might be interested in a field for driving/tune style, i.e. street/track, smooth/aggressive, commuter/racecar
If at first you don't succeed, buy a bigger hammer.

1940 Chevrolet w/ Tesla LDU - "Shocking Chevy" - Completed 2023 Hot Rod Drag Week
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

Yes that makes much sense
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
jalovick
Posts: 95
Joined: Mon Mar 11, 2019 10:14 am
Location: Sydney, Australia
Has thanked: 10 times
Been thanked: 6 times

Re: Parameter database

Post by jalovick »

Assuming that vehicle weight and wheel diameter are factors that would effect the tune, is it worth including that, or is there another calculation for that? Final drive ratio for RWD or AWD (if a motor with reduction gear is centre mounted, in place of a transfer case) may also be a factor.
User avatar
ZooKeeper
Posts: 507
Joined: Mon Mar 30, 2020 10:23 pm
Location: USA

Re: Parameter database

Post by ZooKeeper »

Nice idea!

I wonder if the upload could be added to the user Profile and viewable in the "Manage Attachments" option. Associating with a UID is a good idea I think, to aid in searching.
Huebner VCU controlling a Gen2 Prius Inverter powering an MGR
"Talent is equally distributed but opportunity is not." - Leila Janah
User avatar
Bigpie
Posts: 1585
Joined: Wed Apr 10, 2019 8:11 pm
Location: South Yorkshire, UK
Has thanked: 74 times
Been thanked: 299 times

Re: Parameter database

Post by Bigpie »

Joined your Patreon, hopefully that gets you to your goal. This is a pretty cool idea, would be handy to have maybe versions to subscribe to and the car can automatically check for parameter updates and notify the user somehow that they might want to update. Also direct downloading and updating of firmware would be cool.
VW Beetle 2003
Outlander front generator
Prius Gen 3 inverter (EVBMW logic board)
Outlander charger
3x Golf GTE batteries
Chademo Charging
Outlander water heater
User avatar
james@N52E01
Posts: 144
Joined: Wed Sep 18, 2019 7:02 am
Has thanked: 2 times
Been thanked: 3 times

Re: Parameter database

Post by james@N52E01 »

Just wondering how the database would appear for selection. If someone uploads several versions of their parameters (i.e. they've made improvements) they should be able to remove their previous uploads, however they may want to host multiple iterations of the same setup for different tunes (e.g. race track, commuting).

In terms of GDPR, you could have a brief GDPR warning and asking users to confirm they are happy to have their username appended without warranty to the parameters.
User avatar
Bigpie
Posts: 1585
Joined: Wed Apr 10, 2019 8:11 pm
Location: South Yorkshire, UK
Has thanked: 74 times
Been thanked: 299 times

Re: Parameter database

Post by Bigpie »

I don't think GDPR is an issue for usernames.

They are displayed on the forum anyway. You just have to state what it'll be used for and how long you're storing it, I think you have to have a way to annonomise it on request too. That's my understanding.
VW Beetle 2003
Outlander front generator
Prius Gen 3 inverter (EVBMW logic board)
Outlander charger
3x Golf GTE batteries
Chademo Charging
Outlander water heater
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

Thanks for jumping on Patreon and joining development.
I take it away that metadata implementation must be very flexible :) All questions to the poster will be stored in the database. Some items (like AWD, FWD RWD) are maybe better off as enums instead of free text to avoid semantic duplicates like "FWD" vs. "Front wheel drive".

Every parameter set that is posted does have a date attached to it. The user who posted it can delete their own set.

Concerning GDPR I'll just have a checkbox and a description of how the data is used.

I think the database will be free for all to view, even non-forum members. I will have a "digikey" style filter that lets you filter the posted parameter sets by the metadata suggested above.
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

I'm also now thinking whether to have a list of parameters that are highly custom to you personal preference or your setup. For example "dirmode" or the various regen parameters. Those parameters can then be excluded when applying the set to your inverter.
Bigpie wrote: Tue Oct 27, 2020 4:09 pm Joined your Patreon, hopefully that gets you to your goal. This is a pretty cool idea, would be handy to have maybe versions to subscribe to and the car can automatically check for parameter updates and notify the user somehow that they might want to update. Also direct downloading and updating of firmware would be cool.
Yes, goal reached :)
The only challenge with automatic updates is to setup your connection. By default you connect to the inverter via wifi (be it your phone or laptop) and thereby loose internet connectivity. Easy to solve, as you can just enable mobile data (and disable "use for internet" in wifi options) or plug in an ethernet cord. Just something people need to be made aware of so they don't write "it doesn't work" forum posts ;)

Otherwise it would be easy to subscribe to a specific parameter set by its numeric id.

When you post a parameter set you can choose to update the existing one which will get people notified or create a new one with different goals, that will NOT get people notified.
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
EV_Builder
Posts: 1199
Joined: Tue Apr 28, 2020 3:50 pm
Location: The Netherlands
Has thanked: 16 times
Been thanked: 33 times
Contact:

Re: Parameter database

Post by EV_Builder »

Shouldn't we use svn or git in this design? Comparing files becomes then easy and version administration is included.
Perhaps we can build an interpreter for the differences and for storage of the individual parameters and for storage git and then save the git link with the user.
Converting an Porsche Panamera
see http://www.wdrautomatisering.nl for bespoke BMS modules.
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

It won't be file based but based on parameters and categories. So you can use for example motor parameters from one set and inverter parameters from another.
I'm using a mysql database for now. Source code will go on github.
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

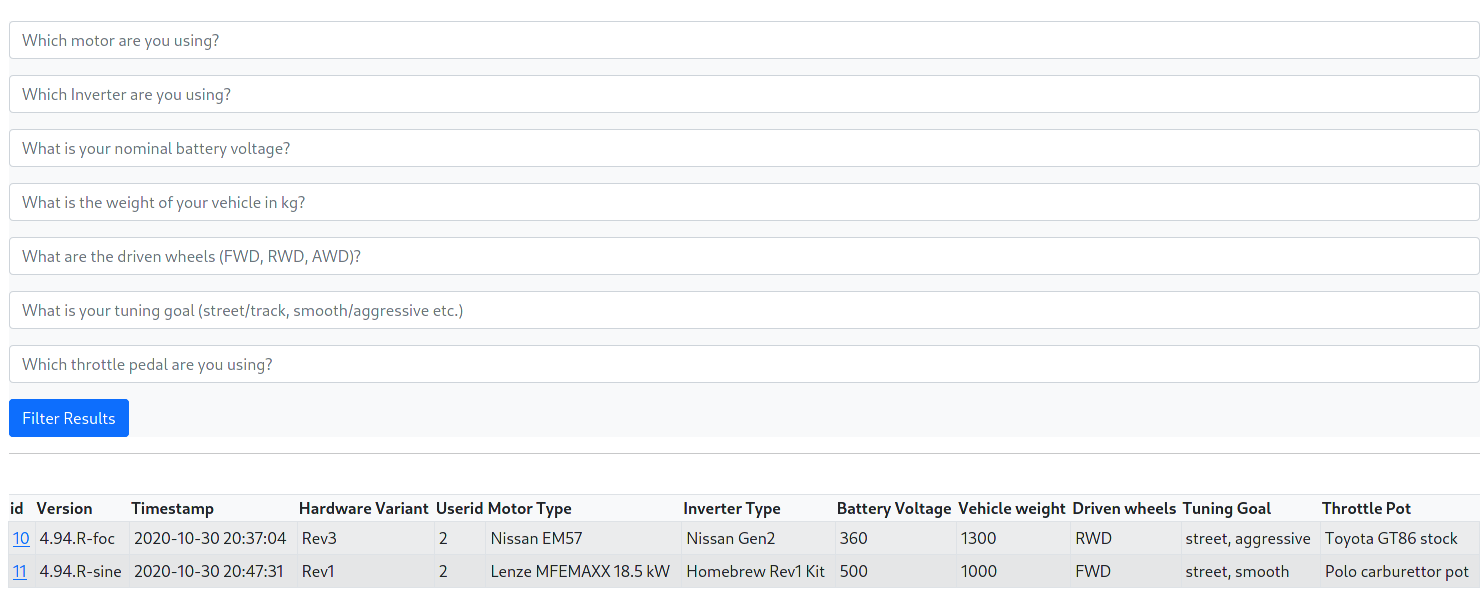

Just want to let everyone know we (Dima, me) are making good progress with the database.
Attachments
Bildschirmfoto vom 2020-11-05 10-07-40.png
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
james@N52E01
Posts: 144
Joined: Wed Sep 18, 2019 7:02 am
Has thanked: 2 times
Been thanked: 3 times

Re: Parameter database

Post by james@N52E01 »

Thank you both. You guys rule, can’t wait to see how you get on
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

It is done :)
Huge shoutout to Dima who designed the graphical interface on the server side.
Now, to use it:
- Download https://github.com/jsphuebner/esp8266-web-interface
- Upload the files inverter.js, index.js, index.html to your ESP module (via Update on top of the page)
- Refresh
- Upgrade your inverter firmware to 4.95.R if you want to submit parameters (release coming)
- If you think your parameters are awesome, submit them with the apparent button

To download parameters
- Go to https://openinverter.org/parameters
- Choose a parameter set
- Choose the parameter categories you want to download, e.g. just "Motor"
- a) download as json file and apply that to your inverter
- or b) subscribe to the parameter set - now every time it is updated you will be notified!
- Subscription is done by pressing subscribe, copying the token and pasting it into the ESP web interface + <Enter>

In order for this to work your computer/phone must be connected to the internet AND the wifi module simultaneously.
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
james@N52E01
Posts: 144
Joined: Wed Sep 18, 2019 7:02 am
Has thanked: 2 times
Been thanked: 3 times

Re: Parameter database

Post by james@N52E01 »

Awesome, many thanks to you and Dima for implementing this feature. You guys rock!
Dusty4
Posts: 83
Joined: Tue Dec 25, 2018 12:41 pm
Location: Western Australia
Has thanked: 11 times
Been thanked: 7 times

Re: Parameter database

Post by Dusty4 »

Very nice 8-)
jon volk
Posts: 572
Joined: Wed Apr 10, 2019 7:47 pm
Location: Connecticut
Been thanked: 2 times

Re: Parameter database

Post by jon volk »

Nice job!
Formerly 92 E30 BMW Cabrio with Tesla power
MattsAwesomeStuff
Posts: 871
Joined: Fri Apr 26, 2019 5:40 pm
Has thanked: 278 times
Been thanked: 165 times

Re: Parameter database

Post by MattsAwesomeStuff »

I wrote about it on the DIY EV forums: https://www.diyelectriccar.com/threads/ ... ne.204096/
MattsAwesomeStuff
Posts: 871
Joined: Fri Apr 26, 2019 5:40 pm
Has thanked: 278 times
Been thanked: 165 times

Re: Parameter database

Post by MattsAwesomeStuff »

One suggestion: Allow people to name them, or number them, or something, so people know what they're using and can refer to them.
User avatar
jalovick
Posts: 95
Joined: Mon Mar 11, 2019 10:14 am
Location: Sydney, Australia
Has thanked: 10 times
Been thanked: 6 times

Re: Parameter database

Post by jalovick »

Is it possible to calculate the power and torque output (at the output shaft) from the parameters?
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

MattsAwesomeStuff wrote: Sun Nov 15, 2020 9:38 pm One suggestion: Allow people to name them, or number them, or something, so people know what they're using and can refer to them.
They are numbered internally so you can post links like that: https://openinverter.org/parameters/view.html?id=10
That said we can add arbitrary metadata if needed.
jalovick wrote: Mon Nov 16, 2020 4:05 am Is it possible to calculate the power and torque output (at the output shaft) from the parameters?
Very hard for sine software, possible for FOC (100*throtcur*udc/sqrt(2) ). Maybe easier to let people specify it in the metadata, at least for sine.
MattsAwesomeStuff wrote: Sun Nov 15, 2020 9:36 pm I wrote about it on the DIY EV forums: https://www.diyelectriccar.com/threads/ ... ne.204096/
Thanks :)
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
johu
Site Admin
Posts: 5683
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Parameter database

Post by johu »

Just posted Tesla SDU and LDU parameters.
Please start posting your parameters for other hardware :)
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
Bigpie
Posts: 1585
Joined: Wed Apr 10, 2019 8:11 pm
Location: South Yorkshire, UK
Has thanked: 74 times
Been thanked: 299 times

Re: Parameter database

Post by Bigpie »

It doesn't seem to let me post. I'll have to try re-uploading the new files to the web interface. It seems to be missing the token parameter as it goes through to the open inverter website for login etc.
