Tesla Model 3 rear subframe/suspension, 3D scanned and reverse engineered

[Ovidiu]

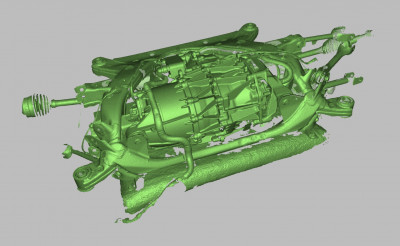

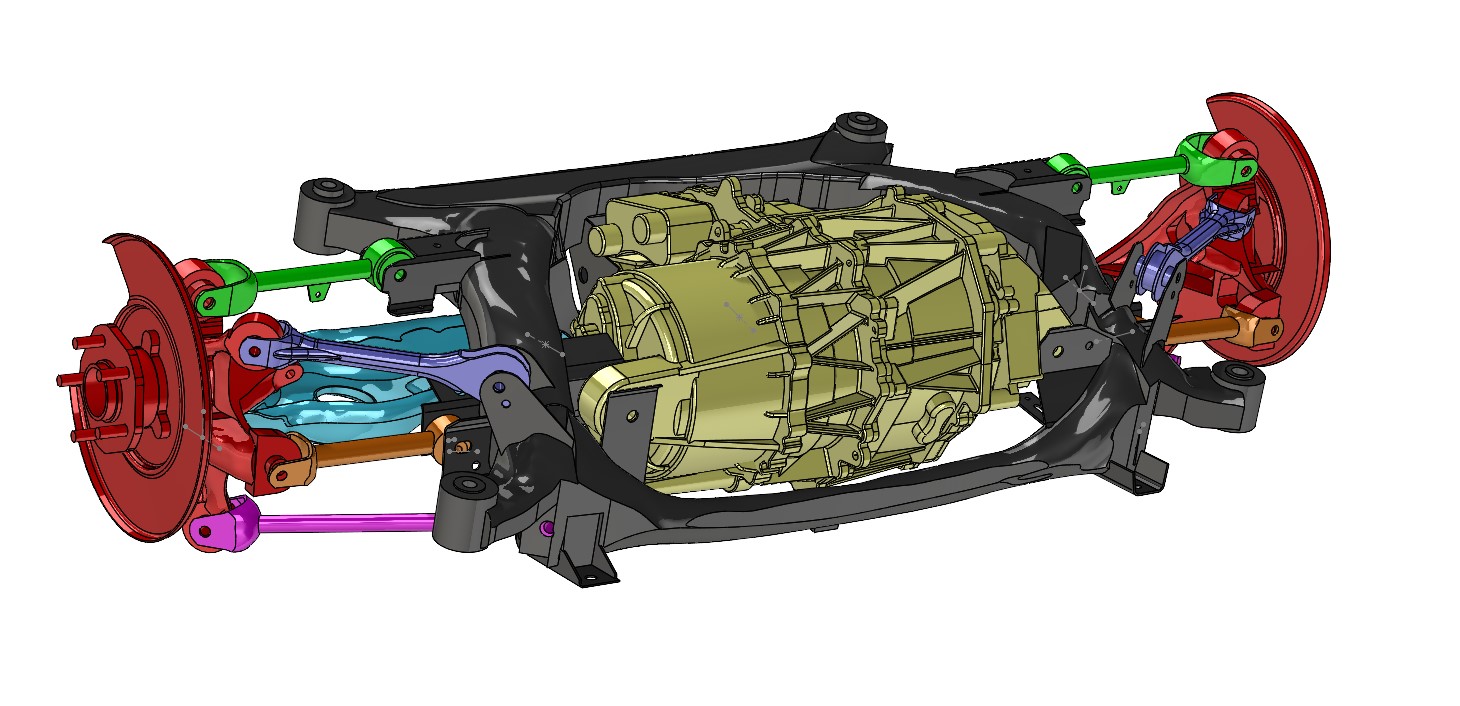

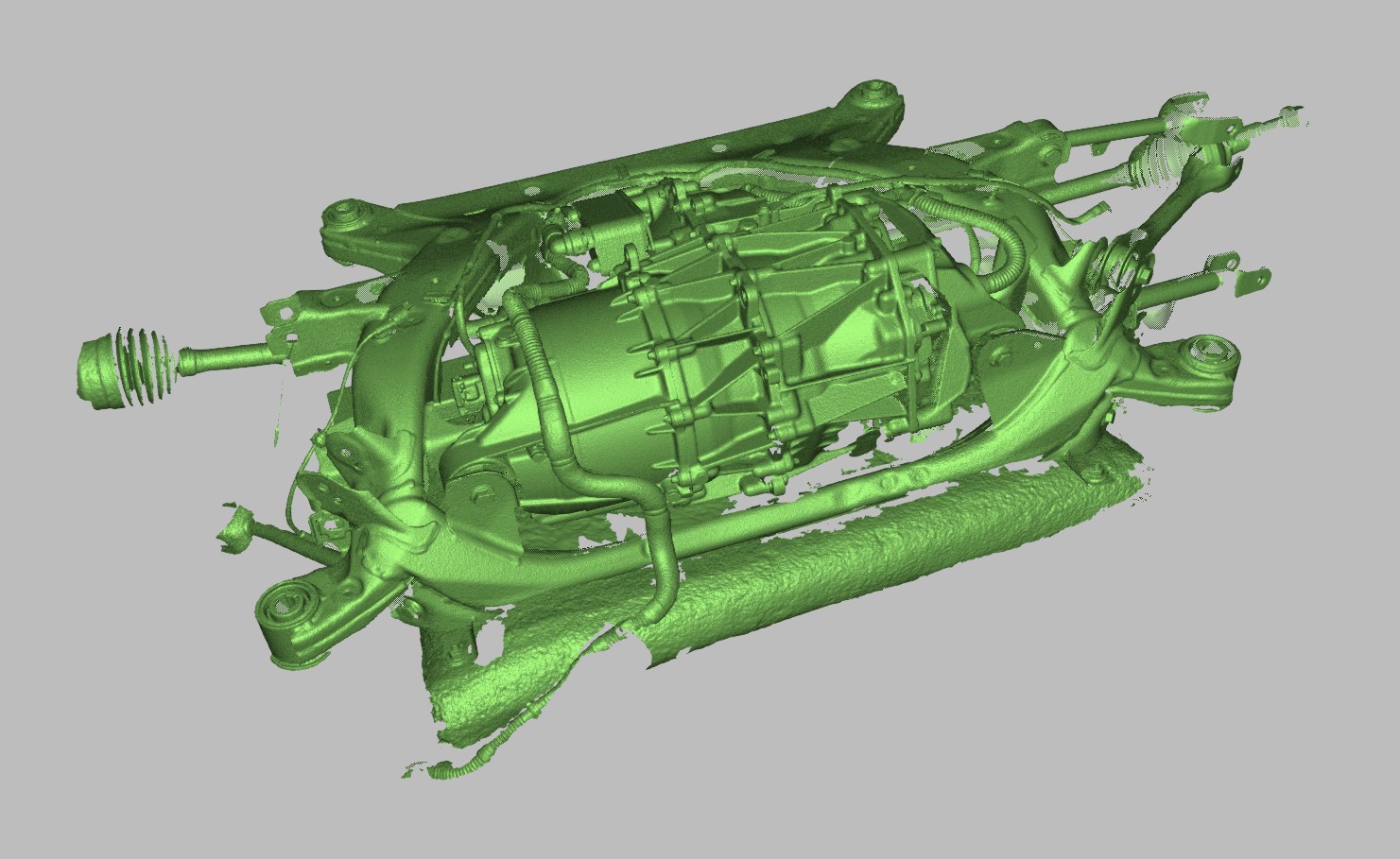

Hello everybody, I am working on converting a 1949 Cadillac Sixty Special to electric via a Tesla Model 3 donor car. As part of the initial teardown stages, I took off the rear subframe and the suspension arms and 3D scanned / reverse engineered them in an assembly. I posted the results on Reddit and MattsAwesomeStuff suggested I post it here as well because folks will be interested.

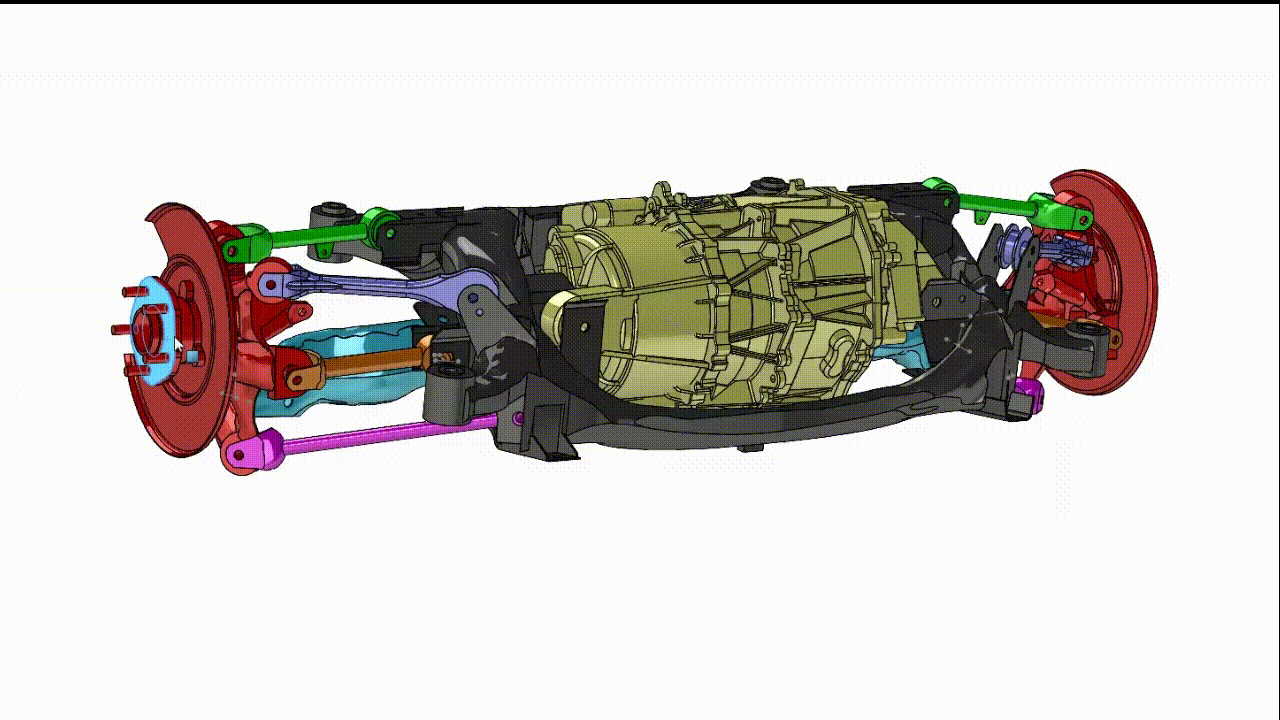

And a little animation of the suspension flex:

P.S. If there's interest in the car build, I can post it as well.

[PoloLbricolo]

Super intresting stuff, are you able to share the asembly ?

[P.S.Mangelsdorf]

P.S. If there's interest in the car build, I can post it as well.

Yes, there is absolutely interest in the build, please post a build thread in Projects

[vwbrady]

Hello everybody, I am working on converting a 1949 Cadillac Sixty Special to electric via a Tesla Model 3 donor car. As part of the initial teardown stages, I took off the rear subframe and the suspension arms and 3D scanned / reverse engineered them in an assembly. I posted the results on Reddit and MattsAwesomeStuff suggested I post it here as well because folks will be interested.


And a little animation of the suspension flex:

P.S. If there's interest in the car build, I can post it as well.

that's a lot of reverse engineering work! Thanks for it and for sharing!
Now link us to your Project Thread (viewforum.php?f=11) so we can follow along

[Ovidiu]

Yes, there is absolutely interest in the build, please post a build thread in Projects

that's a lot of reverse engineering work! Thanks for it and for sharing!
Now link us to your Project Thread (viewforum.php?f=11) so we can follow along

Alright, I posted a new topic here:
viewtopic.php?t=3410

Might take me a few days to catch up with all the progress so far.

Super intresting stuff, are you able to share the asembly ?

So I'm not against sharing it, but I won't be posting it publicly for free. I'll gladly give it for free to people doing something good for the community here. PM me if you need it and we can talk.
