Inverter Firmware v4.94.R

Post by johu »

Release time :)

https://github.com/jsphuebner/stm32-sin ... ag/v4.94.R
  • Preparation for boot loader pin initialization
  • Added Toyota motor temperature sensor
  • Added tripmode "AutoResume" that will restart inverter 0.5 seconds after it tripped - do not use with FOC code!
  • Ramping up heat dissipation current to avoid controller overshoot
  • Improved initial current sensor offset calibration
  • Fixed spurious current offset warnings - again
  • Allowing 0 potmin/max again, ADC reading cannot drop below 0
  • Removed high rpm regen limit
  • it was a work around against high rpm trips which can be fixed with 0.3 regenramp
  • Changed injected sequence to sample first resolver channel twice instead of dummy pin - better noise behaviour
  • Do not update velocity info in single channel mode when difference in pulse length is > factor 2
  • Implement chargemax again
  • Fixed cruise control issue when off pedal regen is turned off
  • Fixed division by 0 error
I have also released a bootloader that processes the pin init table. Updating to this boot loader is only necessary if you have problems like this: viewtopic.php?f=10&t=1086

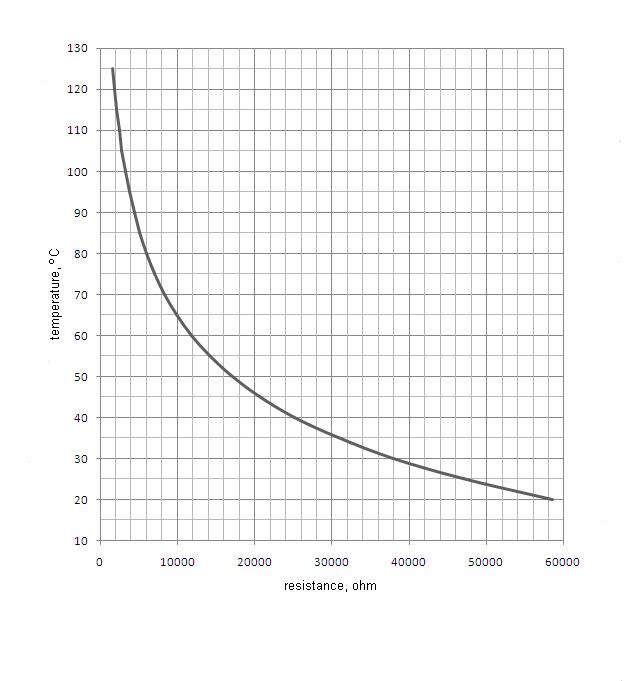

To interface to the Prius motor temperature sensor, you have to make slight changes to the board: viewtopic.php?f=14&t=1087 . Thanks bexander for this contribution!

I added the "AutoResume" mode because Polo has become overly sensitive to over current or it detects over current when there isn't any. Maybe the shield from the current sensor came off (it was soldered) or I'm having a moisture problem. Anyway, the way it works, as soon as the inverter trip it will wait at least 0.5s and then, once you come OFF the throttle it automatically restarts. Also in this mode the DC switch is no longer opened when tripping.

Use this mode with care and do not use it with FOC code as it cannot start into a spinning motor and the inverter would trip again and again - unhealthy!
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
ManuFromParis
Posts: 31
Joined: Sat Feb 15, 2020 6:34 pm
Location: Near Paris

Re: Inverter Firmware v4.94.R

Post by ManuFromParis »

Great !
have you had time to allow <1 ratio for CAN messages definition as well ?

I'm desperate to use my Tachometer with the Speed value... :D
911 SC with Tesla SDU & i3 pack
User avatar
johu
Site Admin
Posts: 5684
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Inverter Firmware v4.94.R

Post by johu »

Argh, no sorry! Next release. Still wondering how to transition so that people don't have to reconfigure all their CAN messages.

EDIT: no wonder god built the world in 7 days, he didn't have to build upon a legacy base.

BTW, to all synchronous FOC fanboys: Fixing the offset problem did not only remove the stuttering near standstill but it also decreased consumption and motor noise! So very much recommend the update.
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
RetroZero
Posts: 702
Joined: Tue Oct 29, 2019 2:48 pm
Location: France
Has thanked: 311 times
Been thanked: 38 times
Contact:

Re: Inverter Firmware v4.94.R

Post by RetroZero »

Thanks Johannes!!!!
User avatar
ManuFromParis
Posts: 31
Joined: Sat Feb 15, 2020 6:34 pm
Location: Near Paris

Re: Inverter Firmware v4.94.R

Post by ManuFromParis »

johu wrote: Mon Oct 26, 2020 8:59 am Argh, no sorry! Next release.
Still wondering how to transition so that people don't have to reconfigure all their CAN messages.
OK. :cry:

BTW, is there a utility to save/restore the CAN definition to a specific file ?
It might be interesting anyway.
911 SC with Tesla SDU & i3 pack
User avatar
johu
Site Admin
Posts: 5684
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Inverter Firmware v4.94.R

Post by johu »

Well for now you can execute custom command "can print". That gives you the can commands that you can play back later. Line by line, maybe a "script function would be nice.
And there is always the possibility to download the second-to-last flash page which stores the CAN definitions
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
jon volk
Posts: 572
Joined: Wed Apr 10, 2019 7:47 pm
Location: Connecticut
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by jon volk »

Is there any way to link it all into the JSON file? That would actually be interesting for me trying to work with some folks remotely on tuning. It would be nice to trade a JSON back and forth and modify the parameters in that for ease of loading.
Formerly 92 E30 BMW Cabrio with Tesla power
User avatar
johu
Site Admin
Posts: 5684
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Inverter Firmware v4.94.R

Post by johu »

Actually http://192.168.4.1/cmd?cmd=json has everything in it, you just can't play it back

EDIT: if you do this often, maybe this is for you: viewtopic.php?f=5&t=937
You just need to set up some server infrastructure.
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
ZooKeeper
Posts: 507
Joined: Mon Mar 30, 2020 10:23 pm
Location: USA

Re: Inverter Firmware v4.94.R

Post by ZooKeeper »

NICE!

The only odd thing thus far is tmpm = 200* :o
Huebner VCU controlling a Gen2 Prius Inverter powering an MGR
"Talent is equally distributed but opportunity is not." - Leila Janah
User avatar
johu
Site Admin
Posts: 5684
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Inverter Firmware v4.94.R

Post by johu »

When setting it to Prius motor temp sensor? If so, I forgot to link to changes in component values: viewtopic.php?f=14&t=1087
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
User avatar
ZooKeeper
Posts: 507
Joined: Mon Mar 30, 2020 10:23 pm
Location: USA

Re: Inverter Firmware v4.94.R

Post by ZooKeeper »

Yup, I had not implemented hardware changes with the corresponding software update. Now for some quality time with HAKKO ;)
Huebner VCU controlling a Gen2 Prius Inverter powering an MGR
"Talent is equally distributed but opportunity is not." - Leila Janah
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

Hello everybody! I would like to get the recovery adjustment when the accelerator pedal is reset in the next release. I would like to adjust from 0-50%))) in single-pedal mode. I don't know how well I made the request clear))) is this possible? With respect to Studio Work.
User avatar
johu
Site Admin
Posts: 5684
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Inverter Firmware v4.94.R

Post by johu »

Sorry I don't understand a word. How do you reset a pedal? What do you want to recover from?
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

For a better understanding of my question-- I would like the firmware to have timebrake and timeaksel options
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

Terrible translation! )))) when resetting the pedal-you need to make the recovery equal to 0.
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

My problem:- with a sharp drop of carrion from high speeds, the motor very quickly switches to recovery mode - the rotor has no inertia and stops almost instantly. Reset-hit! Adjust the settings in the interface does not work (((maybe I'm doing something wrong?
User avatar
ZooKeeper
Posts: 507
Joined: Mon Mar 30, 2020 10:23 pm
Location: USA

Re: Inverter Firmware v4.94.R

Post by ZooKeeper »

Leo M wrote: Fri Oct 30, 2020 10:25 am My problem:- with a sharp drop of carrion from high speeds, the motor very quickly switches to recovery mode - the rotor has no inertia and stops almost instantly.
LOL, translation fun :) Too much regen causing trip-out (I think).
Reset-hit! Adjust the settings in the interface does not work (((maybe I'm doing something wrong?
Reset the VCU and you can drive again, but cannot find the right settings to make the trip-out stop (I think).

Are you using the "FOC" or "SIN" version?
Huebner VCU controlling a Gen2 Prius Inverter powering an MGR
"Talent is equally distributed but opportunity is not." - Leila Janah
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

FOC. The problem is not with disconnecting , but with too much recovery when the accelerator pedal is released quickly. The controllers I worked with had the TimeBrake option. You can use this Setting to adjust the recovery ramp-up time when the accelerator pedal value decreases. I don't know how to translate ) my English is very bad ))) :D
User avatar
bexander
Posts: 834
Joined: Tue Jun 16, 2020 6:00 pm
Location: Gothenburg, Sweden
Has thanked: 63 times
Been thanked: 89 times

Re: Inverter Firmware v4.94.R

Post by bexander »

Maybe adjusting the throtramp and specially the regenramp values as per johu:s recommendations may help.
viewtopic.php?f=11&t=912&start=25#p18397
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

Thanks. I will try.
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

Please tell me what it means— Overcurrents. ? As I understand it, this is an overcurrent. What parameter is used for adjustment?
User avatar
johu
Site Admin
Posts: 5684
Joined: Thu Nov 08, 2018 10:52 pm
Location: Kassel/Germany
Has thanked: 153 times
Been thanked: 960 times
Contact:

Re: Inverter Firmware v4.94.R

Post by johu »

Over current means too much current into your motor. There are usually two limits: ocurlim and protection function of gate driver.
regenramp=0.3 should solve your problem
Support R/D and forum on Patreon: https://patreon.com/openinverter - Subscribe on odysee: https://odysee.com/@openinverter:9
Leo M
Posts: 88
Joined: Fri Oct 30, 2020 9:48 am
Been thanked: 2 times

Re: Inverter Firmware v4.94.R

Post by Leo M »

Thank you very much Johu . Iregenramp=0.3 - tried doesn't help...
User avatar
ZooKeeper
Posts: 507
Joined: Mon Mar 30, 2020 10:23 pm
Location: USA

Re: Inverter Firmware v4.94.R

Post by ZooKeeper »

johu wrote: Mon Oct 26, 2020 9:17 pm When setting it to Prius motor temp sensor? If so, I forgot to link to changes in component values: viewtopic.php?f=14&t=1087
I completed the resistor changes (R16 = 2k2, R21 = 1k1) and tied pins 13 & 14 together and got a more rational mtemp of 101*C. Since higher resistance = lower mtemp, I also played with adding some small resistance on the mtemp (-) circuit and I did not improved the readings further.

As presumed, the mtemp readings are representative at temps near 100*C +/- and that is good :)
Huebner VCU controlling a Gen2 Prius Inverter powering an MGR
"Talent is equally distributed but opportunity is not." - Leila Janah
User avatar
bexander
Posts: 834
Joined: Tue Jun 16, 2020 6:00 pm
Location: Gothenburg, Sweden
Has thanked: 63 times
Been thanked: 89 times

Re: Inverter Firmware v4.94.R

Post by bexander »

ZooKeeper wrote: Mon Nov 02, 2020 1:25 am
johu wrote: Mon Oct 26, 2020 9:17 pm When setting it to Prius motor temp sensor? If so, I forgot to link to changes in component values: viewtopic.php?f=14&t=1087
I completed the resistor changes (R16 = 2k2, R21 = 1k1) and tied pins 13 & 14 together and got a more rational mtemp of 101*C. Since higher resistance = lower mtemp, I also played with adding some small resistance on the mtemp (-) circuit and I did not improved the readings further.

As presumed, the mtemp readings are representative at temps near 100*C +/- and that is good :)
R21 should be 1k2, not 1k1.
How is your temp sensor connected? Should be connected from either pin 13 or 14 and then to GND.
You should be able to read normal room temperature when motor is at room temperature. 100 degree at room temperature means something is not correct.
