Search found 113 matches

by FJ3422
Fri Mar 31, 2023 1:39 pm
Forum: Classifieds
Topic: Wanted BMW battery connector
Replies: 6
Views: 464

Re: Wanted BMW battery connector

Are available from BMW as a spare part, price is quite reasonable.
by FJ3422
Sat Apr 09, 2022 6:20 pm
Forum: Volvo
Topic: Volvo V60 battery pack
Replies: 43
Views: 20631

Re: Volvo V60 battery pack

Are you just sending the 0x1C, or together with the other commands for reading the cell voltages/temperatures ? - 0x16h (1byte, 100ms rate) requests specific slaves to report cell voltages (1Ah with incomplete pack, 1Bh when 10 modules connected) - 0X17h (1byte, 100ms rate) requests all slaves to re...
by FJ3422
Tue Mar 29, 2022 9:58 pm
Forum: Volvo
Topic: Volvo V60 battery pack
Replies: 43
Views: 20631

Re: Volvo V60 battery pack

Checked my notes again; it really should be the 0x01C telegram,3 bytes long, 100ms rate. - First byte: Module to balance (19,1A, 1B, 1C, 1D etc.) My note also says that 'FF' triggers all the modules to react. Original BMS-master cycles every 100ms to the next module, so the a triggered balancing wil...
by FJ3422
Sun Mar 27, 2022 7:45 pm
Forum: Tesla
Topic: Tesla SDU oil pump modification for reverse operation
Replies: 24
Views: 8490

Re: Tesla SDU oil pump modification for reverse operation

....One major problem I experienced was that tapping the pressure relief port, and drilling the new outlet created significant burring inside the shaft. I had to very carefully file these to allow the piston to move freely.... If you enlarge the hole with a small (3mm) carbide mill, use a spiral ty...
by FJ3422
Sun Mar 20, 2022 12:37 pm
Forum: Open Tasks
Topic: Tesla SDU/LDU Update
Replies: 54
Views: 16916

Re: Tesla SDU/LDU Update

johu wrote: Sun Mar 20, 2022 11:53 am
FJ3422 wrote: Thu Apr 01, 2021 11:21 am Sure, or course. Will check one of these days if the V7 is released yet, else just start from the V6.
Any update on that side?
No sorry, because of a lack of time I ordered a V7 from you a couple of months ago.
by FJ3422
Mon Mar 14, 2022 8:12 am
Forum: Hyundai/Kia
Topic: 800V Hyundai Ioniq 5 Battery
Replies: 13
Views: 6219

Re: 800V Hyundai Ioniq 5 Battery

Watch out a bit with the modern cell chemistries. I don't know if these are already NCM811, but thermal stability of low-cobalt cells is way less then your current rock-solid LGX-P1/P1.5 NCM111/NCM333 cells. The core-cell-temperature at which decomposition starts is way lower on the low-cobalt chemi...
by FJ3422
Mon Feb 07, 2022 3:10 pm
Forum: Volvo
Topic: Volvo V60 battery pack
Replies: 43
Views: 20631

Re: Volvo V60 battery pack

Did you found out how the ballancing works? If so can you tell me how it works. Yes, I got it working but unfortunately didn't fully document it. If I remember correctly; module addressing for balancing is in the sample code (shared earlier in this topic), arangement of cell-bits still has to be do...
by FJ3422
Thu Jan 27, 2022 9:52 pm
Forum: Volvo
Topic: Volvo V60 battery pack
Replies: 43
Views: 20631

Re: Volvo V60 battery pack

The V60 has 10S modules and uses can communication The V90 has 16S modules and uses "proprietary daisy chain interface" (catphish github). Correct ! Completely different design. V60 BMS has full insulation between LV / HV sides and onboard dc-dc converters for supplying the BMS-chip. So n...
by FJ3422
Sat Jan 01, 2022 8:33 pm
Forum: Projects
Topic: 1995 Golf 3 CitySTROMer with LDU and a lot of range
Replies: 20
Views: 4108

Re: 1995 Golf 3 CitySTROMer with LDU and a lot of range

If you are looking for these EQA 16S modules, I currently have 6 for sale due to some change of plans. You can contact me by PM.
They have nicely integrated watercooling. Celltap-connectors included, no BMS.
by FJ3422
Thu Dec 30, 2021 9:50 pm
Forum: Classifieds
Topic: Anyone parting out an i3 KLE?
Replies: 9
Views: 1680

Re: Anyone parting out an i3 KLE?

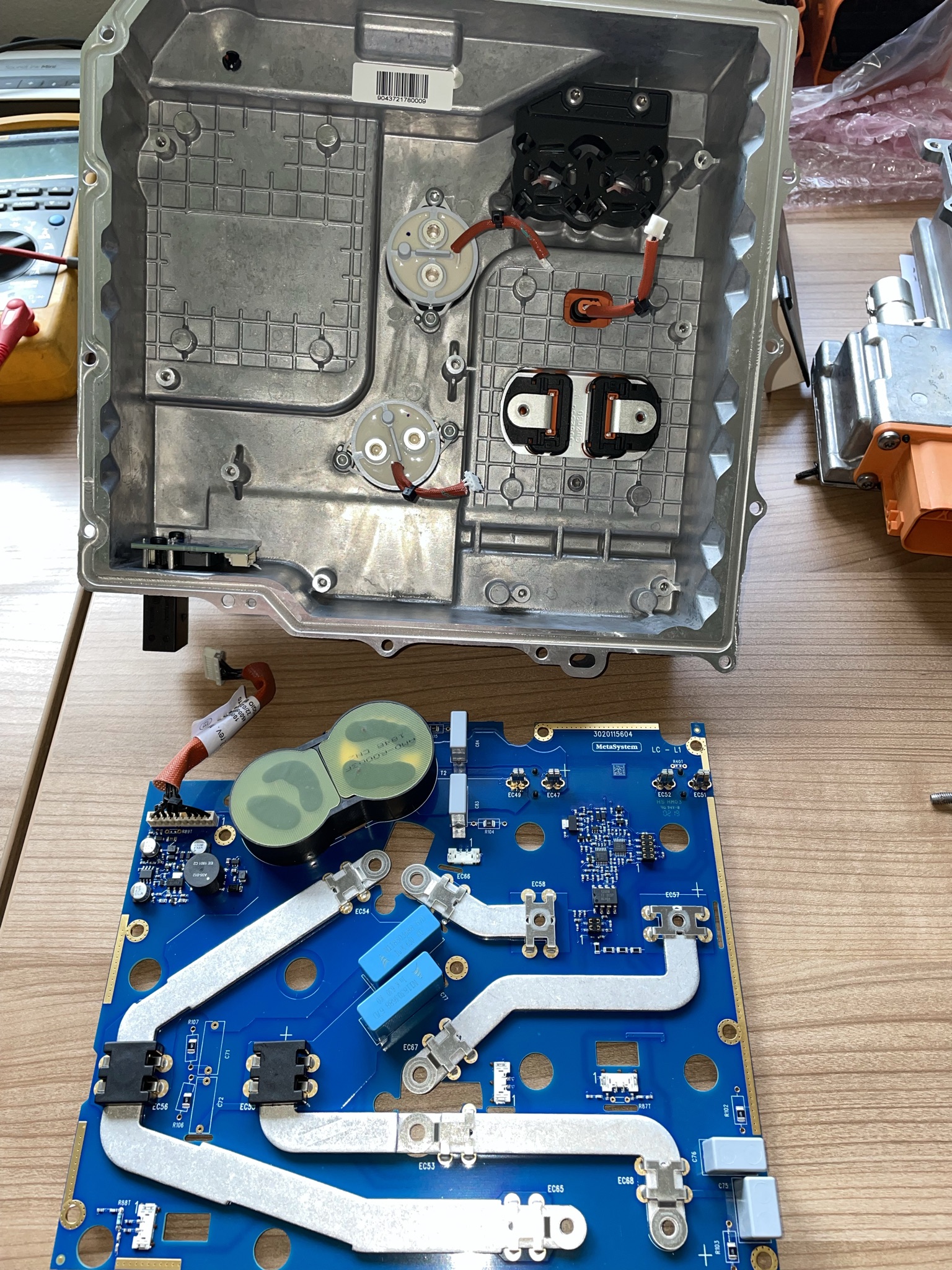

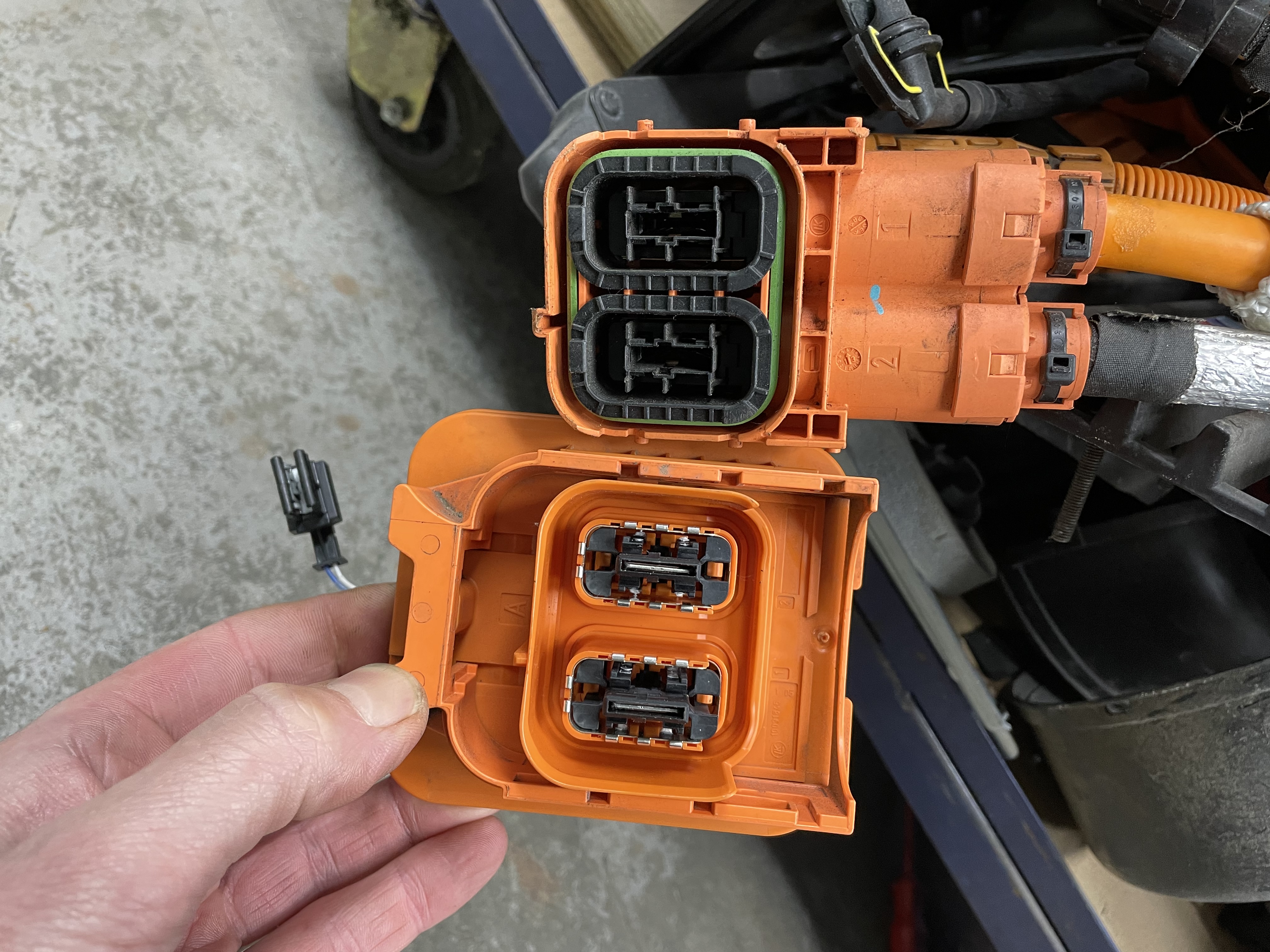

This is de rear of the connector in de newer KLE's
by FJ3422
Thu Dec 30, 2021 8:56 pm
Forum: Classifieds
Topic: Anyone parting out an i3 KLE?
Replies: 9
Views: 1680

Re: Anyone parting out an i3 KLE?

Have both here and just had a look; notch is unfortunately not at the right position. Also take into account that this chassis plug-in connections at the rear. Chassis of a KLE has M5 screws if I remember correctly.
by FJ3422
Thu Dec 30, 2021 6:28 pm
Forum: Classifieds
Topic: Anyone parting out an i3 KLE?
Replies: 9
Views: 1680

Re: Anyone parting out an i3 KLE?

Is this the connector at the i3 charging port cables ?
by FJ3422
Thu Dec 30, 2021 9:48 am
Forum: Classifieds
Topic: Anyone parting out an i3 KLE?
Replies: 9
Views: 1680

Re: Anyone parting out an i3 KLE?

Isn't it available at BMW as a sparepart ? I know the HV-chassis connector of the batterybox (330e, 530e, i3) is listed. Might be the same (watch out with the coding notches).
by FJ3422
Fri Dec 03, 2021 7:08 pm
Forum: Charging
Topic: BMW LIM based CCS2 Controller
Replies: 124
Views: 38766

Re: BMW LIM based CCS2 Controller

...Open to feedback if my PWM voltage to the LIM is a stupid idea as well.... Will that work ? If I understand correctly, the LIM uses the voltage measurement to verify the pre-charge voltage on the chargerside of the contactors to prevent contactor damage. So that is with the contactors opened. Ar...
by FJ3422
Fri Dec 03, 2021 11:35 am
Forum: Chevy/Opel/Vauxhall/PSA
Topic: GM / Chevrolet Volt Gen2 DC-DC converter
Replies: 43
Views: 15180

Re: GM / Chevrolet Volt Gen2 DC-DC converter

ggeter wrote: Thu Dec 02, 2021 8:54 pm Do we need to pre-charge this unit? Or can I just put a 400v/80a relay on the main supply and just flip it when I turn on everything else?
Did not check that (yet). But it's easy to check; look at the PCB and see if there is a current-limiting device between the HV-connector and the HV-capacitors.
by FJ3422
Fri Oct 22, 2021 11:28 am
Forum: Mitsubishi
Topic: Mitsubishi Outlander PHEV heater
Replies: 145
Views: 29778

Re: Mitsubishi Outlander PHEV heater

Received mine yesterday and immediately tried some things; - 0x398 byte0 goes 00->01 as soon as 0x285h is received. - 0x398 byte4 seems to be inlet temperature - 0x398 byte5 seems to be outlet temperature - 0x398 byte7 h70 when HV is <175Vdc, h00 when HV >175Vdc. So 175V seems to be the low-voltage ...
by FJ3422
Fri Oct 15, 2021 1:24 pm
Forum: VW (VAG, Volkswagen, Audi, Porsche etc.)
Topic: Porsche Taycan Battery
Replies: 16
Views: 9568

Re: Porsche Taycan Battery

BMS seems to be built around the NXP MC33664 / MC33771, configured in 4 strings. Got a BMS-master here for reverse-engineering. Does someone have the full datasheet of these IC's available ? The basic datasheet is available at the NXP website, the full one (in which I hope to find the protocol descr...
by FJ3422
Fri Oct 15, 2021 1:18 pm
Forum: BMW
Topic: BMW i3 11kW KLE onboard charger multi-phase
Replies: 9
Views: 3370

Re: BMW i3 11kW KLE onboard charger multi-phase

Anyone done any investigation on this unit, also on non CCS AC only onboard charger. Just a prod -- I'm keen on using one of these as it looks like a really neat package for CCS as well as AC charging. Have you managed to get any can logs? Not yet. I hoped to find a 3-phase 11kW charger in this thi...
by FJ3422
Sun Oct 10, 2021 8:04 am
Forum: General
Topic: Home built Charger from laptop PSU's
Replies: 4
Views: 1059

Re: Home built Charger from laptop PSU's

Also take into account that the most of the heavier laptop PSU's have a PE-connection on the mains for the internal mains filter. Those filters have Y-capacitors from L/N to PE for filtering purposes but that also leads to some leakage current to PE (0,5...2mA). If connecting a lot of them in parall...
by FJ3422
Sun Oct 10, 2021 7:56 am
Forum: Projects
Topic: Smart 450, Tesla powered.
Replies: 17
Views: 3883

Re: Smart 450, Tesla powered.

Unfortunately, these connectors don't expose normal serial, only a proprietary link, ... What do you mean with the 'proprietary link'' ? Isn't that the CAN-bus between the slaves (that's the interface I used)? Do you have a picture of your BMS-slave boards ? If the BMS is designed by LGchem like al...
by FJ3422
Sun Oct 10, 2021 7:48 am
Forum: Chevy/Opel/Vauxhall/PSA
Topic: GM / Chevrolet Volt Gen2 DC-DC converter
Replies: 43
Views: 15180

Re: GM / Chevrolet Volt Gen2 DC-DC converter

Yes I connected a small battery on the output. That might probably be needed to let it start. I can't remember the PWM frequency, but I used the same as on the output (which you can measure). Given the fact that the charger uses 100Hz, I guess the DCDC also takes 100Hz. Hi i have a question again. ...
by FJ3422
Sun Oct 10, 2021 7:40 am
Forum: General
Topic: PCB Routeing
Replies: 6
Views: 1403

Re: PCB Routeing

If you are new to PCB-designing, IMHO better not start with DesignSpark but use KiCad. KiCad has default no autorouting, but after a few practices manual routing works very well and you can immediately take thing into account like track width for power lines, ground planes, insulation distance, some...
by FJ3422
Sun Sep 26, 2021 12:20 pm
Forum: Charging
Topic: BMW LIM based CCS2 Controller
Replies: 124
Views: 38766

Re: BMW LIM based CCS2 Controller

bitterandreal wrote: Sun Sep 26, 2021 8:32 amAre those 15 ohm resistors (R21, R22) actually capable of handling constantly 12W (~900mA @ 13.4V)?
Assuming BMW followed the datasheet of the TE contactors they will be PWM fed with a 50% dutycycle, so dissipation will be half that. But anyway, 2x6W will generate quite some heat on the PCB..
by FJ3422
Thu Aug 19, 2021 7:49 am
Forum: Classifieds
Topic: FS: LGchem hybrid batterypacks 100s2p 30Ah 11kWh pouch
Replies: 0
Views: 568

FS: LGchem hybrid batterypacks 100s2p 30Ah 11kWh pouch

Bought for my BMW E30 conversion, but switched to an iPace pack during the project. Packs are from Volvo V60 PHEV Hybrid cars. Each pack consists of 10 modules each containing a 10s2p configuration. 11,2kWh for a full pack. Weight around 11Kg per module. Containing the same sturdy LGchem pouch cells...
