Search found 55 matches

by VWJoe
Wed Nov 15, 2023 2:08 pm
Forum: Classifieds
Topic: Wanted Olimex to Wemos adapter board for zombieverter
Replies: 3
Views: 2836

Re: Wanted Olimex to Wemos adapter board for zombieverter

Yep, I have one, send me your address in a PM and I will post it out.

Joe
by VWJoe
Wed Jul 12, 2023 6:25 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

joeflickers wrote: Mon Jul 10, 2023 7:42 pm
Thanks for the response, are you able to share with me your screenshot settings

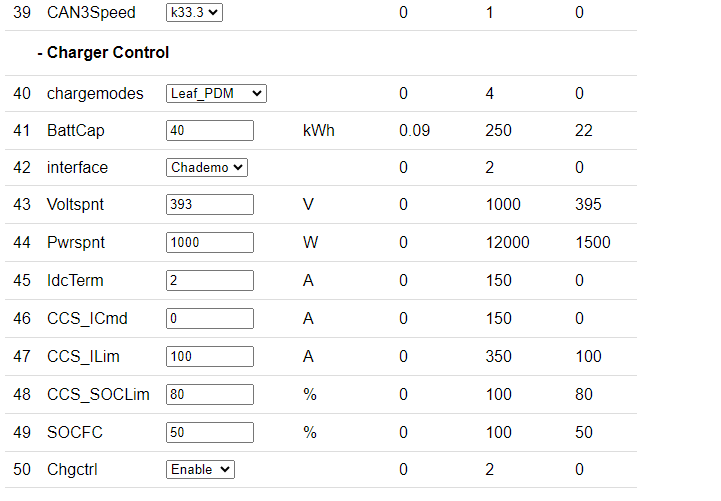

Here is the charging para screenshot.
Screenshot 2023-07-12 192355.png
by VWJoe
Tue Jul 11, 2023 6:30 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

Thanks for the response, are you able to share with me your screenshot settings, the pdm I have is from a 2013 leaf, I'm struggling to know if it's compatible with the zombie or not... When I power the pdm with 12 volts it transmitts CAN-Bus (0*390. 0*393.and 0*678) but, the evse from the original ...
by VWJoe
Mon Jul 10, 2023 7:01 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

Hi, On version 1.08A all is working fine, Using Ext_Digi to start the charging. Main contactors shut and relay in the PDM makes and AC charging commences. (I'm using Ext_Digi to start charging as I have found the auto method upset the next T15/ Starter starting process). Uploaded 1.11A and without ...
by VWJoe
Tue Jun 20, 2023 6:31 pm
Forum: Battery Managment (BMS)
Topic: Peugeot e-208 CATL modules BMS interface [SOLVED]
Replies: 86
Views: 26962

Re: Peugeot e-208 CATL modules BMS interface [SOLVED]

m.art.y wrote: Tue Jun 20, 2023 9:09 am Hi, anybody know the dimensios of these modules? Thanks
Hi,
W 150mm, L 390mm, D 115mm
around 12.5 Kg
2.74 kWh 6S
using in module MAX17823 salve / BMS MAX17841B Master for comms. Daisy chained.
by VWJoe
Tue Apr 18, 2023 5:57 pm
Forum: Vehicle Control (VCU)
Topic: Initializing a new ISA shunt with ZombieVerter
Replies: 10
Views: 4066

Re: Initializing a new ISA shunt with ZombieVerter

Looked through the ISA shut config code from the ZombieVerter VCU and didn't notice the CAN bitrate configuration. Wanted to confirm, the shut bitrate is kept at the default 500bps to talk to the VCU? Thanks in advance. Yep, I have the shunt on the same bus as the leaf motor running at 500 kbps. Ju...
by VWJoe
Thu Mar 30, 2023 7:13 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

In our setup (gen 2) we are not relying on the pdm for any communication due to the zombieverter taking charge of this, so could we bypass that logicboard and wire direct to the contactor relay coils? Are these Pin 8 (Violet) Quick Charger Relay +ve and Pin 24 (Sky Blue) Quick Charge Relay -ve? On ...
by VWJoe
Tue Mar 21, 2023 7:08 pm
Forum: Nissan
Topic: Gen 3 Stack wiring Power On Power Supply
Replies: 2
Views: 573

Gen 3 Stack wiring Power On Power Supply

Just notice a thing with my Gen 3 stack, I have it wired to a Zombieverter, with INV Pin 1 (green) and PDM Pin 18 (Red) connected to Batt Pos. INV Pin 18 (Light Green) and PDM Pin 15 (Violet) are connected to a relay controlled by Inverter Power LS Switch on the Zombieverter. All works OK, but I hav...
by VWJoe
Thu Mar 09, 2023 7:56 pm
Forum: Projects
Topic: [WIP] Voltswagen T2 -76
Replies: 119
Views: 26487

Re: Voltswagen T2 -76

Yeah... :( I've been considering those urethane bushing kits, but I've not heard/read about anyone using them so I dunno. I'm bit afraid they won't last very long. But if I'll end up using these same arms then I'll most likely go with those. Bus-ok does sell the inner bushings: https://www.bus-ok.d...
by VWJoe
Thu Mar 09, 2023 7:53 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

catphish wrote: Wed Mar 08, 2023 9:35 pm Attached is firmware 1.11.Z. This is a test build I've just compiled from the latest firmware from Github, including the fix for Chademo CAN3 speed selection (revision f48649c59c53d06d599ab573bd4f80f742622df3), and with my fix for the leaf v2 PDM included.
Thanks, I will give it a go soon.
by VWJoe
Wed Mar 08, 2023 3:34 pm
Forum: Projects
Topic: [WIP] Voltswagen T2 -76
Replies: 119
Views: 26487

Re: Voltswagen T2 -76

Current plan is to clean the axle beam properly inside out, then use an endoscope to check the inner bushings on which the scratched section of the torsion arms rides on to see how damaged they are. Apparently replacing those is not easy, parts aren't being made anymore and damaging the bakelite sl...
by VWJoe
Wed Mar 08, 2023 10:08 am
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

Yeah, it worked in 1.08, then broken in 1.09 by this commit: https://github.com/damienmaguire/Stm32-vcu/commit/b360787d8fd5c2cbb8e1c5cb5997856d23f8a043 I fixed it again, but my fix hasn't been merged yet: https://github.com/damienmaguire/Stm32-vcu/pull/46/files Thanks for this, I have not managed t...
by VWJoe
Mon Mar 06, 2023 6:43 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

catphish wrote: Mon Mar 06, 2023 1:56 am Are you using a leaf Inverter, or just the PDM? If you use both, you may need this patch: https://github.com/damienmaguire/Stm32-vcu/pull/46
Thanks for this, I will have to do a bit more investigating. It was working well on 1.08.
by VWJoe
Thu Feb 23, 2023 7:34 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

As for AC charging we have our system working fine, What issues are you experiencing? Is your zombie recognising the plug is being inserted? Damien has a very good guide on the wiki about ac charging using the leaf pdm & Zombie, perhaps worth checking out if you haven't already. [/quote] Hi, On ...
by VWJoe
Tue Feb 21, 2023 7:01 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

Good to see Chademo working with Zombieverter, a big thank you to all involved in this.

Can't test the chademo at the moment as the system is not in the car, but just uploaded 1.11A , but could not get the AC charging working using Zombieverter and a leaf PDM, has anyone else had a similar problem?
by VWJoe
Tue Feb 14, 2023 7:32 pm
Forum: Vehicle Control (VCU)
Topic: ZombieVerter - Setting idcmax / min via Can Bus
Replies: 2
Views: 3073

Re: ZombieVerter - Setting idcmax / min via Can Bus

johu wrote: Mon Feb 13, 2023 9:18 pm Are you using SDO? The current release of ZombieVerter has an issue with SDO, it won't receive it. Will be fixed soon.
Hi,

Yep trying to use SDO, thanks for the update, look forward to the update.

Thank you
by VWJoe
Mon Feb 13, 2023 7:32 pm
Forum: Vehicle Control (VCU)
Topic: ZombieVerter - Setting idcmax / min via Can Bus
Replies: 2
Views: 3073

ZombieVerter - Setting idcmax / min via Can Bus

On the system I'm designing the BMS calculates the maximum current that can be drawn from or supplied to the HV battery using cell temp and cell voltage. I'm trying to send this value to the idcmax and idcmin param, but it does not seem to be working. I have tried the wiki description, but I must be...
by VWJoe
Thu Feb 09, 2023 7:19 pm
Forum: Vehicle Control (VCU)
Topic: Main contactor not closing
Replies: 7
Views: 3610

Re: Main contactor not closing

Just something to try, check what the charger mode is set to, as I have been having problems with the main contactor making when it is set to Volt_Ampera. This happens when the starter is pressed, the Neg contactor makes and pre-charge, but the main Pos does not stay in. When charger mode is set to ...
by VWJoe
Wed Feb 08, 2023 9:34 pm
Forum: Vehicle Control (VCU)
Topic: Chademo Leaf PDM & Zombieverter!
Replies: 57
Views: 10339

Re: Chademo Leaf PDM & Zombieverter!

Following my previous reply here is some supporting info.. attached are my pinouts for the pdm (Gen2) and also the pinout i'm using for my fast charge plug. As you can see my pdm plug is missing pins which are in the schematics posted. but does have fast charge related pins. Do you have the descrip...
by VWJoe
Thu Jan 05, 2023 2:56 pm
Forum: Projects
Topic: [WIP] Voltswagen T2 -76
Replies: 119
Views: 26487

Re: Voltswagen T2 -76

Looking at other things while waiting for the chassis. I ordered Zombieverter almost 6mo ago and haven't really done anything to it since it arrived. Today I checked on the BOM and schematics to list what I'm missing from the board and it seems: 1x MCP25625T-E_ML (IC10) 2x AD5160BRJZ10-RL7 (IC21, I...
by VWJoe
Tue Dec 13, 2022 10:27 pm
Forum: Vehicle Control (VCU)
Topic: Zombieverter always on, although ignition off
Replies: 11
Views: 3786

Re: Zombieverter always on, although ignition off

I suppose I'm always looking for the simplest/crudest solution, but could you just have a manual switch in the car to control power to the VCU? Then you can turn it on when you're about to drive or charge, and turn it off when you're leaving the car out of use to save battery drain. Alternatively h...
by VWJoe
Tue Dec 13, 2022 8:35 pm
Forum: Vehicle Control (VCU)
Topic: Zombieverter always on, although ignition off
Replies: 11
Views: 3786

Re: Zombieverter always on, although ignition off

I'm running a leaf stack Gen 3 and the PDM regardless if the switched 12 volt is on or off still pull 0.5 amp, so I plan to have the PDM. INV, Zombieverter, and Shunt switch off when not in use. I plan to have a Power management board that monitors the doors, charge flag, and T15 to switch on the sy...
by VWJoe
Mon Dec 12, 2022 12:10 pm
Forum: Battery Managment (BMS)
Topic: Peugeot e-208 CATL modules BMS interface [SOLVED]
Replies: 86
Views: 26962

Re: Peugeot e-208 CATL modules BMS interface [SOLVED]

Hi everyone. Where can I purchase a MAX17841 interface board? I have 4 CATL 6s2p modules and would ideally like to make use of the integrated BMS boards. I have a little Arduino experience and have seen the code posted on the forum. I am just having trouble sourcing the MAX17841 board. Also, where ...
by VWJoe
Thu Dec 01, 2022 10:07 am
Forum: Battery Managment (BMS)
Topic: Peugeot e-208 CATL modules BMS interface [SOLVED]
Replies: 86
Views: 26962

Re: Peugeot e-208 CATL modules BMS interface [SOLVED]

Hi! No updates ? Did somebody created arduino code for reading data of slave BMSs ? Hi, Yep code can be found in this thread https://openinverter.org/forum/viewtopic.php?p=20335#p20335 I've rewritten this code for my project (using the Peugeot Battery), it needs a bit of tidying before I publish it...
by VWJoe
Mon Nov 21, 2022 7:32 pm
Forum: Vehicle Control (VCU)
Topic: ZombieVerter VCU Support
Replies: 915
Views: 327041

Re: ZombieVerter VCU Support

crasbe wrote: Mon Nov 21, 2022 6:39 pm As promised, here is the preliminary binary with revision 1.08A. This binary is ONLY for VWJoe for testing! It's NOT an official release!
Thank you crasbe, just tested works forward and reverse.

Again thank you to everyone involved, it's very much appreciated.
